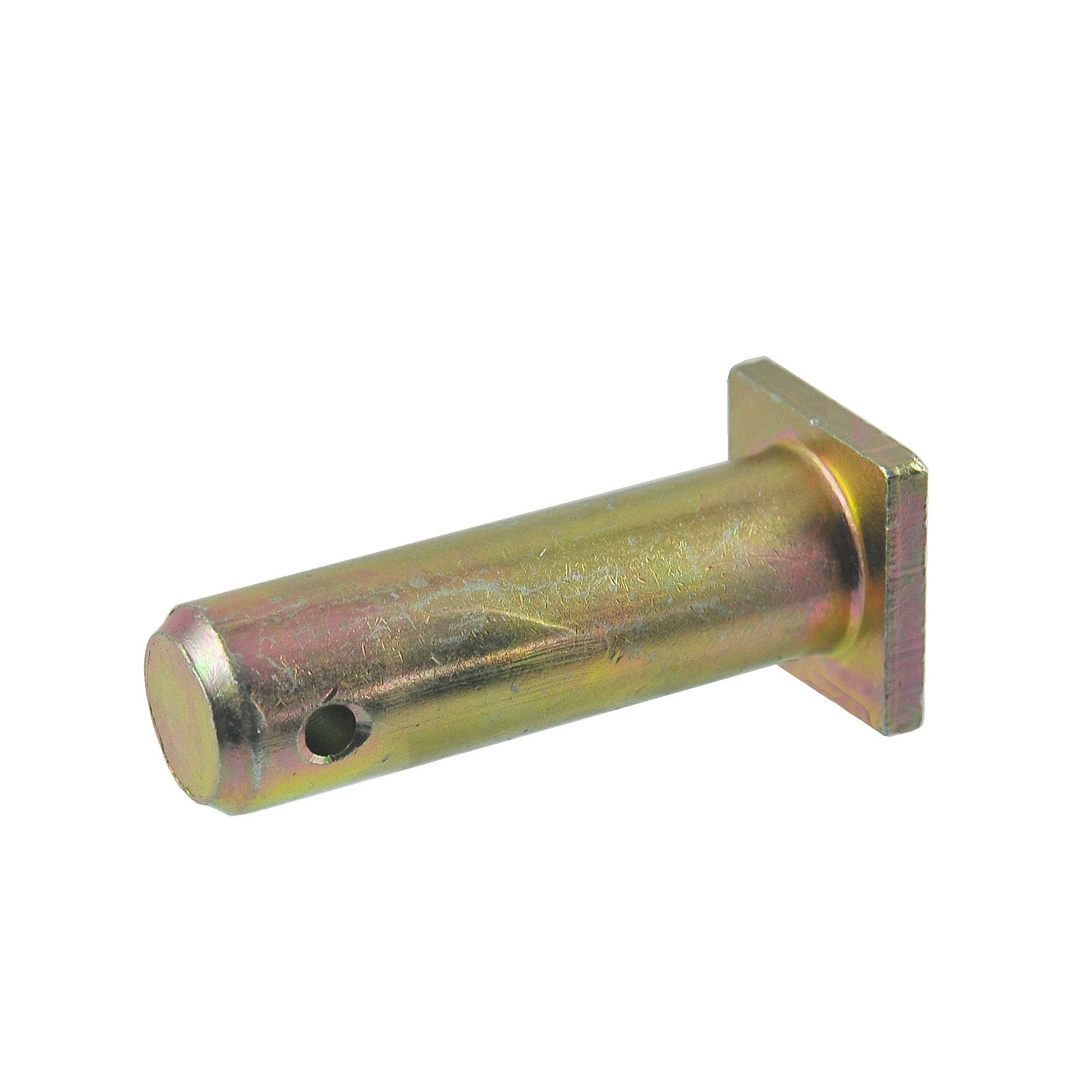

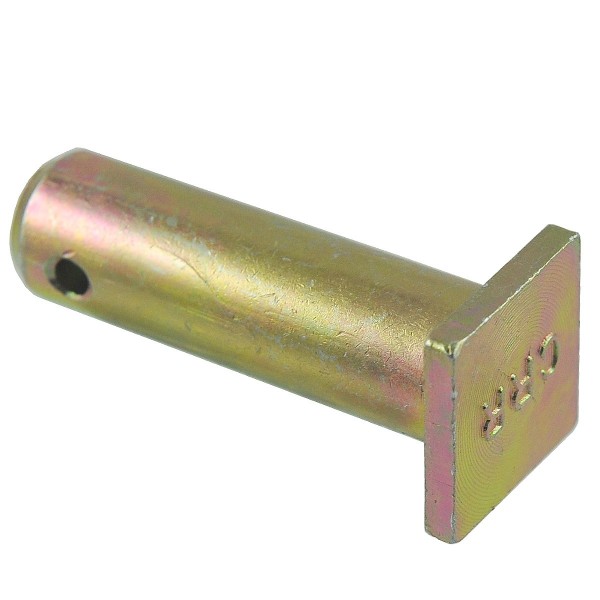

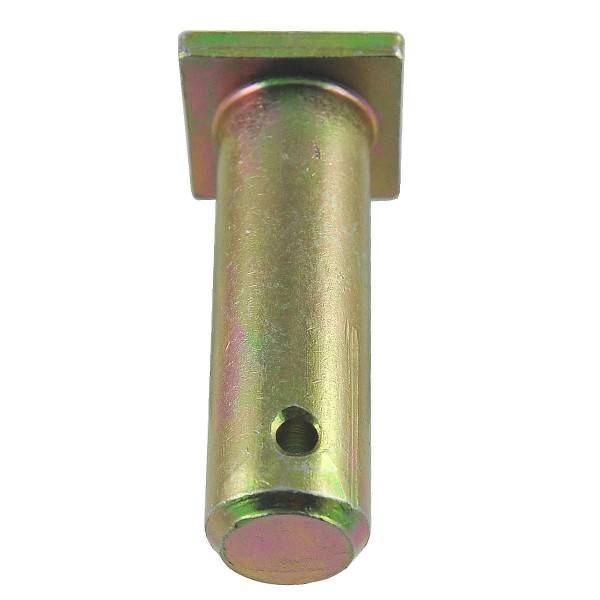

Linkage pin / CAT I / 22 x 78 mm / Kubota M7040/M9000/M9540 / 36530-91543 / 5-25-102-27

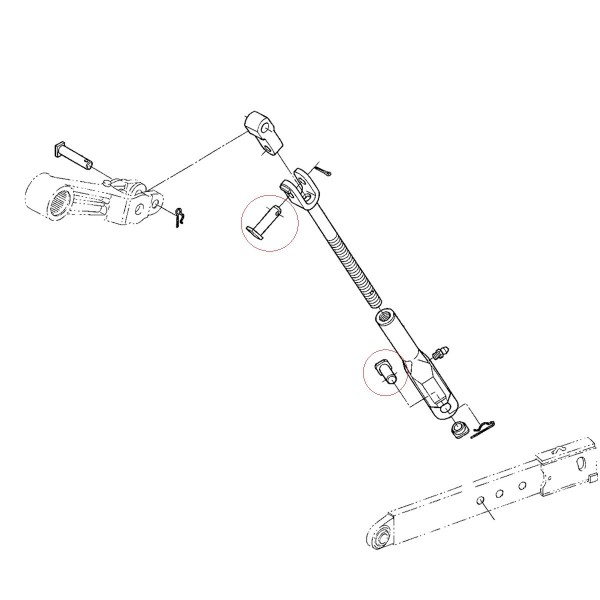

Pin for the upper linkage arm and lower beam (three-point linkage, cotter pin 33251-91860) with a working length of 60 mm and a diameter of 22 mm for Kubota tractors of the Kubota M7040, Kubota M9000, Kubota M9540 series and others.

(pin 33251-91860, right arm 5-02-113-28, 3C001-82952, left arm 5-02-113-29, 3C001-82963, lower arms (lasers) left 5-02-111-26, right 5-02-111-27)

A pin is one of the most common ways to connect (not rigidly) elements, accessories or a set of parts. A pin connection is most often a cylinder made of a hard material resistant to damage and temperature, which, depending on the application, can be loosely or tightly fitted with a second element closing the connection, e.g. a shackle, a screw with a "U" type handle or a mounting plate and most often closed with a pin placed in the pin hole or a locking nut. We distinguish several types of pins, here are the most common:

• without a head,
• nasal,
• with cylindrical head,
• with threaded pin.

Dimensions :

• total length: 78 mm,
• working length: 60 mm,
• diameter: 22 mm,

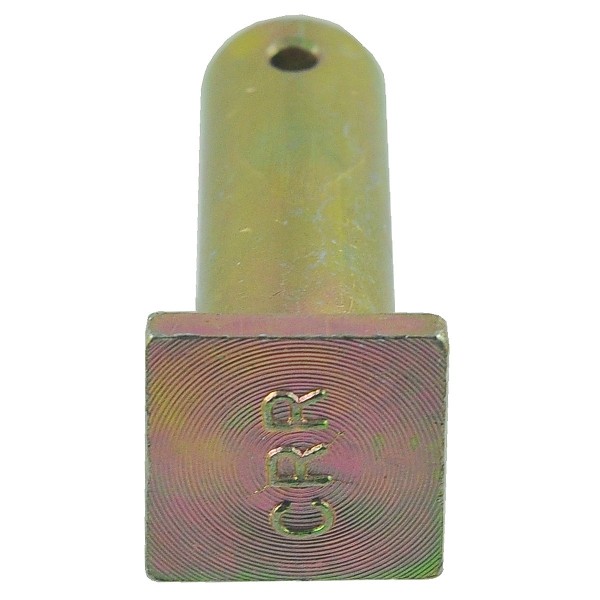

• head dimensions: 32 x 32 mm,
• original part numbers: 36530-91543,
• part numbers: 5-25-102-27.

Tractor models :

Kubota :

• Kubota M7040,
• Kubota M9000,
• Kubota M9540.

Warehouse :
M01:A64:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
