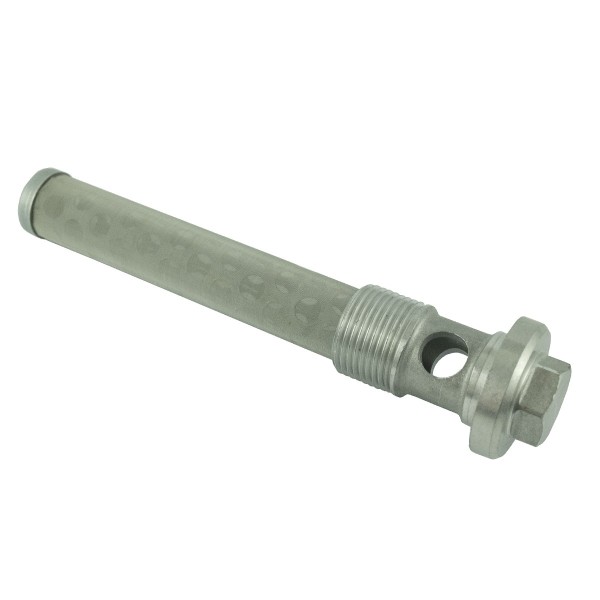

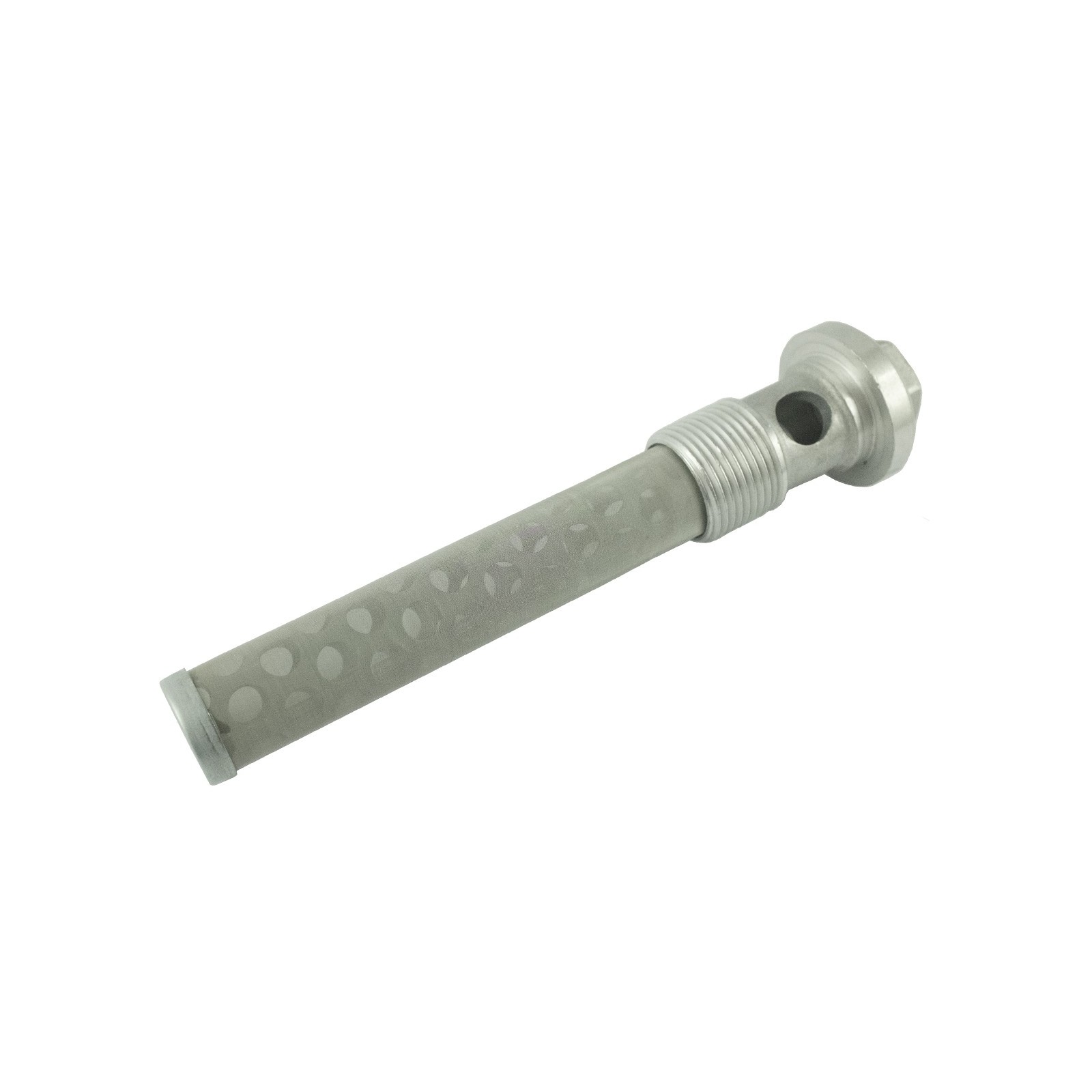

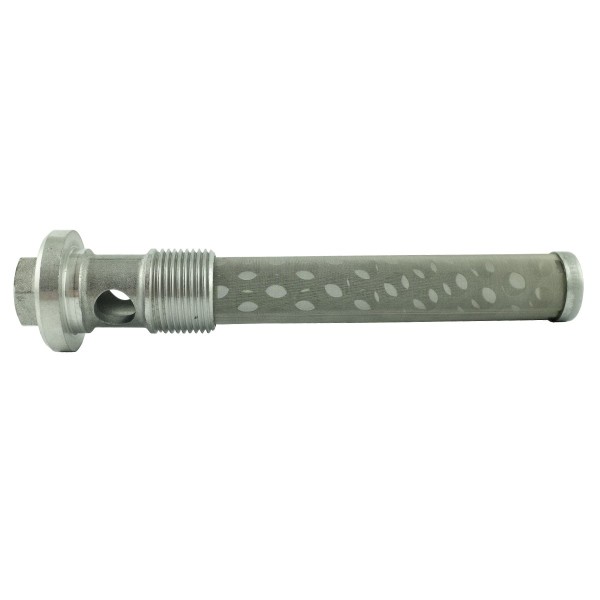

Hydraulic oil filter Iseki TU1600 / 24 x 182 mm / M28 x 2 / INSERT

182 x 24 mm hydraulic oil strainer with M28 x 2.00 cylindrical thread for Japanese Iseki tractors and mini tractors of the TU series and others.

The hydraulic oil filter element is most often placed directly in the tractor's gearbox or in the hydraulic system and is designed to catch larger impurities. The mesh filter is often called a prefilter and is sometimes the only filter in the system. Most often, in addition to the mesh filter, the tractor's hydraulic system includes two or three standard, screw-on hydraulic filters . There are also many models on the market in which the mesh filter is the only filter of the system. The mesh filter of the hydraulic box is replaced only when it is mechanically damaged. The mesh filter is a filter that, if cleaned regularly (e.g. with hot water under pressure), can be successfully used for many years.

Dimensions:

• total length: 182 mm
• diameter: 24mm,
• thread: M28 x 2.00,
• thread length: 18 mm,
• spanner size: 22.

Tractor models :

Iseki :

• Iseki TU1600

Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter is a guarantee of trouble-free operation of the machine and the certainty that there are no foreign objects in the hydraulic system that may damage our tractor or negatively affect the operation of the machine by reducing its operating parameters. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's instruction manual and it is usually after the first 50 hours of operation (at least 3 cycles). The hydraulic filter is most often a metal filter with a thread and a gasket , which is mounted near the tractor box exactly in the oil flow of the hydraulic system , usually from the bottom of the box or under the floor of our tractor. The main task of the hydraulic filter is to clean the hydraulic oil, stop all impurities that get into the hydraulic system or are generated during the use of the tractor, e.g. solid (mineral) particles that are generated during the operation of the machine. We change the standard screw-on hydraulic filter every time we change the hydraulic oil or when the vehicle is used frequently, for mini tractors it is approximately every 100 hours for used tractors. The cartridge of the hydraulic filter, the so-called we replace the mesh filter only when it has been mechanically damaged.
