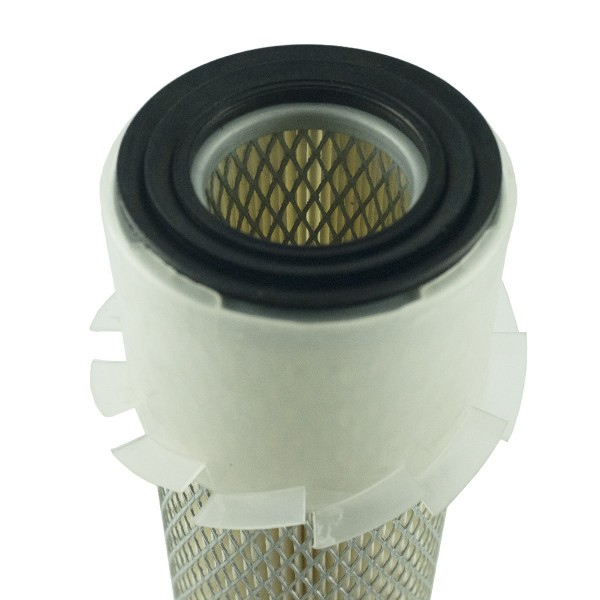

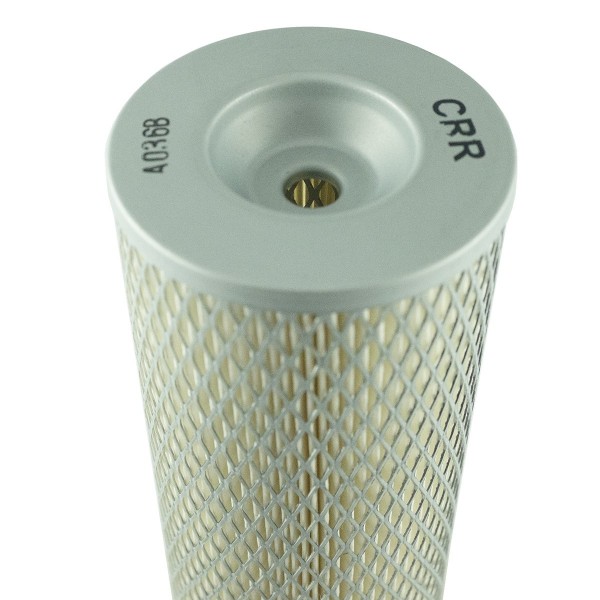

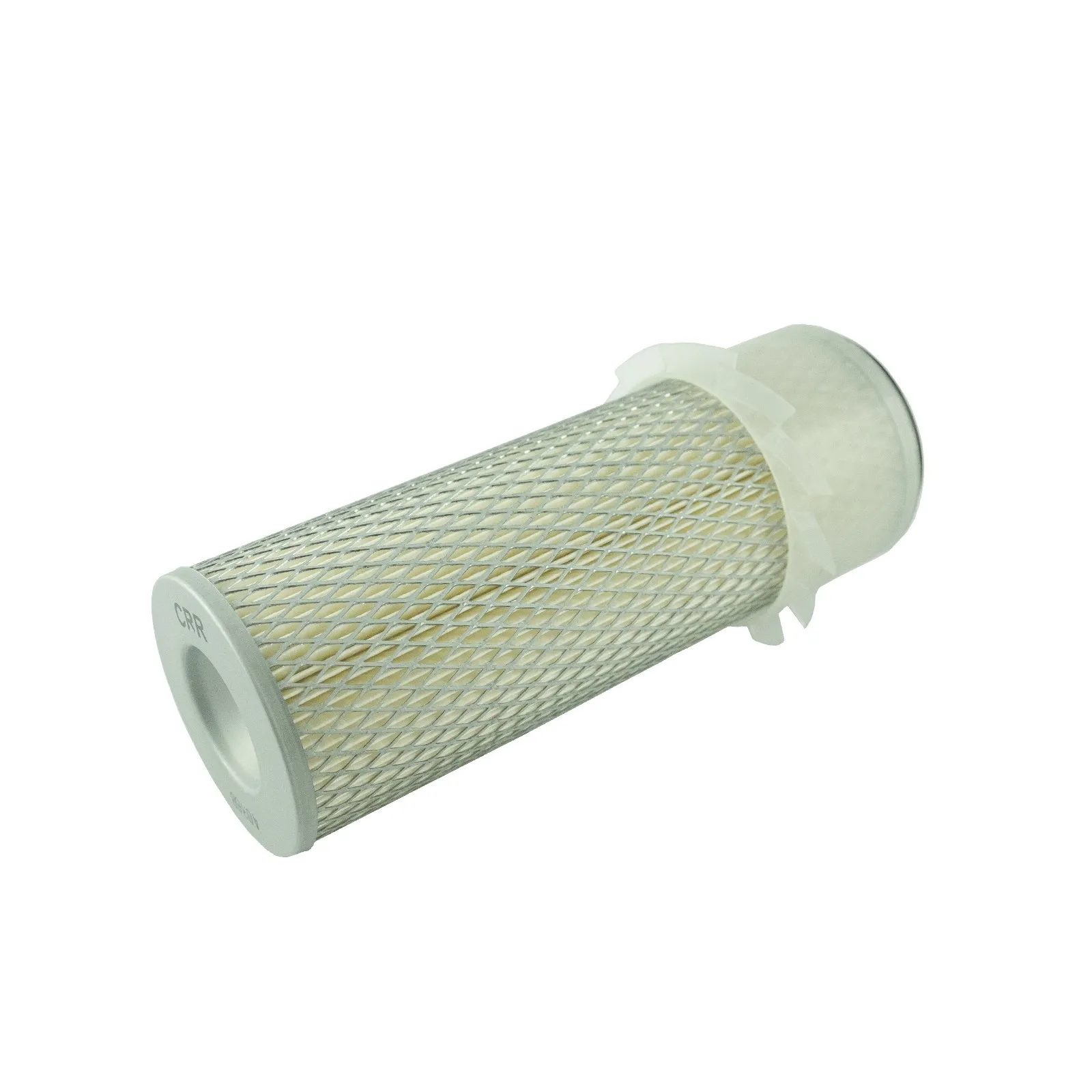

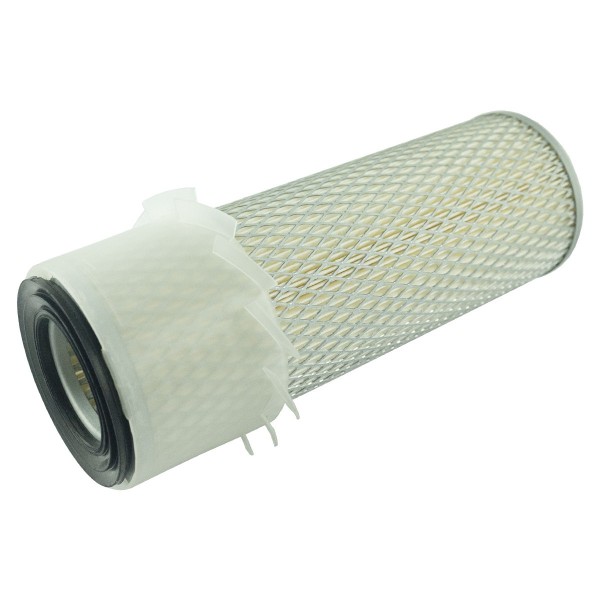

Iseki air filter 83 x 240 mm / Iseki TU180 / TS1910 / TL1900 / 9-01-101-01

240 x 83 mm air filter for Japanese Kubota , Mitsubishi , Yanmar F series, Mitsubishi MT series, Iseki TU series and others, e.g. Case .

The air filter is an element that is placed in the string of the air supply line to the intake manifold. The air filter is usually placed in a plastic or metal housing and often consists of two elements. The task of the air filter is to thoroughly and precisely eliminate various types of airborne contaminants. Purified air has a direct impact on the correct operation of the engine and its individual components. The first signs of wear on an air filter are a reduction in engine performance as a clogged filter lets less air flow in for the engine to function properly. Always replace the air filter in accordance with the recommendations of the filter or tractor manufacturer and more often if the tractor operates in particularly difficult conditions.

Dimensions :

• height: 240 mm.
• bottom hole diameter: 44 mm.
• top hole diameter: 11 mm.
• outer diameter: 83 mm.
• outer diameter with plastic housing: 97 mm.
• comparative numbers: 1422152-23000, 1444101-37000, NA 267, 1444-101-3700-0, 1510-103-3000-0, 16546-L1610, SL 8762.

Tractor models :

• Iseki TU180,
• Iseki TU185,
• Iseki TE4270,
• Iseki TL1900,
• Iseki TS1510,
• Iseki TS1910,
• Iseki TS2205,

The first signs of wear on an air filter are a reduction in engine performance as a clogged filter lets less air flow in for the engine to function properly. Always replace a dirty, clogged air filter in accordance with the instructions of the filter or tractor manufacturer, and more often if the tractor operates in particularly difficult conditions.
