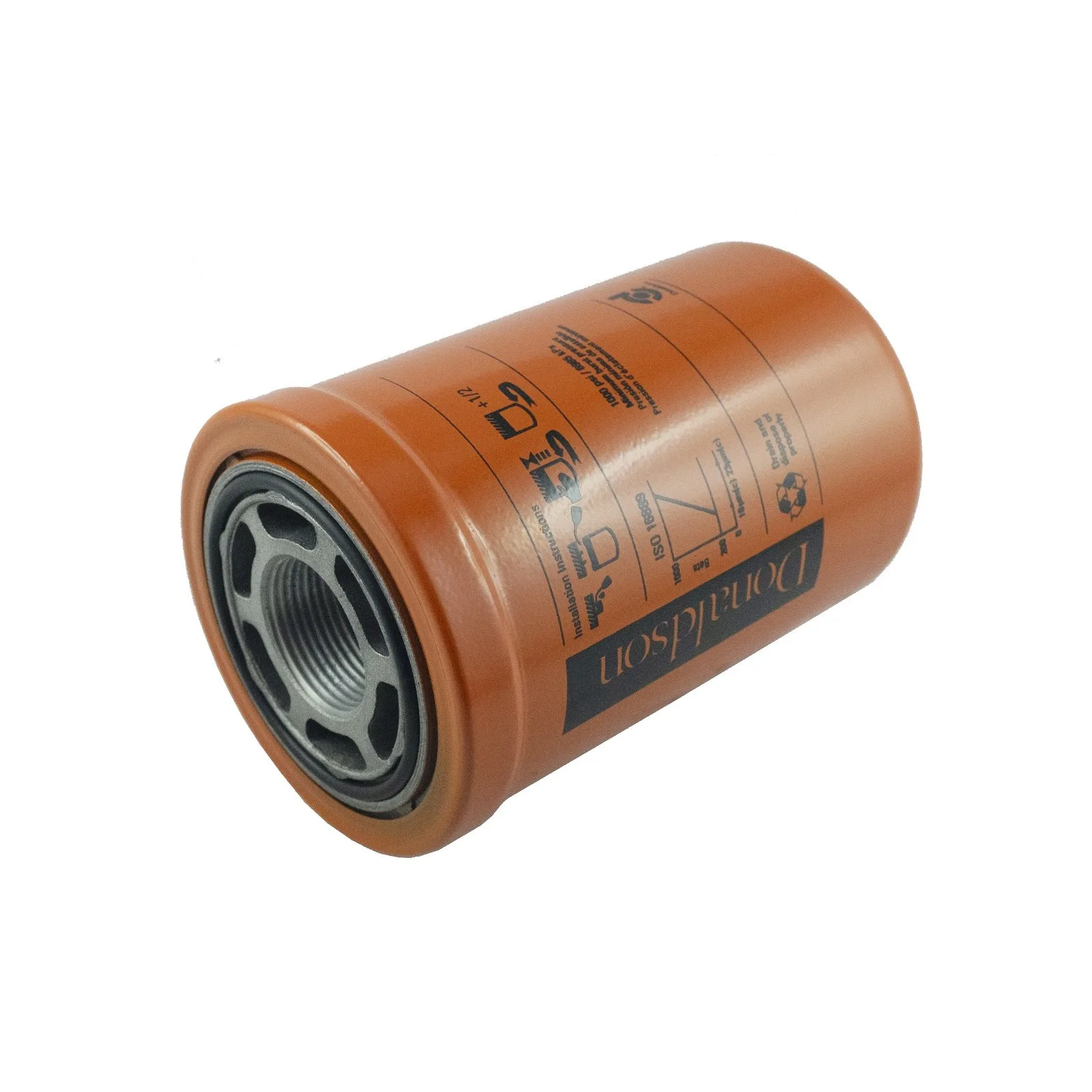

Hydraulic oil filter LS Tractor TR640 / MT3.50 / MT3.55 / MT3.60 / 40383187

Hydraulic oil filter , dimensions 153 x 84 mm, for LS Tractor tractors and mini tractors , MT3.50, MT3.55, MT3.60 series and others

The main purpose of the hydraulic filter is to clean the hydraulic oil, stopping all impurities that enter the hydraulic system or are created during the use of the tractor, e.g. solid (mineral) particles that are formed during the operation of the machine. We replace the hydraulic filter every time we change the hydraulic oil or when the vehicle is frequently used, in the case of mini tractors, approximately every 100 operating hours in the case of used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's operating manual and usually after the first 50 operating hours (at least 3 cycles). The hydraulic filter is most often a metal filter with a thread and a gasket , which is mounted near the tractor's box, exactly within the hydraulic system oil flow, most often from the bottom of the box or under the floor of our tractor. Regular replacement of the hydraulic filter is a guarantee of trouble-free operation of the machine and the certainty that in there are no foreign bodies in the hydraulic system that could damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.

Dimensions :

• outer diameter: 84 mm,
• base diameter: 87 mm,
• total height: 153 mm,
• thread: 1"-3/8-12UNF,
• seal diameter: internal 52 mm, external 60 mm,
• weight: 1.040 kg,
• comparison numbers: SH 66381, P164381.

Tractor model :

LS Tractor :

• LS MT3.50,
• LS MT3.55,
• LS MT3.60.

Regular replacement of the hydraulic filter guarantees trouble-free operation of the machine and ensures that there are no foreign bodies in the hydraulic system that may damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.
