Engine oil filter 504182851 / LS PLUS70 / LS PLUS80 / LS PLUS90 / LS Tractor / 40199026

Engine oil filter with thread for LS Tractor series LS PLUS 70, LS PLUS 80, LS PLUS 90 and others.

An engine oil filter is a crucial component of the lubrication system, its main task being to remove organic and mineral contaminants from the oil circulating in the engine. A metal, screw-on oil filter is primarily designed to remove even the smallest contaminants from the oil, down to 1/50th of a millimeter in size. The filter's design is very simple and consists of a threaded metal housing with a paper insert arranged in a concertina pattern to increase the filtering surface area. Oil contamination most often arises from organic contaminants, oil breakdown during operation, fuel residue, or oxidation byproducts. Mineral contaminants include airborne contaminants and metal particles that enter the engine during operation.

Dimensions :

• height: 95 mm,
• diameter: 93 mm,
• base diameter: 95 mm,
• gasket diameter: outer 70 mm, inner 61 mm,
• thread: M27 x 2.00,
• weight: 0.520 kg,
• part number: 504182851, 504182851L, 40199026, 40196723.

Tractor models :

LS Tractor :

• LS PLUS70,
• LS PLUS80,
• LS PLUS90.

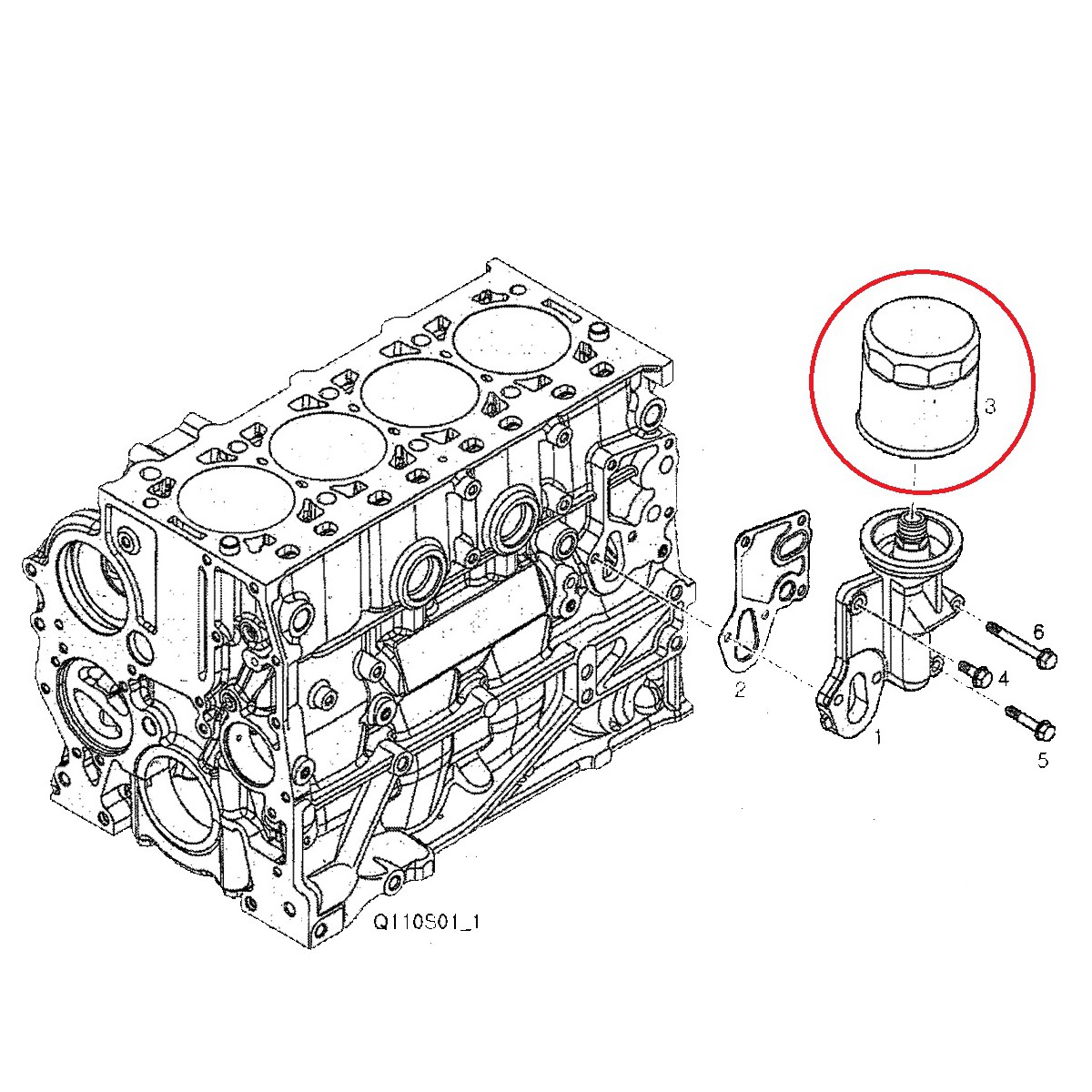

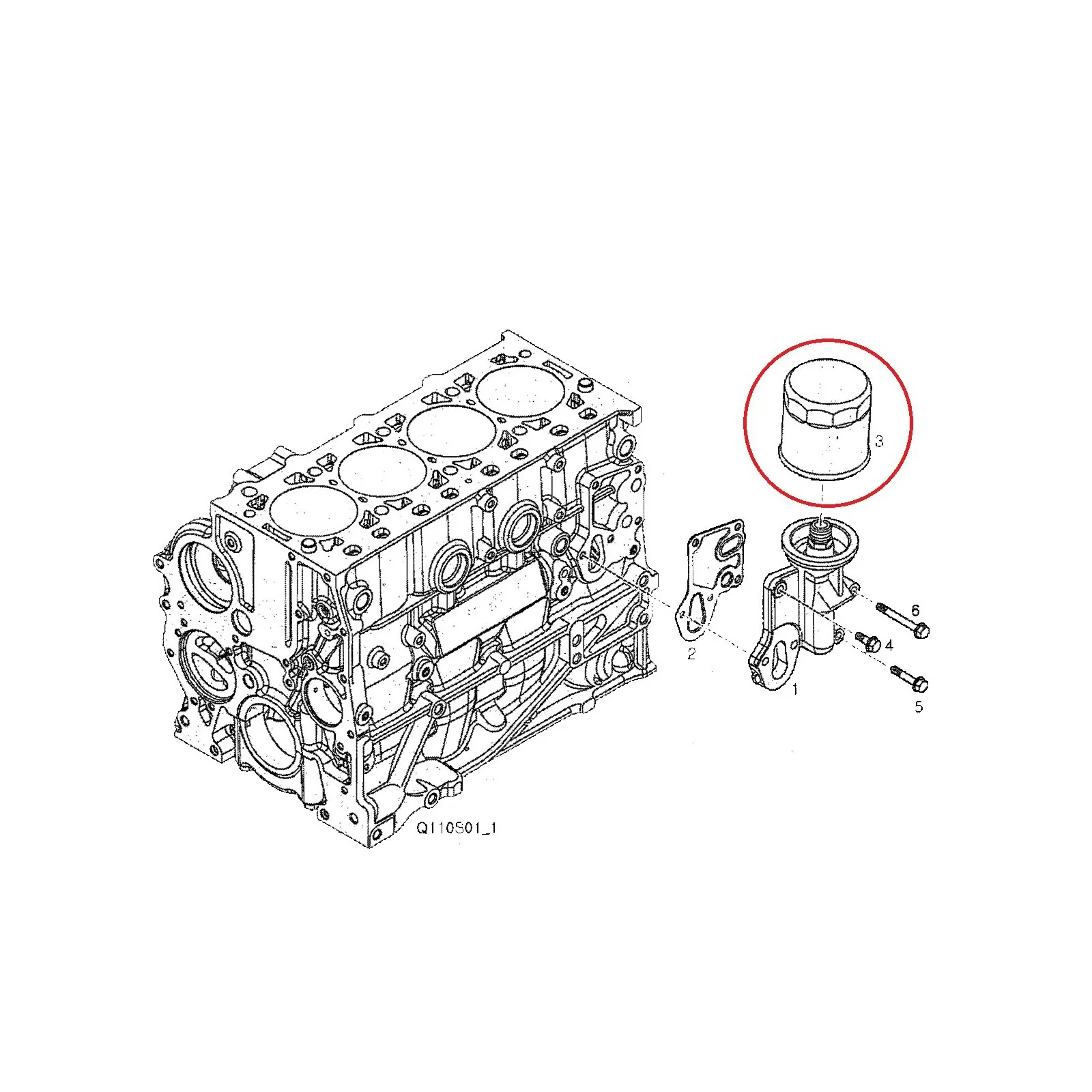

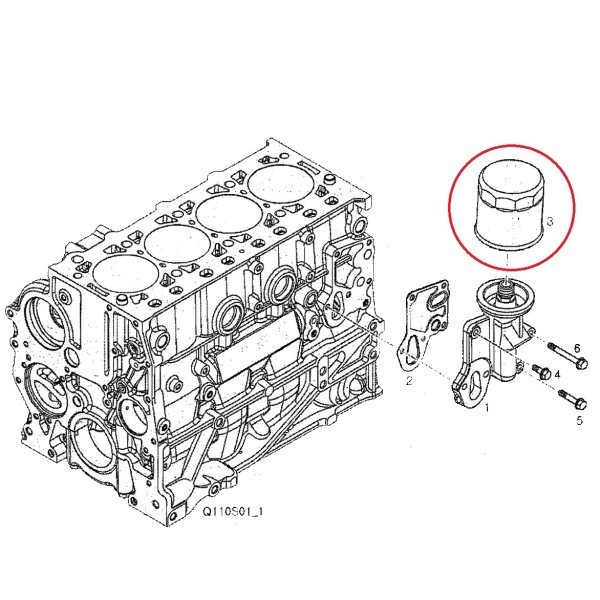

The filter is most often mounted on the side of the engine. A clean, unused oil filter has a direct impact on the engine's performance, lifespan, and fuel consumption. In extreme cases, a clogged oil filter can lead to engine overheating and head gasket damage. Always replace the oil filter when changing the oil, at the intervals specified in the machine's manual.
