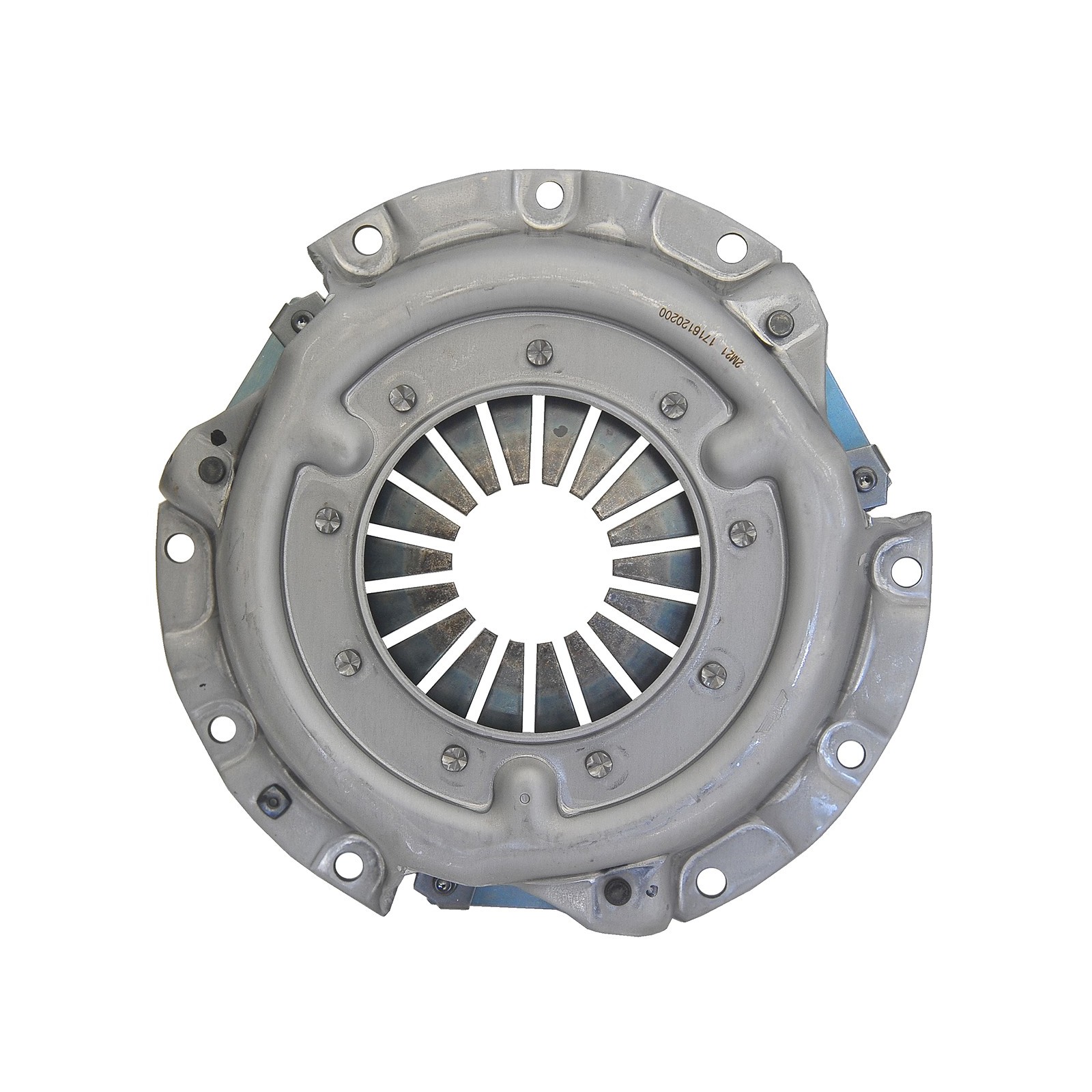

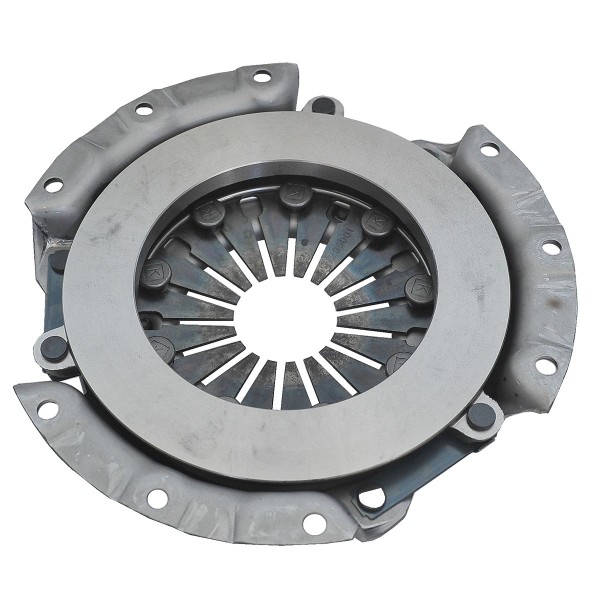

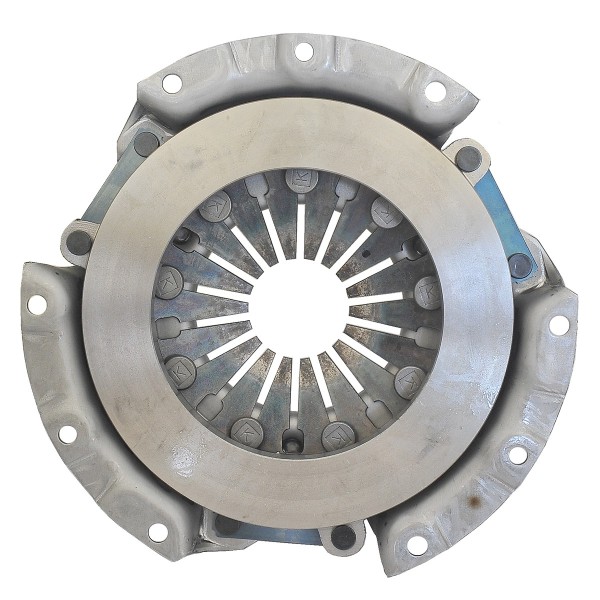

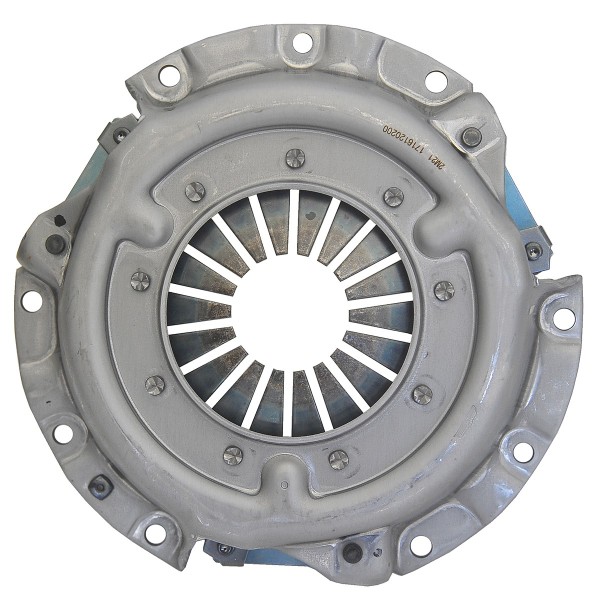

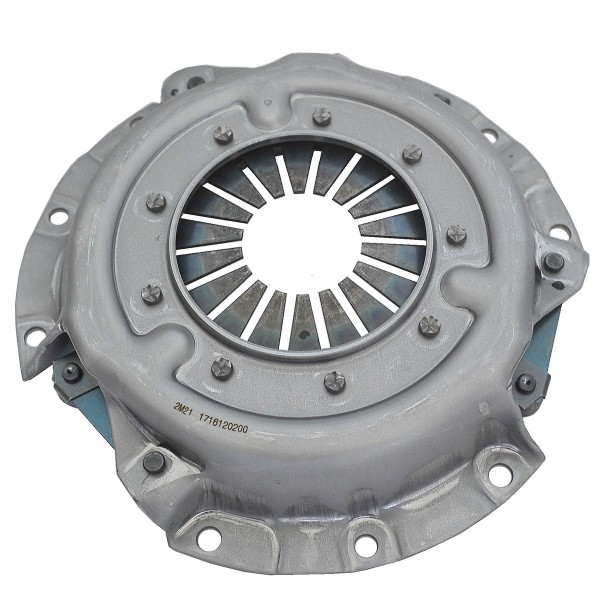

Clutch pressure plate / Iseki TM3160 / 1716-120-200-00

Clutch pressure plate with a pressure plate diameter of 122 / 185 mm for Iseki tractors of the Iseki TM3160 series and others.

The clutch pressure plate is the component that connects the gearbox to the engine, and is therefore responsible for transferring torque from the engine, through the gearbox, to the tractor's drivetrain. To simplify this complex process, the clutch pressure plate is responsible for moving the tractor, starting and stopping, and changing speed ratios. The clutch pressure plate consists of a housing, compression springs, and a clutch disc. Its main function is to exert sufficient frictional force on the clutch disc to prevent the two components (pressure plate and disc) from rotating at different speeds.

Dimensions :

• Overall diameter (housing): 237 mm,
• Pressure plate internal diameter: 122 mm,
• Outer diameter of the pressure plate: 185 mm,
• Height: 40 mm,
• Mounting screw hole spacing: 220 mm (measured diagonally), 110 mm (measured apart),
• Part numbers: 1716-120-200-00.

Tractor models :

• Iseki TM3160.

The first signs of a worn clutch include an unusual noise when pressing or releasing the clutch pedal, an unpleasant odor, or a grinding sound from the gearbox. When replacing a clutch, it's recommended to replace all components (disc, pressure plate, bearing) because these components often wear out at the same time.

Magazine : M01:B82

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
