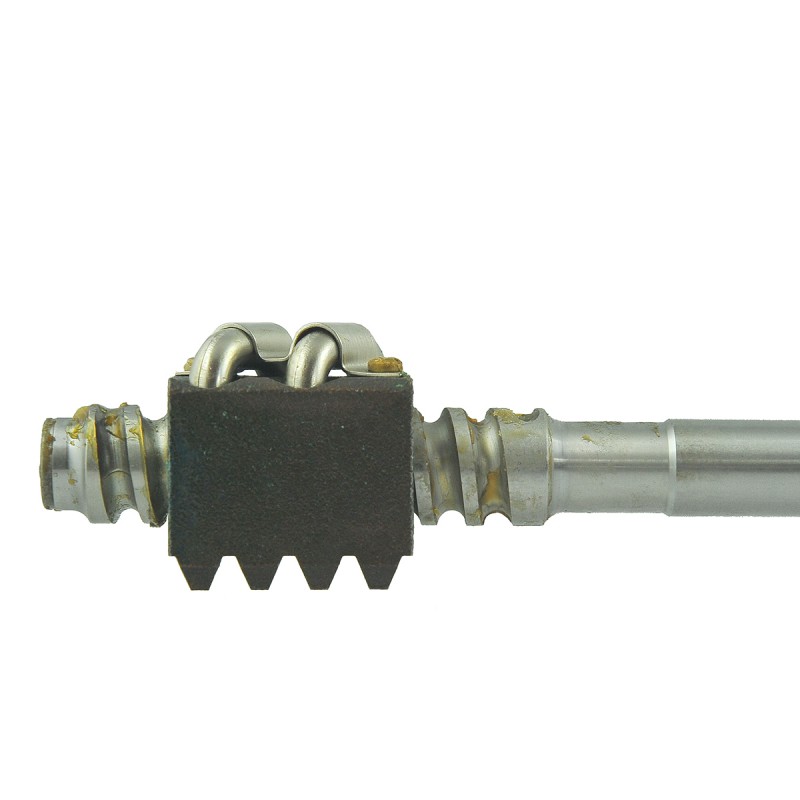

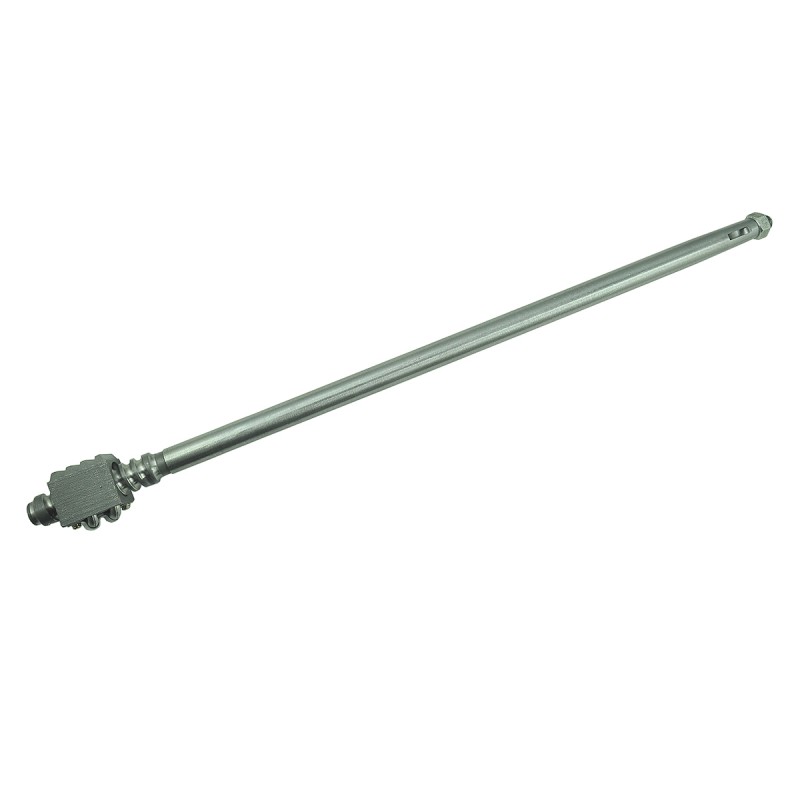

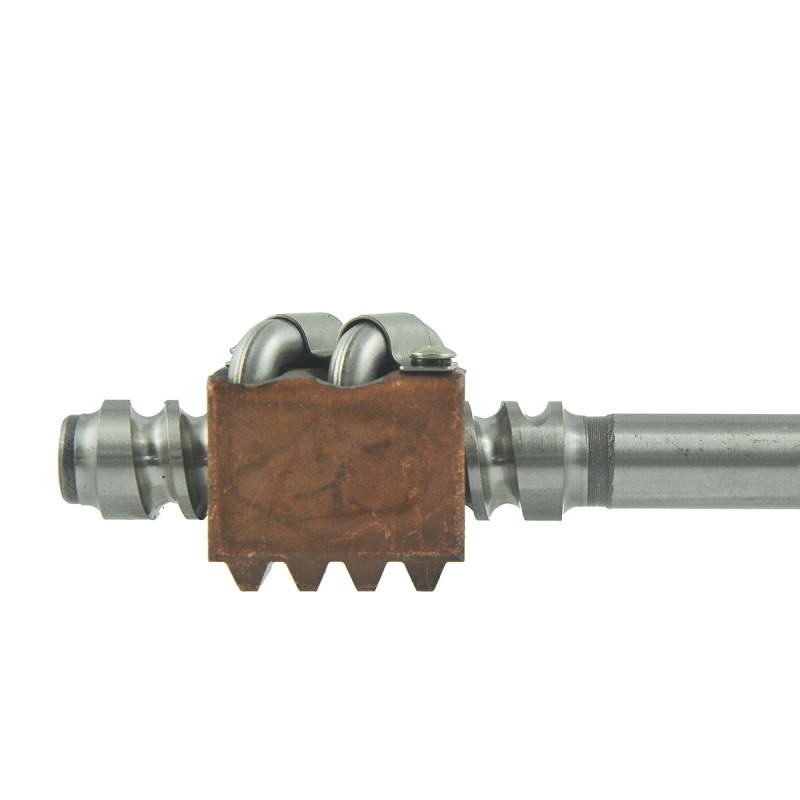

Steering column shaft and steering shaft seal (shaft %C5% 82ek-steering-column-19-x-605-mm-kubota-l175f-l185d-l185f-l225-l225d-l245dt-l245f-l1500-l1501.html">6-01-100-02 , %C5% 82ek-steering-column-16-x-480-mm-18t-kubota-b4200-b5001-b6001-b6100-b6200-b7001-b7100-b8100.html">S.67280 , H6680-41202, %C5% 82ek-steering-column-19-x-605-mm-kubota-l175fl185d-l185fl225-l225dl245dt-l245fl1500-l1501l1801-l2000.html">34150-16200 ) oil seal with an inner diameter of 19 mm , an outer diameter of 23 mm and a height of 8 mm for Kubota tractors of the Kubota B5001, Kubota B6000, Kubota B6001, Kubota B6200, Kubota B7000, Kubota B7001, Kubota B7100, Kubota B7200, Kubota L3408, Kubota L175, Kubota L185, Kubota L225, Kubota L245, Kubota L1500, Kubota L1501 series, Kubota L1801, Kubota L2000, Kubota L2201 and others.
A seal is most often a rubber ring (also called a simmering, or Simmer ring, after the inventor), made of rubber or another plastic that meets specific technical requirements. A sealing ring is used to seal rotating components of a system with a maximum internal pressure of up to 0.1 MPa, which are immersed in fluids during operation, most often oil, various types of lubricants, and sometimes gasoline or water. The most common use of sealing rings is for sealing shafts and power transmission or drive systems of machinery and equipment. There are various types of sealing rings, the most common being cassette (two-piece) seals , sealing rings with a surrounding spring, or seals with a partially metal housing (cover).

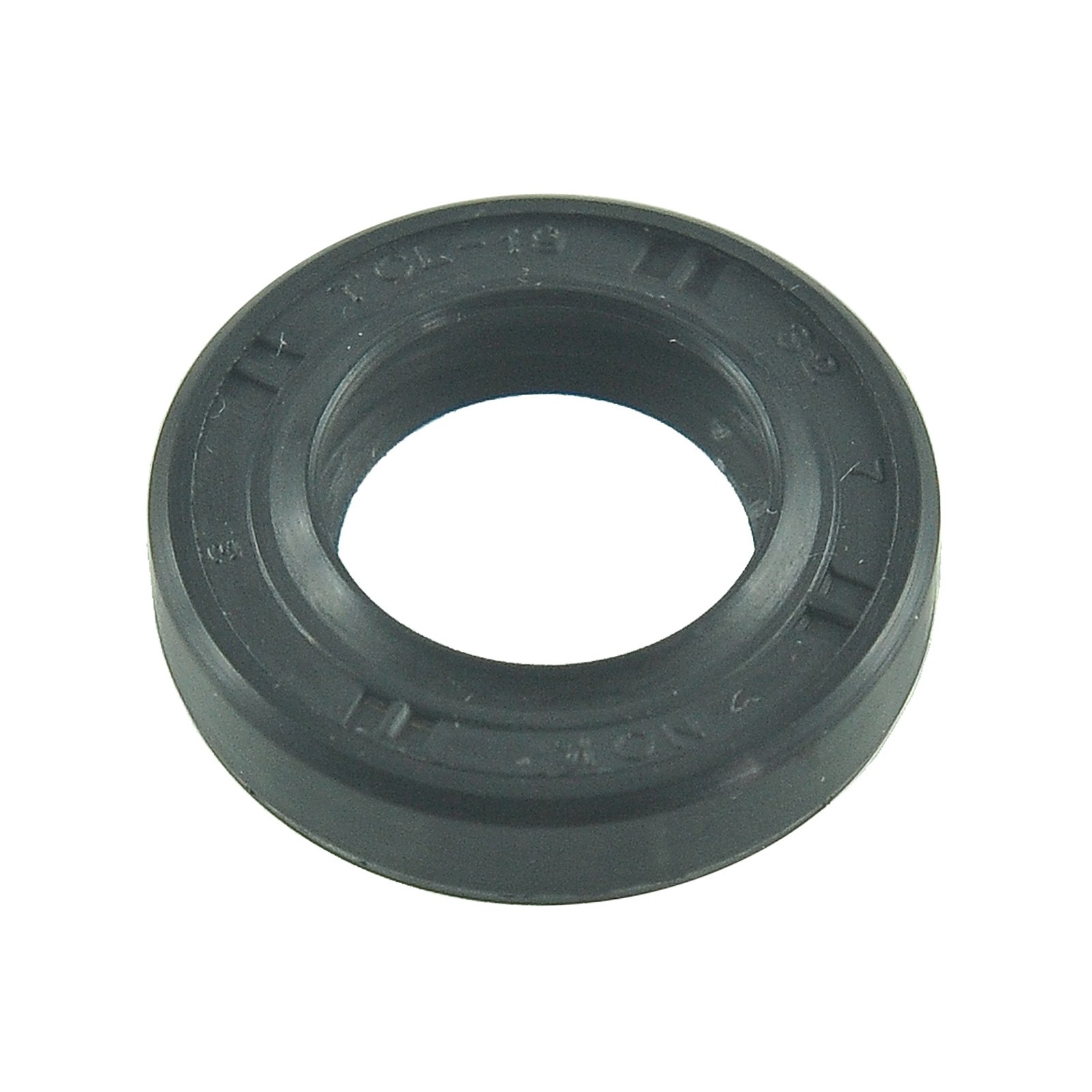

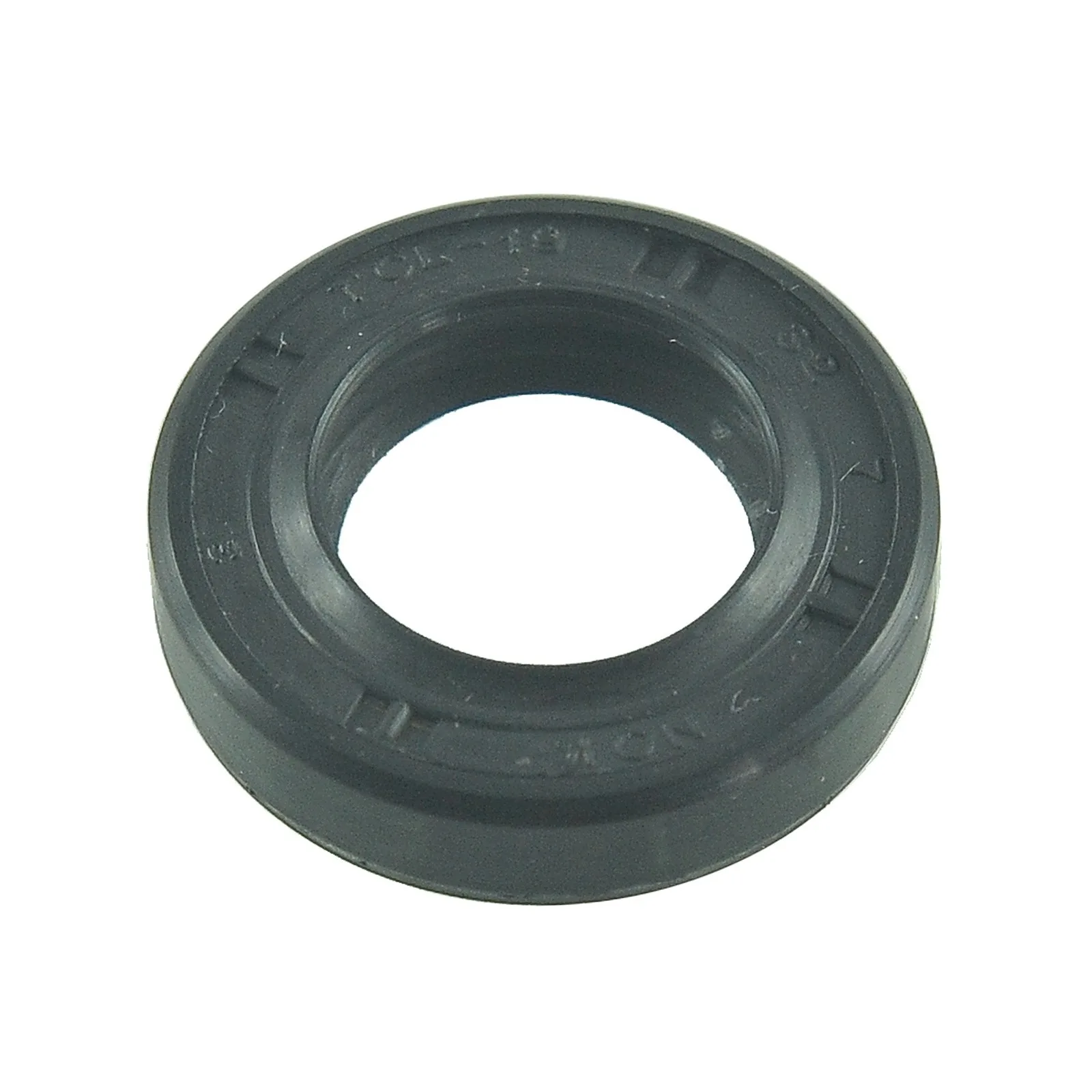

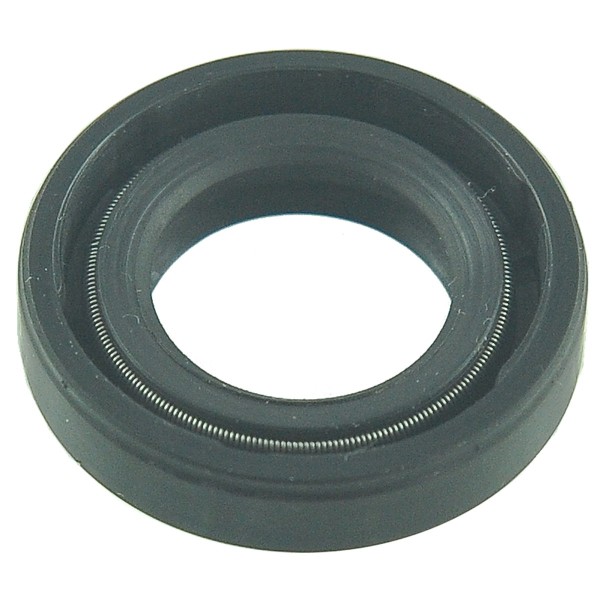

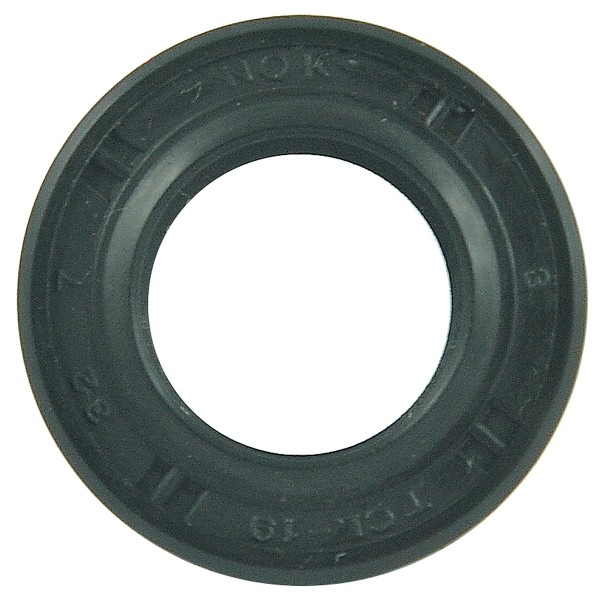

Dimensions :
- outer diameter. 32 mm,
- inner diameter: 19 mm,
- height: 8 mm,
- original part numbers: 09500-19328,
- part numbers: 5-08-129-01.
Tractor models:
- Kubota B5001,
- Kubota B6000,
- Kubota B6001,
- Kubota B6200,
- Kubota B7000,
- Kubota B7001,
- Kubota B7100,
- Kubota B7200,
- Kubota L3408,
- Kubota L175,
- Kubota L185,
- Kubota L225,
- Kubota L245,
- Kubota L1500,
- Kubota L1501,
- Kubota L1801,
- Kubota L2000,
- Kubota L2201.
Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.
Magazine: K18:F08.S02
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
