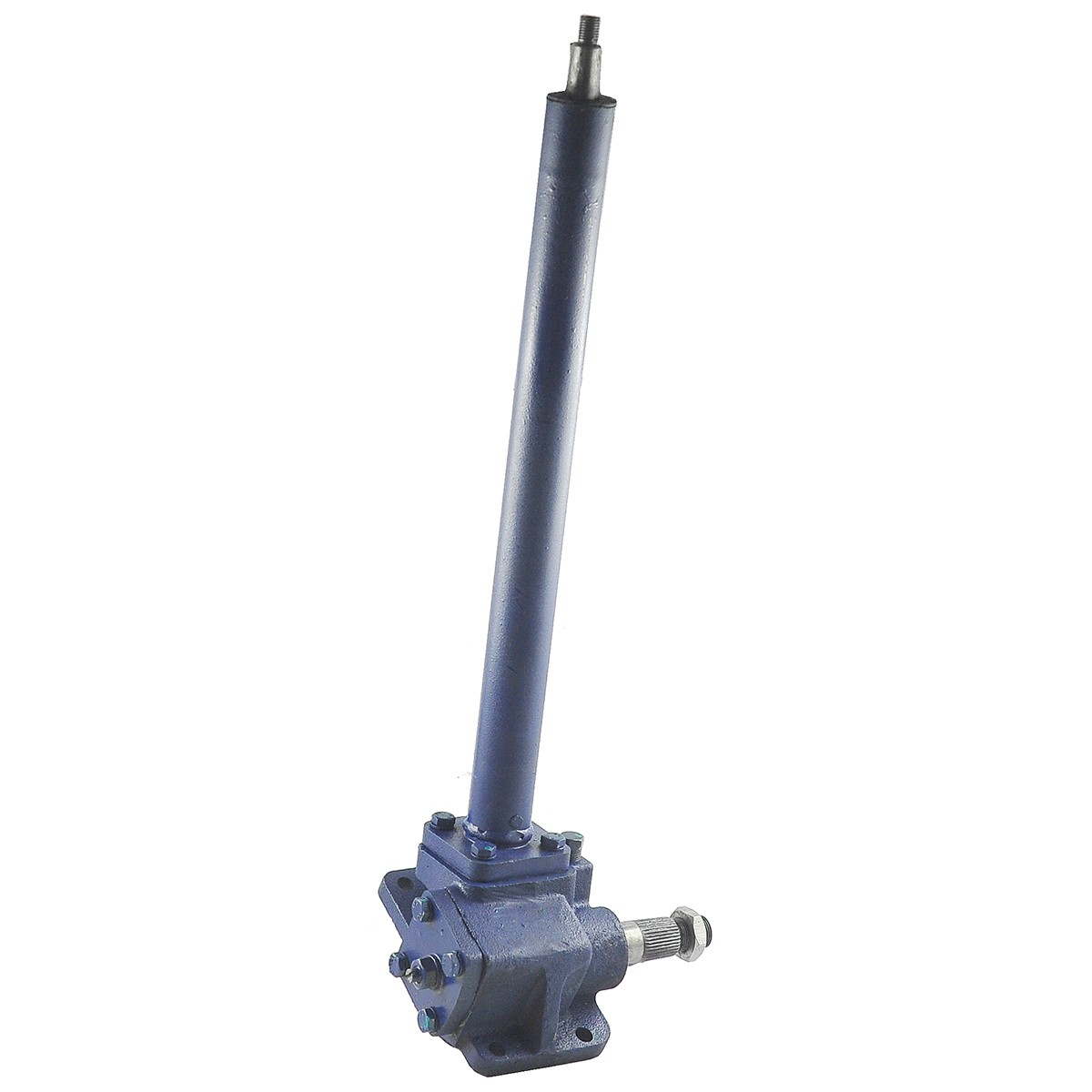

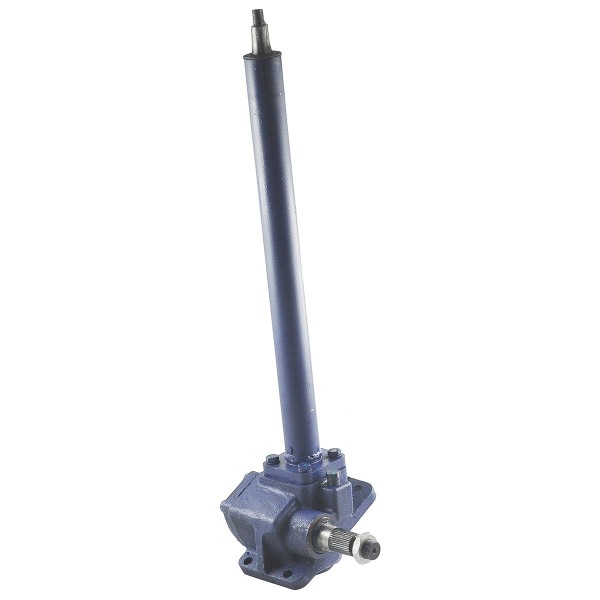

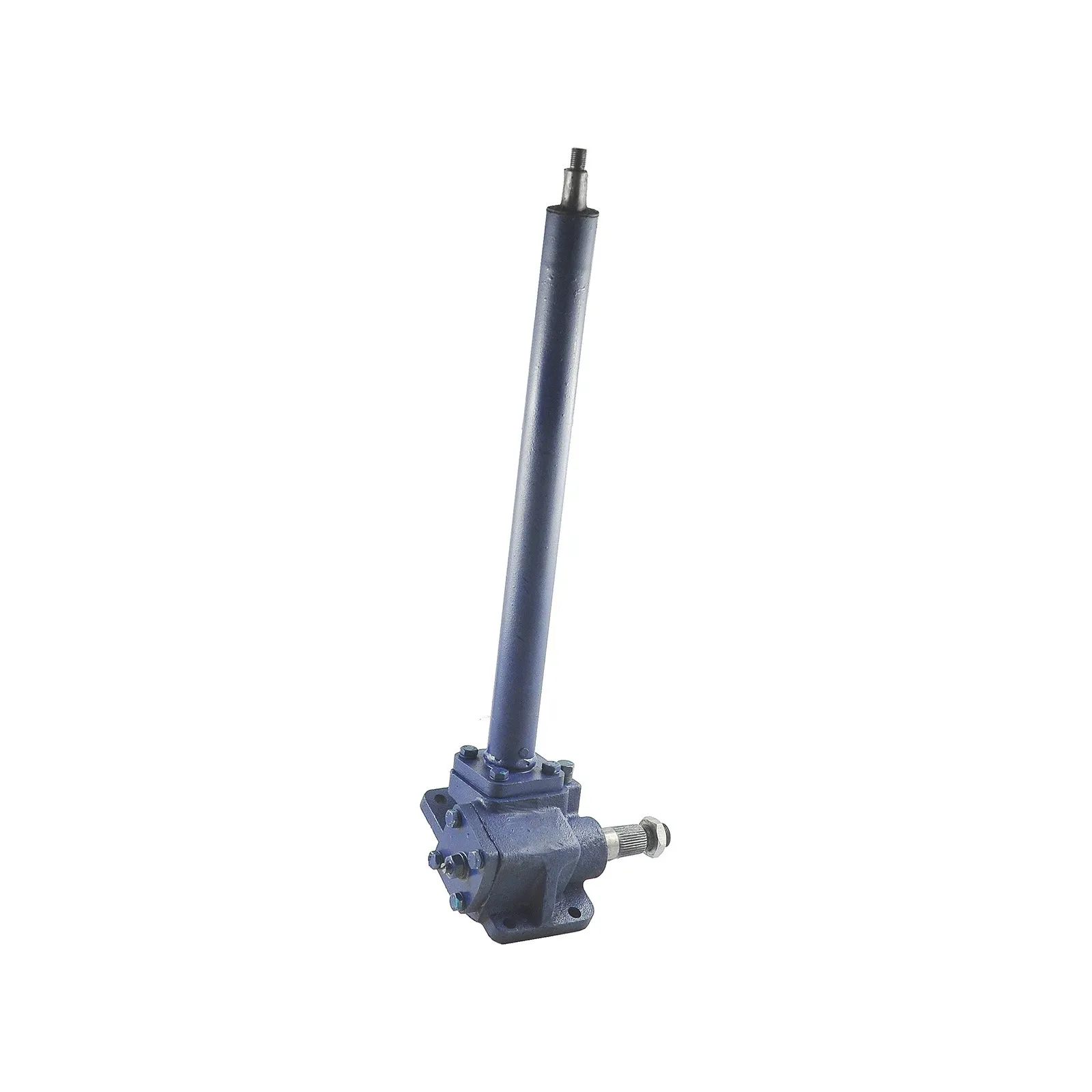

Steering column / Kubota L175 / L185 / L245 / L1500 / L1501

Product code: KUSS-404
Brand 4FARMER
Country of production 4FARMER
View other model
zł2,673.00
Includes VAT 23%

Lowest price from 30 days: zł2,673.00

Product description

Steering column (column housing %C5% 9Bci-for-kubota/1364-column-housing-kubota-l175l185l245l1500l1501l2000-34150-16112-5-02-126-02.html">5-02-126-02 , 34150-16112, column cover %C5% 9Bci-for-kubota/1365-steering-column-cover-kubota-l175l185l245l1500l1501l2000-34150-16412-5-05-124-01.html">5-05-124-01 , 34150-16412, shaft %C5% 9Bci-do-kubota/31385-wa %C5% 82ek-przez %C5% 82adni-steering-kubota-b7000l1500-yanmar-ym1500-34150-16120-34150-16123-194740-55140.html">KUSS-409 , 34150-16123, %C5% 9Bci-do-kubota/31369-wa %C5% 82ek-steering-column-19-x-605-mm-kubota-l175fl185dl185fl225l225dl245dtl245fl1500l1501l1801l2000-34150-16200.html">34150-16200 and %C5% 9Bci-do-kubota/31385-wa %C5% 82ek-transmission %C5% 82adni-steering-column-kubota-b7000l1500-yanmar-ym1500-34150-16120-34150-16123-194740-55140.html">194740-55140 ) for Kubota tractors Kubota series L175, Kubota L185, Kubota L245, Kubota L1500, Kubota L1501 and others.

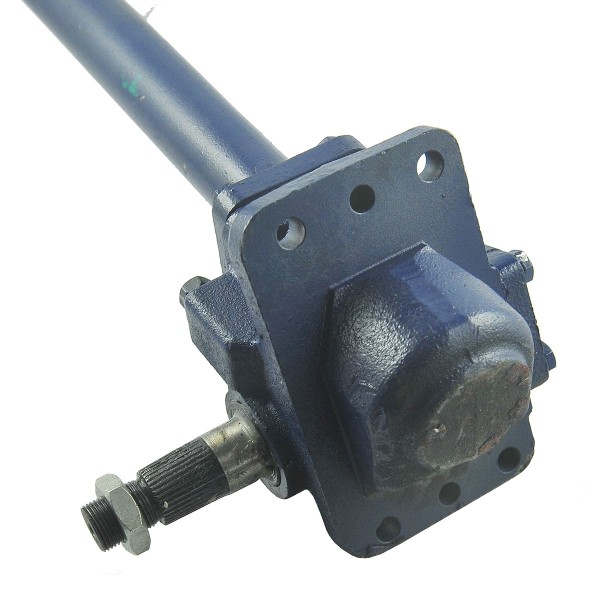

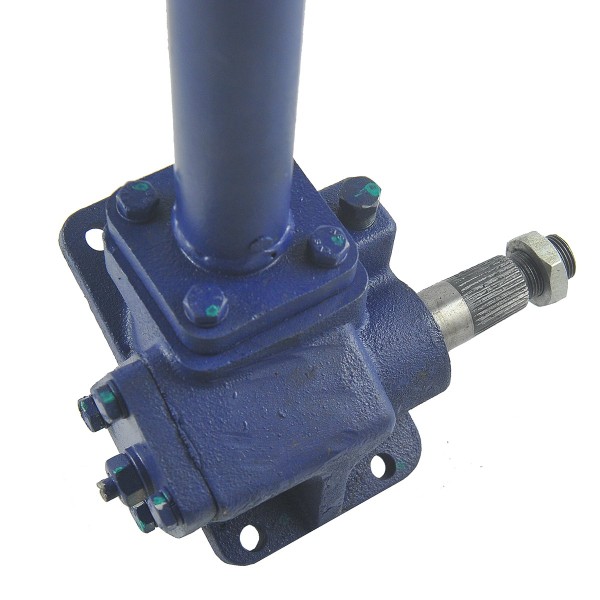

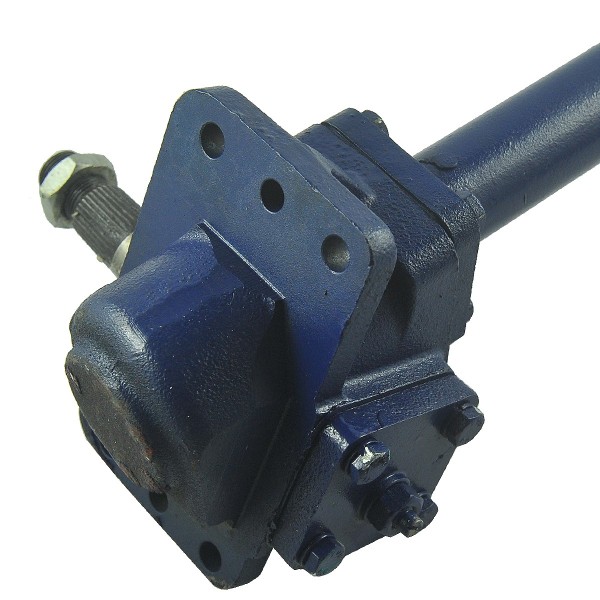

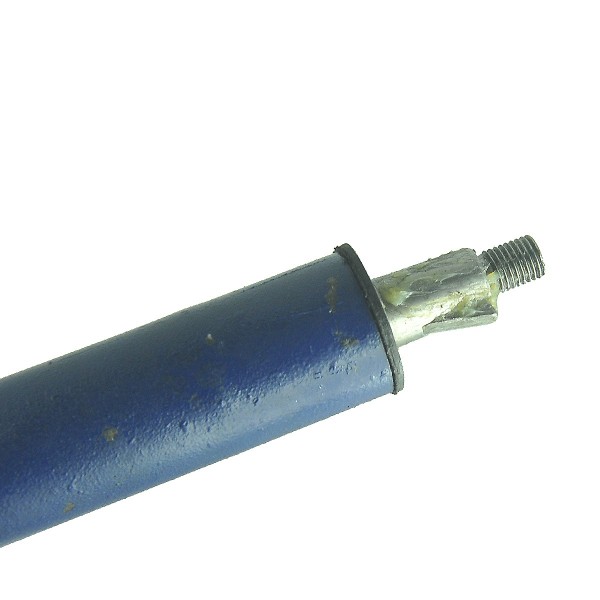

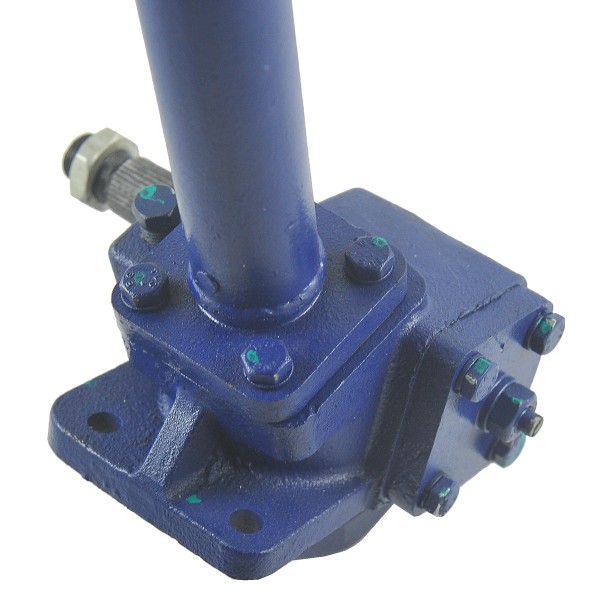

The steering column is the tractor component responsible for steering the machine, and its main element is the so-called worm shaft. The column consists of two basic elements, the first is a vertical shaft with a worm block and a second horizontal shaft connected to the vertical shaft by a worm bearing.

Dimensions :

  • height: 620 mm,
  • spacing of mounting screw holes: 58 x 126 mm,
  • base dimensions: 95 x 153 mm,
  • thread: M13 x 1.5,
  • thread length: 12 mm,
  • original part numbers: 34159-16091, 35240-16100, 34159-160913,
  • reference numbers: S.67857,
  • part numbers: KUSS-403.

Tractor models :

  • Kubota L175,
  • Kubota L185,
  • Kubota L245,
  • Kubota L1500,
  • Kubota L1501,
  • Kubota L2000.

Warehouse : K04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New
Bolt hole spacing (mm)
126

Reviews of Steering..

Traktor.com.pl S.C. Wojciech i Miłosz Początek Reviews with ekomi-pl.com

This product has no reviews yet.

We collect reviews from verified Customers after the purchase of the product.

Write your review

Review form will be here

Questions & Answers

Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.

How to properly select and sharpen mower blades for a Japanese tractor?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.

How to identify the correct V-belt size and how to care for it?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
