Available
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Steering system
Tractor models
- Kubota B7000
- Kubota L175
- Kubota L185
- Kubota L225
- Kubota L1500
- Kubota L1501
- Kubota L2000
- Yanmar YM1600
- Yanmar YM1900
- Yanmar YM2200
Kubota L1511
Kubota L2001
Yanmar YM195
Yanmar YM240
Yanmar YM1500
Yanmar YM1700
Yanmar YM2000
Yanmar YM2700
Number of teeth (pcs/T-teeth)
36T
Outer diameter (mm)
25.70
Inner Diameter (mm)
15.60
Go to full specification >

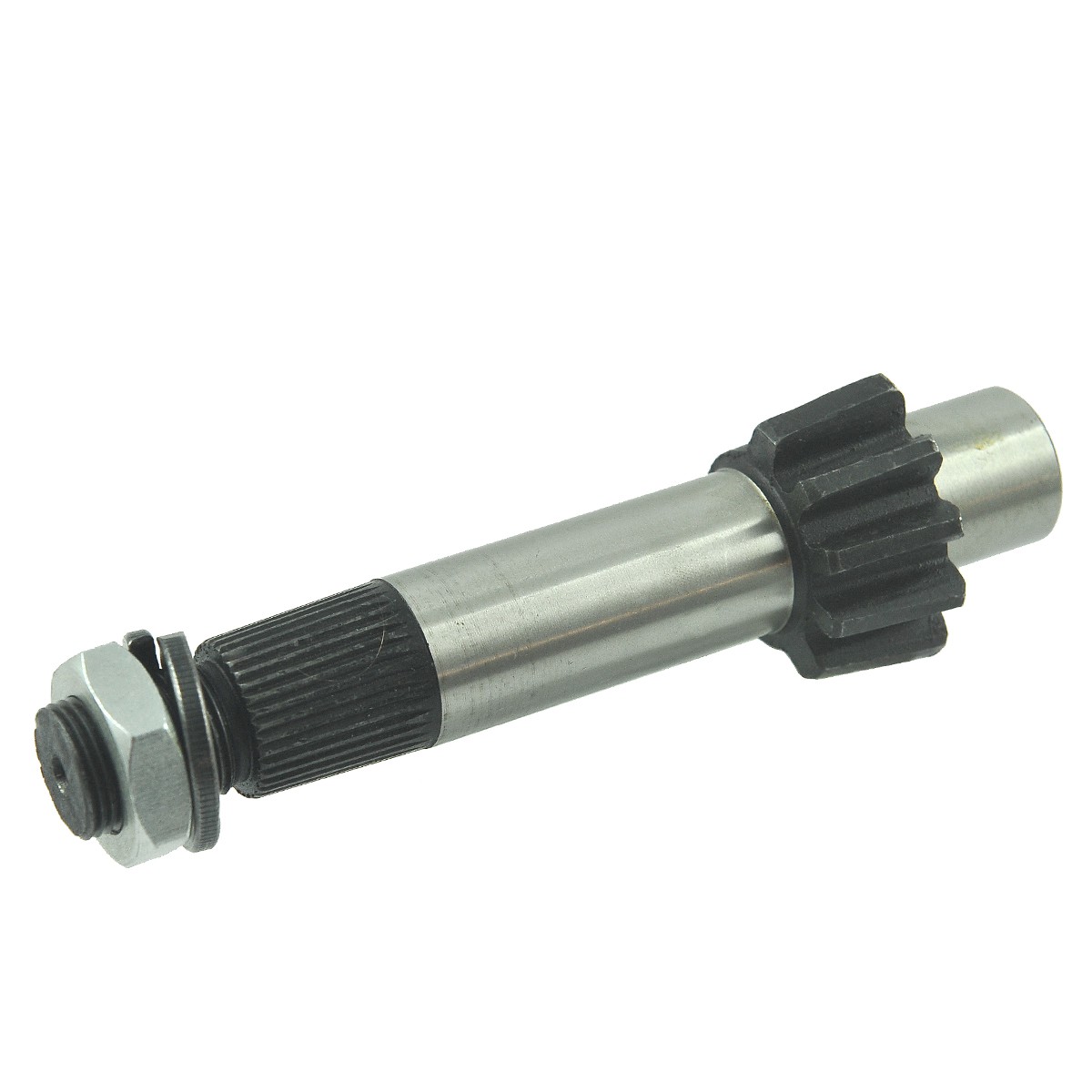

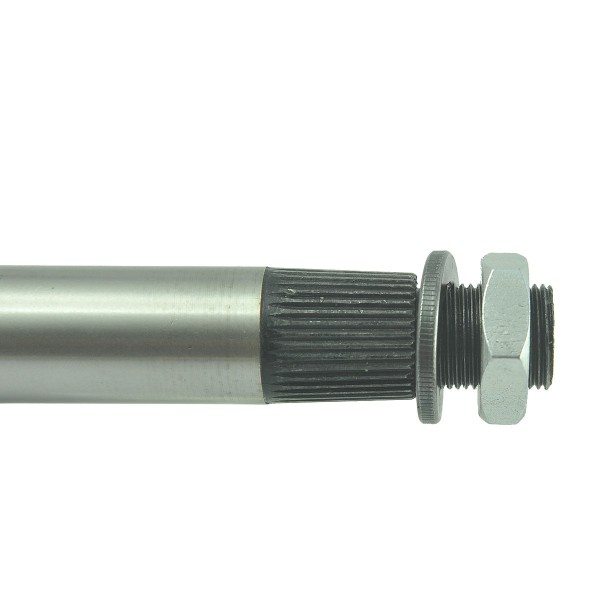

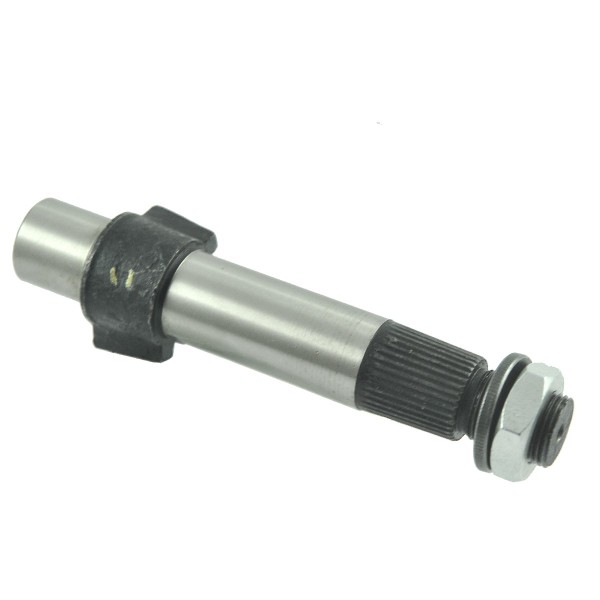

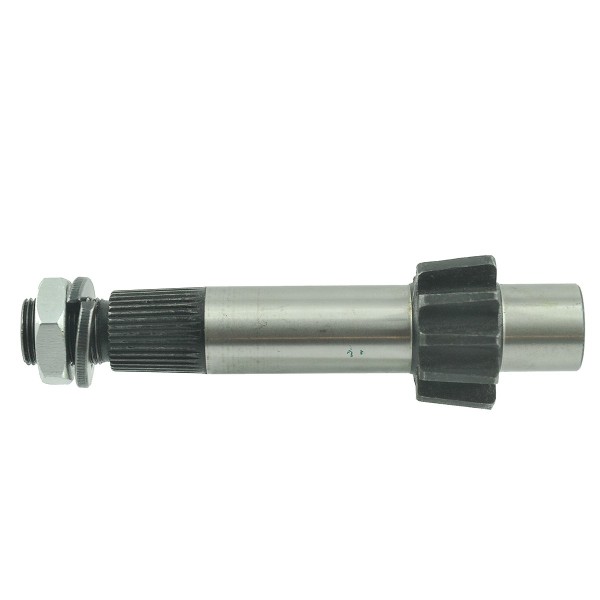

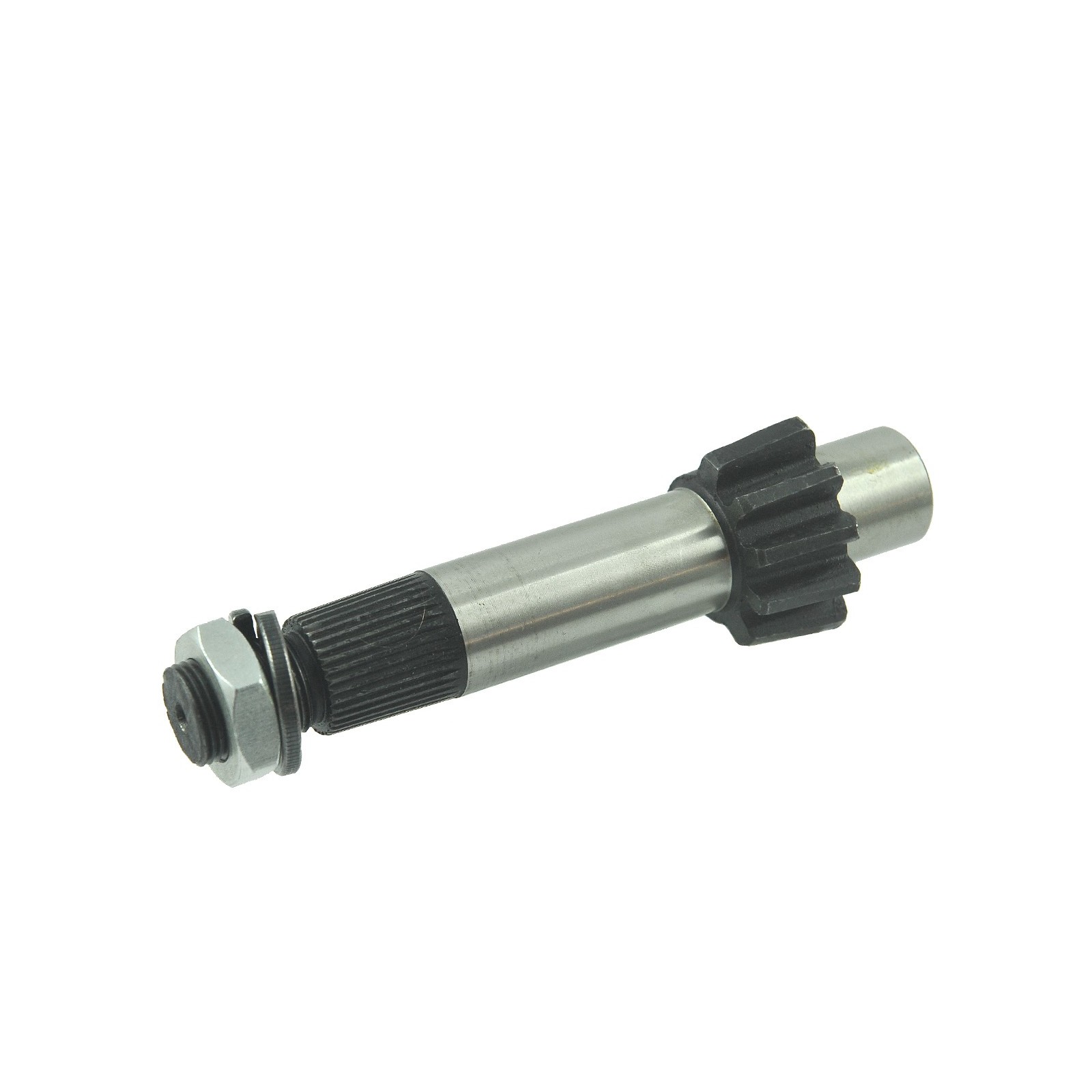

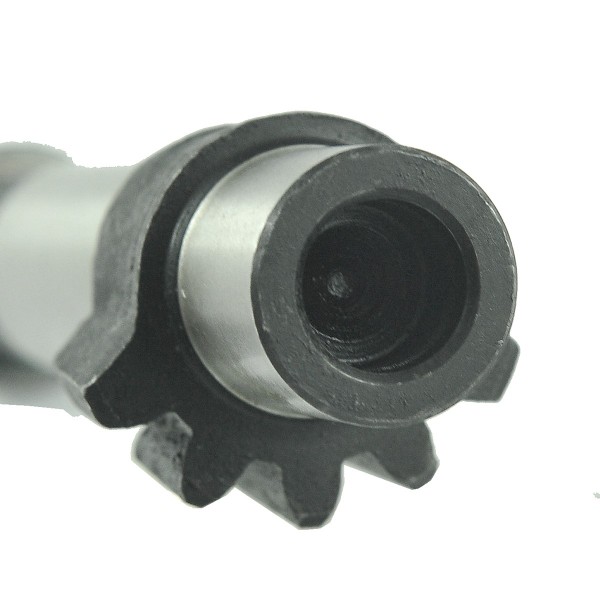

Steering gear shaft / 25.70 x 162 mm / 36T / Kubota / Yanmar

KUSS-409
zł488.00
Tax included PL 23%

396,75 netto

  • Dostępność (33 Quantity): stock

Do you have any questions?

Steering gear shaft / 25.70 x 162 mm / 36T / Kubota / Yanmar

Steering gear shaft (column housing %C5% 9Bci-for-kubota/1364-column-housing-kubota-l175l185l245l1500l1501l2000-34150-16112-5-02-126-02.html">5-02-126-02 , 34150-16112, column cover %C5% 9Bci-for-kubota/1365-steering-column-cover-kubota-l175l185l245l1500l1501l2000-34150-16412-5-05-124-01.html">5-05-124-01 , 34150-16412, column %C5% 9Bci-for-kubota/31409-steering-column-kubota-l175l185l245l1500l1501-34159-16091-35240-16100-34159-160913.html?adtoken=c716cd19c30c210f9bfee01f7b6c9fcc&ad=products&id_employee=13&preview=1">34159-16091, column housing %C5% 9Bci-for-kubota/1364-column-housing-kubota-l175l185l245l1500l1501l2000-34150-16112-.html">5-02-126-02 , 34150-16112, shaft %C5% 9Bci-for-kubota/31369-wa %C5% 82ek-steering-column-19-x-605-mm-kubota-l175fl185dl185fl225l225dl245dtl245fl1500l1501l1801l2000-34150-16200.html">34150-16200 ) with a total length of 162 mm to Kubota series tractors, Kubota B7000, Kubota L175, Kubota L185, Kubota L225, Kubota L245, Kubota L1500, Kubota L1501, Kubota L1511, Kubota L2000 , Kubota L2001, Yanmar series Yanmar YM195 (2WD), Yanmar YM240 (2WD), Yanmar YM1500, Yanmar YM1600, Yanmar YM1700, Yanmar YM1900, Yanmar YM2000, Yanmar YM2200, Yanmar YM2700 and others.

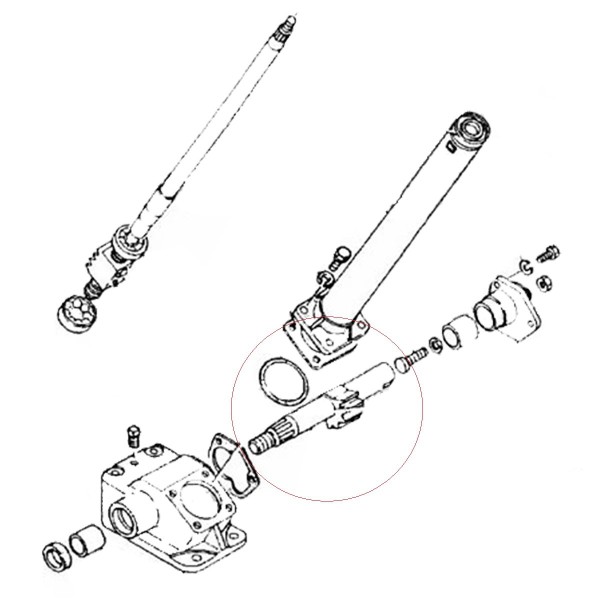

The steering column shaft is a component of the steering system, sometimes called the steering rack, and is responsible for steering the tractor. The steering column shaft transfers steering wheel movement to the tie rod ends and then to the steering wheels. The horizontal shaft interacts directly with the vertical worm shaft. The worm shaft is bolted directly to the steering wheel on one end, while its worm section on the other end drives the horizontal shaft and the subsequent steering column rods, which are connected to the front axle's steering rods.

Dimensions :

Tractor models :

Kubota:

  • Kubota B7000,
  • Kubota L175,
  • Kubota L185,
  • Kubota L225,
  • Kubota L245,
  • Kubota L1500,
  • Kubota L1501,
  • Kubota L1511,
  • Kubota L2000,
  • Kubota L2001.

Yanmar :

  • Yanmar YM195 (2WD),
  • Yanmar YM240 (2WD),
  • Yanmar YM1500,
  • Yanmar YM1600,
  • Yanmar YM1700,
  • Yanmar YM1900,
  • Yanmar YM2000,
  • Yanmar YM2200,
  • Yanmar YM2700.

The gear shaft is responsible for transferring motion from the vertical shaft with the worm gear to the rod ends and then to the steering wheels. This connection should be as smooth and free of play as possible.

Warehouse: K04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: K18: I 39
Condition
New
Production
Substitute
Parts
Steering system
Tractor models
- Kubota B7000
- Kubota L175
- Kubota L185
- Kubota L225
- Kubota L1500
- Kubota L1501
- Kubota L2000
- Yanmar YM1600
- Yanmar YM1900
- Yanmar YM2200
Kubota L1511
Kubota L2001
Yanmar YM195
Yanmar YM240
Yanmar YM1500
Yanmar YM1700
Yanmar YM2000
Yanmar YM2700
Number of teeth (pcs/T-teeth)
36T
Outer diameter (mm)
25.70
Inner Diameter (mm)
15.60
Overall length (mm)
162
Thread(s) length (mm)
22
Cutter(s) length (mm)
21
Wrench size
30
Thread
M20 x 1.50
Original Part Number (OEM)
34150-16120
34150-16123
194740-55140
The purpose of the roller
Steering gear shaft
