Available
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Steering system
Tractor models
- Kubota L185DT
- Kubota L185F
- Kubota L225
- Kubota L245DT
- Kubota L245F
- Kubota L1500
- Kubota L1501
- Kubota L1801
- Kubota L2000
Kubota L175F
Kubota L225DT
Kubota L2201DT
Length (mm)
605
Diameter (mm)
19
Dimensions (mm)
45 x 42 x 36 (cube)
Go to full specification >

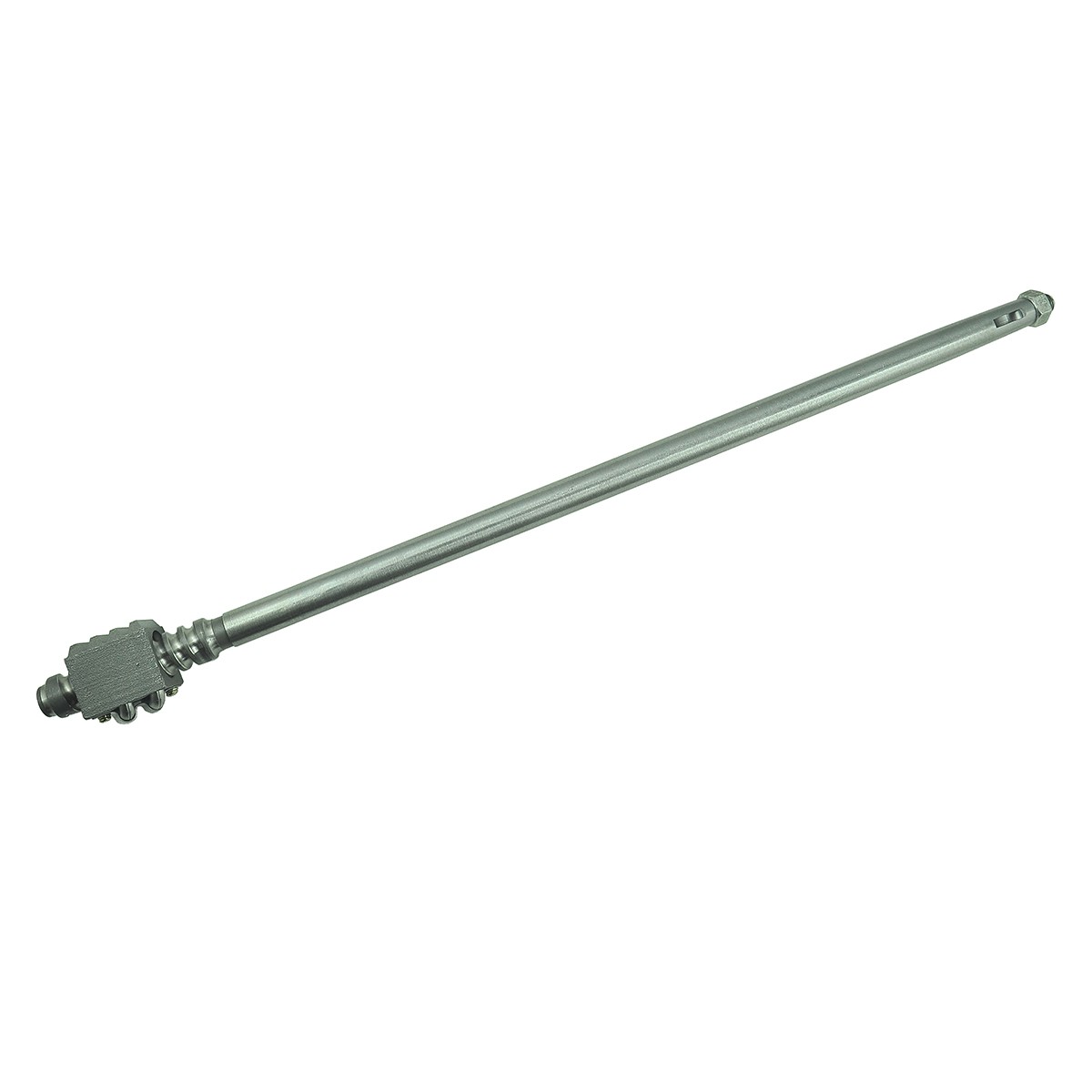

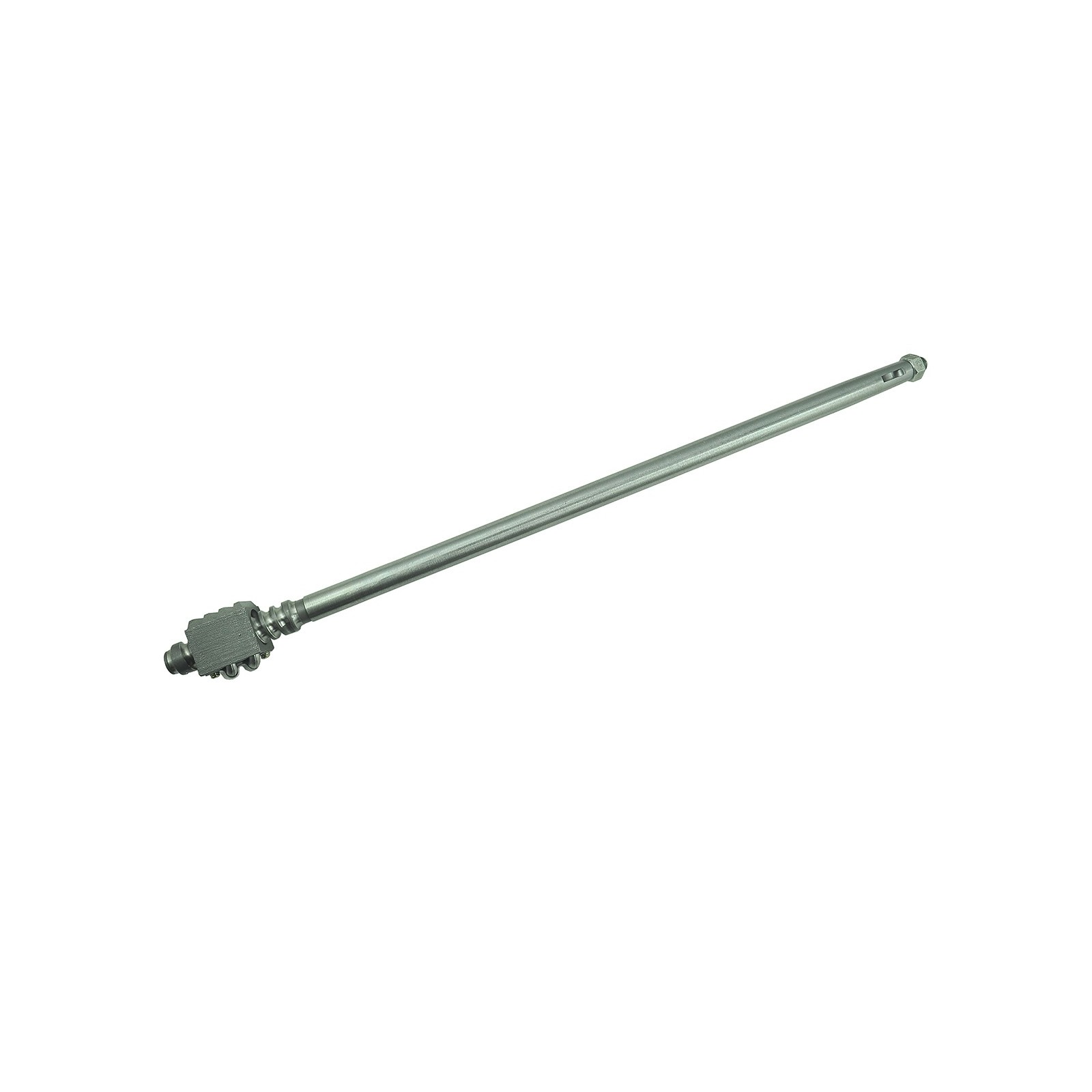

Steering column shaft / 605 mm / Kubota

34150-16200
zł488.00
Tax included PL 23%

396,75 netto

  • Dostępność (9 Quantity): stock

Do you have any questions?

Steering column shaft / 605 mm / Kubota

Steering gear shaft (repair kit %C5% 9Bci-for-kubota/1244-gear-repair-kit %C5% 82adni-steering-column-kubota-l2000.html">5-07-102-07 , column %C5% 9Bci-for-kubota/31369-wa %C5% 82ek-steering-column-19-x-605-mm-kubota-l175fl185dl185fl225l225dl245dtl245fl1500l1501l1801l2000-34150-16200.html">34159-16091, column housing %C5% 9Bci-for-kubota/1364-column-housing-kubota-l175l185l245l1500l1501l2000-34150-16112-.html">5-02-126-02 , 34150-16112 , column cover %C5% 9Bci-for-kubota/1365-steering-column-cover-kubota-l175l185l245l1500l1501l2000-34150-16412-5-05-124-01.html">5-05-124-01 , 34150-16412 , shaft %C5% 9Bci-do-kubota/31385-wa %C5% 82ek-przek %C5% 82adni-steering-kubota-b7000l1500-yanmar-ym1500-34150-16120-34150-16123-194740-55140.html">34150-16120 ) with a total length of 605 mm and a diameter of 19 mm for Kubota tractors of the Kubota L175F, Kubota L185DT, Kubota L185F, Kubota L225, Kubota L225DT, Kubota L245DT, Kubota L245F, Kubota L1500, Kubota L1501, Kubota L1801, Kubota L2000, Kubota L2201DT series and others.

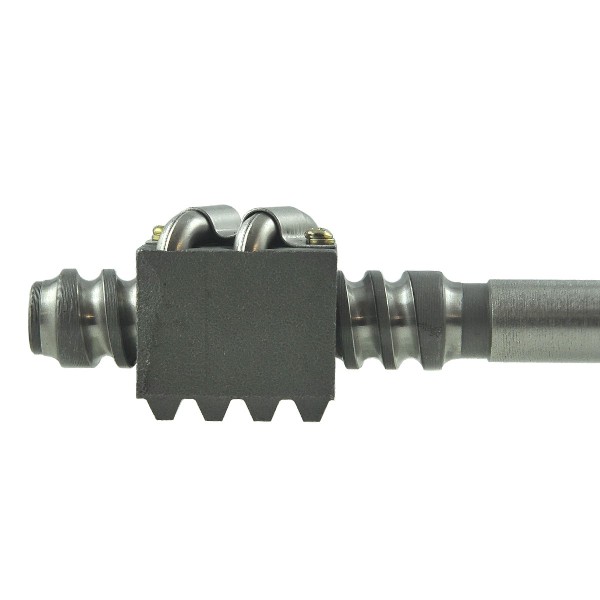

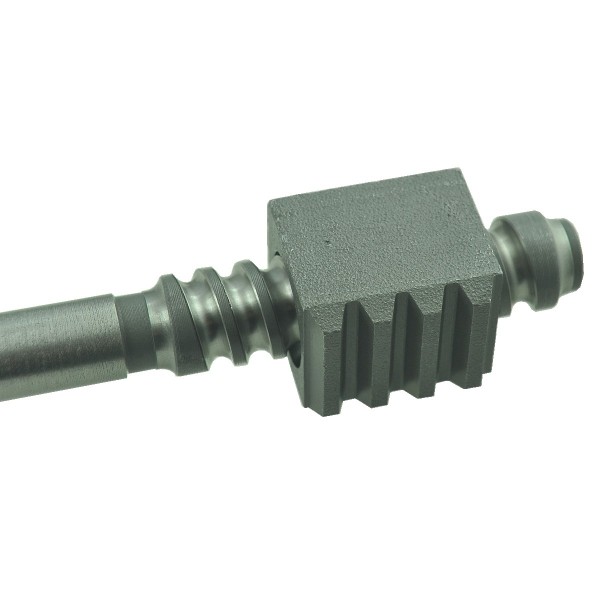

The steering column worm gear is a component of the steering system, sometimes called the rack and pinion, responsible for the tractor's steering. One end of the shaft is directly bolted to the steering wheel, while its worm section on the other moves the steering rods connected to the front axle's steering rods, which rotate the steering wheel. The worm gear is a component of the steering column responsible for steering the tractor. It consists of a shaft with a worm. The worm gear is responsible for transmitting the steering wheel movement to the rod ends and then to the steering wheels. This connection should be as smooth and free of play as possible. At the end of the shaft is mounted the so-called steering column worm , with a thread resembling a screw thread, directly integrated into which is a gear or other surface connected to the rod ends.

Dimensions :

Tractor models :

  • Kubota L175F,
  • Kubota L185DT,
  • Kubota L185F,
  • Kubota L225,
  • Kubota L225DT,
  • Kubota L245DT,
  • Kubota L245F,
  • Kubota L1500,
  • Kubota L1501,
  • Kubota L1801,
  • Kubota L2000,
  • Kubota L2201DT.

Magazine : K18:H30

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: K18:H30
Condition
New
Production
Substitute
Parts
Steering system
Tractor models
- Kubota L185DT
- Kubota L185F
- Kubota L225
- Kubota L245DT
- Kubota L245F
- Kubota L1500
- Kubota L1501
- Kubota L1801
- Kubota L2000
Kubota L175F
Kubota L225DT
Kubota L2201DT
Length (mm)
605
Diameter (mm)
19
Dimensions (mm)
45 x 42 x 36 (cube)
Thread(s) length (mm)
12
Thread
M13 x 1.50
Comparison numbers
6-01-100-02
S.70649
Part number
34150-16200
Cube length (mm)
45
Cube width (mm)
42
Cube height (mm)
36
