Product description
The 560 mm long universal turnbuckle , compatible with category 1 three-point linkage , is a reliable mounting element, especially recommended for agricultural machinery such as the Kubota L3408. The product is characterized by high durability and is made of solid materials, which guarantees long life and trouble-free operation. The screw is ideal for applications related to tension and tension regulation, which makes it an essential element of equipment for many agricultural machines.

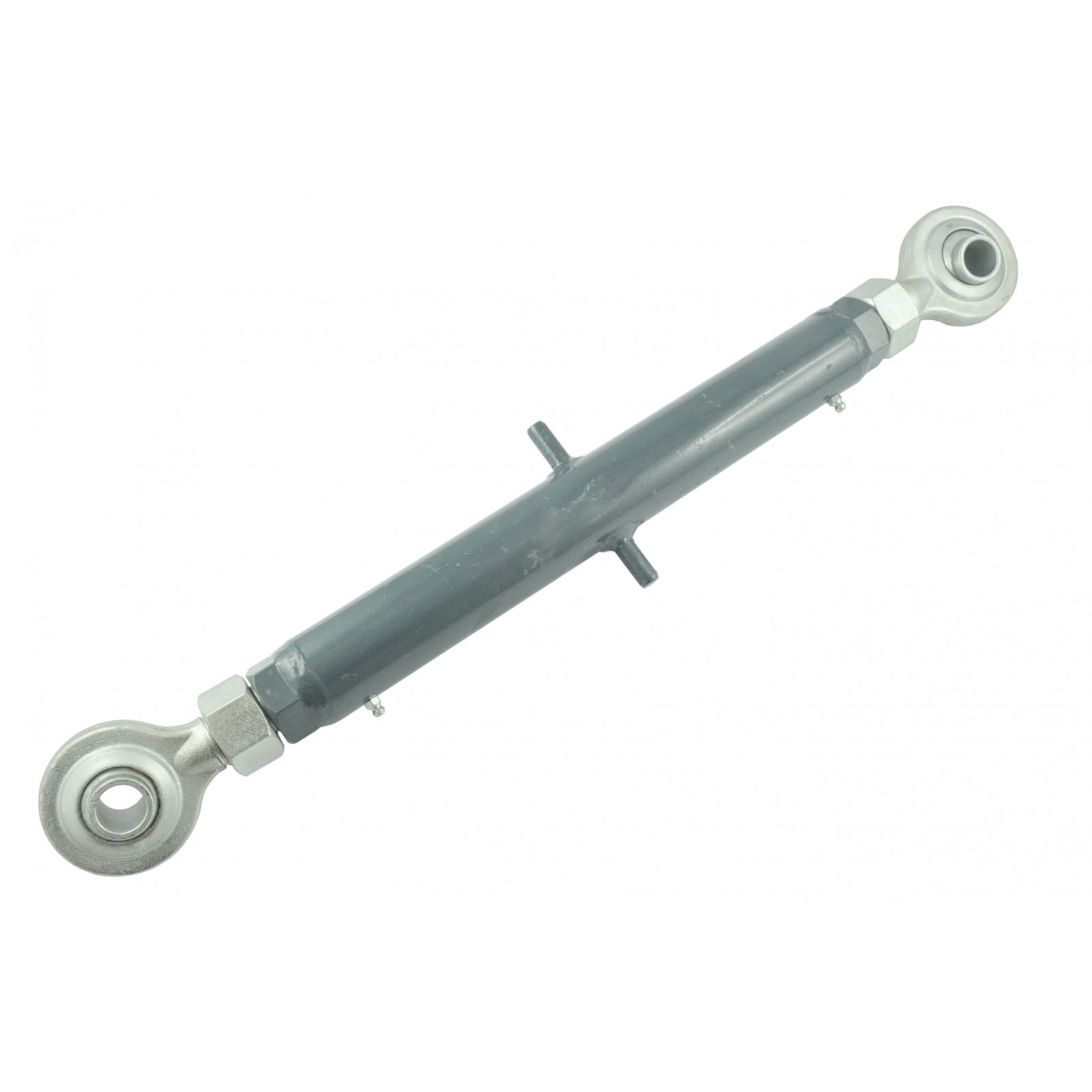

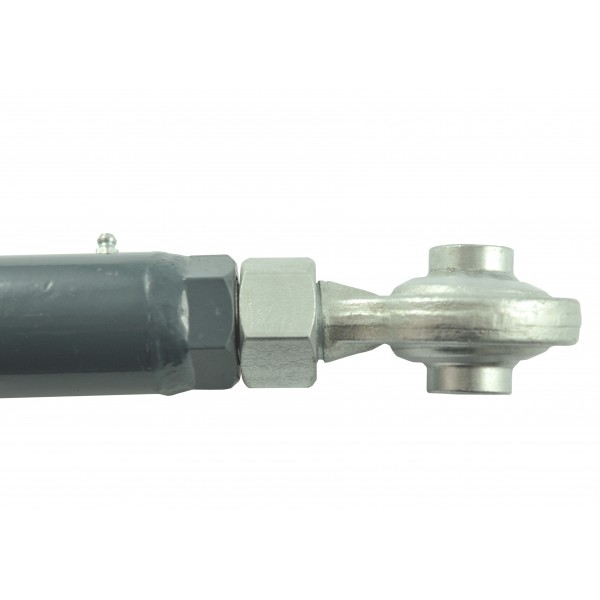

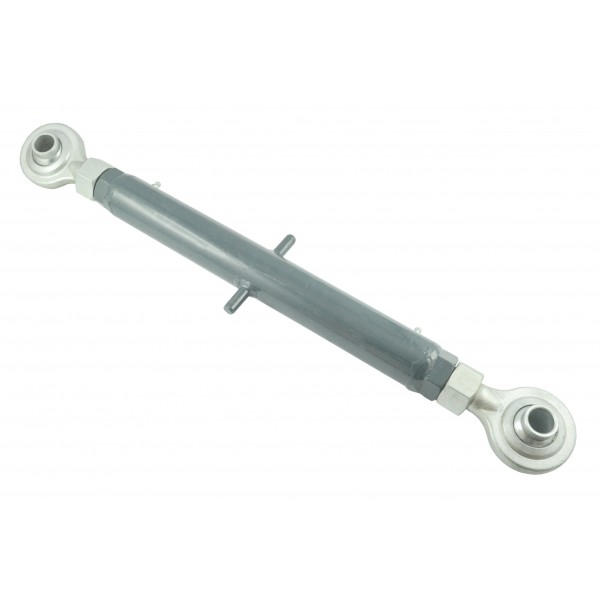

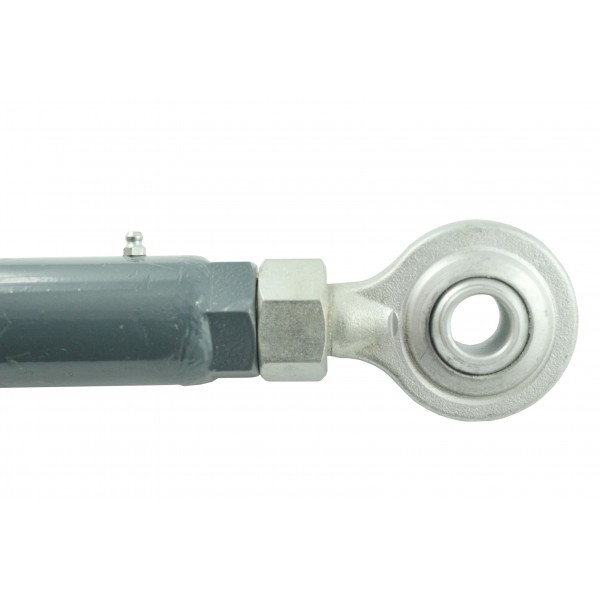

Turnbuckle 14", 560 mm, TUZ Cat 1, Kubota L3408.
Middle arm, universal turnbuckle of increased quality that fits most mini tractors and small tractors with a 3-point hitch CAT I. The bolt fits tractors of brands such as Kubota, Yanmar, Iseki, Hinomoto and others.
Dimensions:
- Total length: 560 mm.
- Length from/to the centre of holes: 500 mm (with screws tightened to maximum).
- Diameter of pin holes: 19.3 mm.
- Screw diameter: 42 mm.
- The length given in inches (14 inches, 356 mm) is for the screw measured without the ends and screws (gray middle part of the screw).
- Two calamites.
Warehouse: M01:D46,D56
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specifications
Podobne produkty
Reviews of UNIVERSAL..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
