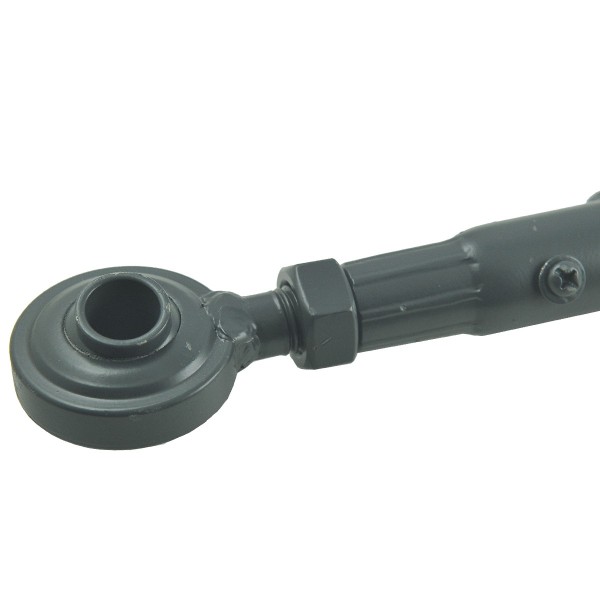

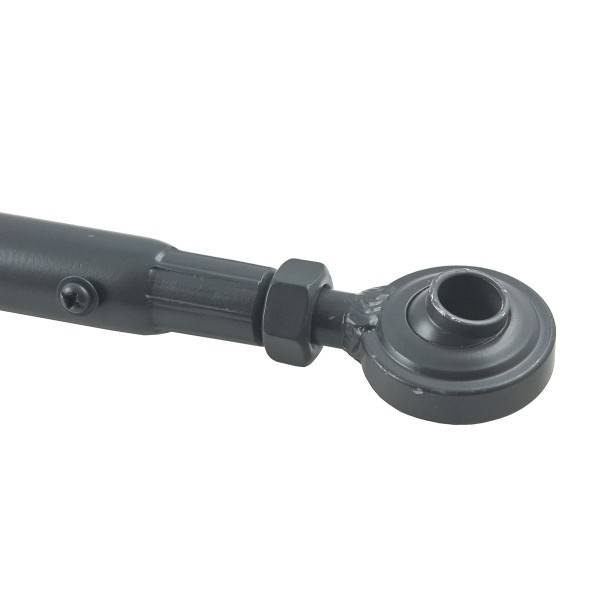

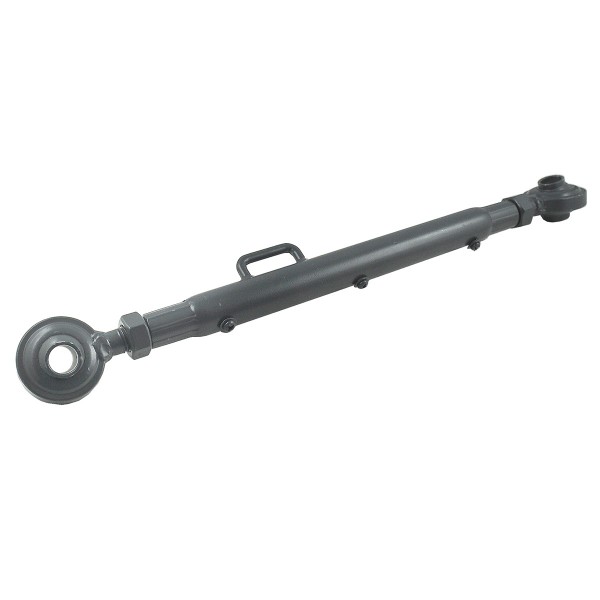

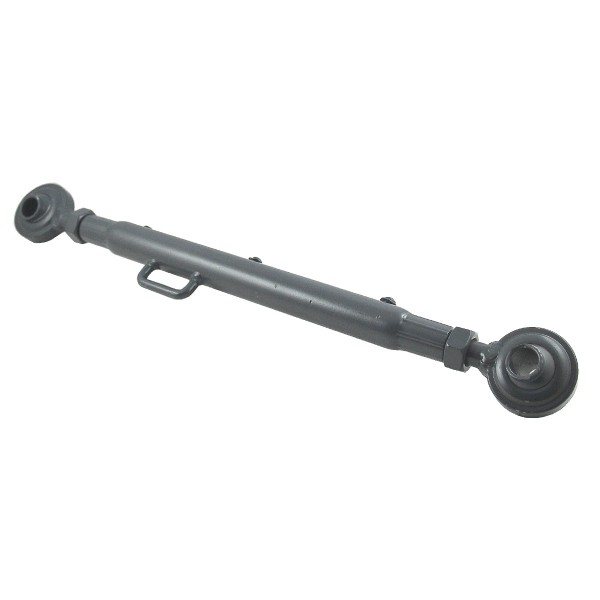

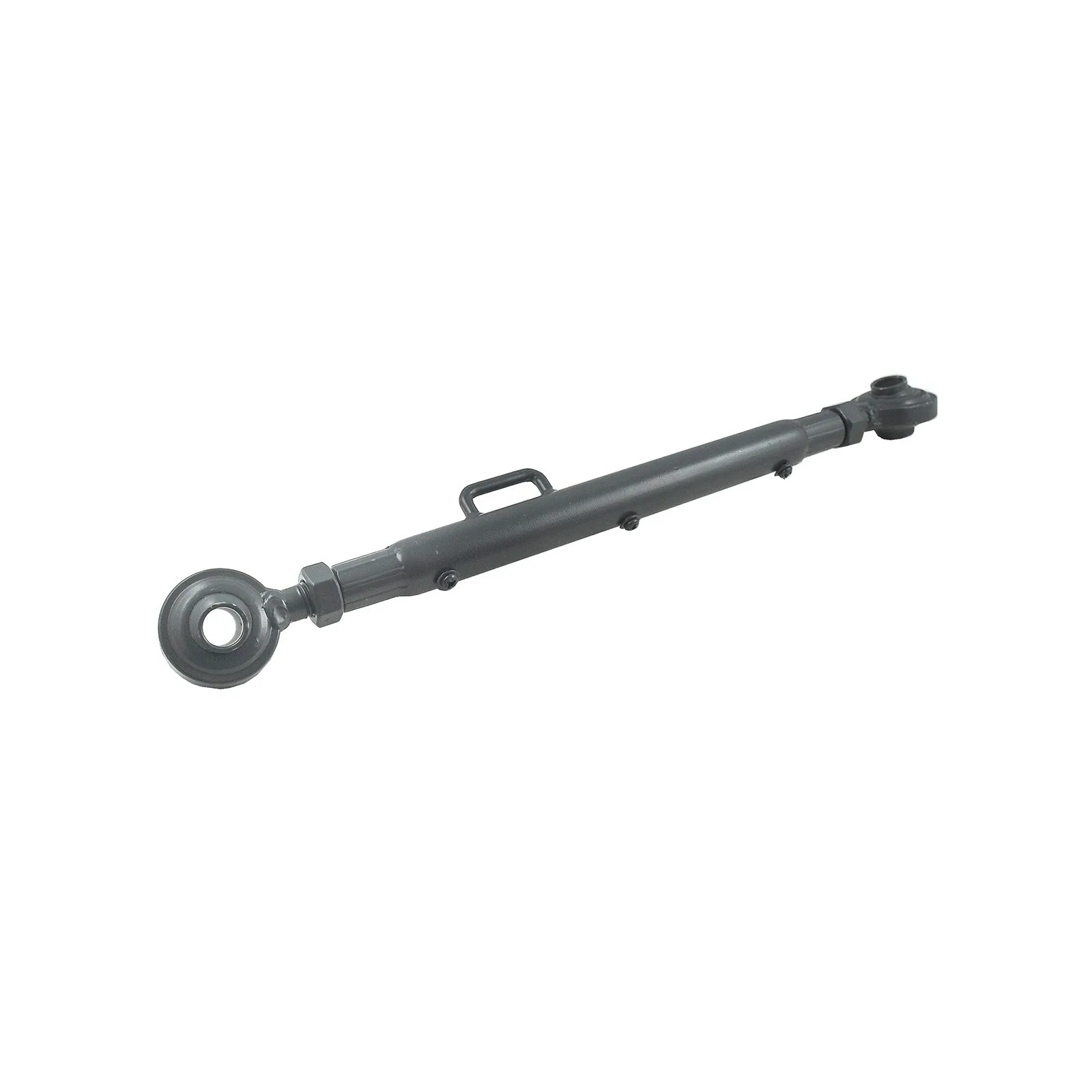

Turnbuckle / Cat I / M19 x 360 mm / 14" / Kubota B2140 / B2410 / UNIVERSAL

Turnbuckle Cat I with a total length of 550 mm (minimum total length measured with fully tightened screws) and a pin hole diameter of 19.50 mm (TUZ Cat I) for Kubota tractors of the Kubota B2140, Kubota B2410 series and others.

The TUZ turnbuckle used in agriculture is a tractor element, and more precisely an element of the rear hydraulic lift TUZ ( TUZ - three-point rear suspension system ) and is used to connect the tractor to a machine or agricultural equipment. The pipe tensioning screw, also called a connector, is made of three elements, i.e. a body and two screws, the threads of which are directed opposite to each other. Turnbuckle and ended with spherical swinging holes, sleeves for locking pins .

Dimensions :

• length: 360 mm (body),
• total length: 550 mm (minimum total length measured with fully tightened screws),
• working length: minimum 490 mm, maximum 790 mm,
• thread: M19 x 2.5, ,
• diameter of pin holes: 19.50 mm,
• width of the sleeve for mounting pins: 40 mm,
• head diameter: 60 mm,
• part numbers: 6-02-101-08.

Tractor models :

Kubota :

• Kubota B2140,
• Kubota B2410.

The agricultural turnbuckle is made of a stainless metal alloy resistant to high stress forces and is resistant to harmful weather conditions. The oppositely directed threads of the turnbuckle cause that by turning the body (middle element), depending on the direction of rotation, the screw tightens or acts as an expansion.

Warehouse:
K13:S38

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
