zł105.00
To order
Condition
New
Production
Substitute
Parts
3-point linkage
Tractor models
Kubota L2808
Kubota L3408
Kubota L3408
Pin hole diameter (pins/mm)
18.50
Thread
M16
M24
M24
Original Part Number (OEM)
W9501-65052
Linkage arm stabilizer / 370-450 mm / Kubota L2808 / L3408 / W9501-65052 / 5-08-120-09
5-08-120-09
Do you have any questions?
Linkage arm stabilizer / 370-450 mm / Kubota L2808 / L3408 / W9501-65052 / 5-08-120-09

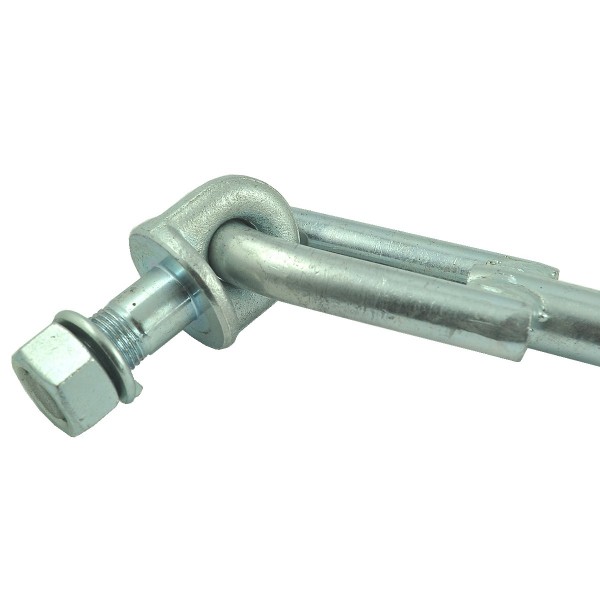

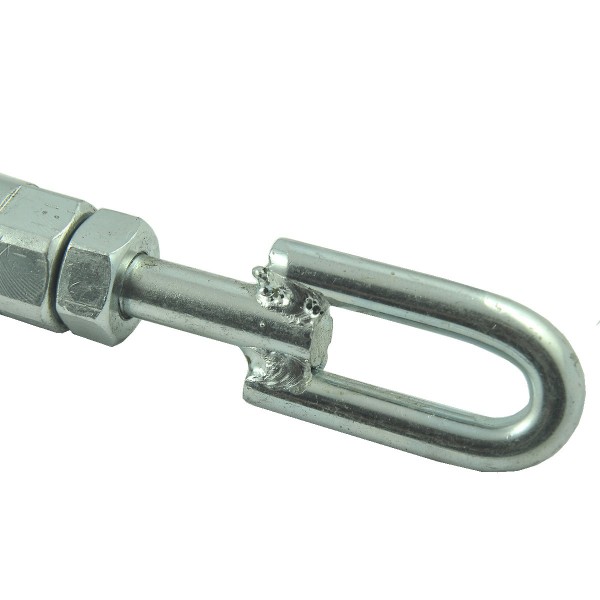

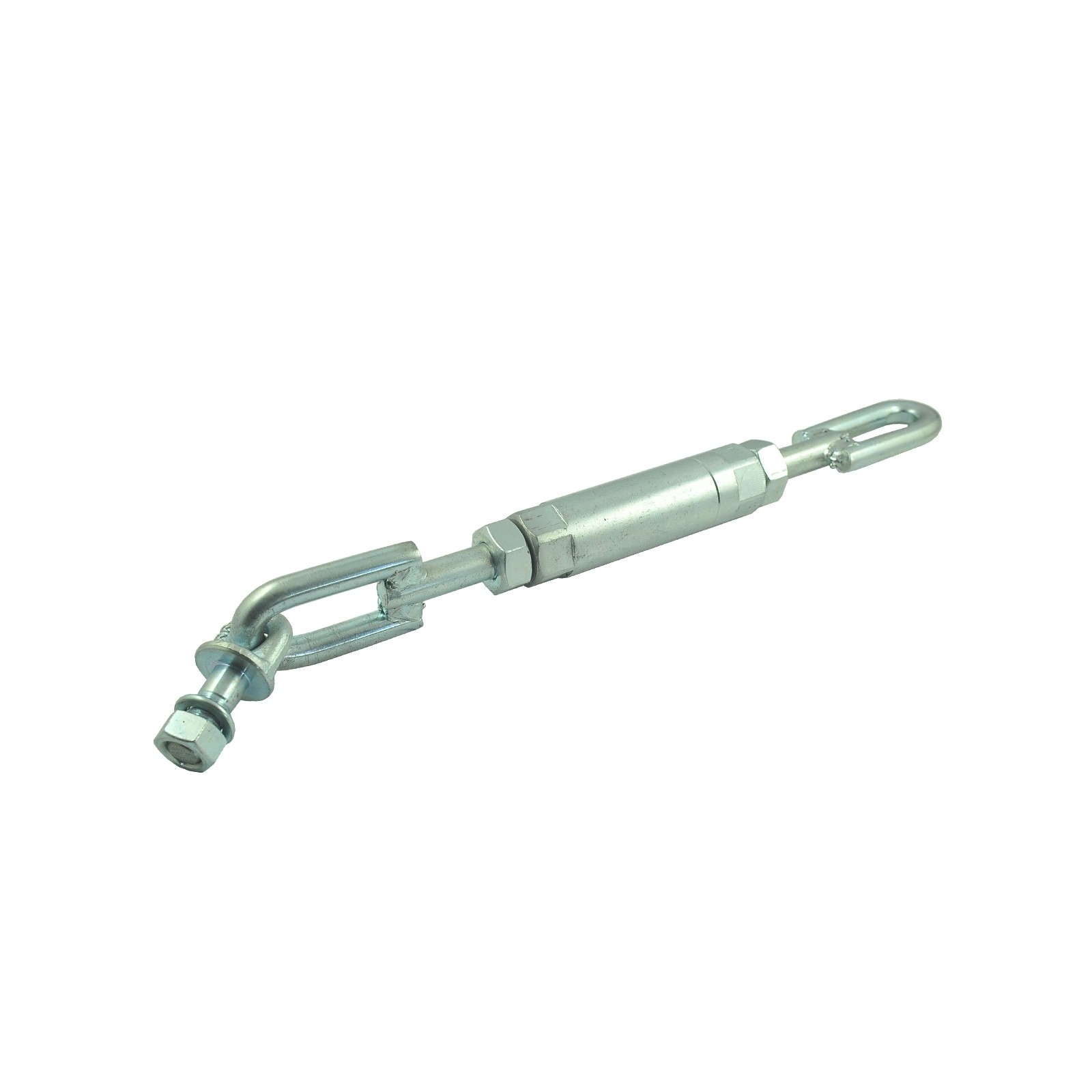

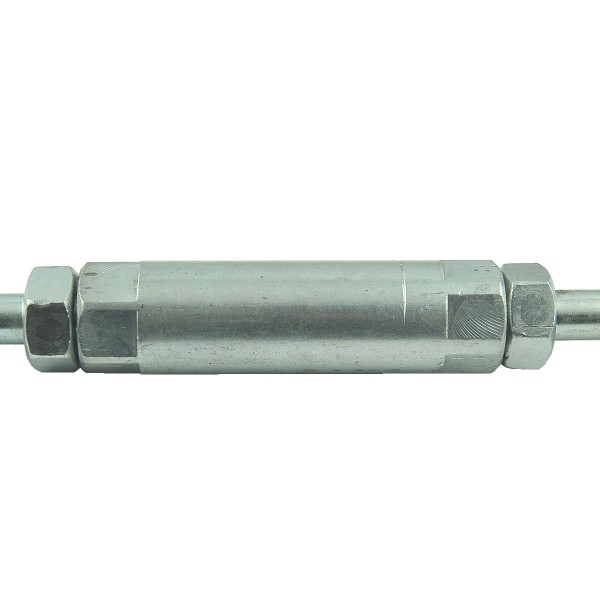

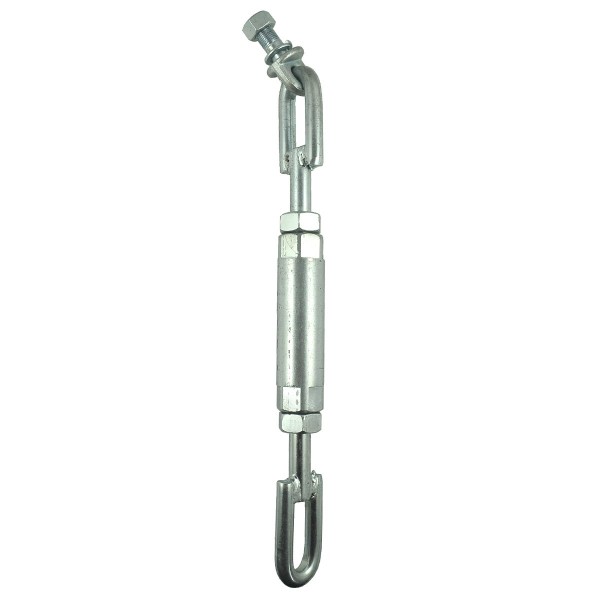

Lower arm stabilizer (link) of the three-point linkage CAT I (shackle 5-10-102-07 , TC220-28940, TC220-28950 + pin 5-25-134-04 , 32353-71890) for Kubota tractors of the Kubota L2808, Kubota L3408 series and others.
The TUZ pull is an adjustable pull element that stabilizes the lower arms (levers) of the three-point rear linkage system in the tractor. The side stabilizer is an element whose main task is to determine the appropriate position of the TUZ arm and to prevent the arms from hitting the rear wheels of the tractor. The TUZ arm stabilizer is terminated with a sleeve end on one side and a threaded pin on the other side.

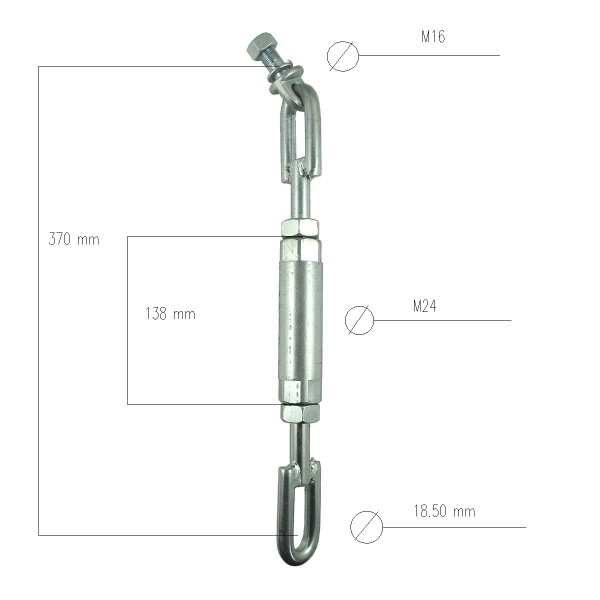

Dimensions :
- working length: minimum 370 mm, maximum 450 mm,
- diameter of pin holes (shackles): 18.50 mm,
- mounting screw thread: M16,
- adjustment thread: M24,
- original part numbers: W9501-65052,
- comparison numbers: 5-08-120-04 ,
- part numbers: 5-08-120-09.
Tractor models :
Kubota :
- Kubota L2808,
- Kubota L3408.
Universal stabilizer for the lower three-point linkage arm for the right and left sides of the tractor.
Warehouse :
M01:F84
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M01:F84
Condition
New
Production
Substitute
Parts
3-point linkage
Tractor models
Kubota L2808
Kubota L3408
Kubota L3408
Pin hole diameter (pins/mm)
18.50
Thread
M16
M24
M24
Original Part Number (OEM)
W9501-65052
Part number
5-08-120-09
Category
1
Minimum working length (mm)
370
Maximum working length (mm)
450
