Product description
Stabilizer of the lower arms of the three-point linkage , three-point linkage (TUZ) of the first category (CAT I) for Kubota tractors of the Kubota L3408, Kubota L3608, Kubota L4508, Kubota L4708, Kubota M5000, Kubota M6040, Kubota M7040, Kubota M9040 series and others.

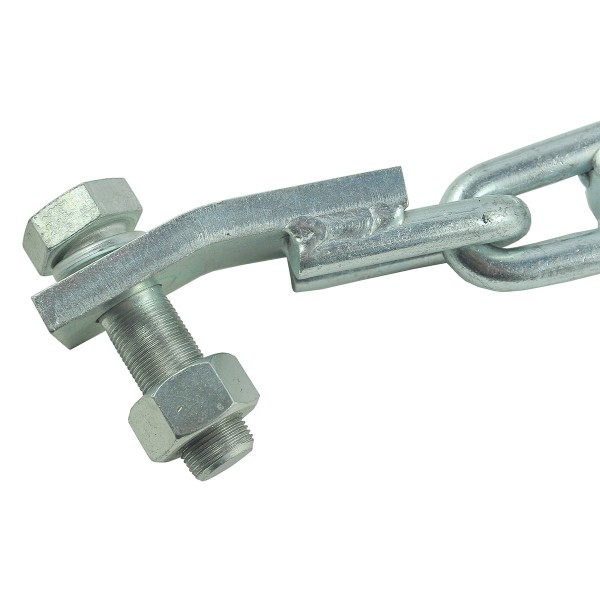

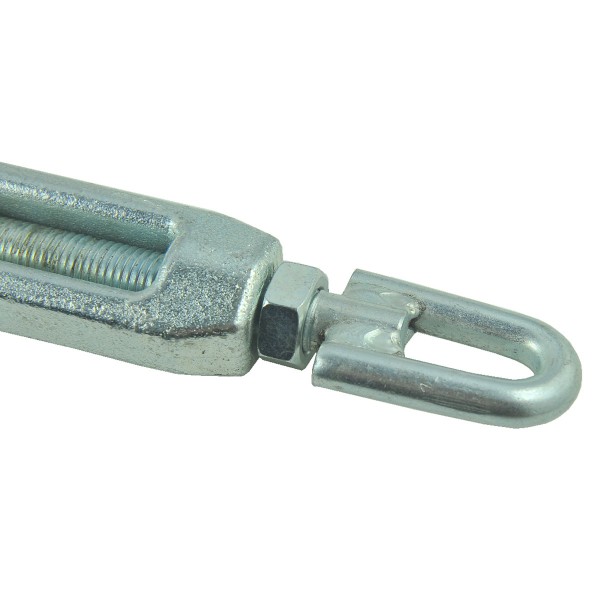

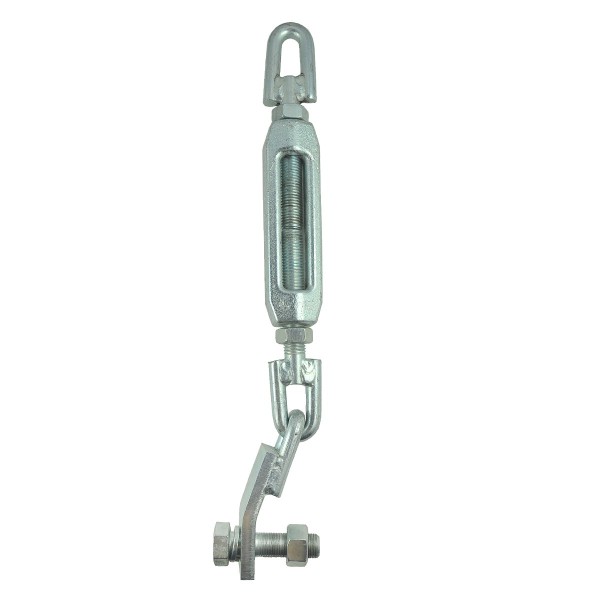

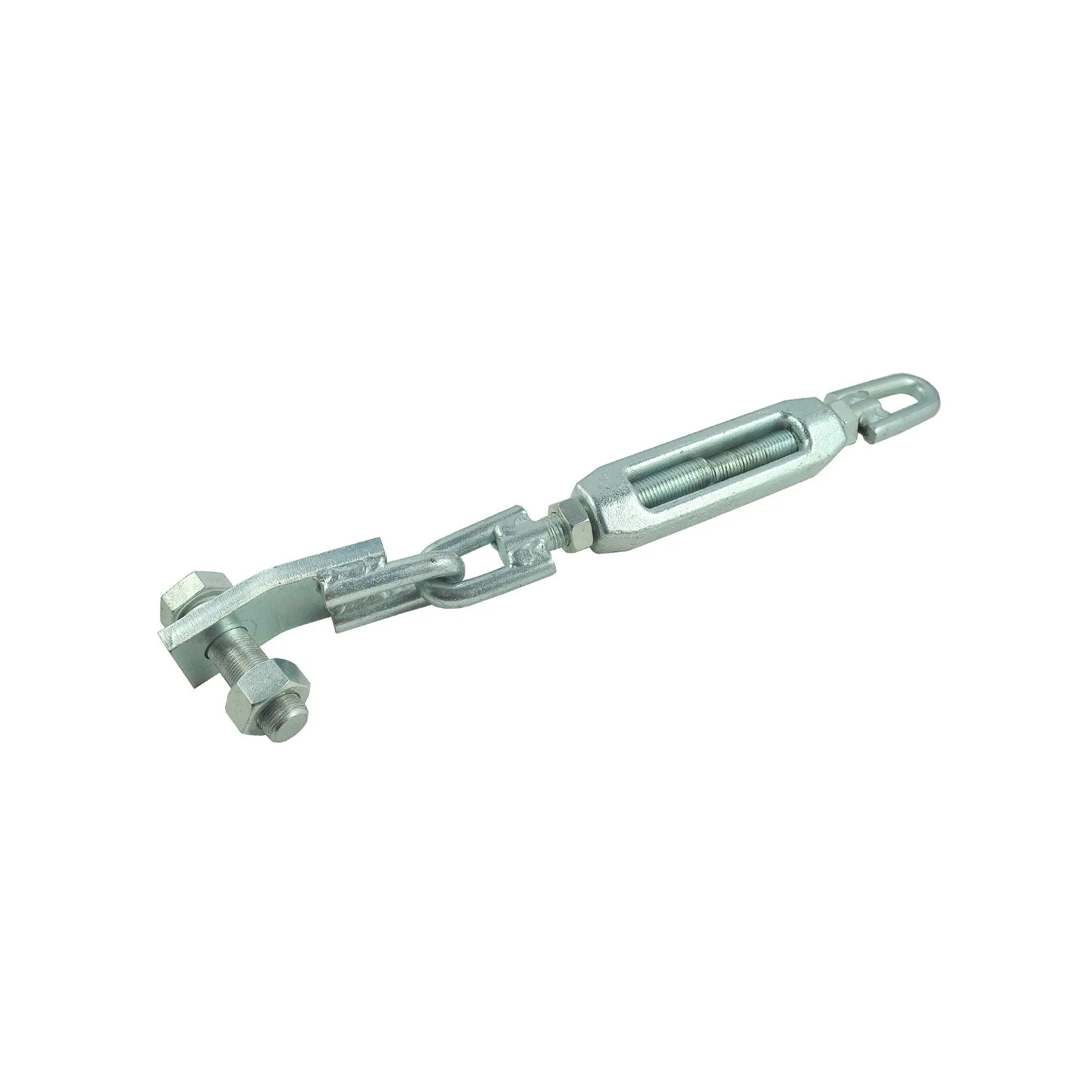

The TUZ pull is an adjustable pull element that stabilizes the lower arms (levers) of the three-point rear linkage system in the tractor. The side stabilizer is an element whose main task is to determine the appropriate position of the TUZ arm and to prevent the arms from banging against the rear wheels of the tractor. The TUZ arm stabilizer is terminated with a sleeve end on one side and a threaded pin on the other side.

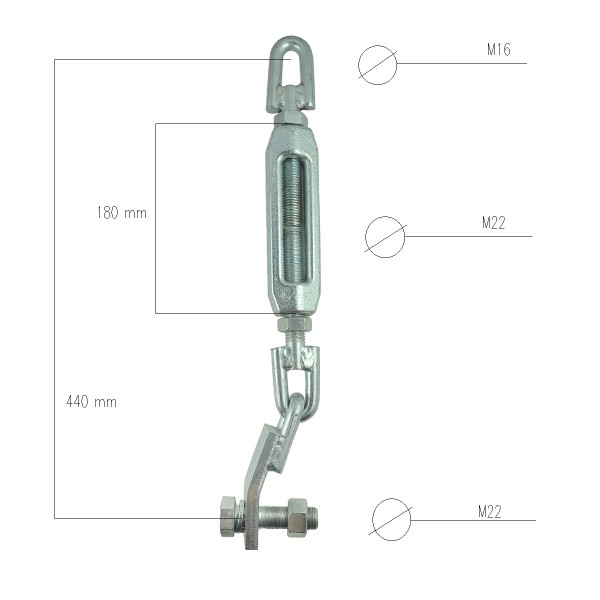

Dimensions:
- working length: minimum 440 mm, maximum 550 mm,
- total length: 500 mm,
- thread: M22 x 1.5.
- adjustment thread: M22 x 2.5,
- original part numbers: -,
- comparison numbers: -,
- part numbers: W9501-55073.
Tractor models:
Kubota:
- Kubota L3408,
- Kubota L3608,
- Kubota L4508,
- Kubota L4708,
- Kubota M5000,
- Kubota M6040,
- Kubota M7040,
- Kubota M9040.
Lower linkage arm stabilizer for the right and left sides of the tractor.
Warehouse:
M01:C73
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
