Available
Others in the offer of this manufacturer >
State
New
Parts
3-point linkage
Length (mm)
400
Overall length (mm)
590
Head diameter (mm)
60 (Kat I) / 66 (KAT II)
Pin hole diameter (pins/mm)
19.50 (Kat I) / 26 (Kat II)
Hammer/knife/pin mounting width (a) (mm)
44 (Kat I) / 50 (KAT II)
Go to full specification >
wishlist

Turnbuckle / M26 x 400 mm / TUZ Cat I/Cat II

AETLA/2020/400
zł99.00
Tax included PL 23%

80,49 netto

  • Dostępność (23 Quantity): stock
wishlist

Do you have any questions?

Turnbuckle / M26 x 400 mm / TUZ Cat I/Cat II

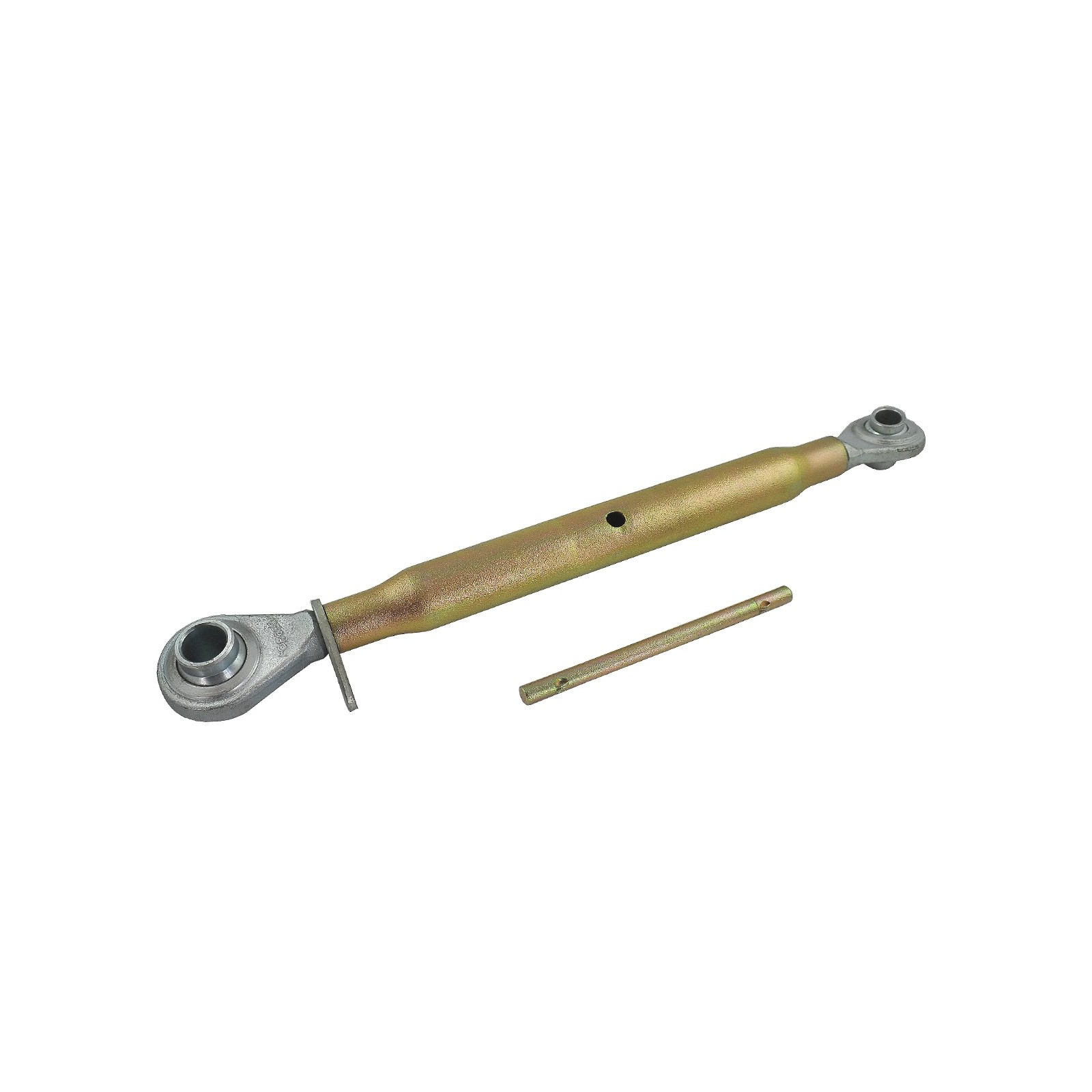

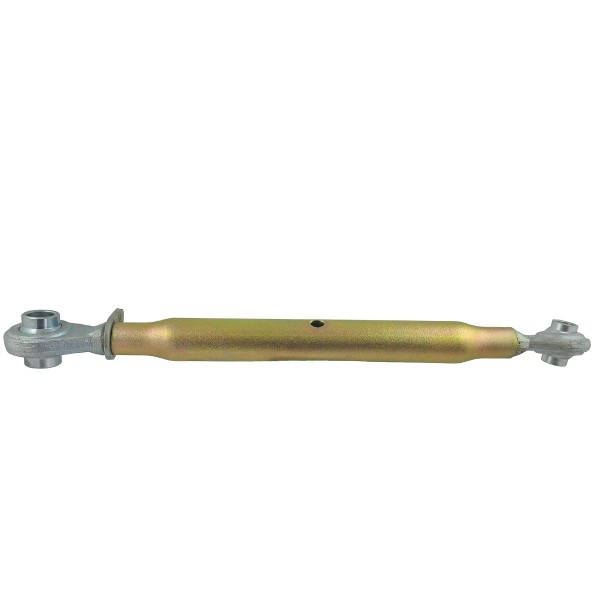

Turnbuckle Cat I/Cat II with a total length of 590 mm (minimum total length measured with fully tightened screws) and a pin hole diameter of 19.50 mm (TUZ Cat I), 26 mm (TUZ Cat II) for agricultural tractors with a three-point rear suspension system (TUZ) Cat I/Cat II .

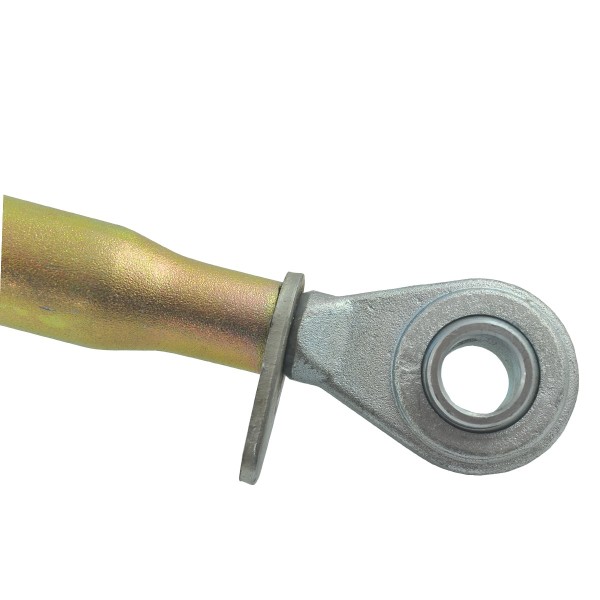

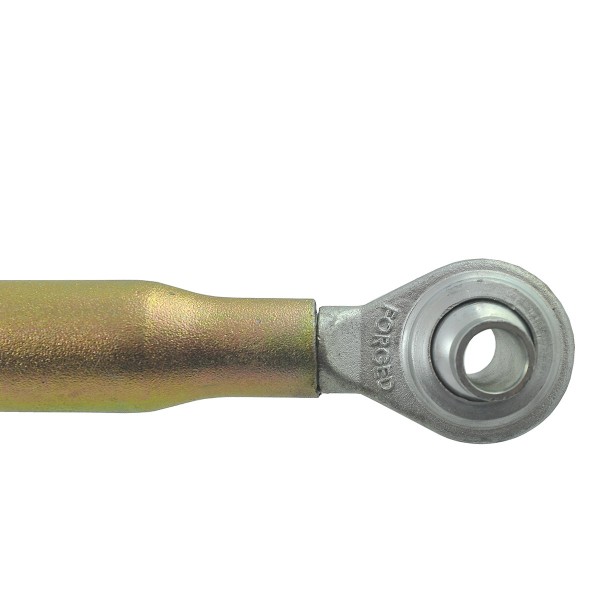

The TUZ turnbuckle used in agriculture is a tractor element, or more precisely, an element of the rear hydraulic lift TUZ ( TUZ-three-point rear suspension system ) and is used to connect the tractor to a machine or agricultural implement. The pipe tensioning screw , also called a connector, is made of three elements, i.e. a body and two screws, the threads of which are directed opposite to each other. The turnbuckle and terminated with spherical swinging holes, sleeves for locking pins .

Dimensions :

  • length: 400 mm (body),
  • total length: 590 mm (minimum total length measured with fully tightened screws),
  • working length: minimum 520 mm, maximum 750 mm,
  • thread: M26 x 3.5,
  • diameter of pin holes: 19.50 mm (Cat I) / 26 mm (Cat II),
  • width of the sleeve for mounting pins: 44 mm (Cat I) / 50 mm (Cat II),
  • head diameter: 60 mm (Cat I) / 66 mm (Cat II).

The agricultural turnbuckle is made of a stainless metal alloy resistant to high stress forces and is resistant to harmful weather conditions. The oppositely directed threads of the turnbuckle cause that by turning the body (middle element), depending on the direction of rotation, the screw tightens or acts as an expansion.

Warehouse :
K13/34

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: K13/34
State
New
Parts
3-point linkage
Length (mm)
400
Overall length (mm)
590
Head diameter (mm)
60 (Kat I) / 66 (KAT II)
Pin hole diameter (pins/mm)
19.50 (Kat I) / 26 (Kat II)
Hammer/knife/pin mounting width (a) (mm)
44 (Kat I) / 50 (KAT II)
Thread
M26 x 3.5
Category
1
2
Minimum working length (mm)
520
Maximum working length (mm)
750
