Turnbuckle / M20 x 230 mm / TUZ Cat I/Cat I
Do you have any questions?
Turnbuckle / M20 x 230 mm / TUZ Cat I/Cat I

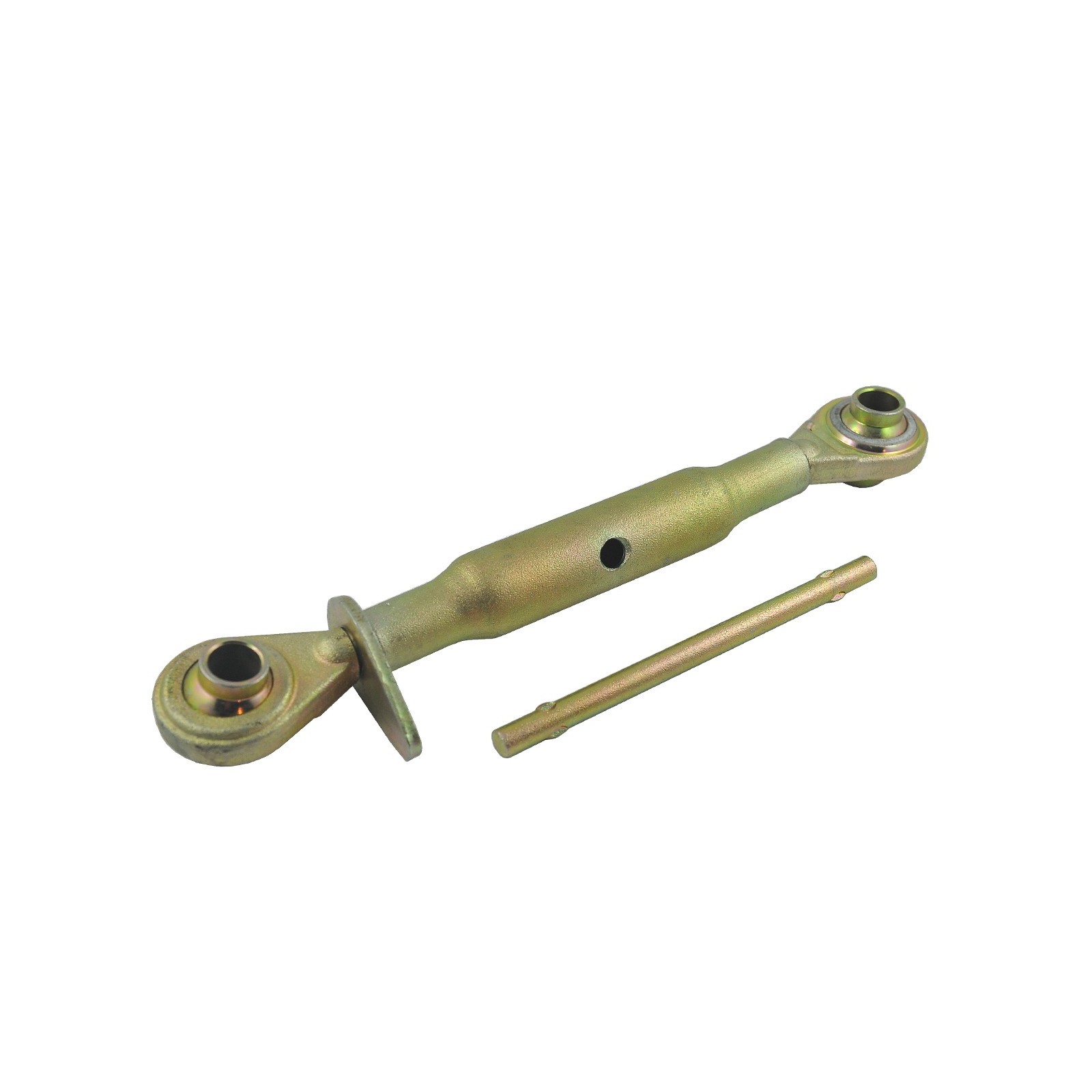

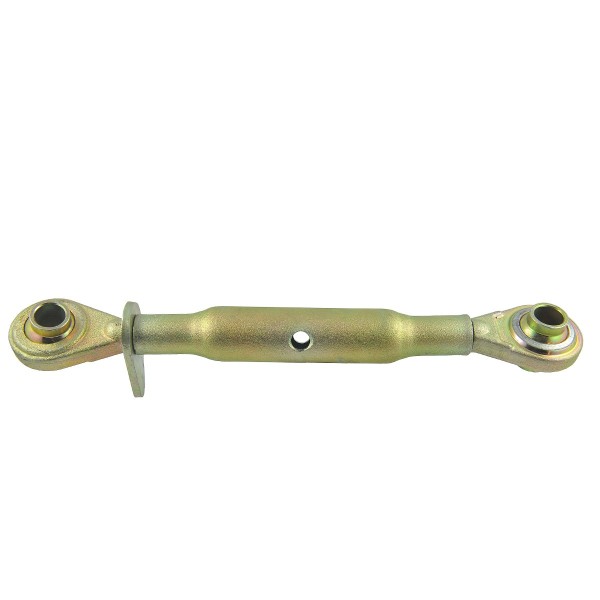

Turnbuckle Cat I with a total length of 385 mm (minimum total length measured with fully tightened screws) and a pin hole diameter of 19.50 mm for agricultural tractors with a three-point rear suspension system (TUZ) Cat I.

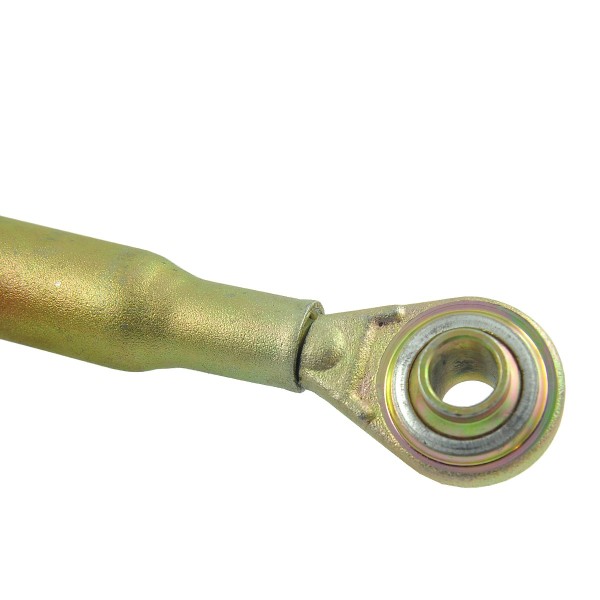

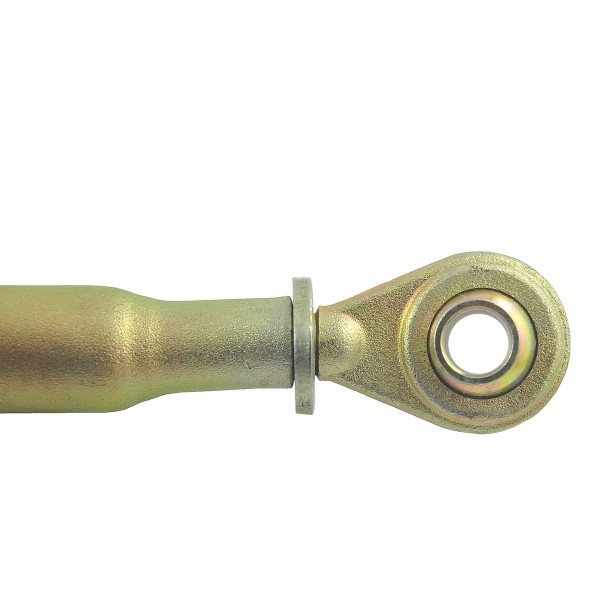

The TUZ turnbuckle used in agriculture is a tractor element, or more precisely, an element of the rear hydraulic lift TUZ ( TUZ-three-point rear suspension system ) and is used to connect the tractor to a machine or agricultural implement. The pipe tensioning screw , also called a connector, is made of three elements, i.e. a body and two screws, the threads of which are directed opposite to each other. The turnbuckle and terminated with spherical swinging holes, sleeves for locking pins .
Dimensions :
- length: 230 mm (body),
- total length: 385 mm (minimum total length measured with fully tightened screws),
- working length: minimum 335 mm, maximum 440 mm,
- thread: M20 x 2.5,
- diameter of pin holes: 19.50 mm,
- width of the sleeve for mounting pins: 44 / 44 mm,
- head diameter: 55 / 55 mm,
The agricultural turnbuckle is made of a stainless metal alloy resistant to high stress forces and is resistant to harmful weather conditions. The oppositely directed threads of the turnbuckle cause that by turning the body (middle element), depending on the direction of rotation, the screw tightens or acts as an expansion.
Warehouse :
K13/38
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
