V-belt / Fenner A38 / 13 x 995Ld / Iseki TS1610 / TS910 / VST Shakti 135 / K887424-1
Do you have any questions?

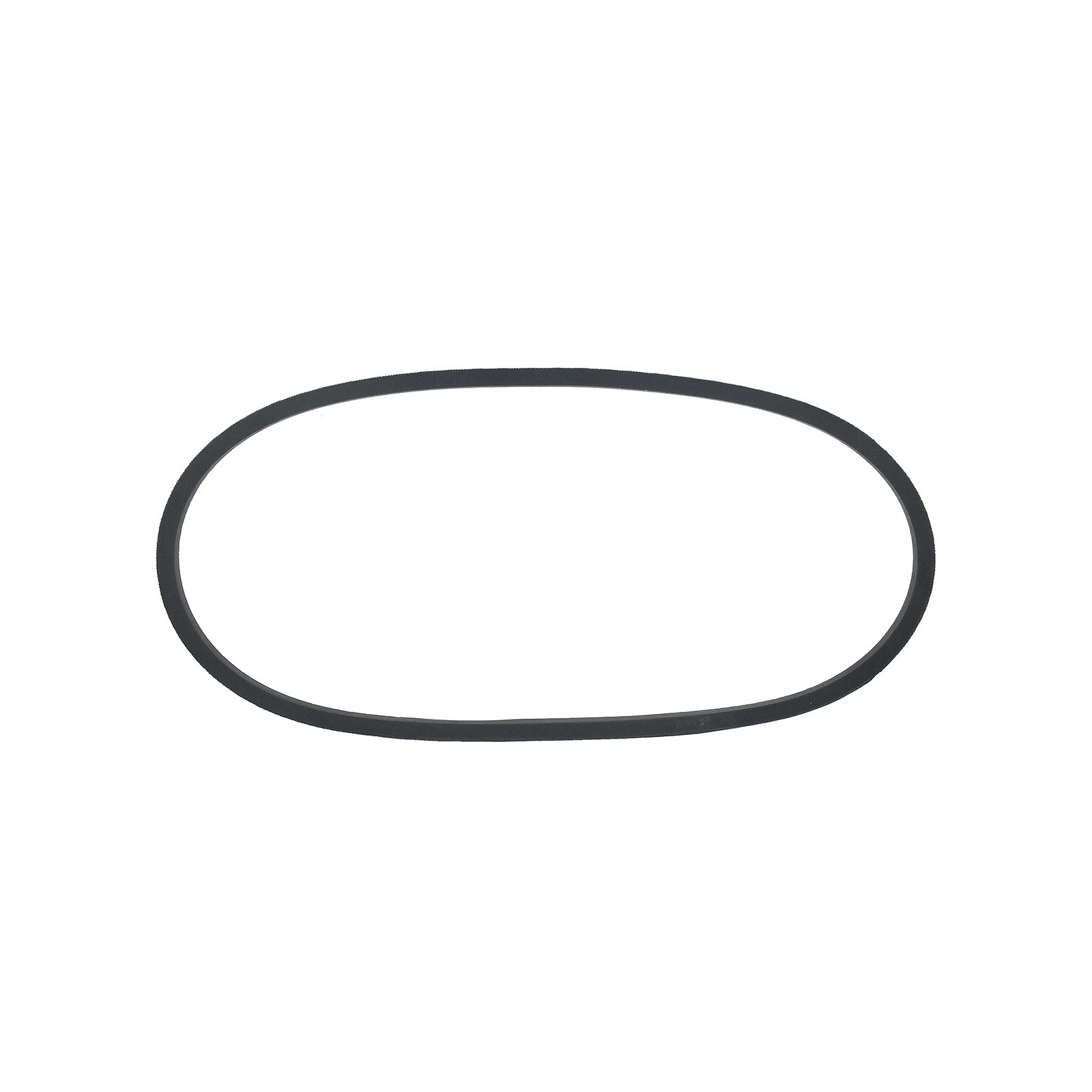

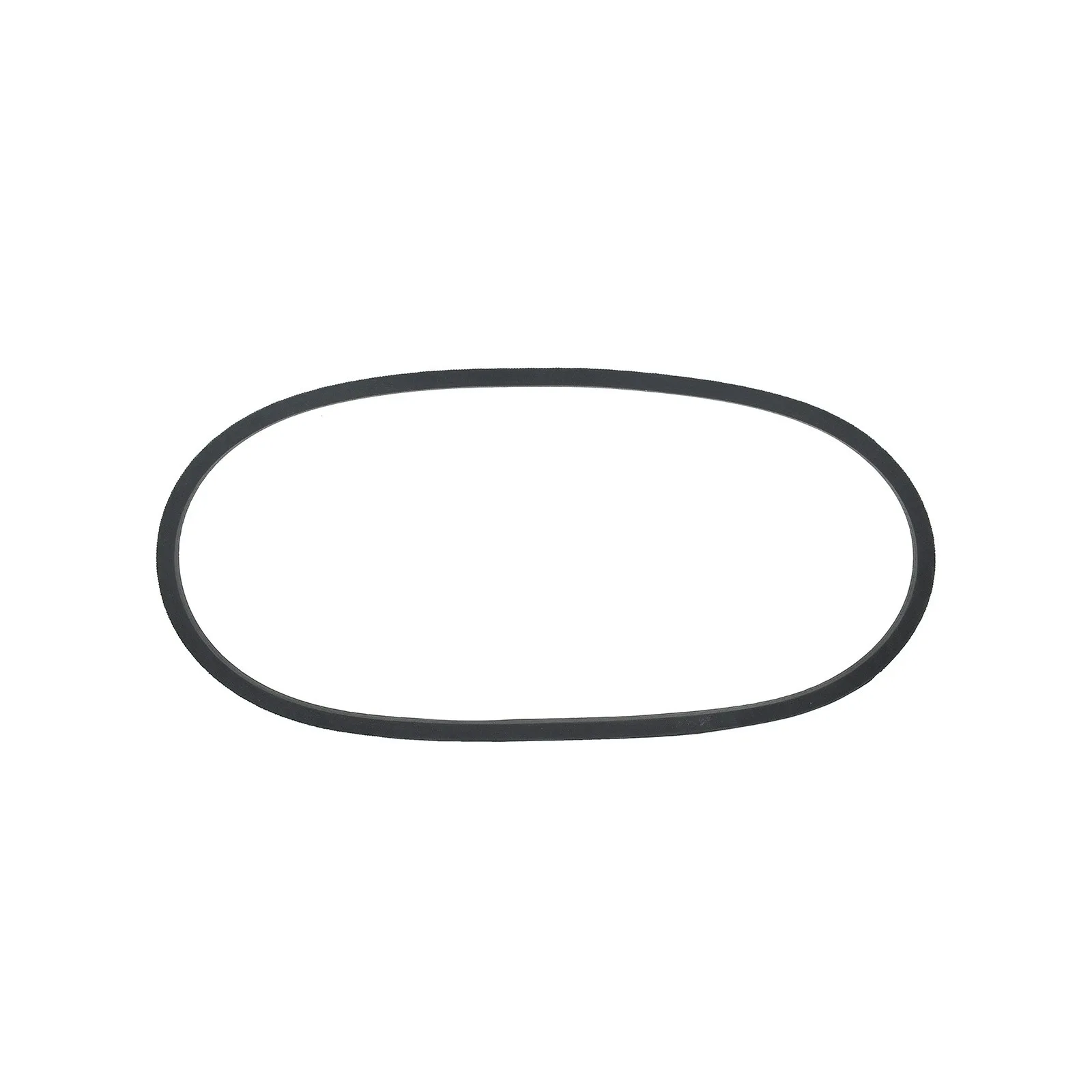

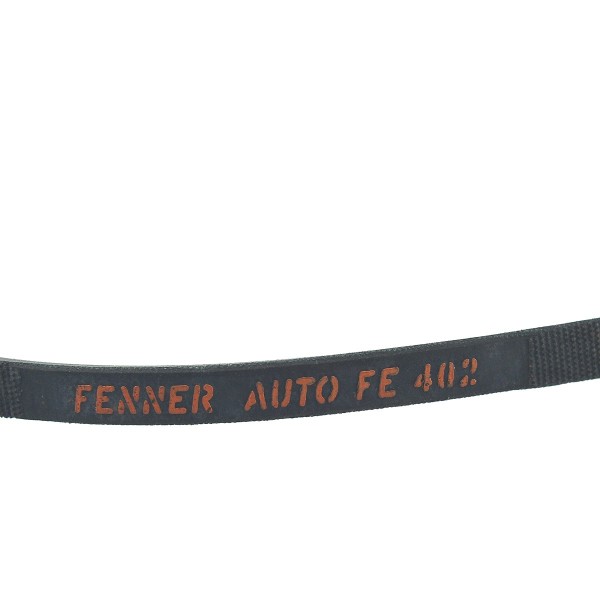

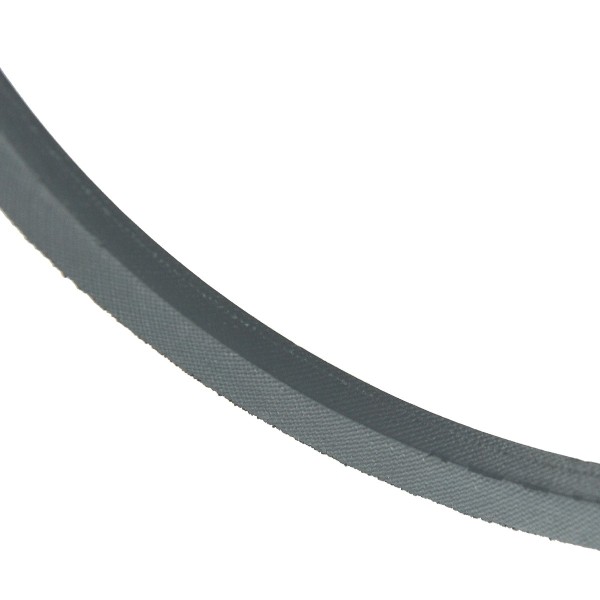

V-belt / Fenner A38 / 13 x 995Ld / Iseki TS1610 / TS910 / VST Shakti 135 / K887424-1
Fan V-belt B 38 for Iseki tractors of the Iseki TS1610, Iseki TS1910 series and the single-axle tractor of the "dzik" type of the Iseki TS1610, Iseki TS1910 series VST Shakti 135 - DI ULTRA , Shrachi 13HP and others.
A standard V-belt is marked with two length values Ld and Li . The length Li is the internal length, and the length Ld is the so-called pitch length, according to the ISO standard, in great simplification it can be called the external length, but it is the length measured at the strongest structural point of the belt. V-belt markings are most often a capital letter of the alphabet denoting the belt cross-section (mm) Z, A, B, C, D and lengths. The simplest division of belts available on the market is narrow-section belts, classic, narrow-section toothed and classic toothed.
V-belt length Li, Ld or La?
- Li - internal length,
- Ld /Lp - pitch length (measured at the height of 3/4 of the wedge cross-section, ISO dimension),
- La - external length.
Dimensions :
- external length (La): 1015 mm,
- pitch length (Ld): 995 mm,
- inside length (Li): 965 mm,
- width: 13 mm.
- height: 8 mm,
- reference numbers: BX965Li , S.18720 , ACA02C00020, ACA02C00020A0,

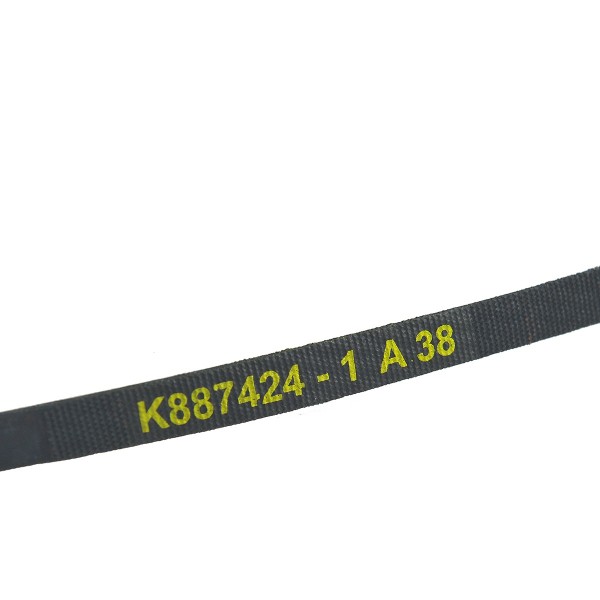

- part numbers: K887424-1.
Machine models:
Iseki :
- Iseki TS1610,
- Iseki TS1910.
VST:
- VST Shakti 135-DI ULTRA ,
- Shrachi 13HP,
- Virat 13HP.
A V-belt is an element that is used to transfer drive from an engine or transmission to an accessory or device. V-belts are most often used to drive an alternator, coolant pump or compressor, and in agriculture, belts are used in agricultural devices and equipment that operate at high rotational speeds. V-belts are the most commonly worn parts of agricultural machinery due to the material they are made of and damage resulting from overloads during machine operation. A worn V-belt should be replaced with a new one as soon as possible to prevent an accident or damage to the machine.
Magazine : M01:C34:S01
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Iseki TS1610
VST Mitsubishi Shakti 135 - DI ULTRA
Virat 13HP
ACA02C00020A0
BX965Li
S.18720
