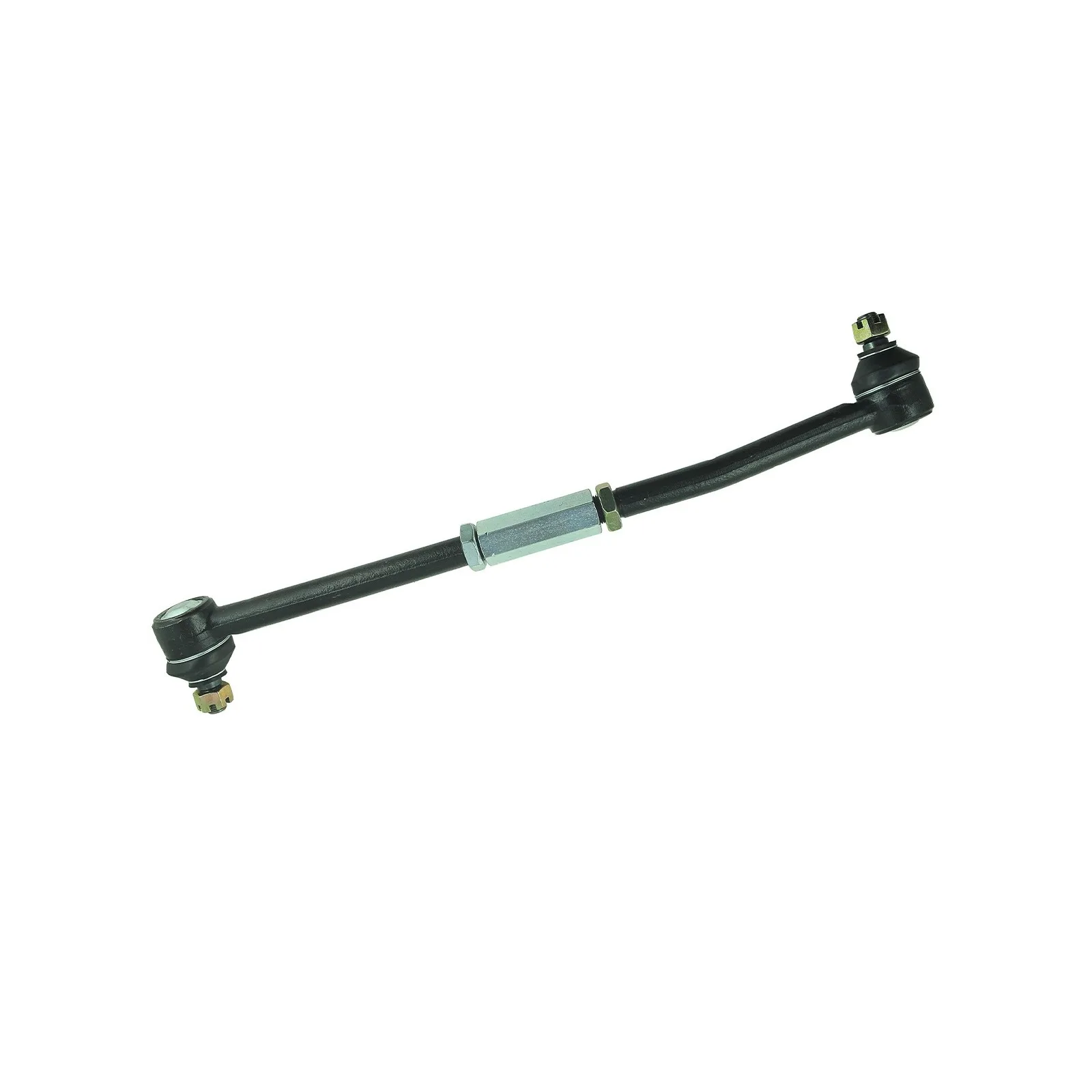

Steering rod / 45 x 515 mm / LH / Kubota L3008 / L3608 / L4018

LH steering rod (rod for the left side %C5% BCki-kierownicze-/1452-dr %C4% 85 %C5% BCek-kierowniczy-445-mm-lh-kubota-l3008l3608l4018-5-23-101-62.html">5-23-101-62 ) with a working length of 515 mm and a height of 82 mm for tractors Kubota brand series Kubota L3008, Kubota L3608, Kubota L4018 and others

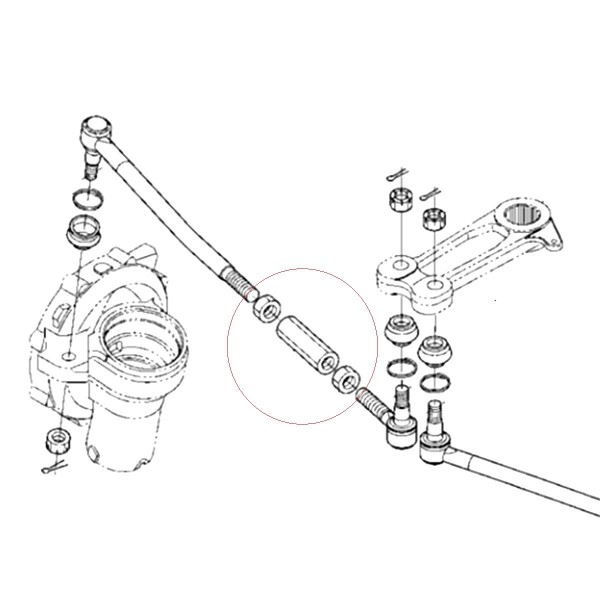

The tie rod end, or tie rod with its ends, is a steering component that connects the wheels to the steering gear. Proper installation of this component directly affects the wheel angle and, consequently, the vehicle's handling characteristics. The most common visible signs that a tie rod needs replacing are play in the steering system or visible abnormal tire wear. Remember that the good condition of the tie rod ends improves driving safety and extends tire life.

(shaft connector %C5% 9Bci-do-kubota/358- %C5% 82 %C4% 85cznik-ko %C5% 84c %C3% B3wki-dr %C4% 85 %C5% BCka-m20-x-15-80-mm-kubota-l3408-32570-44720-5-15-249-06.html">5-15-249-06 , 32570-44720, left end %C5% 9Bci-do-kubota/1455-ko %C5% 84c %C3% B3wka-dr %C4% 85 %C5% BCka-270-mm-right-kubota-l3608l4018-tc422-13742-5-23-101-57.html">5-23-101-58 , TC422-13742, right end %C5% 9Bci-for-kubota/1455-ko %C5% 84c %C3% B3wka-dr %C4% 85 %C5% BCka-270-mm-right-kubota-l3608l4018-tc422-13742-5-23-101-57.html">5-23-101-57 , whole set for right side %C5% BCki-steering-/1452-dr %C4% 85 %C5% BCek-steering-445-mm-lh-kubota-l3008l3608l4018-5-23-101-62.html">5-23-101-62 )

Dimensions (set):

• length: 445 mm (measured without rod end heads with screws tightened to the maximum),
• total length: 535 mm (measured with rod heads and screws tightened to the maximum),
• working length: 515 mm (measured from center to center of the cones with the screws tightened to their maximum),
• Comparison numbers: %C5% BCki-kierownicze-/1452-dr %C4% 85 %C5% BCek-kierowniczy-445-mm-lh-kubota-l3008l3608l4018-5-23-101-62.html">5-23-101-62 ,
• part numbers: TC422-13702.

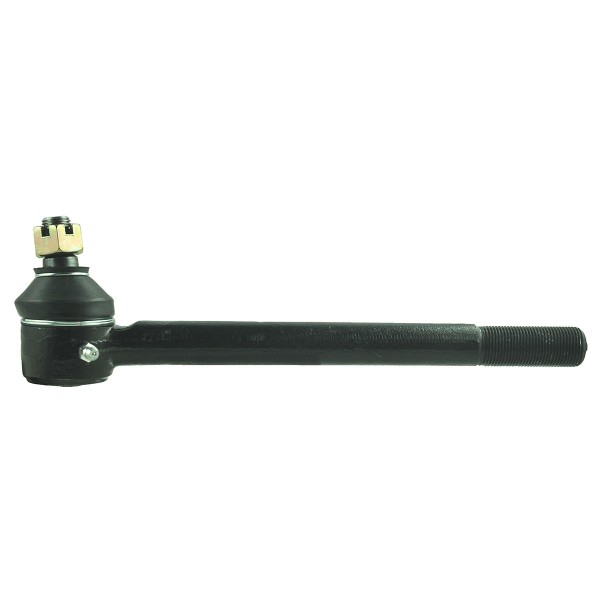

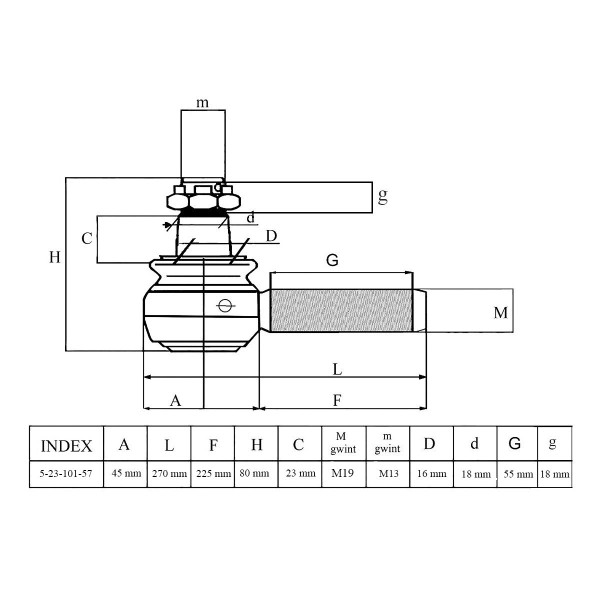

Tip dimensions (5-23-101-57, TC422-13742):

• total length: 270 mm,
• head diameter: 45 mm,
• thread length: 18 / 45 mm,
• head height (see drawing): 80 mm,
• cone height: 23 / 45 mm,
• cone diameter (see drawing): 16 / 18 mm,
• thread: M13 x 1.5 / M19 x 1.50,
• original part numbers: TC422-13742,
• comparison numbers: 6-23-133-12,
• part numbers: %C5% 9Bci-do-kubota/1455-ko %C5% 84c %C3% B3wka-dr %C4% 85 %C5% BCka-270-mm-right-kubota-l3608l4018-tc422-13742-5-23-101-57.html">5-23-101-57 .

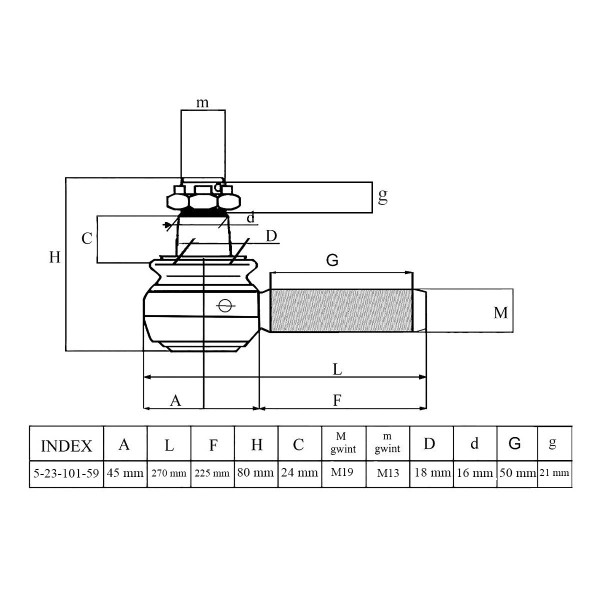

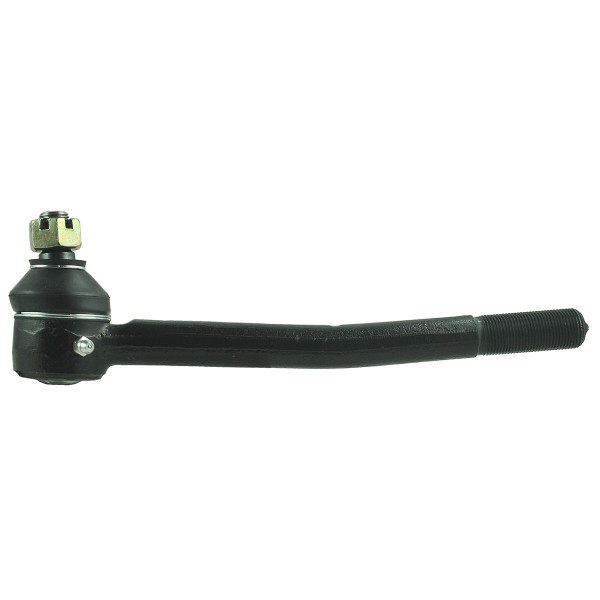

Tip dimensions (5-23-101-59, TC422-13750):

• total length: 270 mm,
• head diameter: 45 mm,
• thread length: 21 / 50 mm,
• head height (see drawing): 80 mm,
• cone height: 45 / 24 mm,
• cone diameter (see drawing): 18 / 16 mm,
• thread: M13 x 1.50 / M19 x 1.50,
• original part numbers: TC422-13750,
• comparison numbers: 6-23-133-10,
• part numbers: %C5% 9Bci-do-kubota/1457-ko %C5% 84c %C3% B3wka-dr %C4% 85 %C5% BCka-steering-80-x-270-mm-right-kubota-l3008l3608l4018-tc422-13750-5-23-101-59.html">5-23-101-59 .

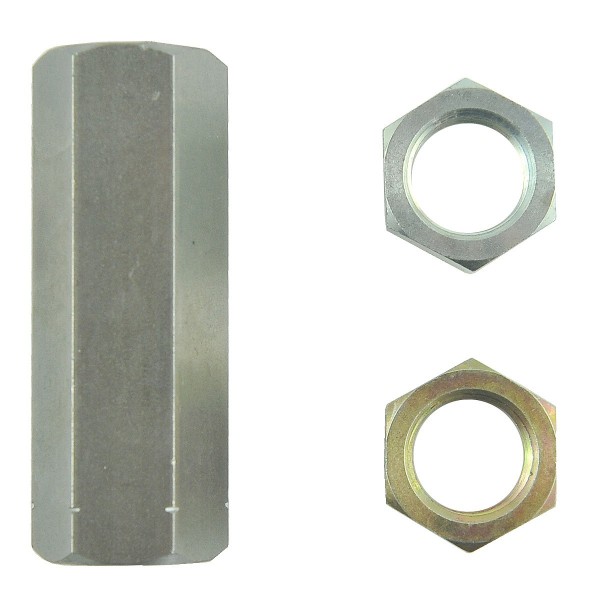

Connector dimensions (5-15-249-06):

• length: 80 mm.
• nut height: 12 mm,
• thread: M19 x 1.50,
• key size: 27.
• original part numbers: 32570-44720,
• part numbers: %C5% 9Bci-do-kubota/358- %C5% 82 %C4% 85cznik-ko %C5% 84c %C3% B3wki-dr %C4% 85 %C5% BCka-m20-x-15-80-mm-kubota-l3408l3608l4018-32570-44720-5-15-249-06.html">5-15-249-06 .

Tractor models :

• Kubota L3008,
• Kubota L3608,
• Kubota L4018.

The first signs of steering rack wear include play in the steering wheel, steering wheel vibration, and delayed steering wheel response to slight steering wheel movements. Tie rod end wear or damage is often caused by other malfunctioning components or improper driving and operation of the tractor.

Magazine : K18 E17 S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
