Product description

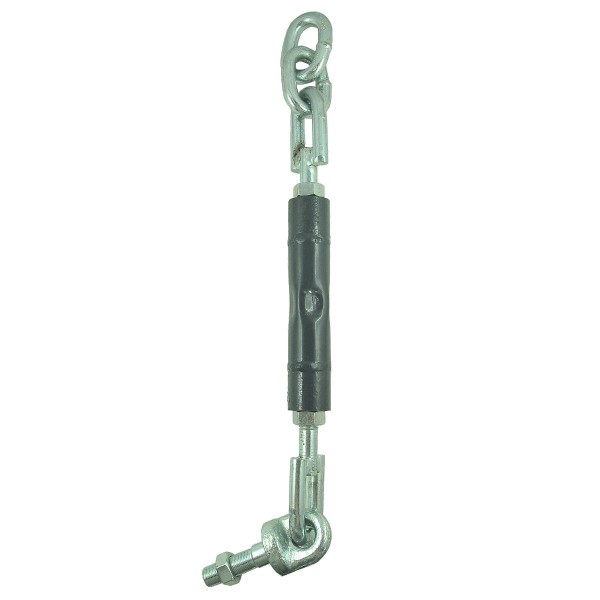

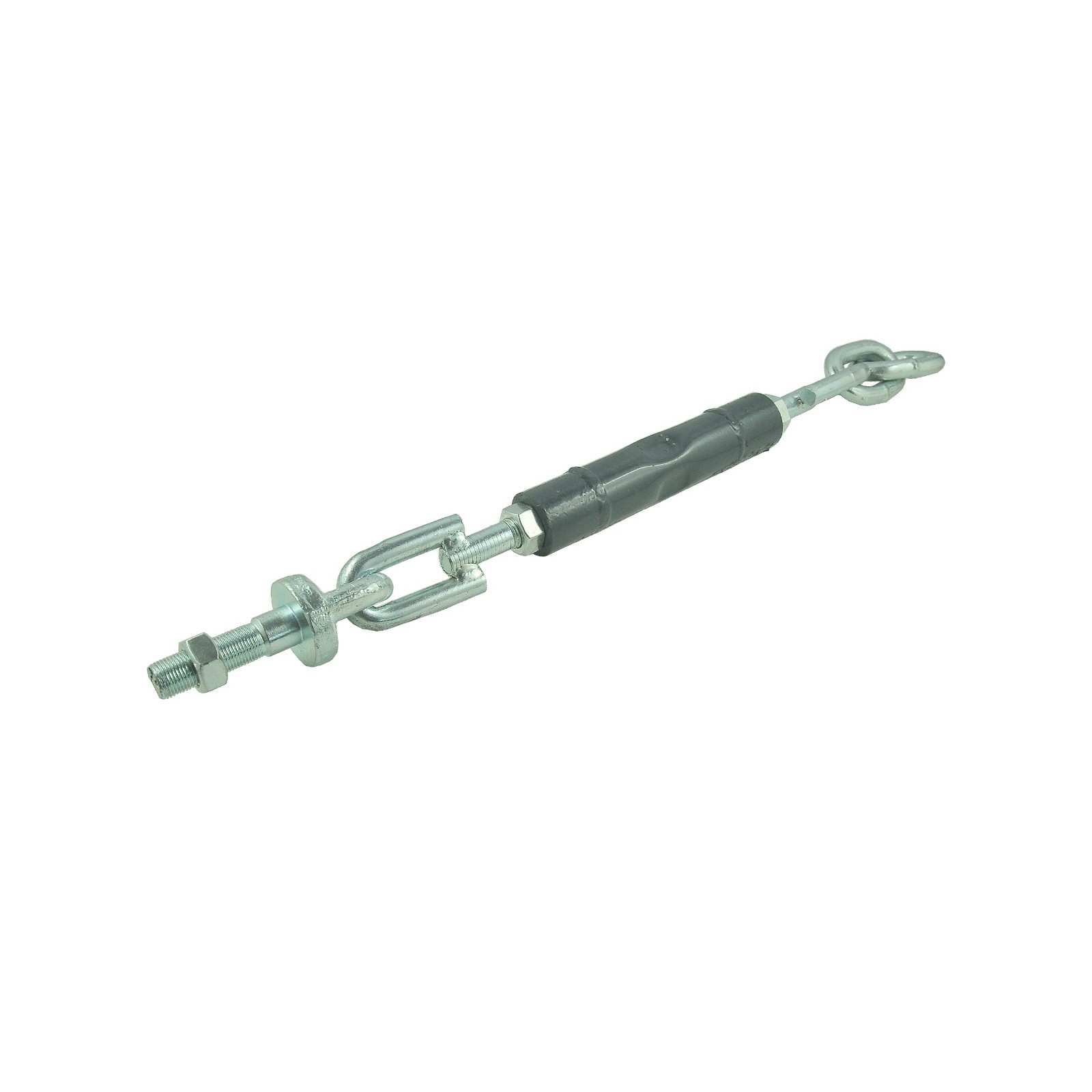

Lower arm stabilizer (link) of the first category (CAT I) three-point linkage ( shackle 5-10-102-11 , shackle pin 5-25-134-07 , 36330-91180) for Kubota tractors of the Kubota M5000, Kubota M6040 series and others.

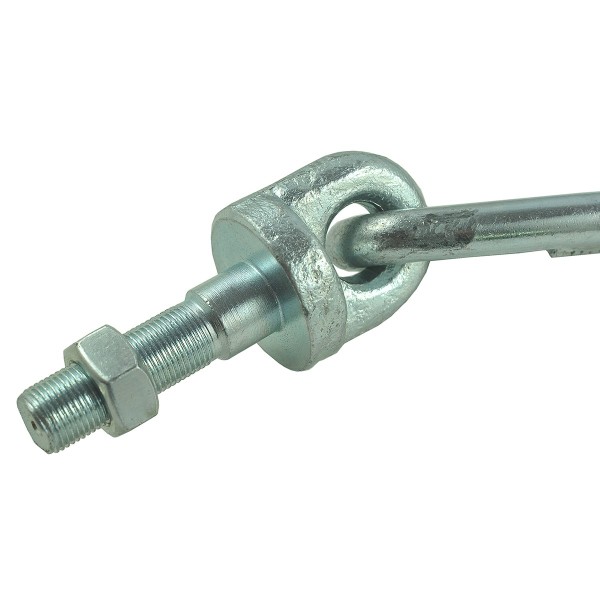

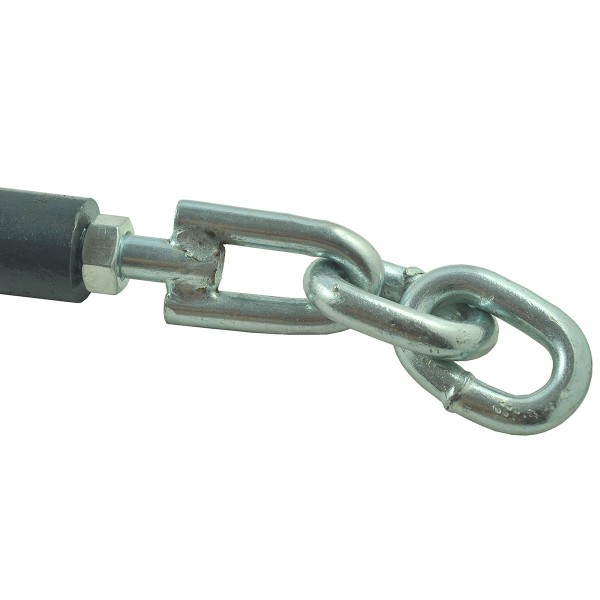

The TUZ pull is an adjustable pull element that stabilizes the lower arms (levers) of the three-point rear linkage in the tractor. The side stabilizer is an element whose main task is to determine the appropriate position of the TUZ arm and to prevent the arms from hitting the rear wheels of the tractor. The TUZ arm stabilizer is terminated with a sleeve end on one side and a threaded pin on the other side.

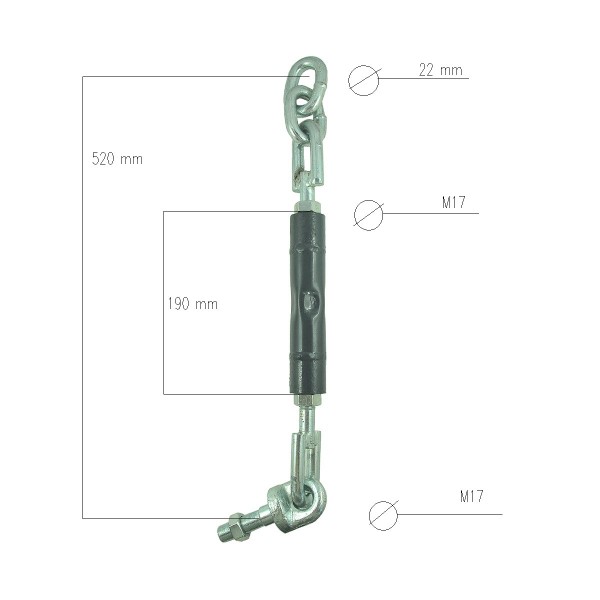

Dimensions :
- working length: minimum 520 mm, maximum 670 mm,
- diameter of pin holes (shackles): 22 mm,
- pin thread: M17 x 1.5,
- adjustment thread: M17 x 2.5,
- original part numbers: -,
- comparison numbers: 5-08-120-39 ,
- part numbers: 3A275-91100.
Tractor models :
Kubota :
- Kubota M5000,
- Kubota M6040.
Universal stabilizer for the lower three-point linkage arm for the right and left sides of the tractor.
Warehouse :
M01:D46:S01
Specifications
Podobne produkty
Reviews of TUZ arm..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
