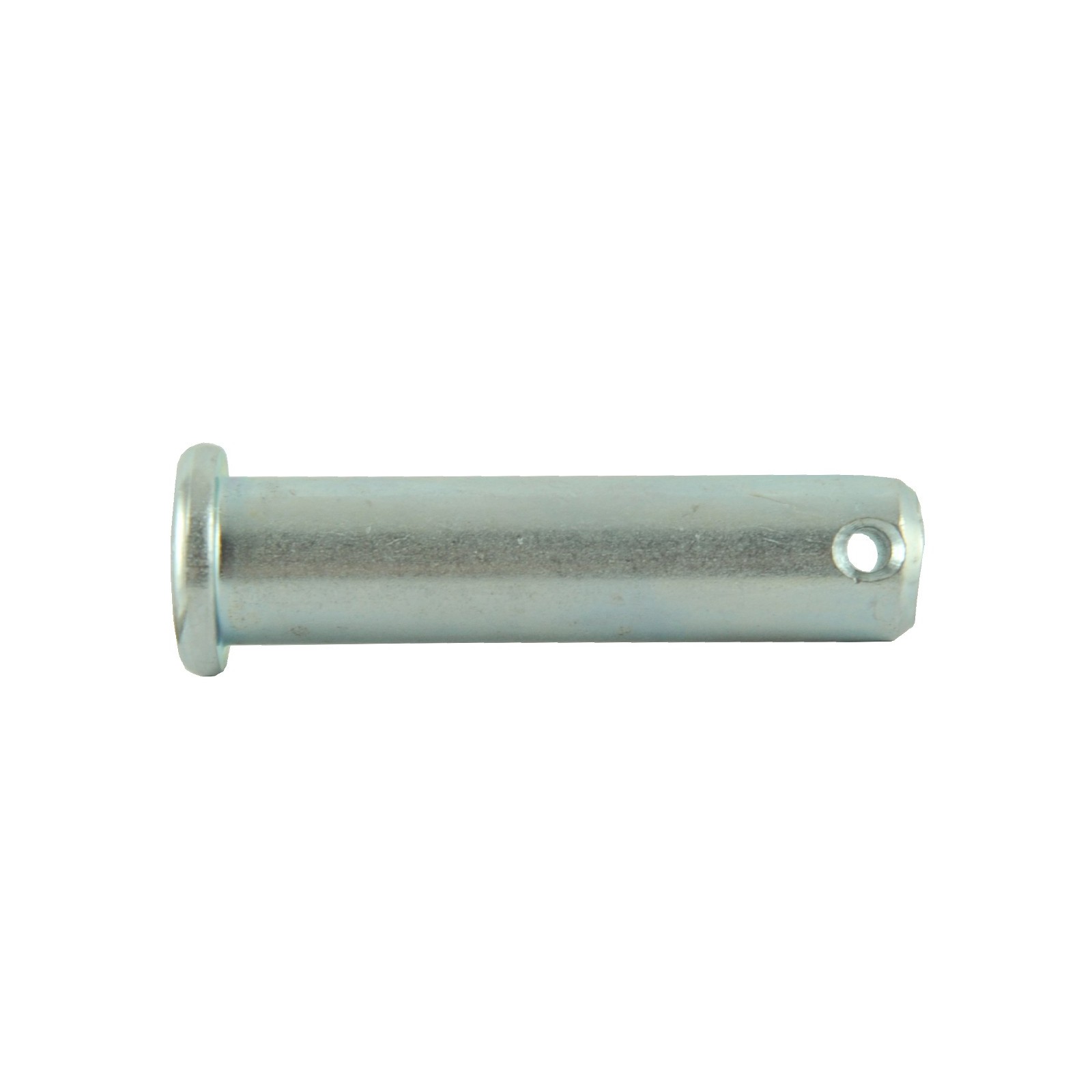

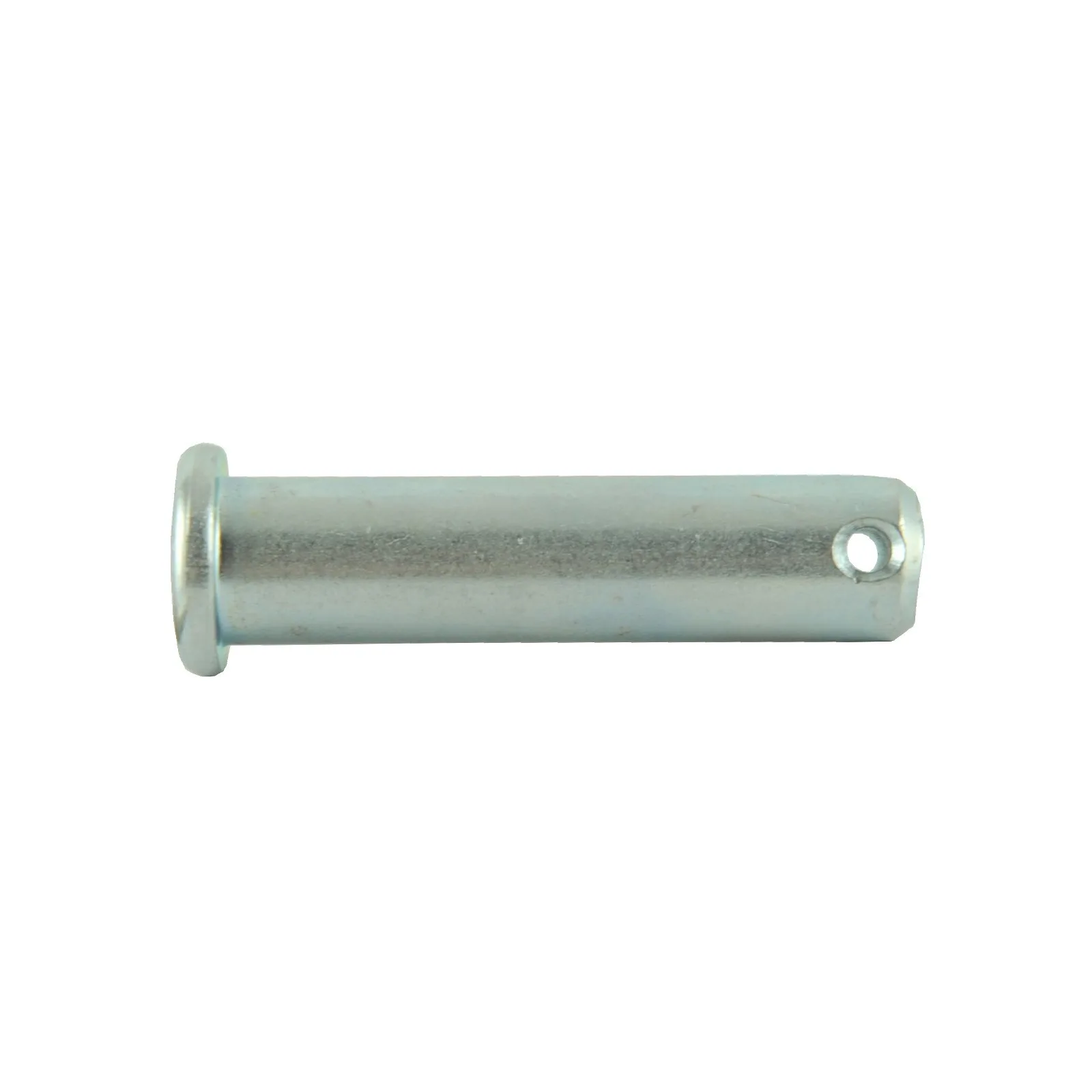

Cat I Pin /16 x 60 mm / TRG896 / A1896090 / LS Tractor 40009469

Pin with cylindrical head , small, total length 70 mm , diameter 16 mm , working length 60 mm for LS Tractors series LS MT3.35, LS MT3.40 , LS MT3.50, LS MT3.60 and others for:

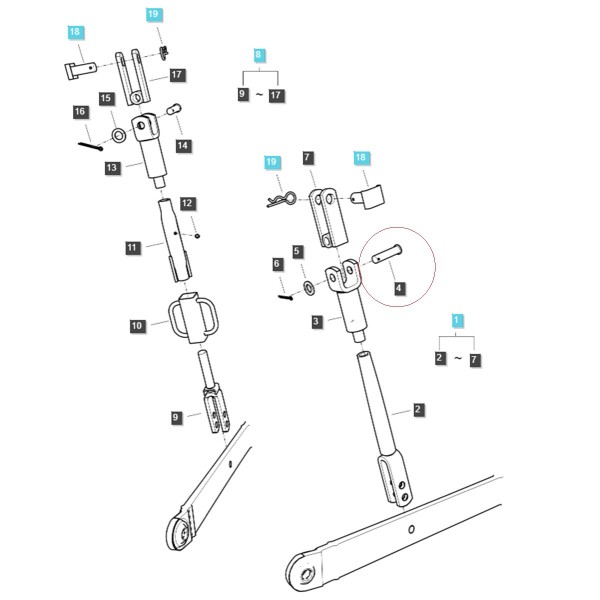

• vertical hanger of the lower arm of the three-point linkage,
• lift arms.

A pin is one of the most common ways to connect (not rigidly) elements, accessories or a set of parts. A pin connection is most often a cylinder made of a hard material resistant to damage and temperature, which, depending on the application, can be loosely or tightly fitted with a second element closing the connection, e.g. a shackle, a screw with a "U" type handle or a mounting plate and most often closed with a pin placed in the pin hole or a locking nut. We distinguish several types of pins, here are the most common:

• without a head,
• nasal,
• with cylindrical head,
• with threaded pin,

Dimensions :

• total length: 70 mm,
• working length: 60 mm,
• diameter: 16 mm,
• head diameter: 22 mm,
• part numbers: A1896090, 40009469.

Tractor models :

LS Tractor :

• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60.

Warehouse :
L01:B234

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
