zł78.00
To order
Condition
New
Production
Substitute
Parts
Chassis
Tractor models
Kubota L3608
Kubota L4508
Kubota L4708
Kubota L5018
Kubota L4508
Kubota L4708
Kubota L5018
Height (mm)
62.50
Outer diameter (mm)
75
Inner Diameter (mm)
70

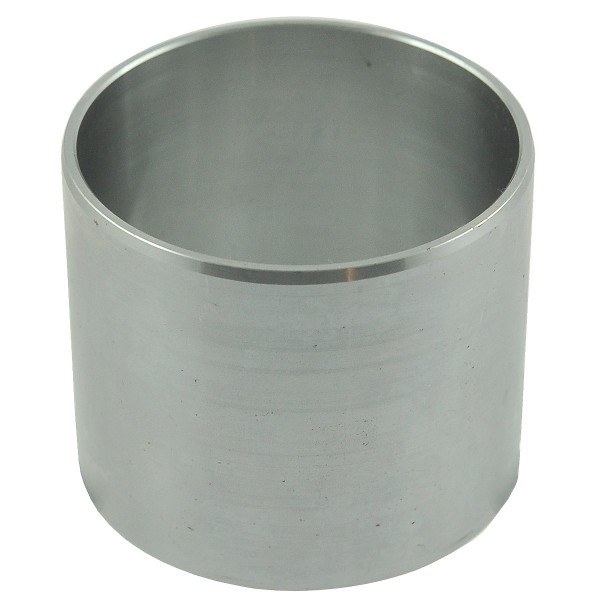

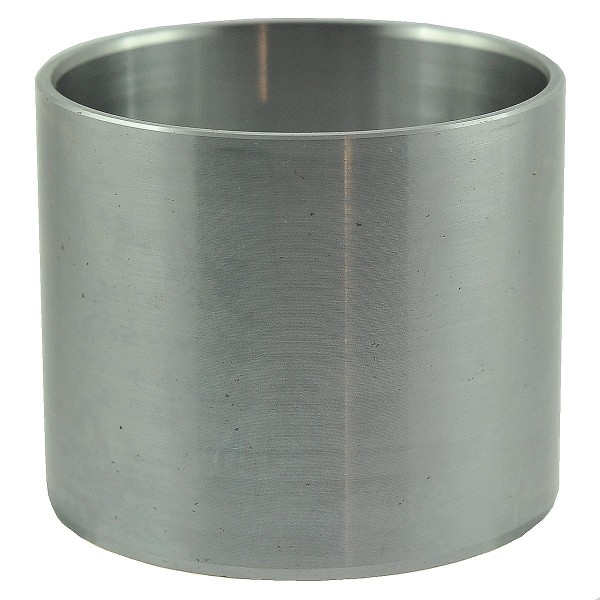

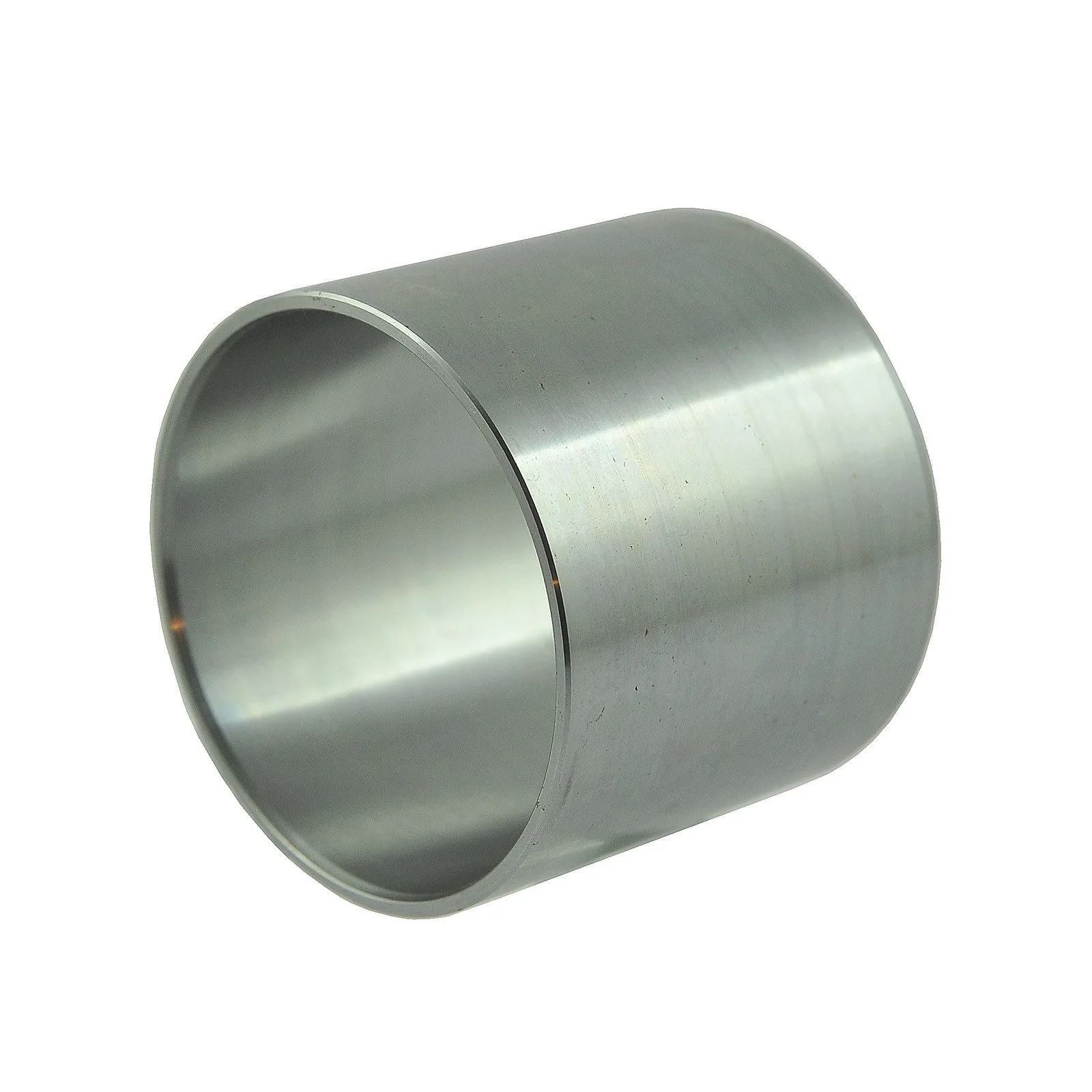

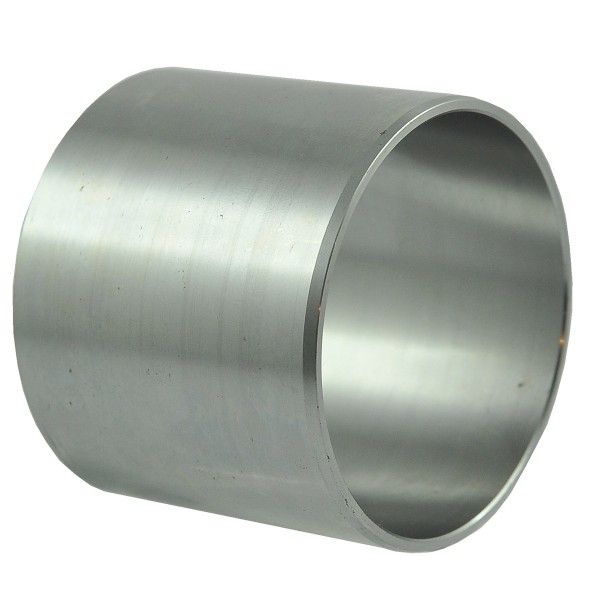

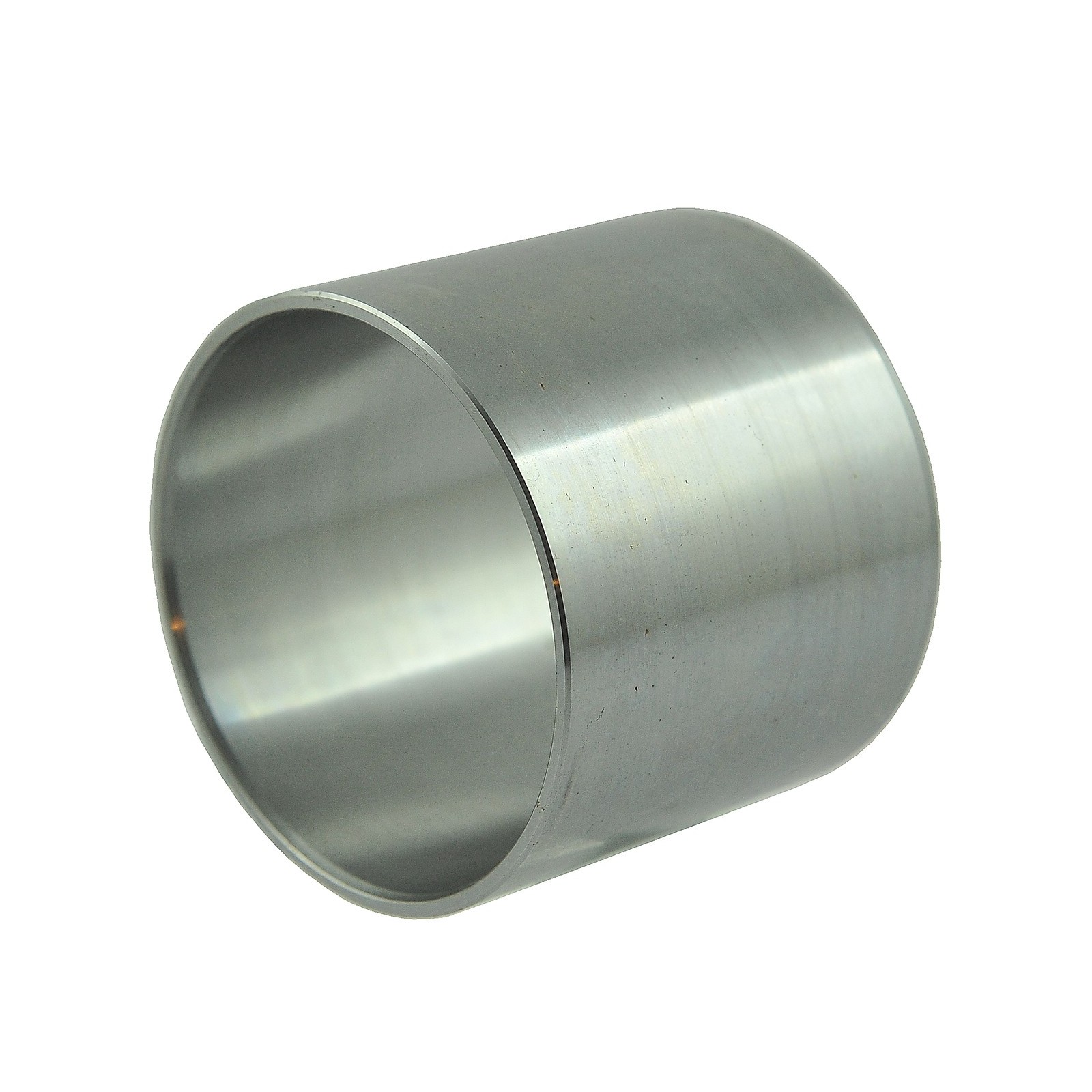

Sliding sleeve / 70 x 75 x 62.50 mm / Kubota L3608/L4508/L4708/L5018 / TC232-12050 / 5-15-247-07
5-15-247-07
Do you have any questions?
Sliding sleeve / 70 x 75 x 62.50 mm / Kubota L3608/L4508/L4708/L5018 / TC232-12050 / 5-15-247-07
Front axle sliding sleeve with an internal diameter of 70 mm, an external diameter of 75 mm and a height of 62.50 mm for Kubota tractors of the Kubota L3608 , Kubota L4508, Kubota L4708, Kubota L5018 series and others.
A thrust sleeve , a sliding sleeve is a sleeve designed to work in difficult conditions and which, due to the production process and the use of appropriate raw materials, have a very high abrasion resistance and are capable of carrying heavy loads. The plain bearing , as this component is sometimes called, often has an internal groove or hole to facilitate lubricant access to the contact surfaces.
Dimensions :
- inner diameter: 70 mm,
- outer diameter: 75 mm,
- height: 62.50mm,
- original part numbers: TC232-12050,
- part numbers: 5-15-247-07.
Tractor models :
Kubota :
- Kubota L3608,
- Kubota L4508,
- Kubota L4708,
- Kubota L5018.
The first signs of wear of the sliding sleeves are a monotonous knocking sound during operation. The life of the bushings is directly affected by the proper pressure of the lubrication system and the use of oil with the right viscosity, too infrequent oil changes or lack of lubrication.
Warehouse :
M01:A25:S04
Specification
Magazyn: M01:A25:S04
Condition
New
Production
Substitute
Parts
Chassis
Tractor models
Kubota L3608
Kubota L4508
Kubota L4708
Kubota L5018
Kubota L4508
Kubota L4708
Kubota L5018
Height (mm)
62.50
Outer diameter (mm)
75
Inner Diameter (mm)
70
Original Part Number (OEM)
TC232-12050
Part number
5-15-247-07
4FARMER
The 4FARMER brand has an offer that is becoming more and more popular. It was created as a result of market observation and the increasing demand for goods and machines used in agricultural and fruit production. Its offer includes high-class agricultural machines and gardening equipment used not only for care, but also for cleaning work on the farm and garden. The products are designed to perform their functions as best as possible, making everyday work easier for customers.
The 4FARMER brand was established in 2010 and is currently one of the most dynamically developing brands on the agricultural machinery market. The products have gained the trust of many customers in Poland and abroad. 4FARMER products are widely used in many areas of agriculture, both on small farms and large production plants.
Wide offer of 4FARMER:
The 4FARMER brand has a wide range of agricultural machines: snow plows , diggers for root crops , tractor excavators , cable layers, sprayers , earth drills , rollers , graders , chippers , transport boxes , trailers , sweepers , as well as a wide range of lawn mowers , mowers. flail tillers , tillers and cultivators . The offer will also include a functional, compact model of the 4FARMER F24D 24KM 4x4 tractor .
The most important advantages of the 4FARMER brand?
- Wide offer - Regardless of whether you are a farmer, gardener or orchardist, you will certainly find something for yourself among the 4FARMER offer.
- Simple operation - 4FARMER equipment has been designed to be easy to use and does not cause difficulties even for novice users.
- Professional support and access to spare parts.
4FARMER is a brand that meets the needs of customers by providing reliable and effective agricultural and gardening equipment.
