Sliding sleeve / 55 x 60 x 20 mm / Kubota L3408/L3608/L4508/L4708 / TC222-13670 / 6-14-104-02
Do you have any questions?

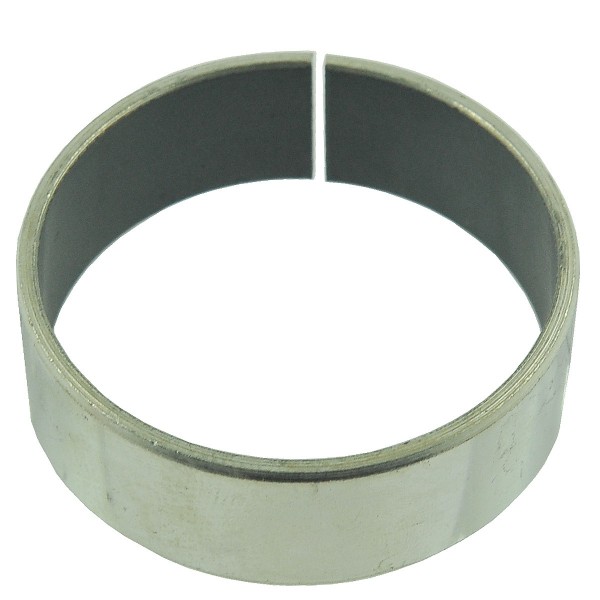

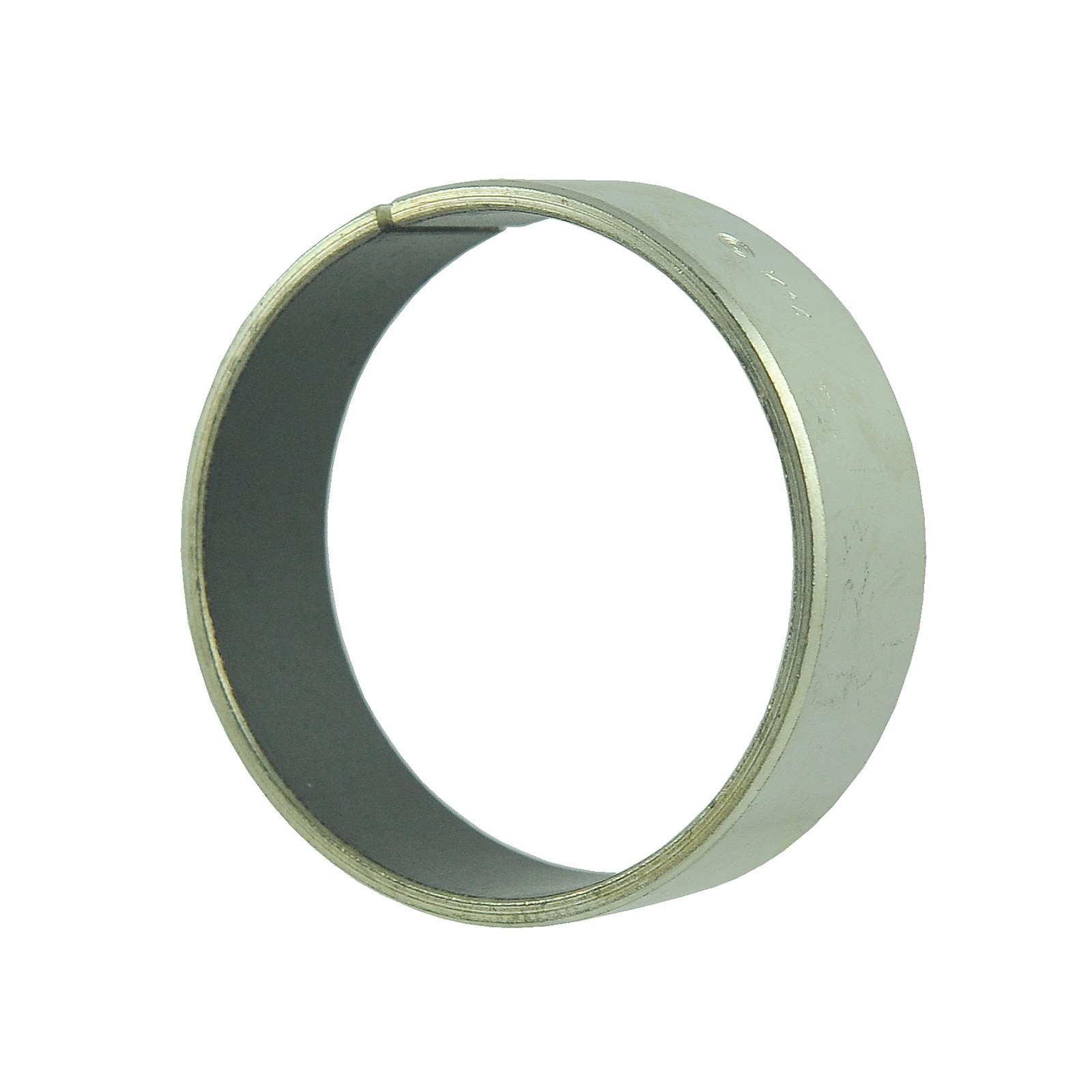

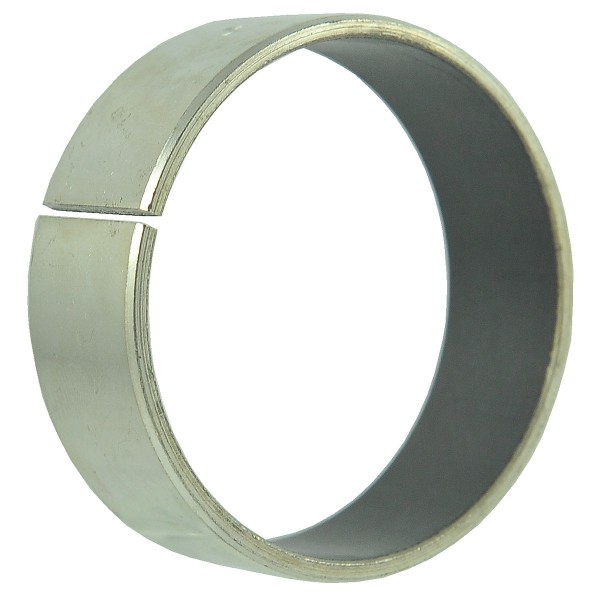

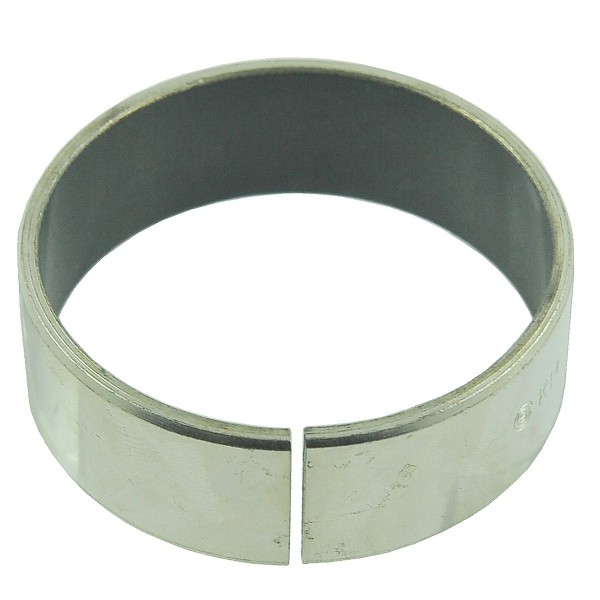

Sliding sleeve / 55 x 60 x 20 mm / Kubota L3408/L3608/L4508/L4708 / TC222-13670 / 6-14-104-02

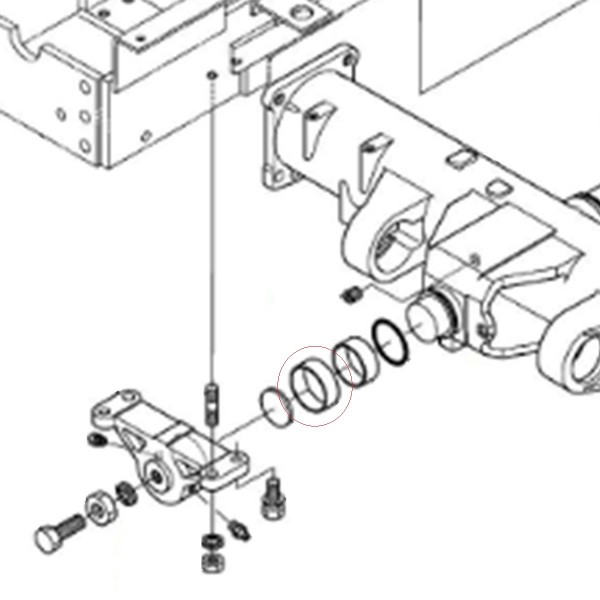

Sliding sleeve for front axle mounting (holder 5-10-110-04, TC222-13550, 5-10-110-09, TC232-13500, cover 5-26-118-15 ) with an internal diameter of 55 mm , an external diameter of 60 mm and height 20 mm for Kubota tractors of the Kubota L3408, Kubota L3608, Kubota L4508, Kubota L4708 series and others.
A thrust sleeve or a sliding sleeve is a sleeve designed to work in difficult conditions and which, due to the production process and the use of appropriate raw materials, have very high abrasion resistance and are capable of carrying heavy loads. A plain bearing , as this component is sometimes called, often has an internal groove or hole to facilitate access of lubricant to the contact surfaces.
Dimensions :
- outer diameter: 60 mm,
- inner diameter: 55 mm,
- height: 20 mm,
- original part numbers: TC222-13670,
- part numbers: 6-14-104-02.
Tractor models :
Kubota :
- Kubota L3408,
- Kubota L3608,
- Kubota L4508,
- Kubota L4708.
The first signs of wear of the sliding sleeves are a constant knocking sound during operation. The appropriate pressure of the lubrication system and the use of oil with the appropriate viscosity or too rare oil changes have a direct impact on the life of the bushings.
