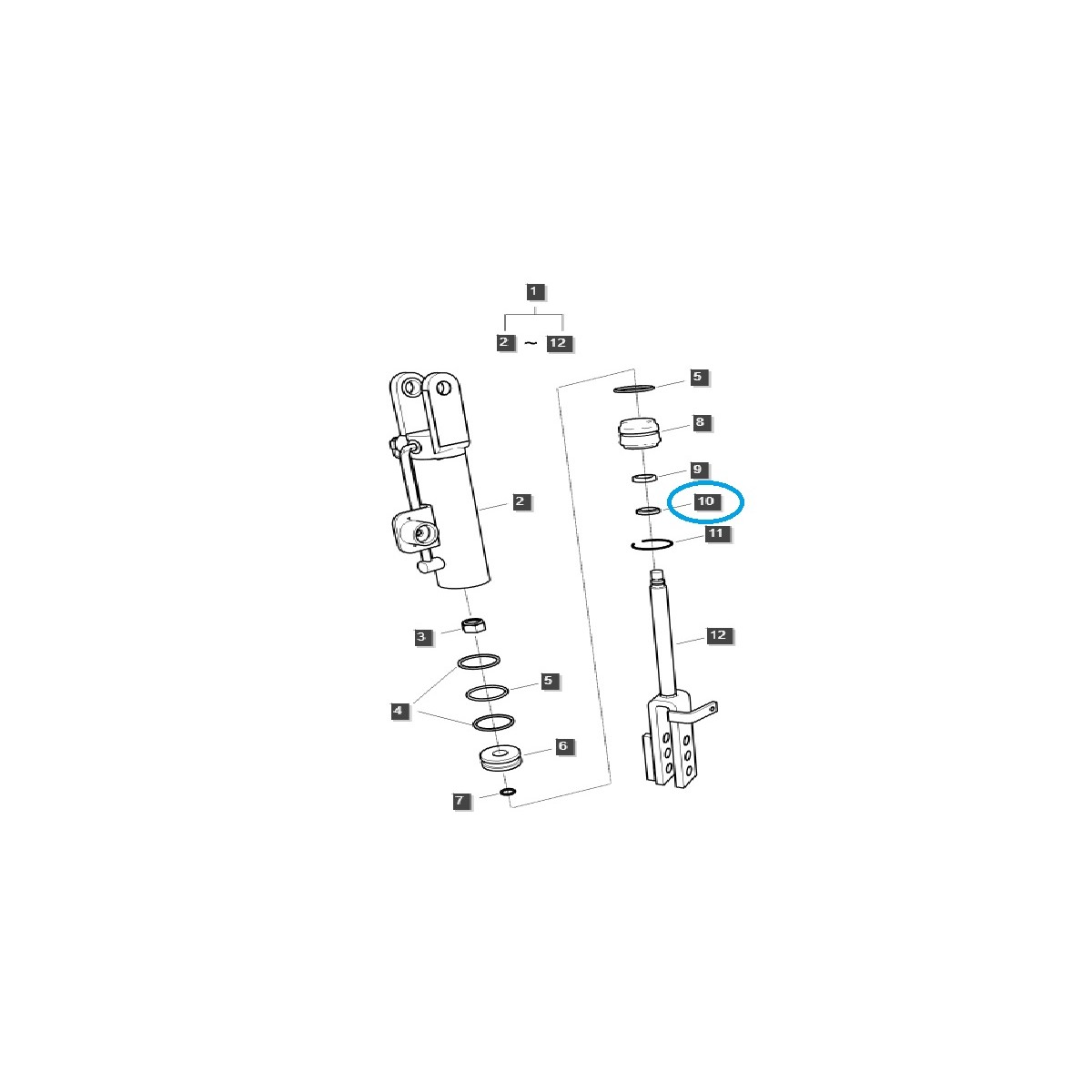

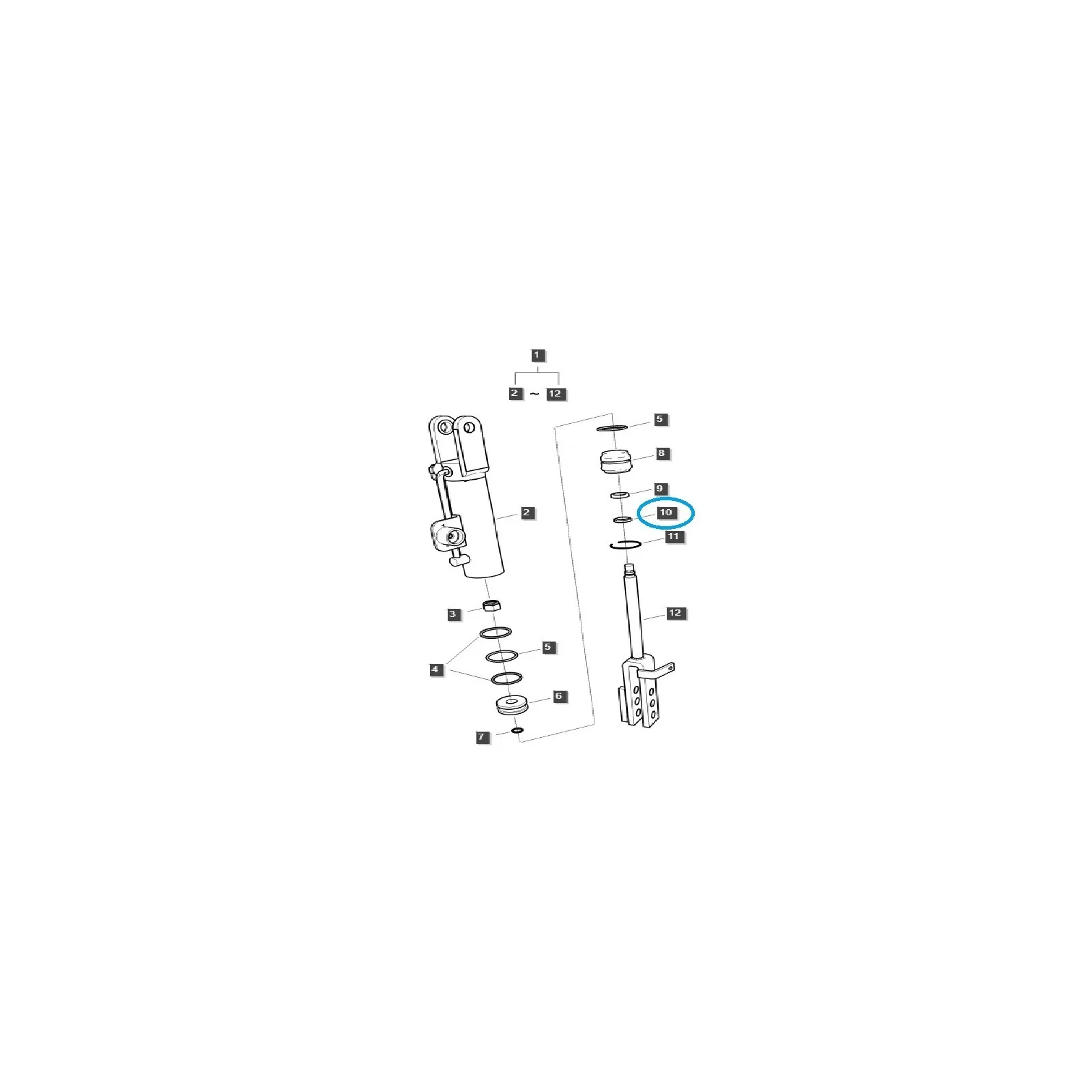

TRG630 Leveling Cylinder Seal / 30.2 x 22.4 x 6 mm / A1630164 / 40007547

Seal , powder coat, plastic seal for leveling cylinder 30.2 x 22.4 x 6mm for tractors LS Tractor brand XU6158, XU6168 , and others. A plastic cover , commonly known as a "powder cap ," is most often a rubber cone (or tube), tapered at one or both ends with a groove for easier installation, such as a compression band. This type of cover is used not only on cylinders, but also finds application inside machine systems, sealing component assemblies, such as half-axles or various shafts that are not subjected to rotational speeds during operation. The main purpose of the "powder cap" is to protect the mechanical assembly from contamination and to prevent the washing out of the lubricant present in many moving parts of the tractor.

Dimensions:

• inner diameter: 22.4 mm,
• outer diameter: 30.2 mm,
• height: 6 mm,
• reference numbers: A1630516, 40007271.

Tractor models :

• LS XU6158
• LS XU6168

Magazine : L01:HB224

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
