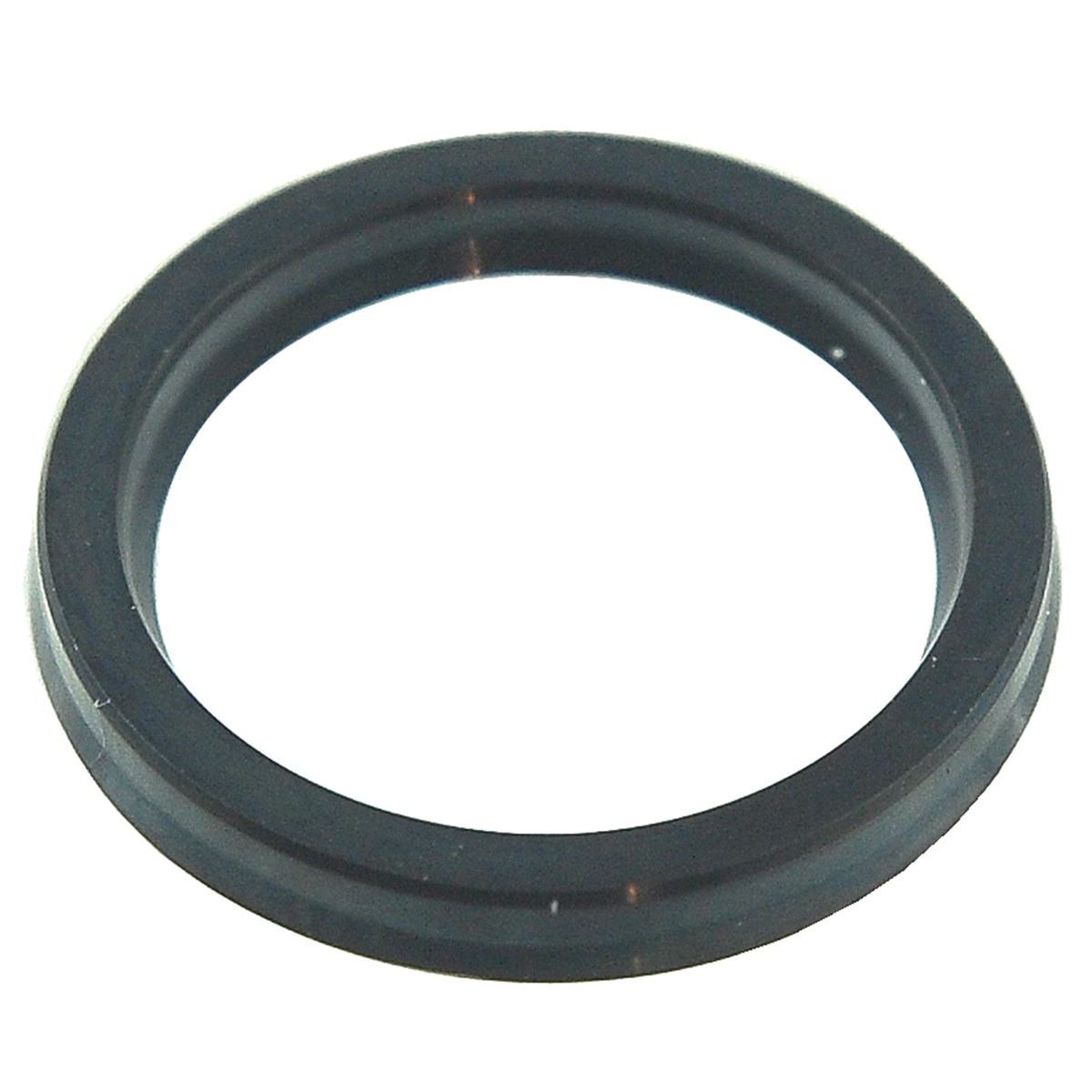

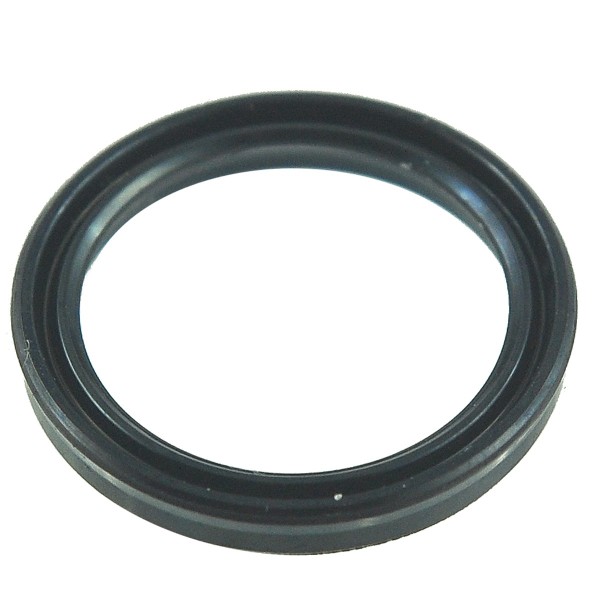

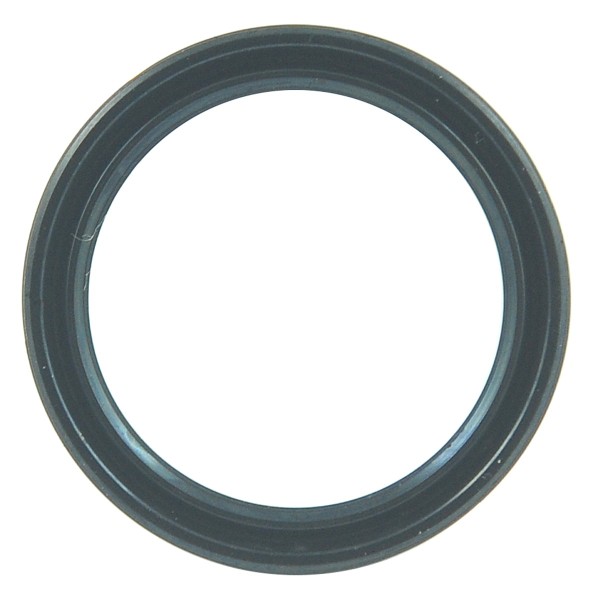

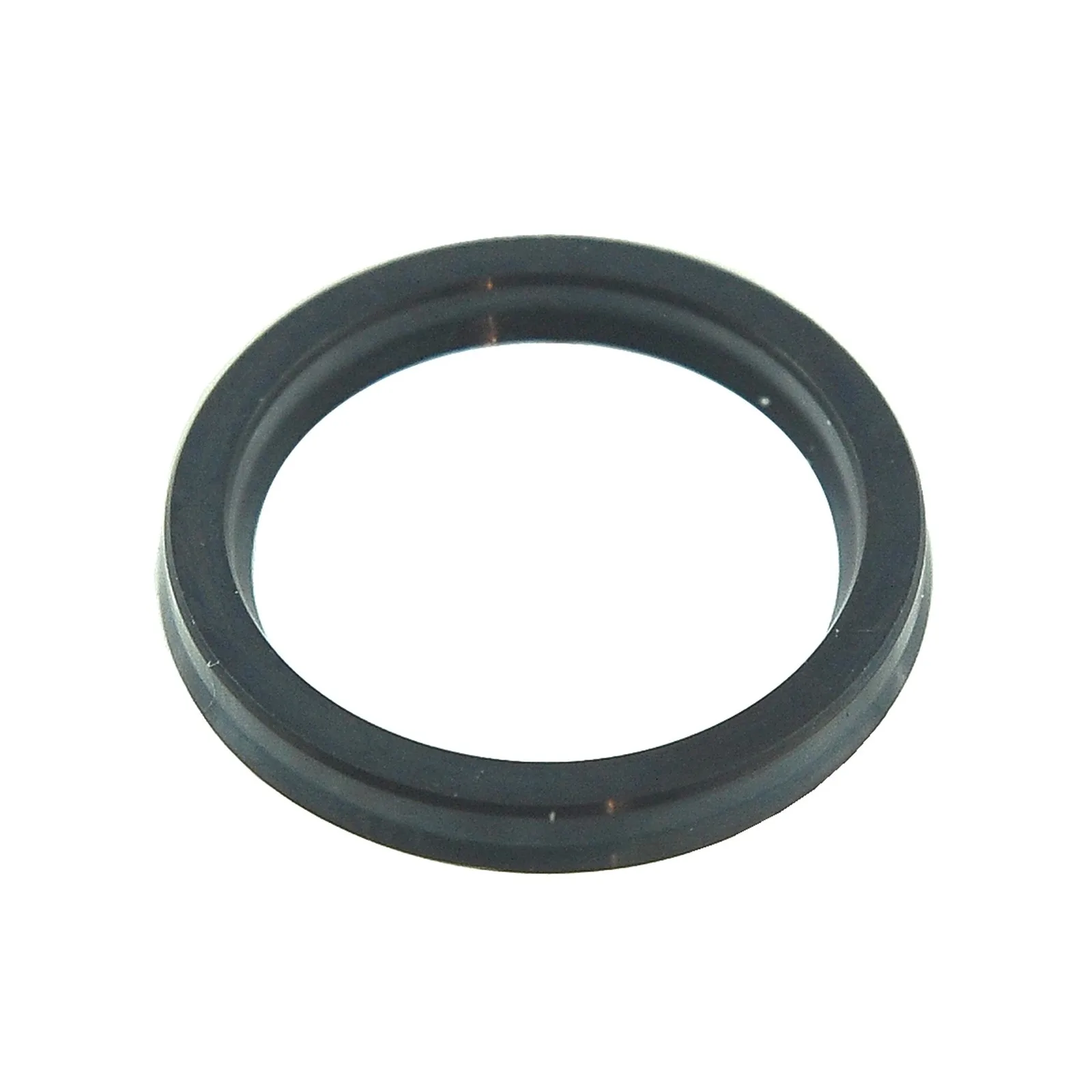

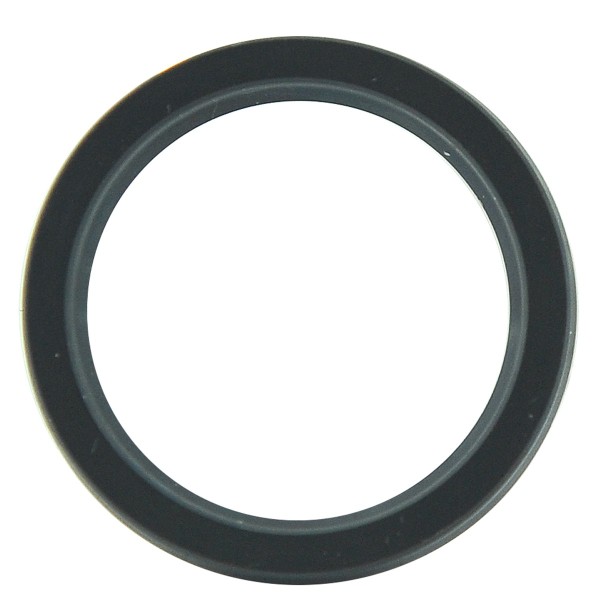

Column seal / Kubota B1700 / B2100 / B2400 / ST-25 / ST-30 / 37410-66130

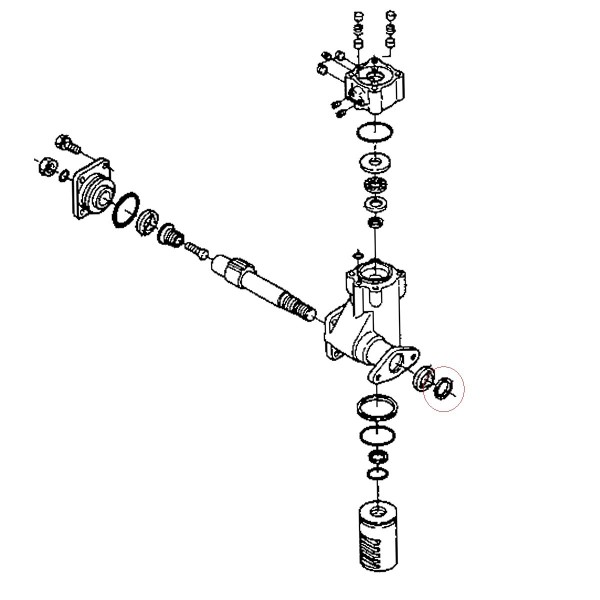

Steering column shaft seal (shaft 6C040-41150, column housing 6C040-98700, 6C040-41153) with an internal diameter of 28 mm , external diameter of 34 mm and height of 5 mm for tractors Kubota brands Kubota B1700, Kubota B2100, Kubota B2400 , Kubota ST-25, Kubota ST-30 and others.

A seal is most often a rubber ring (also called a simmering, or Simmer ring, after the inventor), made of rubber or another plastic that meets specific technical requirements. A sealing ring is used to seal rotating components of a system with a maximum internal pressure of up to 0.1 MPa, which are immersed in fluids during operation, typically oil, various types of lubricants, and sometimes gasoline or water. The most common use of sealing rings is for sealing shafts and power transmission or drive systems of machinery and equipment. There are various types of sealing rings, the most common being cassette (two-piece) seals , sealing rings with a surrounding spring, or seals with a partially metal housing (cover).

Dimensions :

• inner diameter: 28 mm,
• outer diameter: 34 mm,
• height: 5 mm,
• part numbers: 37410-66130.

Tractor models :

• Kubota B1700,
• Kubota B2100,
• Kubota B2400,
• Kubota ST-25,
• Kubota ST-30.

Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.

Magazine : M01:C62:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
