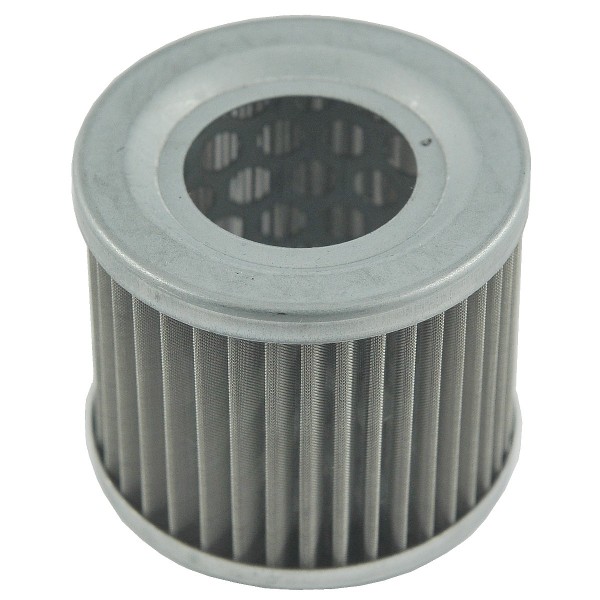

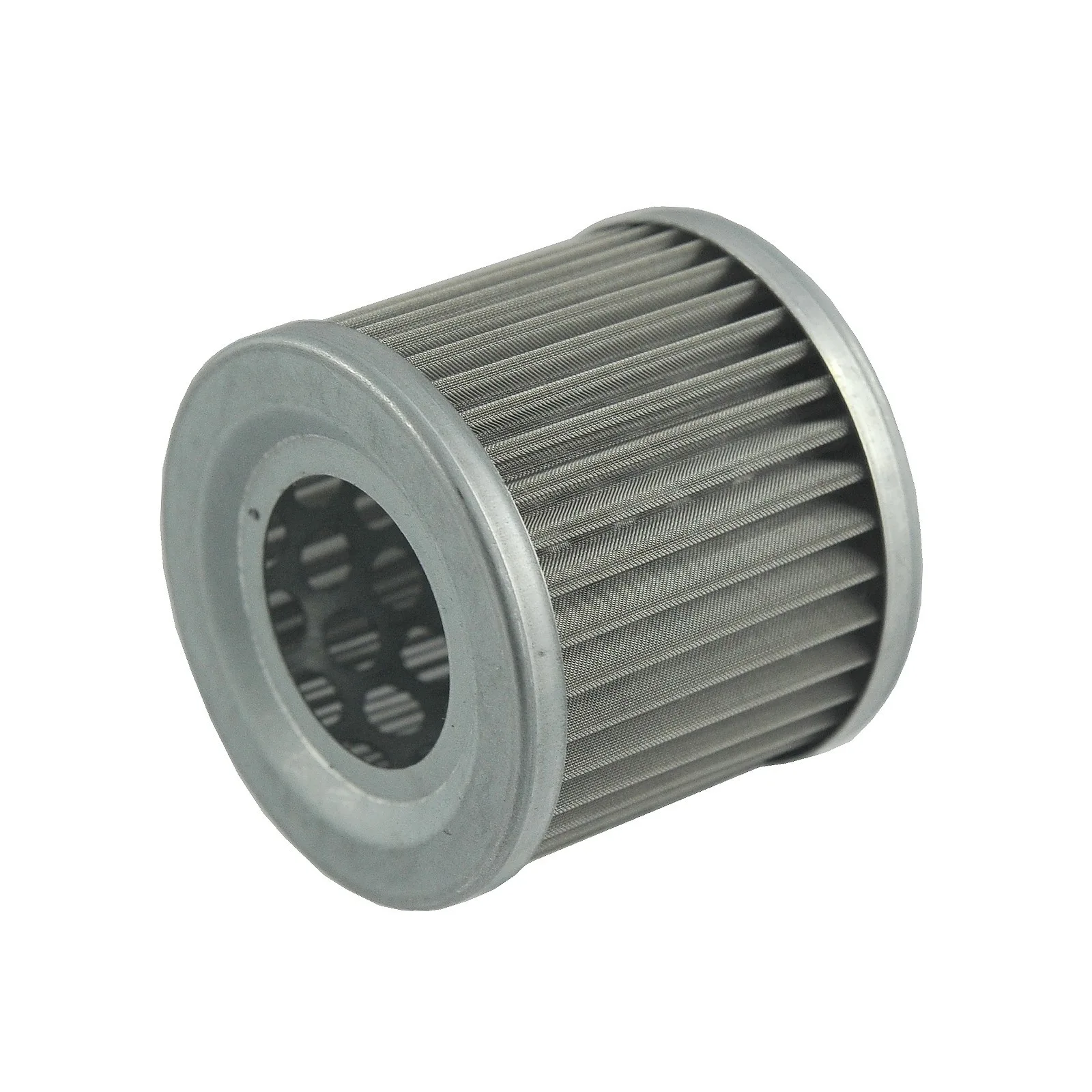

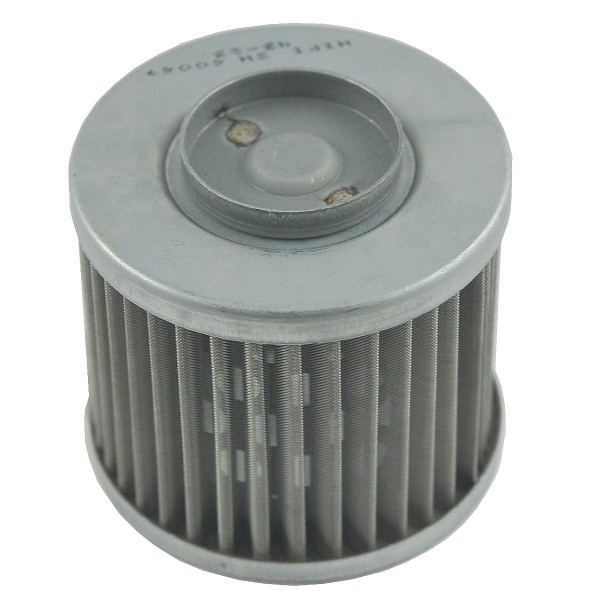

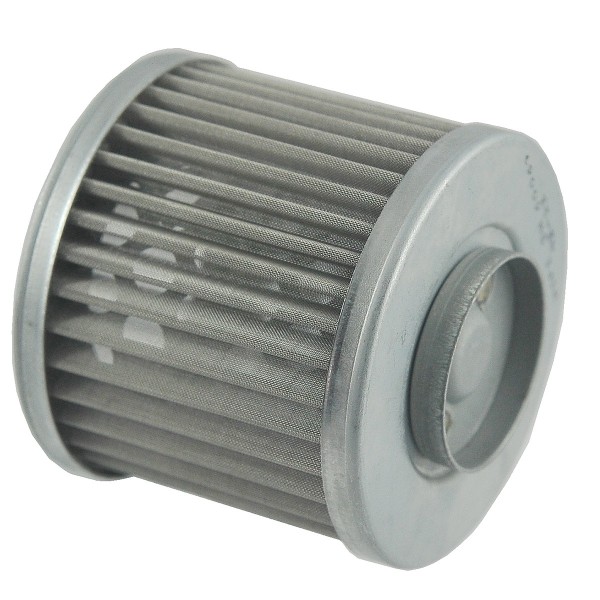

Hydraulic oil filter / 30 x 52 mm / Kubota ST30 / SH 60069

Hydraulic filter with an internal diameter of 30 mm, an external diameter of 60 mm, a height of 52 mm for Kubota tractors of the Kubota ST30 series and others.

The main purpose of the hydraulic filter is to clean the hydraulic oil, stopping all impurities that enter the hydraulic system or are created during the use of the tractor, e.g. solid (mineral) particles that are formed during the operation of the machine. We replace the hydraulic filter every time we change the hydraulic oil or when the vehicle is frequently used, in the case of mini tractors, approximately every 100 operating hours in the case of used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's operating manual and usually after the first 50 operating hours (at least 3 cycles).

Dimensions :

• height: 52 mm.
• inner diameter: 30 mm.
• outer diameter: 60 mm,
• weight: 0.120 kg.
• original part numbers: 37410-38550 ,
• comparison numbers: 3741038550, SH60532 ,
• part numbers: SH60069.

Tractor models :

Kubota:

• Kubota ST30.

The hydraulic filter is most often a metal filter with a thread and a gasket , which is mounted near the tractor's box, exactly within the hydraulic system oil flow, most often from the bottom of the box or under the floor of our tractor. Regular replacement of the hydraulic filter is a guarantee of failure-free operation of the machine and the certainty that in there are no foreign bodies in the hydraulic system that could damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.

Warehouse :
M01: F53
