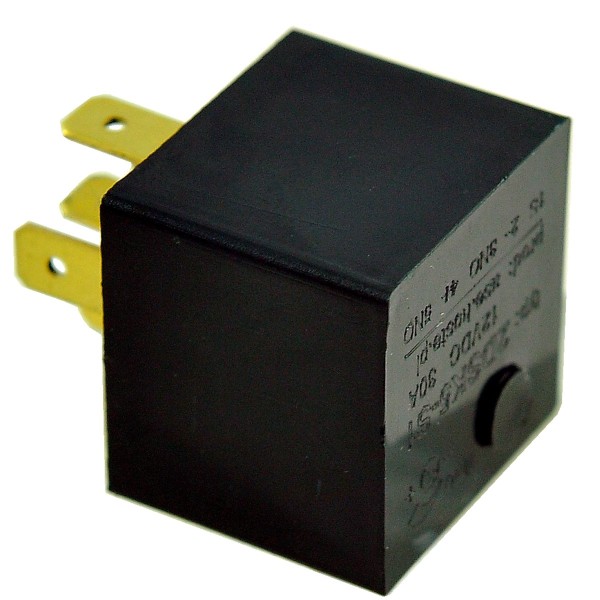

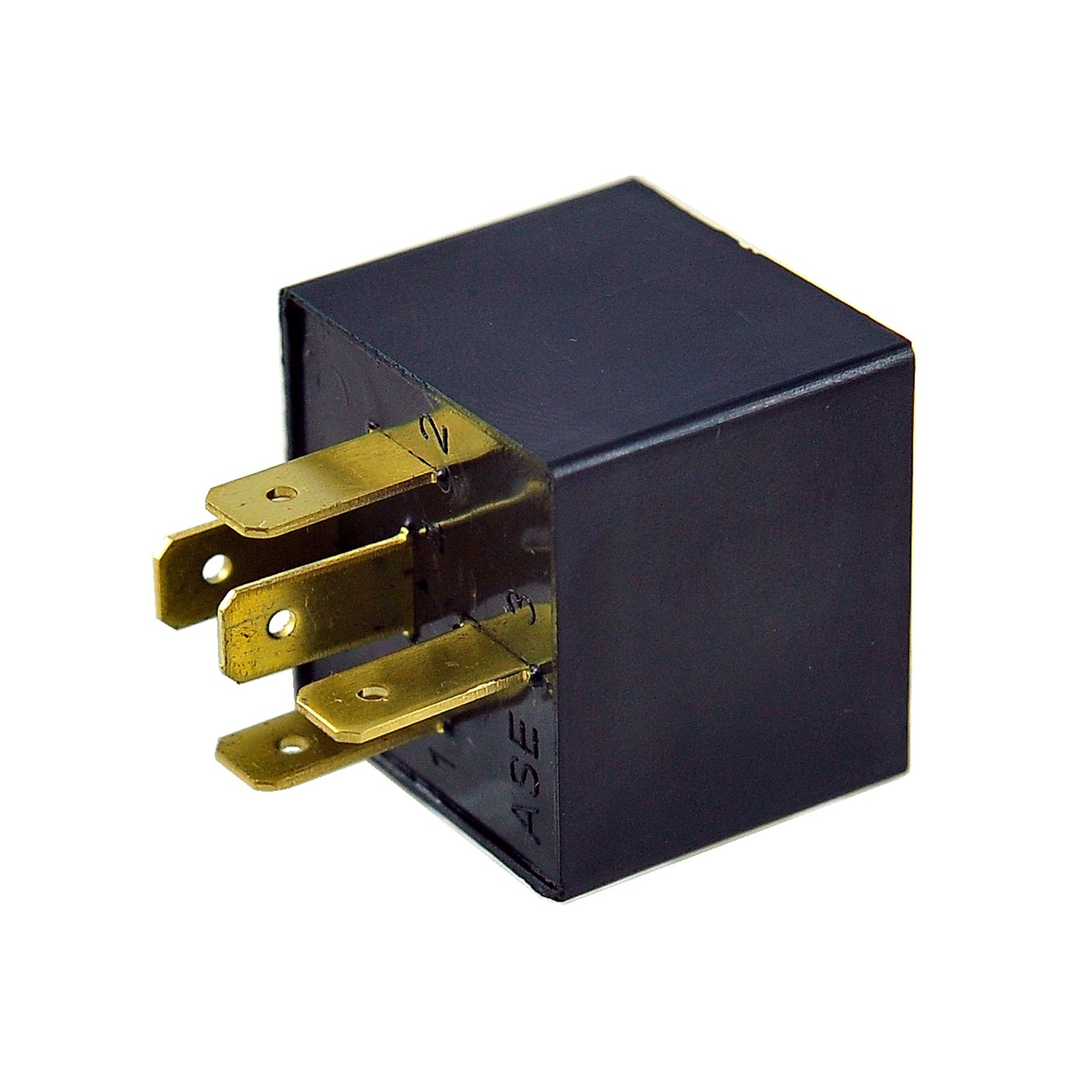

Relay / 2DSK5-S1 / +/- DC 12V / 30A

Relay , module, glow plug timer with the symbol 2RT4W2 , module +/- DC 12V, 30A for tractors and others.

A module, relay or controller is an electronic device that determines, among other things, the duration of the glow plug heating in the tractor, the operation of the indicators, wipers and others. The relay monitors and manages the operation of the glow plugs, using temperature data from a sensor located in the engine. A properly functioning glow plug heating module is essential for proper engine start-up, especially at low temperatures. The controller with a built-in microcontroller, using information from the sensors, determines the parameters that determine the correct heating of the glow plugs and others, i.e. determines the time and intensity of the current that flows to the glow plugs and thus raises their temperature, heats them to the required value needed to start the engine. The sensors are also responsible for the operation of the wipers, indicators and many other tractor components and are most often started by moving the key in the ignition.

Dimensions :

• length: 25mm,
• width: 30mm,
• height: 30 mm,
• working contacts: 30A,
• voltage: 12V,

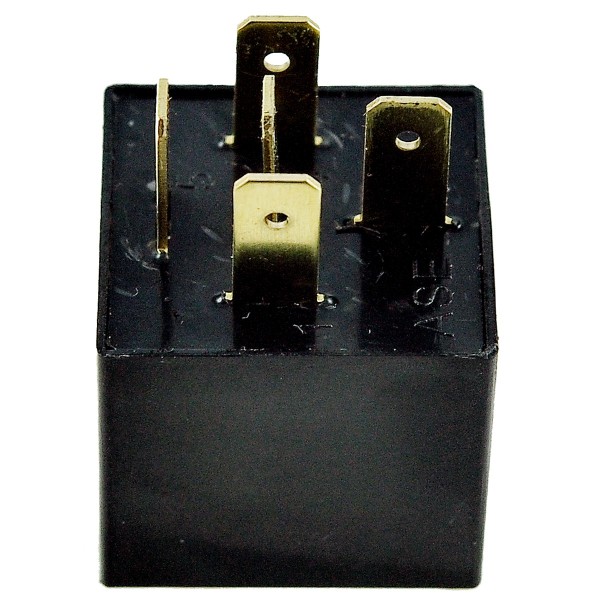

• mount with the connector facing down,

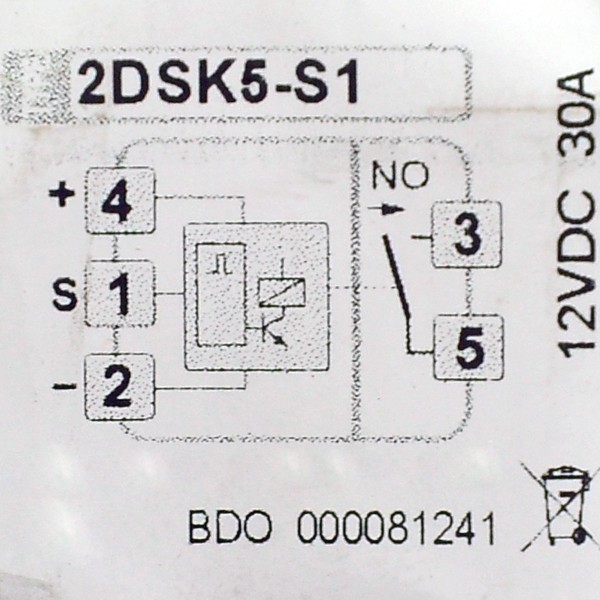

• number of pins: 5 pcs.
• original part numbers: BDO 000081241,
• part numbers: 2DSK5-S1.

Warehouse :
K18:A02:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
