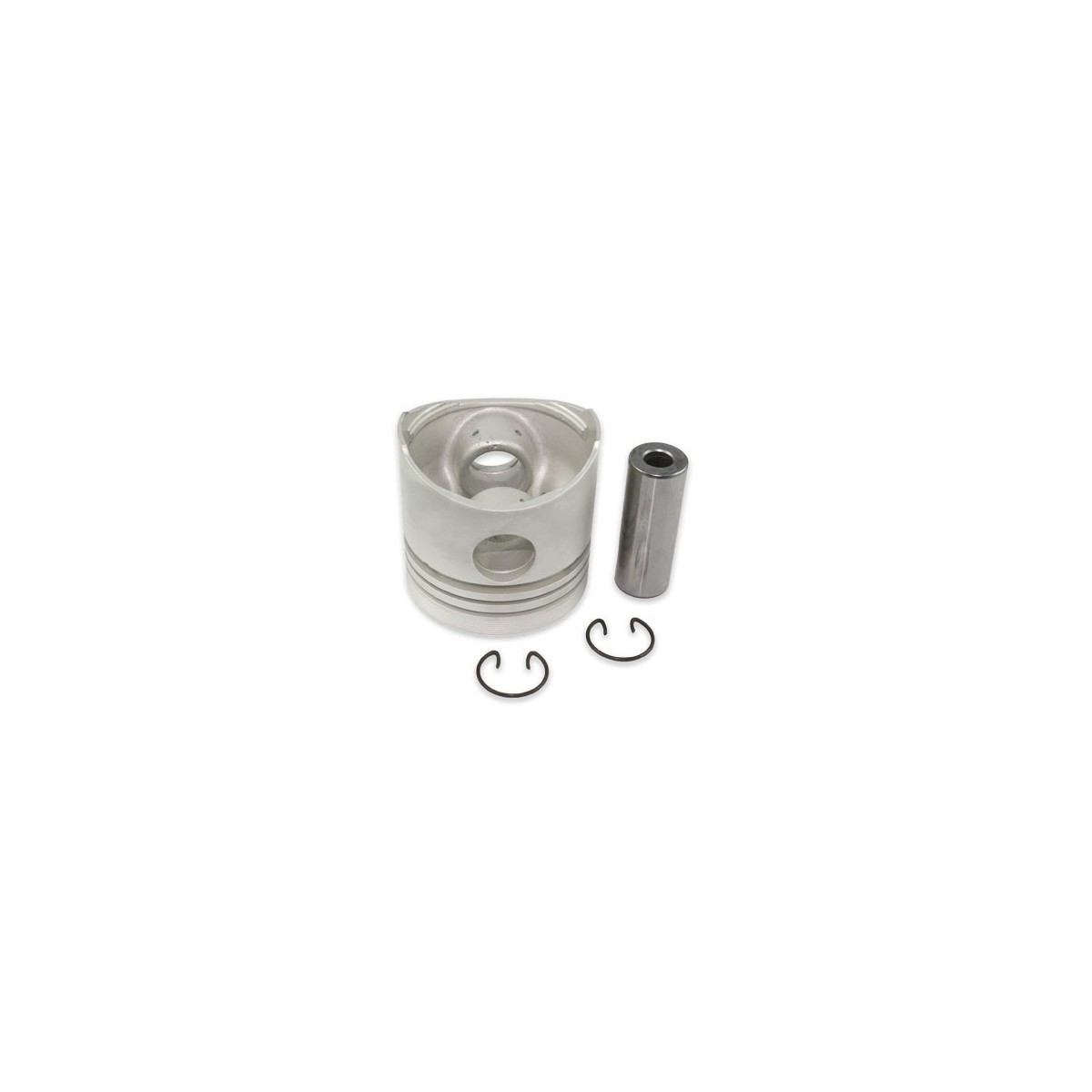

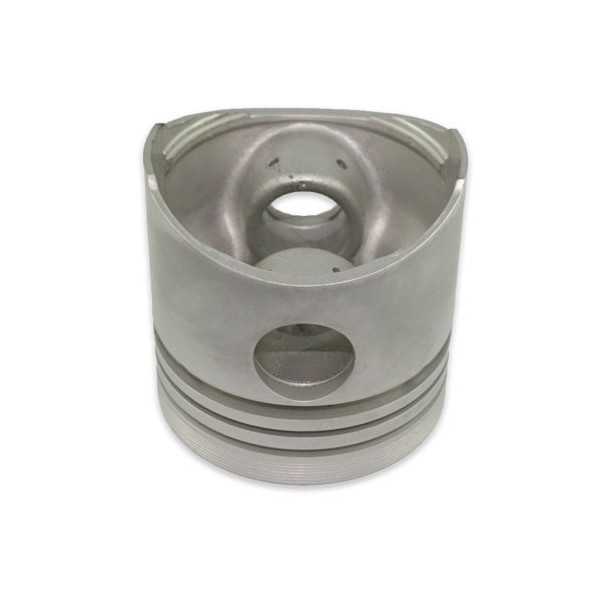

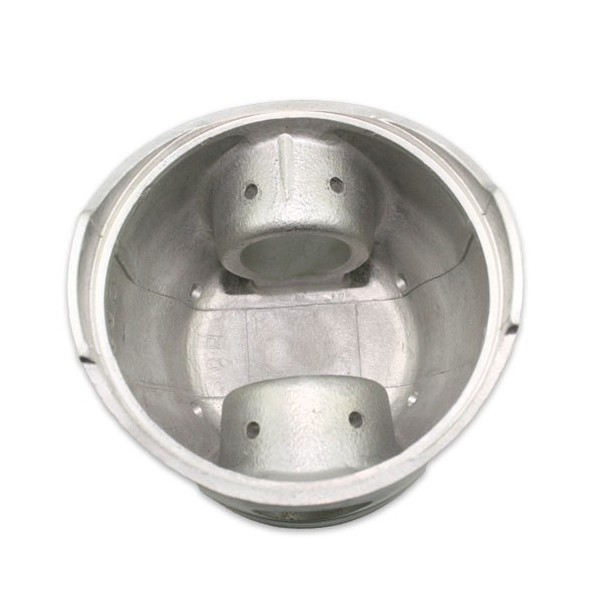

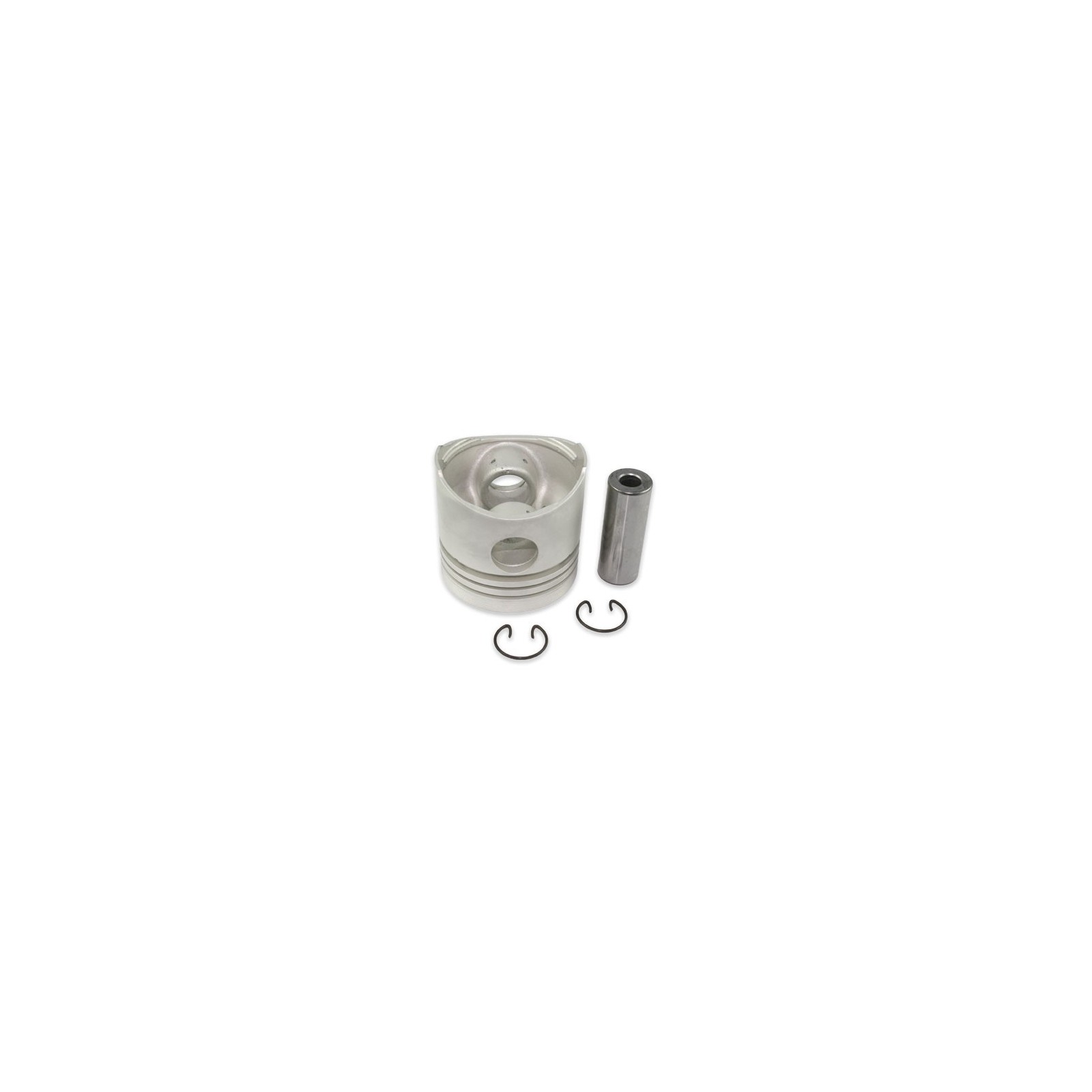

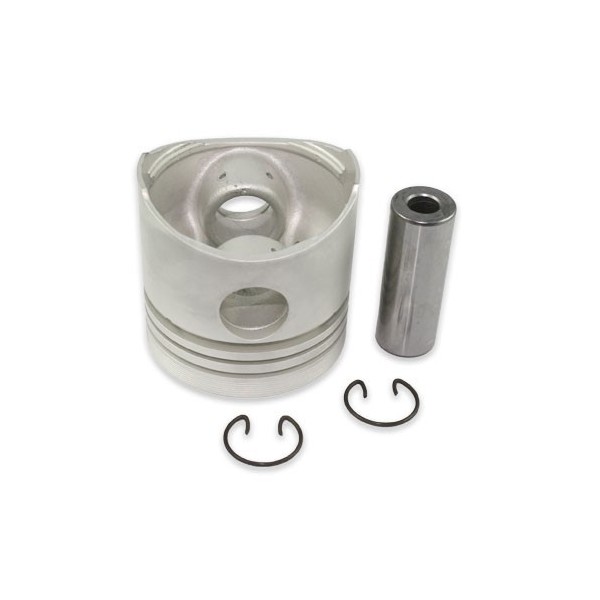

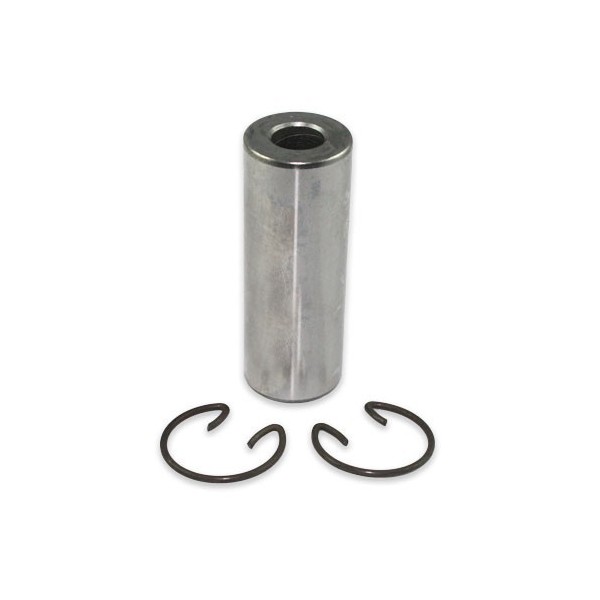

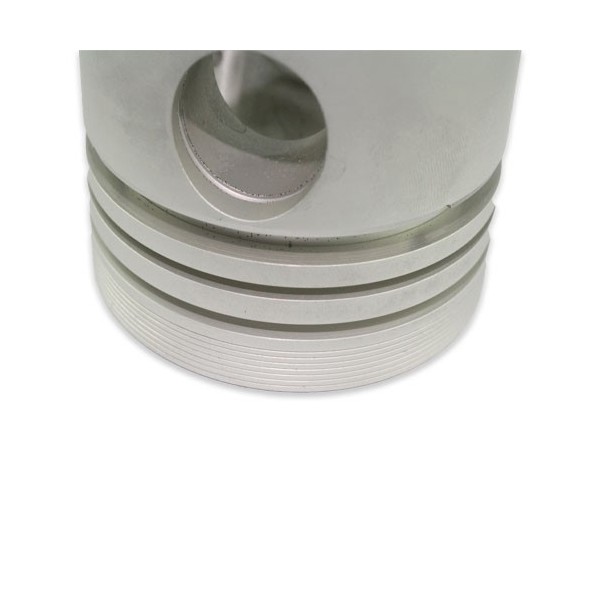

Engine Piston / 76mm / STD / Mitsubishi MT23D

Engine piston with an outer diameter of 76 mm for Mitsubishi tractors of the Mitsubishi MT23D series and others. The engine piston is a moving element responsible for converting gas and energy generated during combustion to the crankshaft, and then to engine power. The piston is connected to the crankshaft by an element called a connecting rod with pin connections. At the top of the piston there are annular channels for mounting the piston rings, in the middle there is a hub for connecting to the connecting rod. At the top there is a so-called bottom, which, depending on the type of engine, may have a different shape. Due to work in very difficult conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

• diameter: 76 mm,
• height: 62 mm.
• pin hole diameter: 23 mm.
• distance from the end of the pin hole to the lower edge of the piston: - mm.
• distance from edge of pin hole to top edge of piston: - mm.
• width of ring grooves from top of piston: - mm.
• valve seat depth: - mm.
• part numbers: 5-23-201-34.

Magazine : M01:A45

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
