Engine piston / Ø 76 mm / STD / Kubota DH1100 / DH1101 / V1502 / Z750 / Kubota L1500 / L2000 / L2201 / L2600 / L3001

Product code: 6-23-100-03
Brand 4FARMER
View other model
3 people purchased this product
zł150.41 netto
zł185.00
Includes VAT 23%

Lowest price from 30 days: zł185.00

Delivery options

Loading delivery options...

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

No delivery options available for this product.

Available
4 pieces
Delivery See details Leasing & financing for businesses See details

Product description

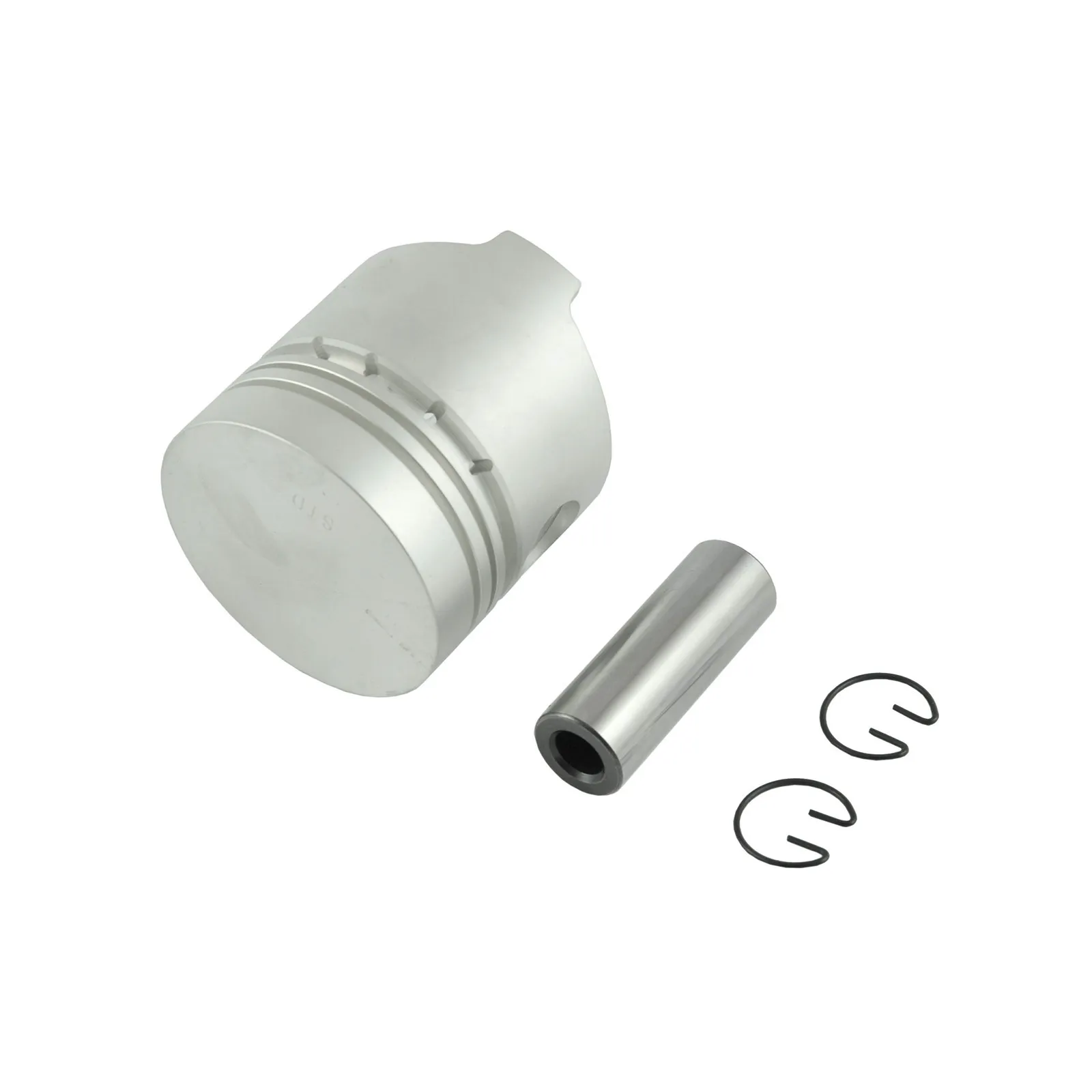

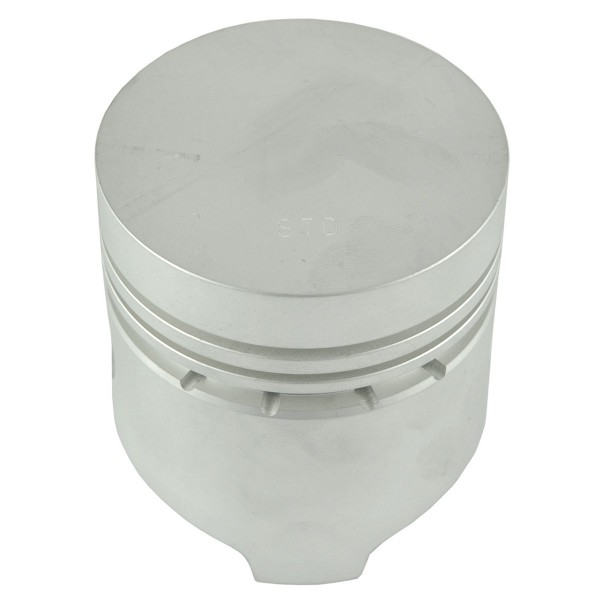

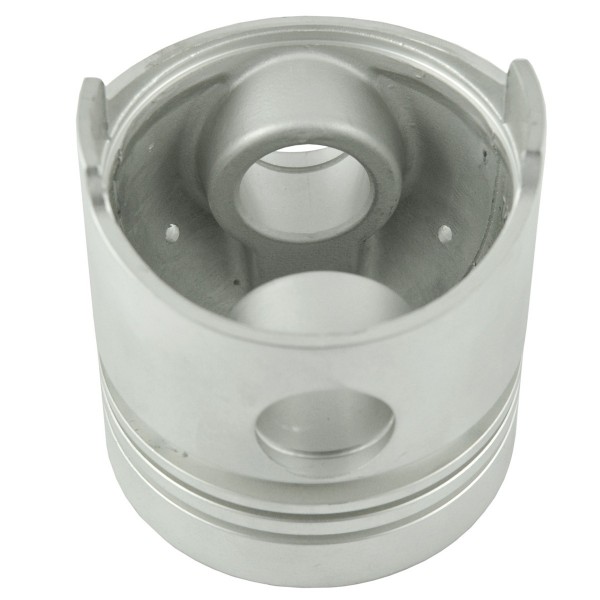

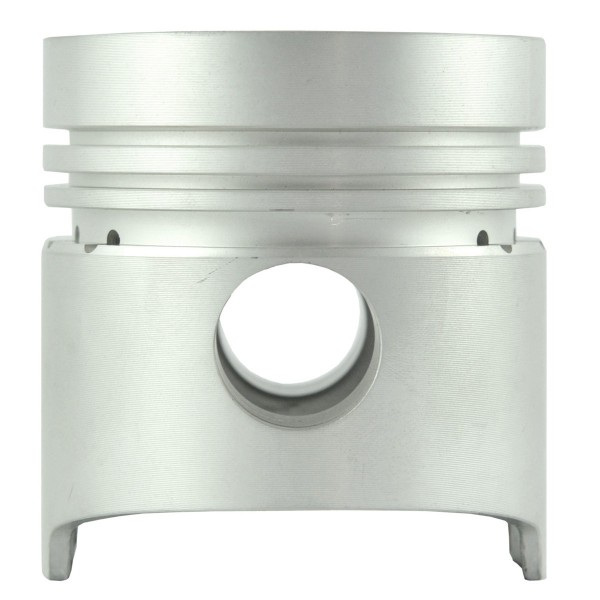

Engine piston (pin 6-23-100-03, rings 6-26-100-02, 15221-21051, pin locking rings 6-26-110-01, 15221-21110) with an outer diameter of 76 mm and a total height of 80 mm for Kubota tractors of the Kubota L1500, Kubota L2000, Kubota L2201, Kubota L2600 , Kubota L3001 series with Kubota DH1100, Kubota DH1101, Kubota V1502 engines, Kubota Z750 and others. The engine piston is a moving component responsible for converting gas and the energy generated during combustion into the crankshaft, and thus, engine power. The piston is connected to the crankshaft by a component called a connecting rod with pin connections. At the top of the piston are annular channels for mounting the piston rings, and in the center is a hub for connecting to the connecting rod. At the top is the so-called crown, which can have different shapes depending on the engine type. Due to the very harsh operating conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

  • outer diameter: 76 mm,
  • height: 66 / 80 mm,
  • pin hole diameter: 23 mm.
  • pin diameter: 22.90 mm.
  • pin length: 64 mm.
  • distance from the end of the pin hole to the lower edge of the piston: 11 mm,
  • distance from the edge of the pin hole to the top edge of the piston: 32 mm,
  • ring groove width (6-26-100-02) from the top of the piston: 2.50 / 2.00 / 5.00 mm.
  • original part number: 15221-21110,
  • comparison numbers: 15221-21111,
  • part number: 6-23-100-03.

Engine models:

Kubota:

  • Kubota DH1100,
  • Kubota DH1101,
  • Kubota V1502,
  • Kubota Z750.

Tractor models :

Kubota :

  • Kubota L1500,
  • Kubota L2000,
  • Kubota L2201,
  • Kubota L2600,
  • Kubota L3001.

Magazine : K18:F25

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New
Engine model
- Kubota V1502
Height (mm)
80
Width (mm)
2.00
Production
Substitute
Parts
Engine
Tractor models
- Kubota L2000, - Kubota L2201, - Kubota L2600, - Kubota L3001, - Kubota L1500
Diameter (mm)
76
Diameter of pin hole(s) (pins/pins / mm)
23
Pin diameter (a) (mm)
22.90
Pin length (a) (mm)
64
Comparison numbers
15221-21111
Original Part Number (OEM)
15221-21110
Part number
6-23-100-03
