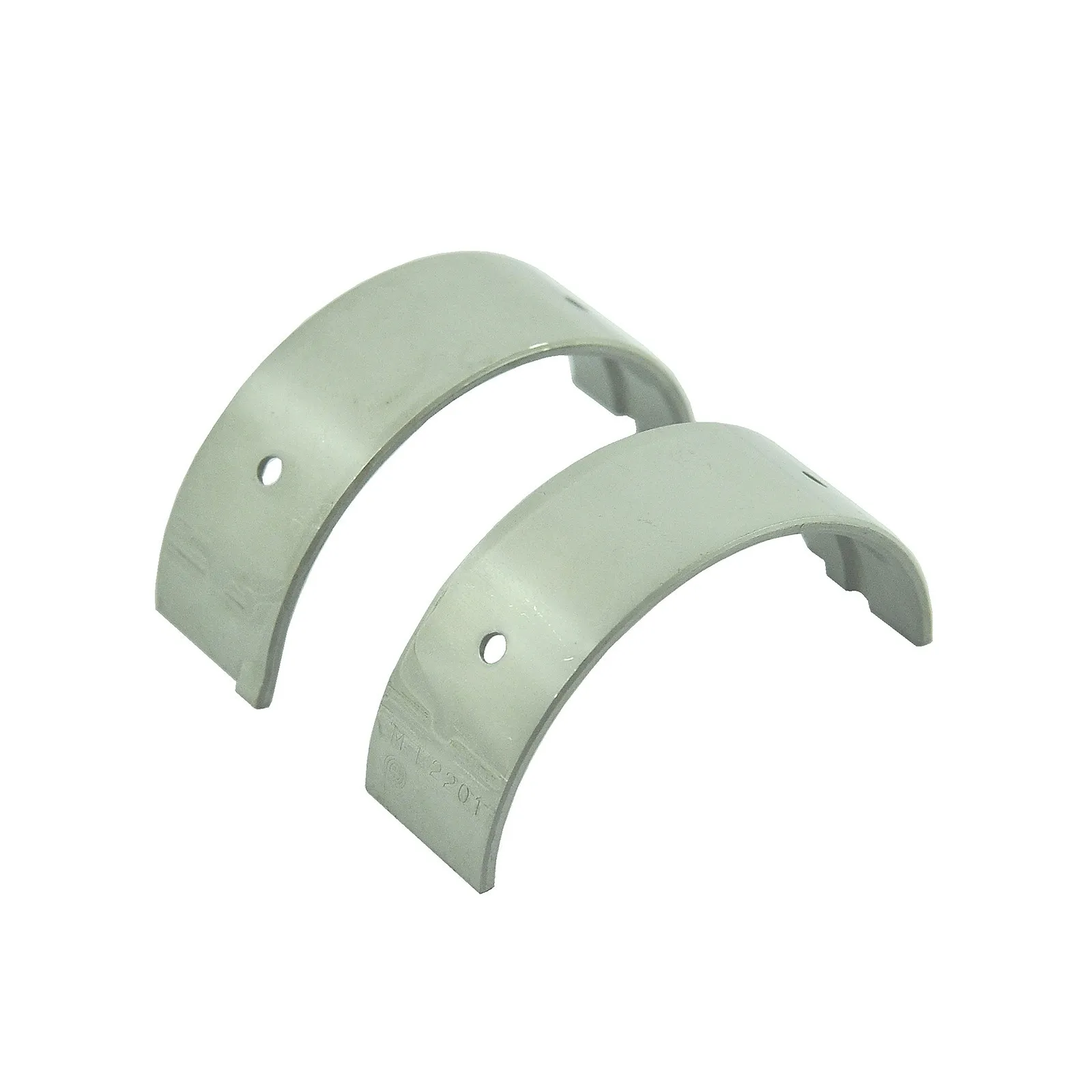

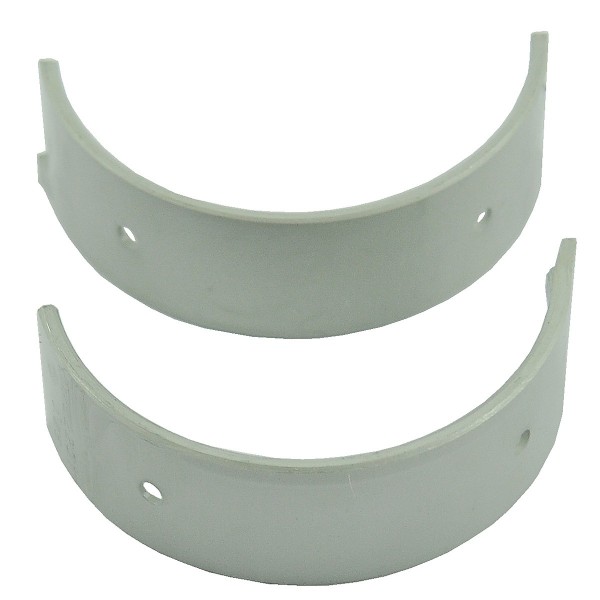

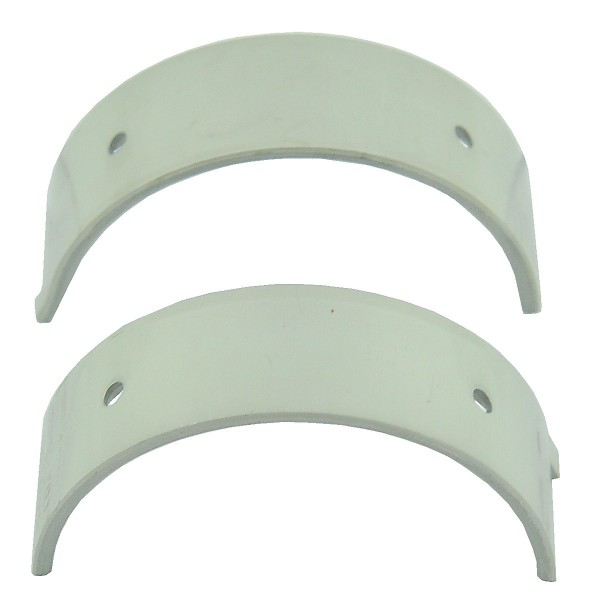

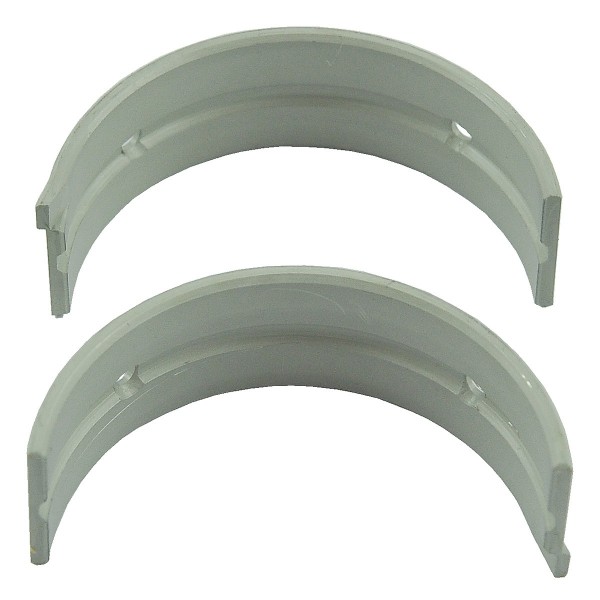

Connecting rod bearings / STD / Kubota D1100 / D1101 / D1102 / D1402 / D1462 / D1463 / V1500 / V1501 / V1502

Connecting rod bearings ( 5-01-130-23) of standard size (STD) , 18.80 mm wide, 1.90 mm thick and approximately 57 mm in diameter. The bearings fit Japanese mini tractors and tractors of the Kubota brand , Kubota B7000 series, Kubota B1902, Kubota GT-19, Kubota GT-21, Kubota GT-23, Kubota L1-18, Kubota L1-20, Kubota L1-22, Kubota L1-24, Kubota L1-185, Kubota L1-195, Kubota L1-205, Kubota L1-215, Kubota L1-225, Kubota L1-235, Kubota L1-245, Kubota L1-255, Kubota L1-275, Kubota L175, Kubota L185, Kubota L225, Kubota L235, Kubota L245, Kubota L275, Kubota L285, Kubota L295, Kubota L1500, Kubota L1501, Kubota L1801, Kubota L1802, Kubota L2000, Kubota L2002, Kubota L2050, Kubota L2200, Kubota L2201, Kubota L2202, Kubota L2250, Kubota L2350, Kubota L2402, Kubota L2500, Kubota L2550, Kubota L2600, Kubota L2601, Kubota L2602, Kubota L3001, Kubota L3202, Kubota L4200DT , with Kubota D1100, Kubota D1101, Kubota D1102, Kubota D1402, Kubota D1462, Kubota D1463, Kubota V1500, Kubota V1501, Kubota V1502, Kubota Z650, Kubota Z850, Kubota Z750 and others.

Connecting rod bearings are elements whose main task is to reduce friction at the point of connection of the connecting rod to the crankshaft. Bearings are two separable, semicircular elements that, when installed, create a circle. Bearings (though not all types) also have a small groove or cut through which the lubricant is distributed. The most common reasons for rapid wear of connecting rod bearings are:

• using oil with incorrect viscosity parameters,
• incorrect installation of bearing shells,
• failure to comply with oil change intervals,
• low engine oil level,
• overloading the engine, which has not reached the correct temperature,

Dimensions ;

• outer diameter; 57 mm.
• width; 18.80 mm.
• thickness: 1.90,
• part numbers: 6-07-100-04.

Engine models :

Kubota :

• Kubota D1100,
• Kubota D1101,
• Kubota D1102,
• Kubota D1402,
• Kubota D1462,
• Kubota D1463,
• Kubota V1500,
• Kubota V1501,
• Kubota V1502,
• Kubota Z650,
• Kubota Z750,
• Kubota Z850.

Tractor models :

• Kubota B7000,
• Kubota B1902,
• Kubota GT-19,
• Kubota GT-21,
• Kubota GT-23,
• Kubota L1-18,
• Kubota L1-20,
• Kubota L1-22,
• Kubota L1-24,
• Kubota L1-185,
• Kubota L1-195,
• Kubota L1-205,
• Kubota L1-215,
• Kubota L1-225,
• Kubota L1-235,
• Kubota L1-245,
• Kubota L1-255,
• Kubota L1-275,
• Kubota L175,
• Kubota L185,
• Kubota L225,
• Kubota L235,
• Kubota L245,
• Kubota L275,
• Kubota L285,
• Kubota L295,
• Kubota L1500,
• Kubota L1501,
• Kubota L1801,
• Kubota L1802,
• Kubota L2000,
• Kubota L2002,
• Kubota L2050,
• Kubota L2200,
• Kubota L2201,
• Kubota L2202,
• Kubota L2250,
• Kubota L2350,
• Kubota L2402,
• Kubota L2500,
• Kubota L2550,
• Kubota L2600,
• Kubota L2601,
• Kubota L2602,
• Kubota L3001,
• Kubota L3202,
• Kubota L4200DT.

The first signs of wear of the main bearings are an unnatural, steady knocking coming from the engine. Worn bearings must be replaced with new ones as soon as possible, replacing the faulty element too late can cause serious damage to the shaft, connecting rod or engine.

Magazine : M01:A24:S01/S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
