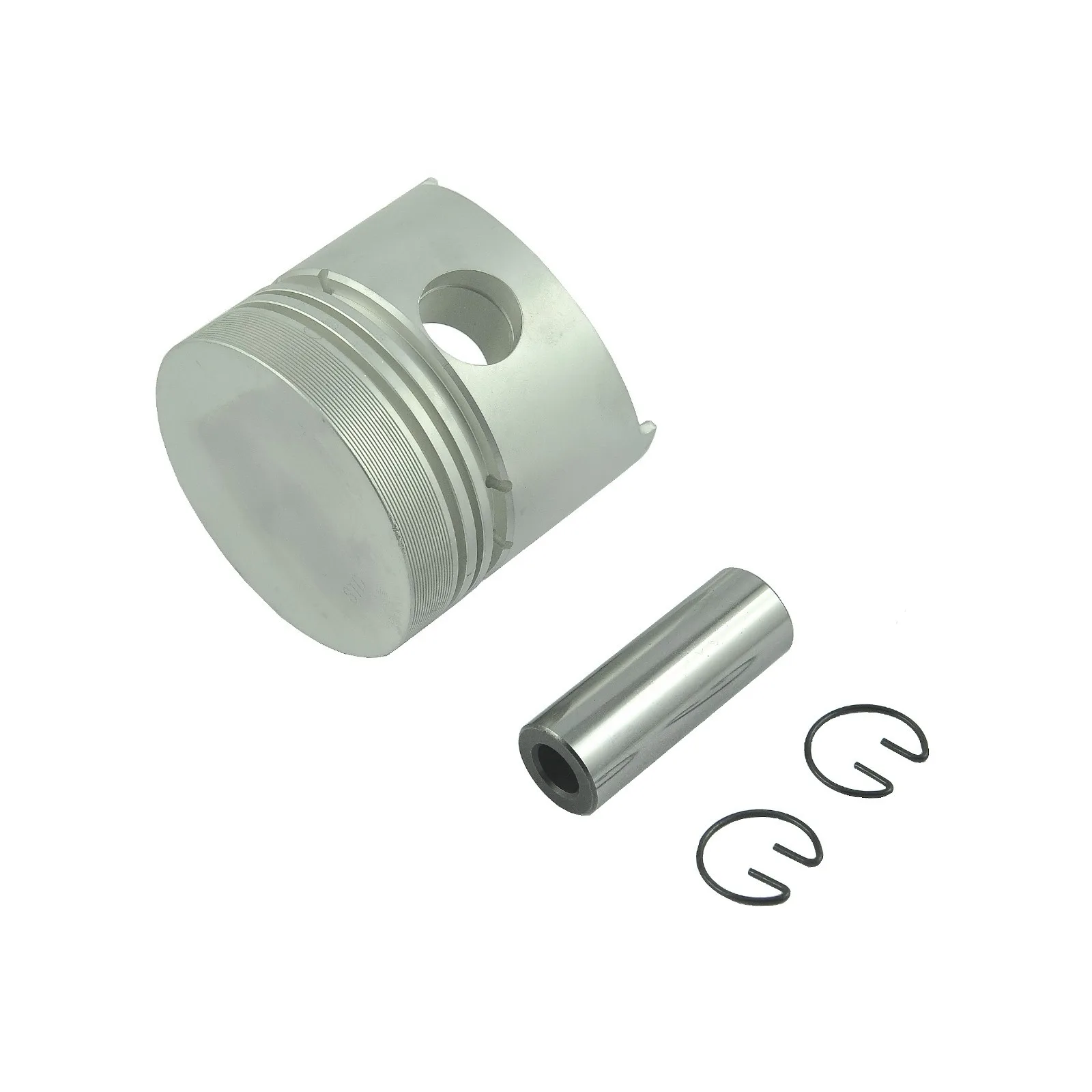

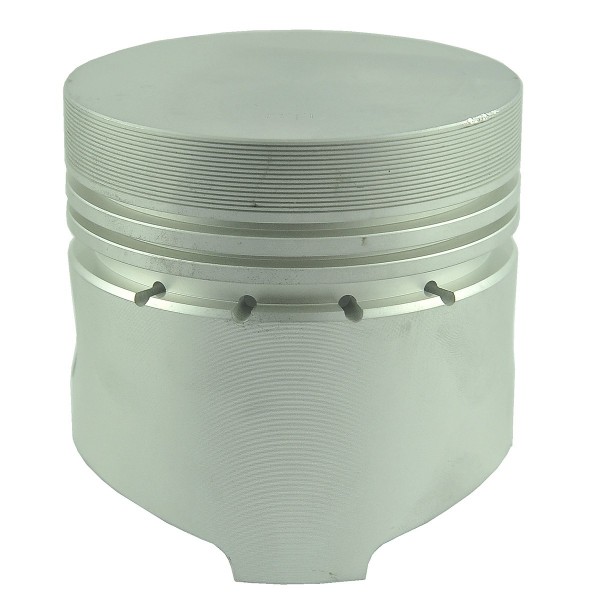

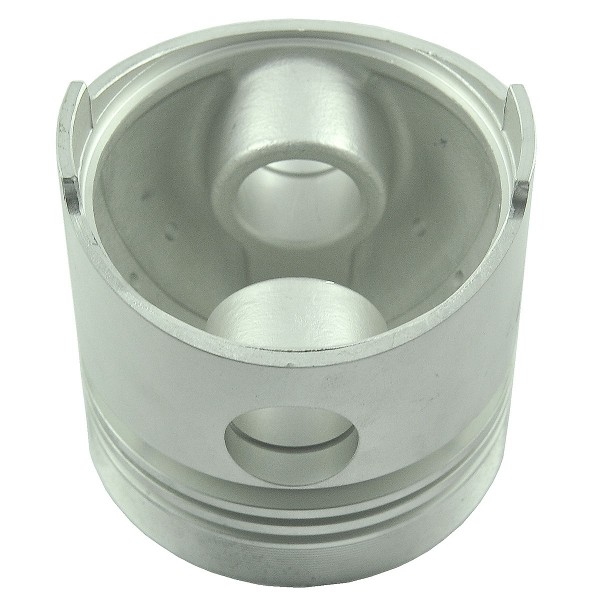

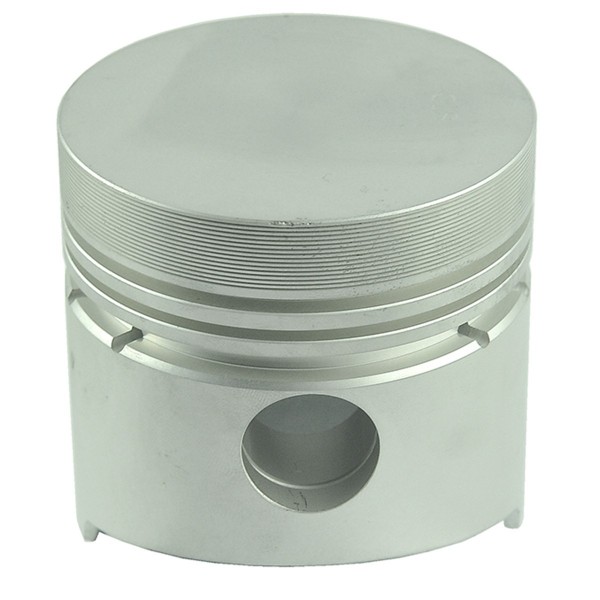

Engine piston / Ø 82 mm / STD / Kubota D1302 / V1702 / Z851/ Kubota L1801 / L2002 / L2601

Engine piston (rings %C5% 9Bci-do-kubota/638-pier %C5% 9Bcienie-t %C5% 82oka- %C3% B8-82-mm-250-x-200-x-500-mm-kubota-d1301d1302v1702v1702dz851-kubota-l1801l2002l2601.html">6-26-100-03 ) with an outer diameter of 82 mm and a total height of 79.50 mm for Kubota tractors of the Kubota L1801, Kubota L2002, Kubota L2601 series with Kubota D1302, Kubota V1702, Kubota Z851 and other engines. The engine piston is a moving element responsible for converting gas and energy generated during combustion into crankshaft, or further on the engine power. The piston is connected to the crankshaft by an element called a connecting rod with pin connections. At the top of the piston there are annular channels for mounting the piston rings, in the middle there is a hub for connecting to the connecting rod. At the top there is the so-called bottom, which, depending on the type of engine, can have a different shape. Due to the work in very difficult conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

• outer diameter: 82 mm,
• height: 66.70 / 79.50 mm,
• pin hole diameter: 23 mm,
• pin diameter: 22.90 mm,
• pin length: 64 mm,
• distance from the end of the pin hole to the lower edge of the piston: 11.80 mm,
• distance from the edge of the pin hole to the top of the piston: 31.80 mm,
• width of ring grooves from top of piston: 2.50 / 2.00 / 5.00 mm.
• original part number: 15201-21110,
• part numbers: 6-23-100-01.

Engine models :

Kubota :

• Kubota D1302,
• Kubota V1702,
• Kubota Z851.

Tractor models :

Kubota :

• Kubota L1801,
• Kubota L2002,
• Kubota L2601.

Magazine : K18:F32

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
