Cylinder liner / Kubota D1302 / DH1301 / Z851 / Kubota L1801 / L2002 / L2601

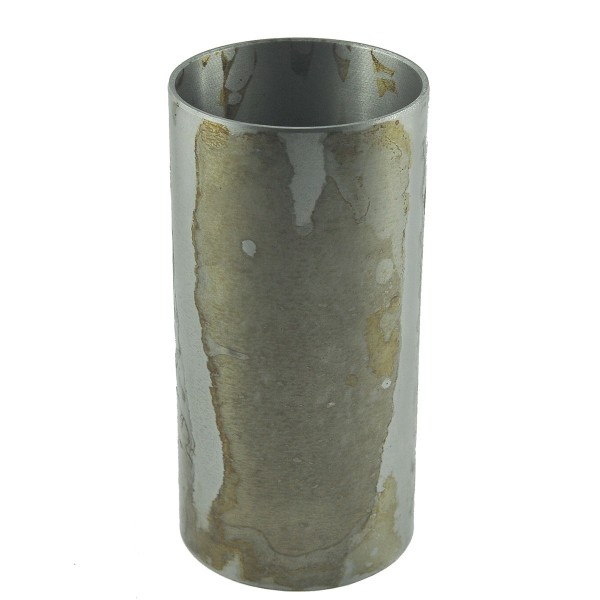

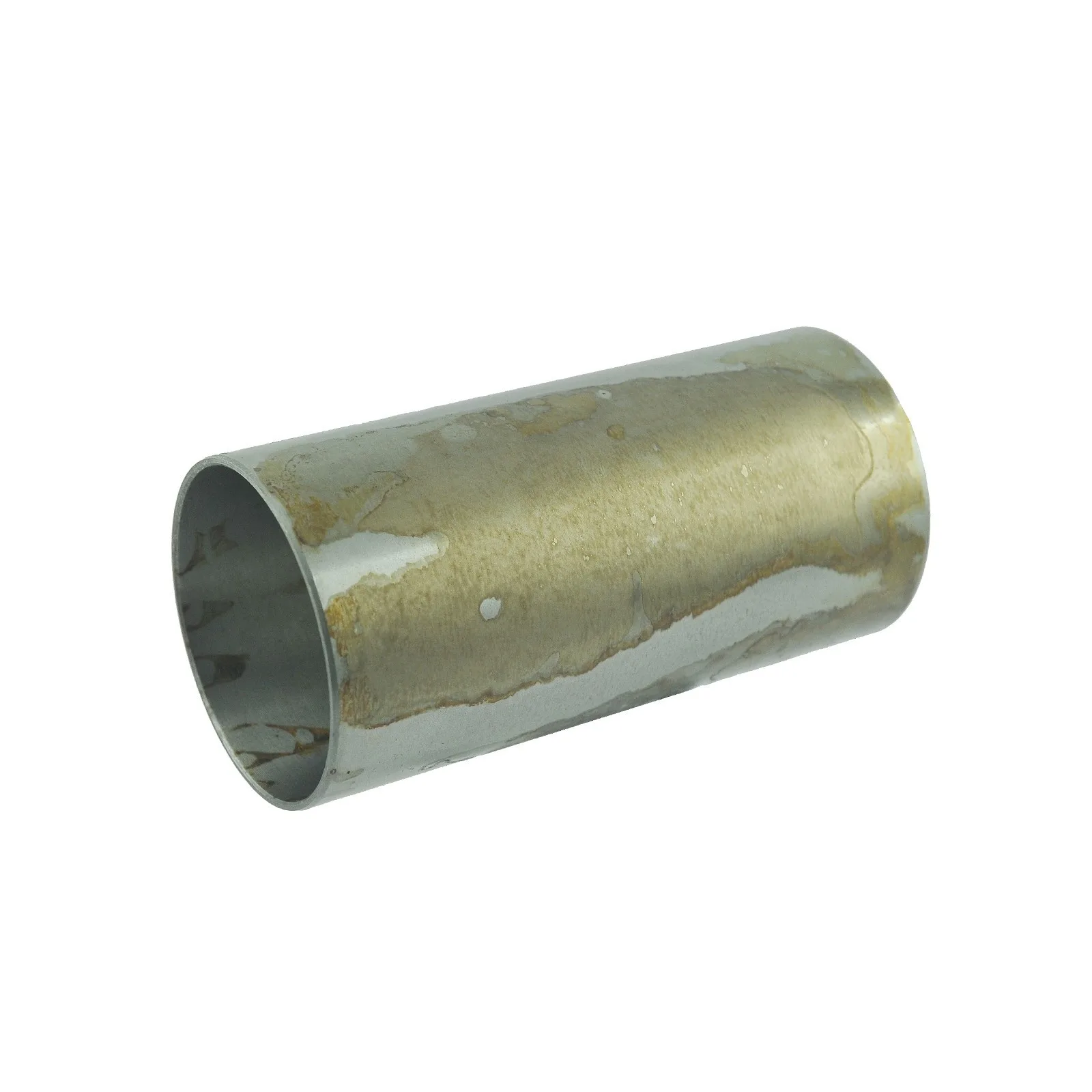

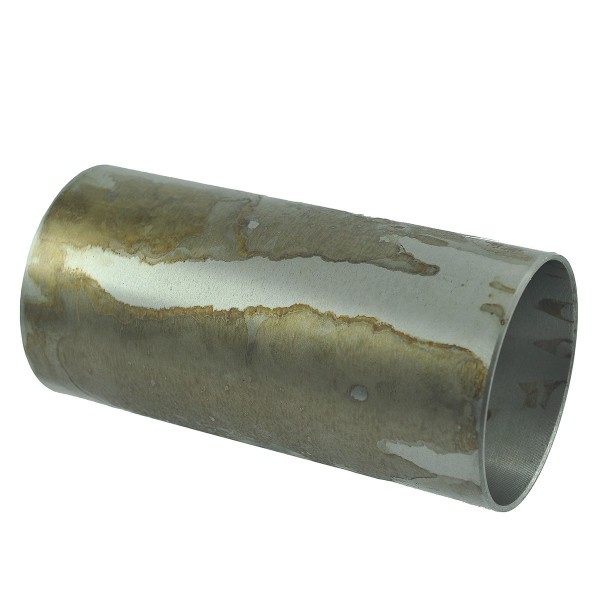

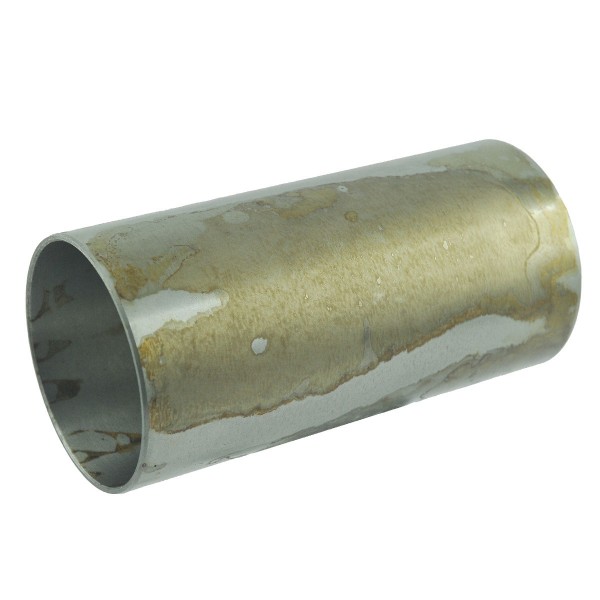

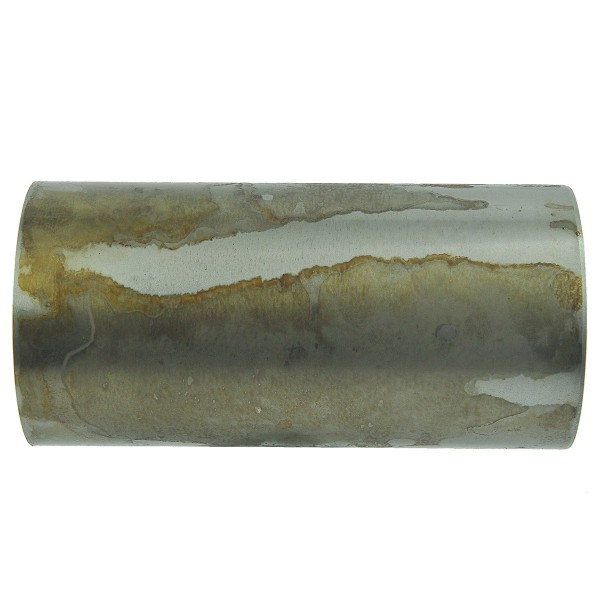

Cylinder liner with a length of 178 mm , an outer diameter of 85.50 mm and an inner diameter of 82 mm for Kubota tractors of the Kubota L1801, Kubota L2002, Kubota L2601 series with Kubota D1302, Kubota DH1301, Kubota Z851 engines and others.

The dry pressed cylinder sleeve is an element whose task is to separate the working piston from the engine block. The main task of the piston sleeve is to accumulate the energy generated during fuel combustion in the air. The use of the piston sleeve significantly extends the life of the engine and allows the use of a lighter or cheaper material for the construction of the block itself.

Dimensions :

• total length: 178 mm,
• inner diameter: 82 mm,
• outer diameter: 85.50 mm,
• original part numbers: 15201-02310,
• part numbers: 6-15-104-02.

Engine models :

• Kubota D1302,
• Kubota DH1301,
• Kubota Z851.

Tractor models :

• Kubota L1801,
• Kubota L2002,
• Kubota L2601.

The first signs of wear of the piston sleeves are excessive oil consumption, problems with starting the engine , reduced engine power or engine overheating . It is recommended to replace the sleeves as soon as possible if damage to the sleeve is detected. The sleeves should be replaced together with the matched pistons.

Magazine : M01:B32

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
