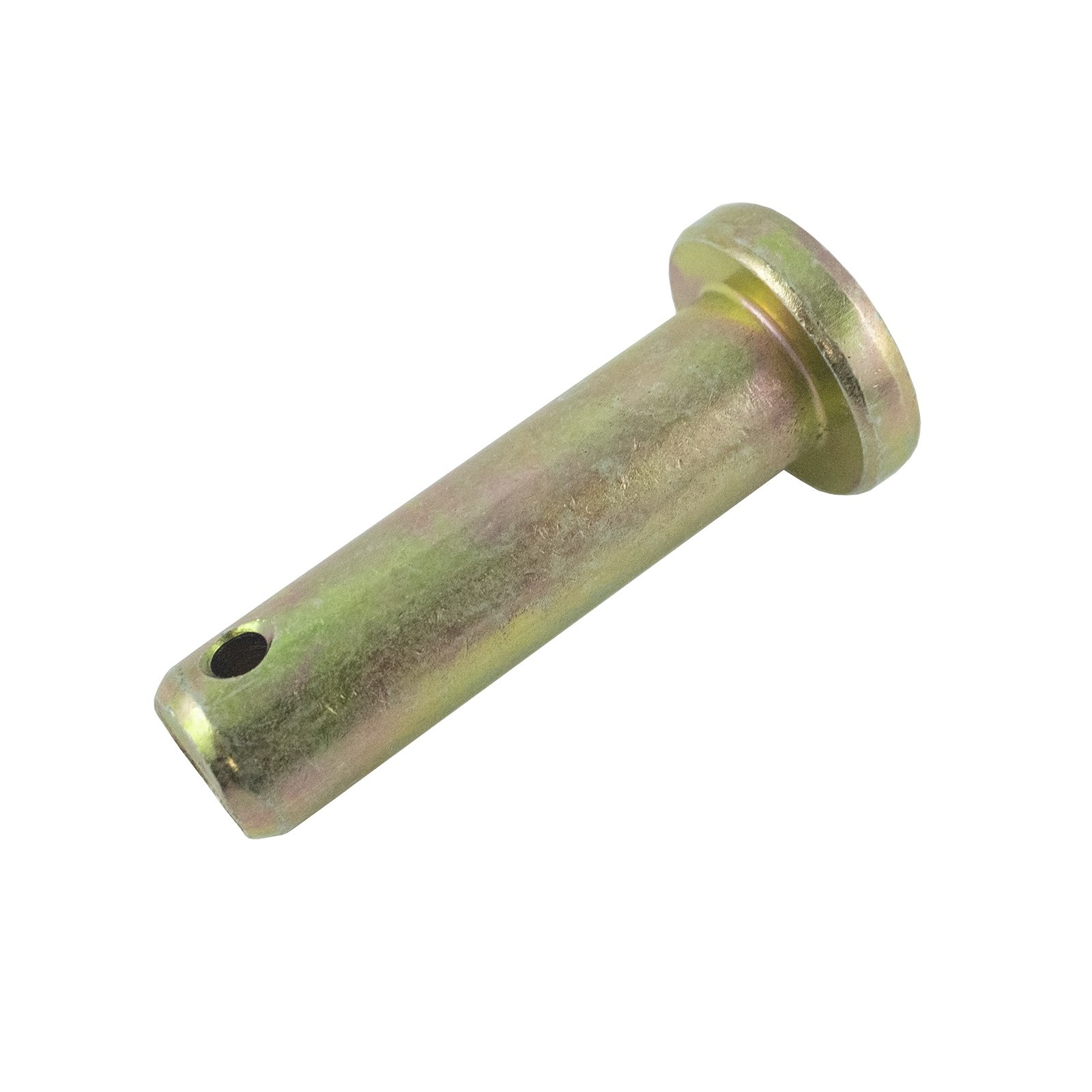

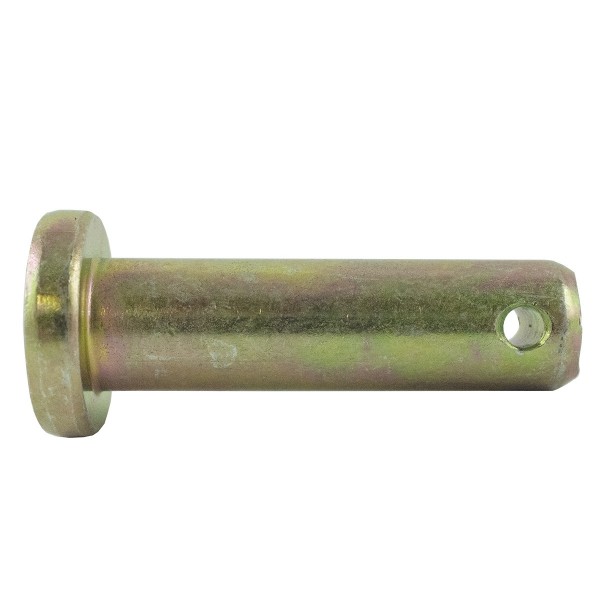

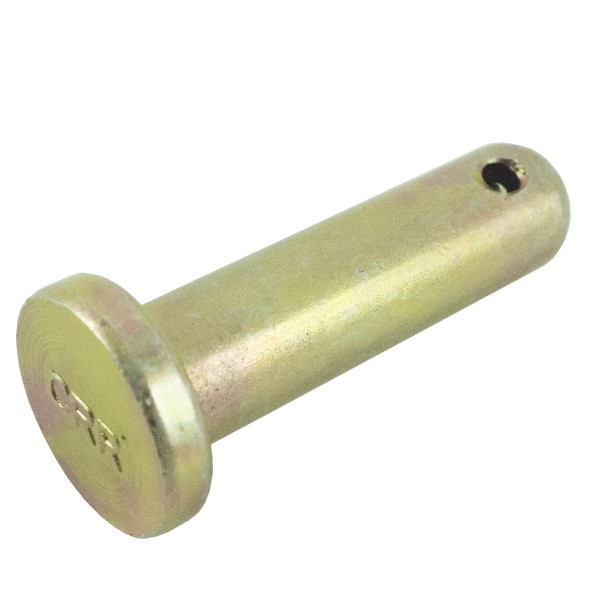

Shackle pin for 55 mm Kubota M5000 linkage suspension chain

Pin with cylindrical head , small, total length 55 mm and diameter 13.50 mm with working length 43 mm for chain shackles pulling lower arms (lashes) of TUZ Japanese tractors and mini tractors of Kubota M series and others. Shackle pin with diameter 55 mm is a solid element designed for connecting chains and slings in agricultural machines, especially in Kubota M5000 series tractors. Made of durable material, it ensures reliable operation in difficult field conditions, guaranteeing safe and stable connection. It is a key component of the TUZ system (Three-point Suspension System), which facilitates connection and disconnection of agricultural implements.

A pin is one of the most common ways to connect (not rigidly) elements, accessories or a set of parts. A pin connection is most often a cylinder made of a hard material resistant to damage and temperature, which, depending on the application, can be loosely or tightly fitted with a second element closing the connection, e.g. a shackle, a screw with a "U" type handle or a mounting plate and most often closed with a pin placed in the pin hole or a locking nut. We distinguish several types of pins, here are the most common:

• without a head,
• nasal,
• with cylindrical head,
• with threaded pin,

Dimensions :

• Total length: 55 mm,
• Working length: 43 mm,
• Diameter: 13.50 mm,
• Head diameter: 24 mm,
• Comparison numbers: 36330-91180,

Tractor models :

Kubota :

• Kubota M4030,
• Kubota M5000,
• Kubota M6030,

Warehouse :
M01:A64:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
