Rubber cover / Kubota L3408 / L3608 / L4508 / L4708 / L5018

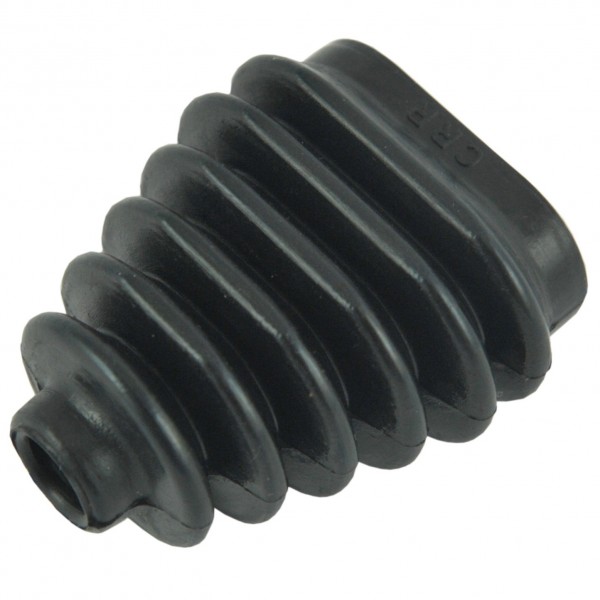

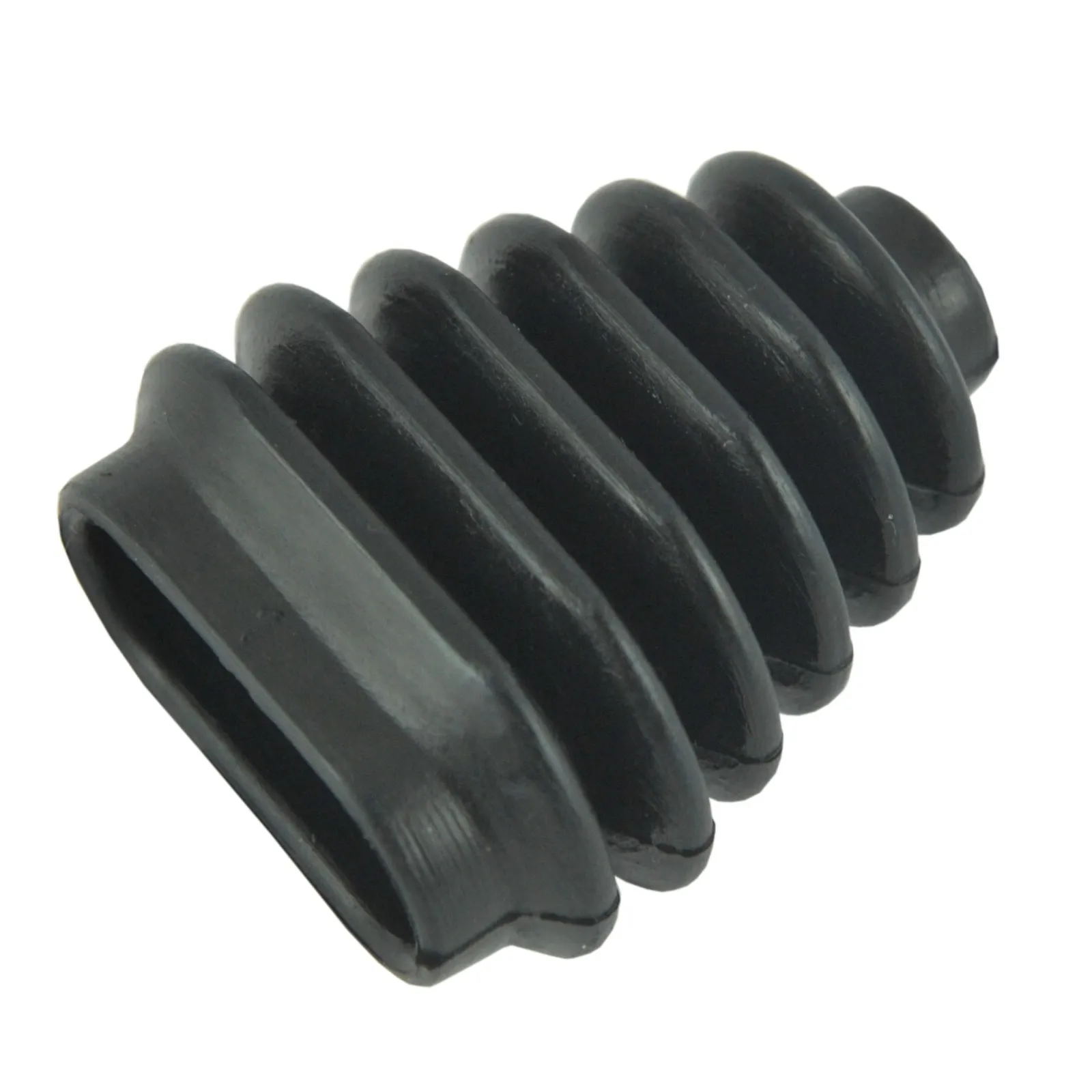

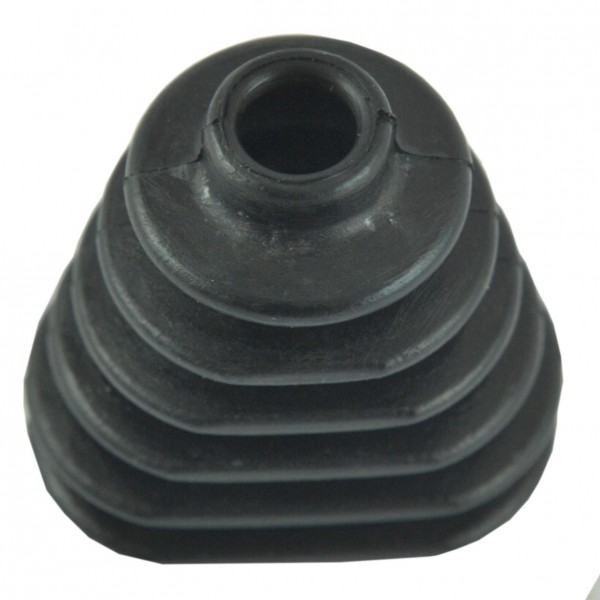

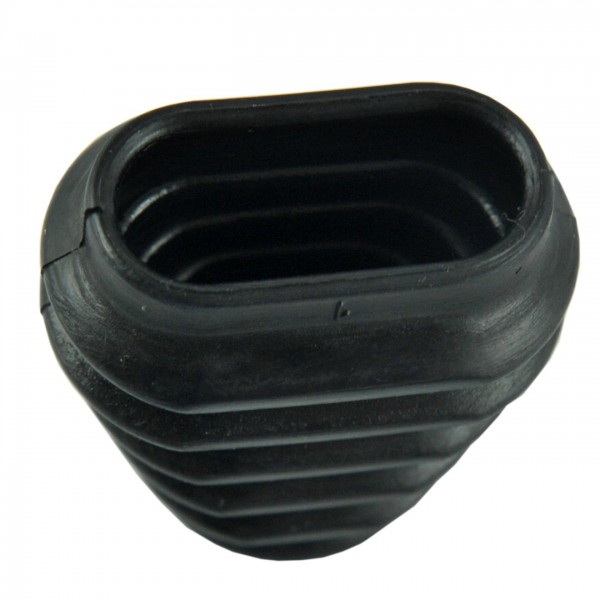

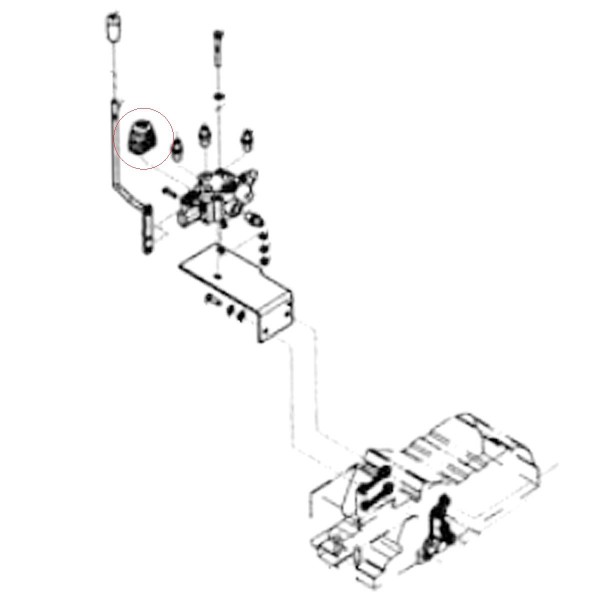

Rubber cover, powder coating for the three-point linkage hydraulic valve lever (valve W9556-54082, lever W9556-54111) with a total height of 50 mm for Kubota tractors of the Kubota L3408, Kubota L3608, Kubota L4508, Kubota L4708, Kubota L5018 series and others.

A rubber cover , commonly known as a "powder cap ," is most often a rubber cone (or tube), tapered on one or both ends with a groove for easier installation, such as a tourniquet. This type of cover is used not only for gear shifts and rod ends, but is also used internally within machine systems, sealing components such as axle shafts or various shafts that are not subjected to high rotational speeds during operation. The main purpose of the "powder cap" is to protect the mechanical assembly from contaminants and prevent the washout of the lubricant found in many moving parts of the tractor.

Dimensions :

• height: 50 mm,
• inner diameter: 10 mm,
• internal dimensions of the base: 16 x 34 mm,
• original part numbers: W9556-54181,
• part numbers: 5-21-104-06.

Tractor models :

• Kubota L3408,
• Kubota L3608,
• Kubota L4508,
• Kubota L4708,
• Kubota L5018.

Damaged mechanical seals (abrasions, breaks caused by rubber deterioration) must be replaced with new ones as soon as possible to avoid contamination of the internal parts of the system, which may result in damage or seizure of the mechanical unit.

Magazine: K18:A09:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
