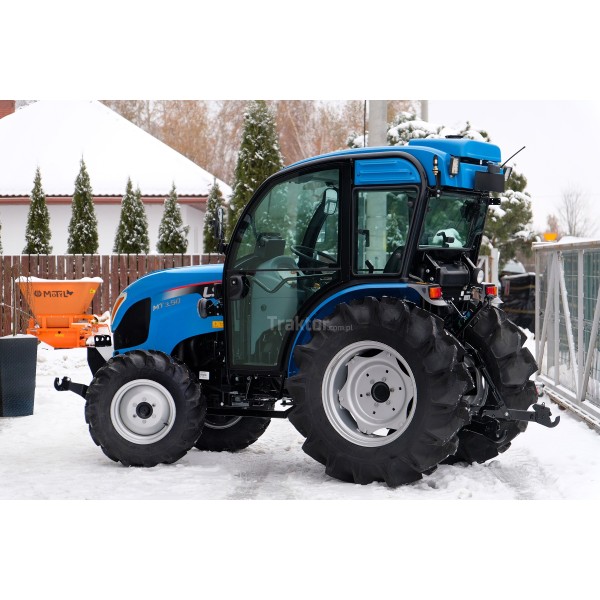

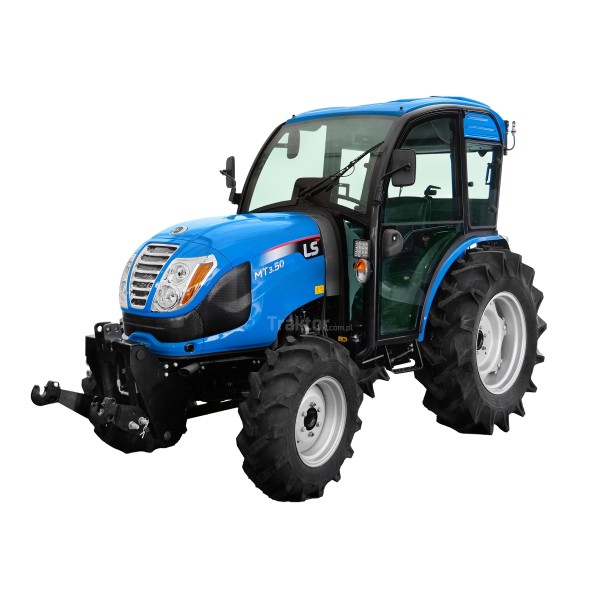

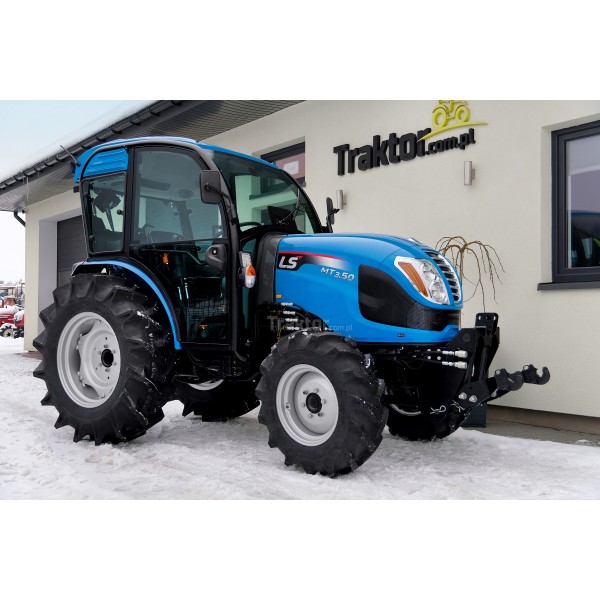

LS Tractor MT3.50 MEC 4x4 - 47 HP / CAB with air conditioning + front linkage for Premium 4FARMER tractor
Ergonomic design
The LS Tractor MT3 series tractors are, above all, a perfect fit for your needs. You choose how your tractor will be equipped to meet all your expectations. The design of the LS Tractor has been designed with versatile use in mind. These machines will work well in the field, garden, orchard, plantation, transport and municipal work. Thanks to the tractor configuration options and the availability of equipment dedicated to LS tractors , this machine will be the perfect partner for work.
Freedom of configuration
When choosing a tractor from the MT3 series, you can choose from several variants:
- roll bar: front/rear,
- ergonomic, comfortable cabin,
- tires: agricultural / industrial / grass tires
- gearbox: manual / hydrostatic.
By choosing the MT3.50 model in the configuration with a comfortable cabin, the tractor becomes a year-round machine. The lockable, soundproof cabin, equipped with air conditioning, heating, audio system and lighting inside and outside the cabin allows for comfortable work even in difficult conditions.
Power = Possibilities
The MT3.50 model is a Premium class tractor . Under the hood of this machine there is a powerful, 3-cylinder L3CRV-T9A Diesel engine with a power of 47 HP. It guarantees very good operating parameters and high efficiency. Additionally, 8 hydraulic outlets allow you to connect a wide range of equipment to the tractor . A mechanical gearbox with reverse (creeping reducer) allows you to change the direction of travel with one movement of the lever located next to the steering wheel.

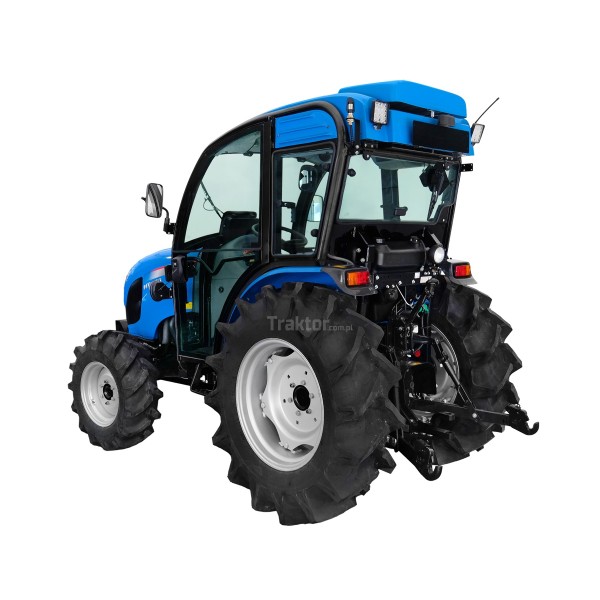

The MT3.50 model is equipped with a 3-point TUZ Cat I with a lifting capacity of 1250 kg and a rear PTO shaft, which allows for versatile use of the tractor . Additionally, this tractor offers three PTO shaft speeds. Four-wheel drive and power steering make the MT3.50 model an ideal machine, created according to your preferences.
The LS Tractor MT3.50 is a model with exceptional versatility allowing you to work with a variety of attachments.

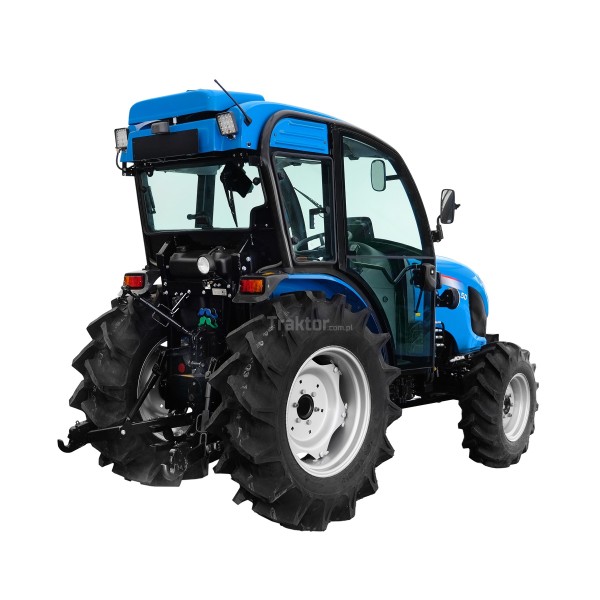

Your LS MT3.50 tractor with high-quality cabin!
The cabin has been solidly made, maintaining the highest production standards. Thanks to the cabin, the LS MT3 model becomes a machine that we can rely on in all weather conditions!
The tractor with cabin is additionally equipped with a heating function, which is so important during work in the winter season.
Additionally, the cabin is equipped with:
- door locks,
- sun visor,
- lighting inside the cabin,
- carpet (plastic),
- front and rear wipers with washers,
- radio,
- external LED lighting (two lamps at the front and two at the rear of the tractor),
- side mirrors (2 pcs.),
- heater included,
- heater hoses (2 pcs.),
- air conditioning.

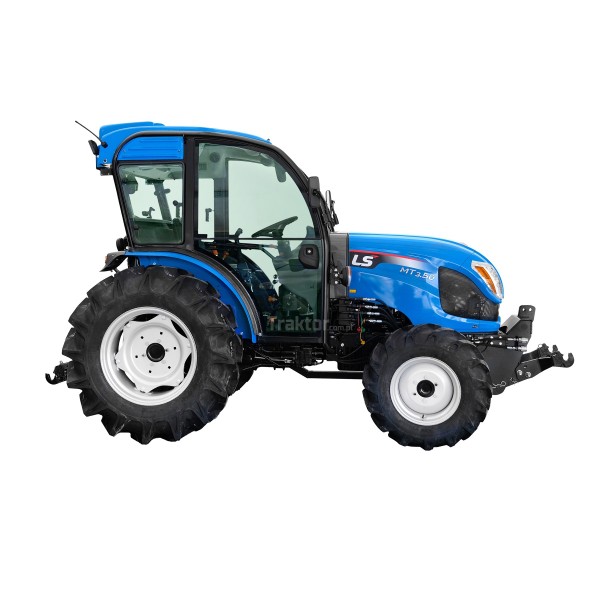

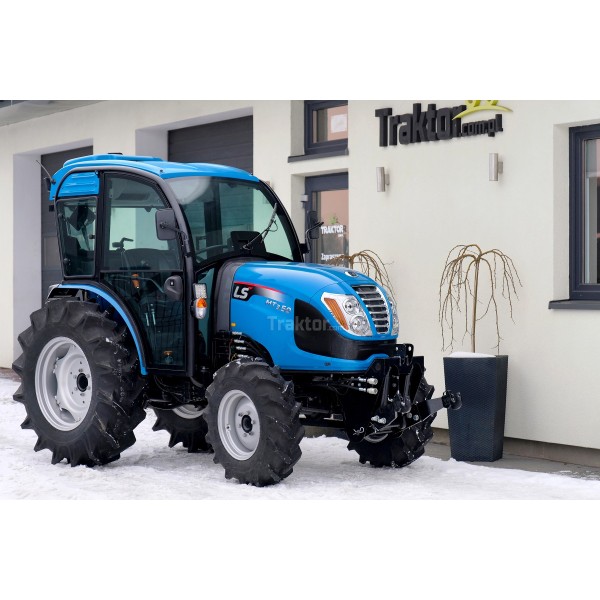

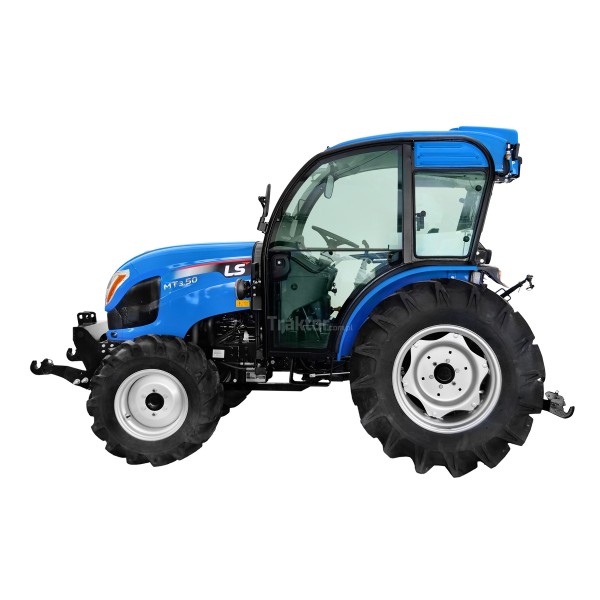

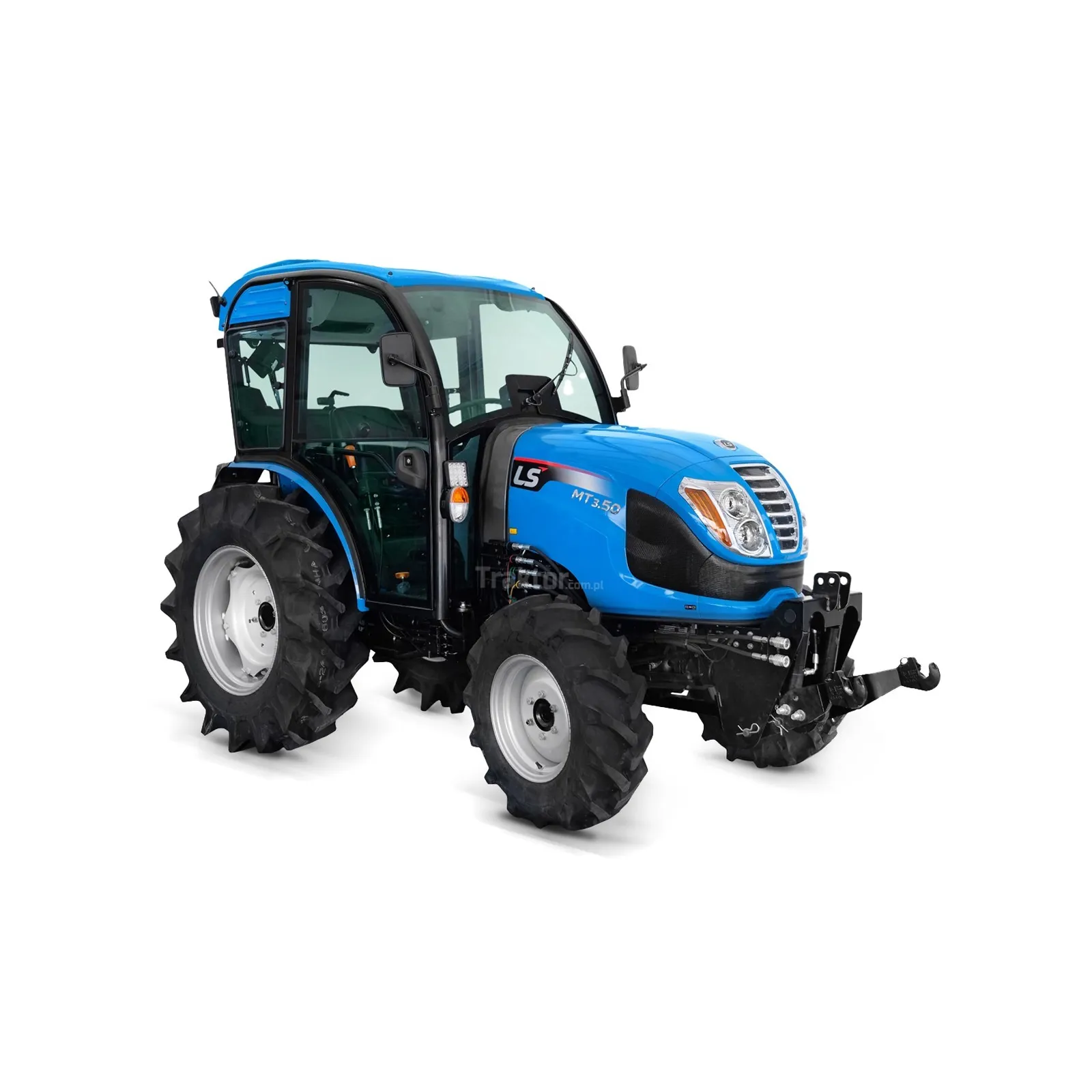

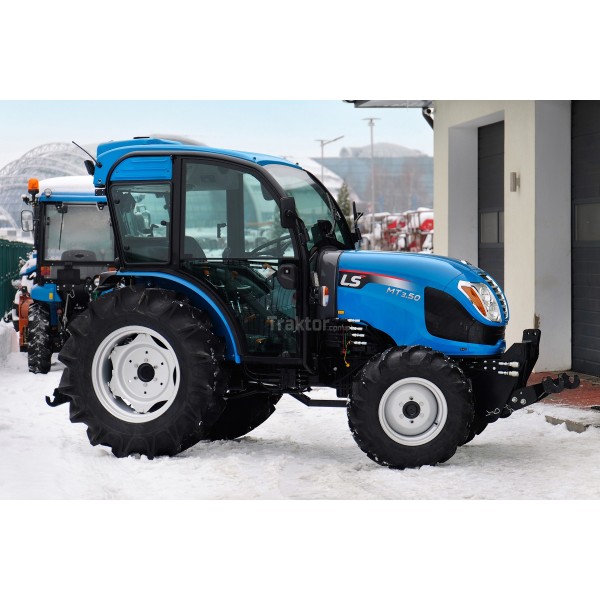

To make our tractor even more universal and versatile, we can equip it with additional accessories. One of them is, for example, a front three-point linkage . Such equipment fits most tractor models.
What does a front linkage give us?
The front three-point linkage gives us much greater possibilities of working with our tractor . There are currently more and more machines mounted on the front three-point linkage , mowers, ploughs, sweepers, as well as a whole range of transport equipment.

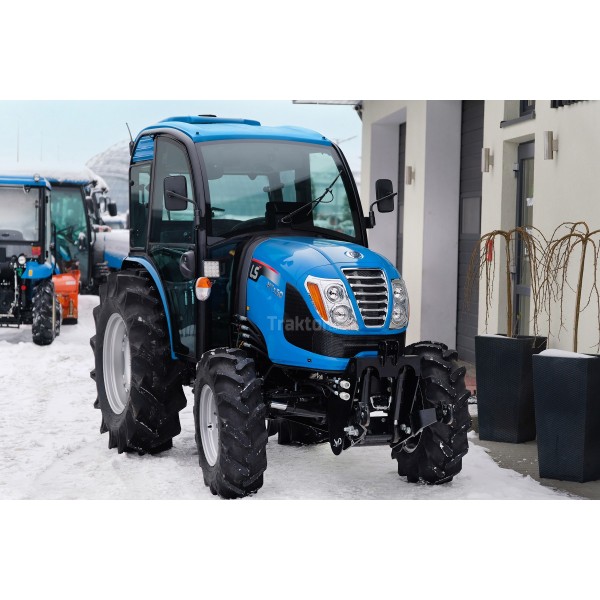

The front linkage for a tractor with a lifting capacity of 1000 kg is adapted to the MT3 series models of the LS Tractor brand, mounted on the front bumper of the tractor. The front linkage Cat I has hydraulic cylinders, double-sided, and additionally has the ability to lock the arms when working with devices that require rigid arms of the linkage.
The lower arms of the three-point linkage have quick connectors that make it easy to attach and remove implements. Their spacing is 450 mm.
LS Tractors represent modernity, high operator comfort and the highest quality of workmanship.
Specification
Condition
New
Equipment
Front linkage
Engine
4 - stroke with turbine
Liquid-cooled 3-cylinder diesel
with Delphi CRDI (Common Rail Direct Injection) direct fuel injection
Engine model
LS Mtron L3CRV-T9A STAGE V
Power (HP/HP)
47
Power (kW)
35.1
Engine capacity (cc/cc)
1879
Rated engine speed (rpm)
2600
Torque (Nm/rpm)
164
Fuel tank capacity (L)
32
Drive
4x4 4WD
Transmission
Mechanical
synchronized
Reverse
Yes
Number of forward/reverse gears
32 / 16 z włączonym reduktorem pełazającym
Driving speed (km/h)
1.12 / 27.12 (forward)
Power steering
YES
PTO / PTO
3 speed
540 (@2490)
540 rpm / 1710 rpm (540E PTO)
1000 rpm / 2381 rpm
Independent PTO / PTO with wet clutch activated by knob
PTO/PTO power (kW)
26,5 kW (36KM)
NEXT DOOR
3 point
Adjusting the lowering speed of the rear three-point linkage arms / manual control valve
KAT I
Lifting capacity of three-point linkage at ball ends (kg)
1250
Hydraulic outputs (pcs (EA) / number of sections)
4/2 (option 6/3)
Hydraulic leveling of the rear suspension
No
Trailer hitch
Yes
Tire type(s)
Agricultural
Cabin
Air condition
Heating
Wheelbase (mm)
1858
Tire size front/rear
9.5-16 / 13.6-24
turning radius (mm)
2890
Clutch
Dry, single disc
Brakes
Wet
Overall width with tires (mm)
1590
Ground clearance (mm)
388
Maximum rotation angle of the front wheel ( ° )
+ / - 57
Hydraulic system pressure (MPa/bar)
17.5 (2538psi)
Number of turns of the steering wheel (right / left)
3,7 / 3,7
Rated steering oil flow (l/min)
15.6 (4.1GPM)
Type of candles
Glow plugs
Tread adjustment FRONT (mm)
1192~1338mm (46.9~52.7 in.)
Track adjustment REAR (mm)
1066~1266mm (42.0~49.8 in.)
Basic equipment
Cabin
Hydraulic pump capacity (l/min)
30.9 / 60 (option)
