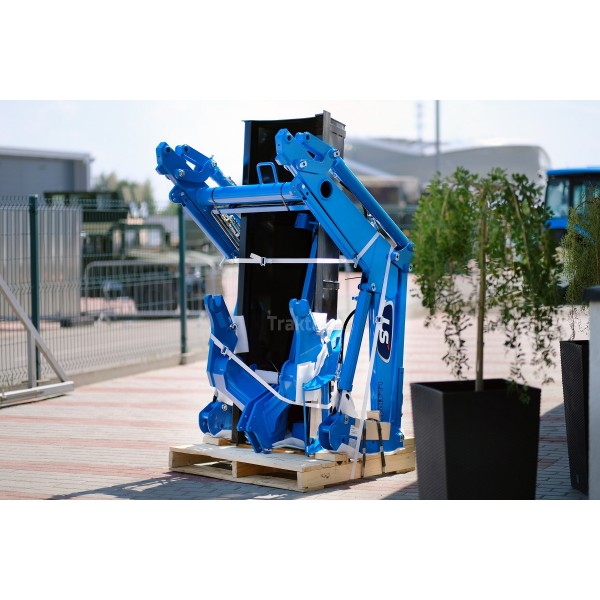

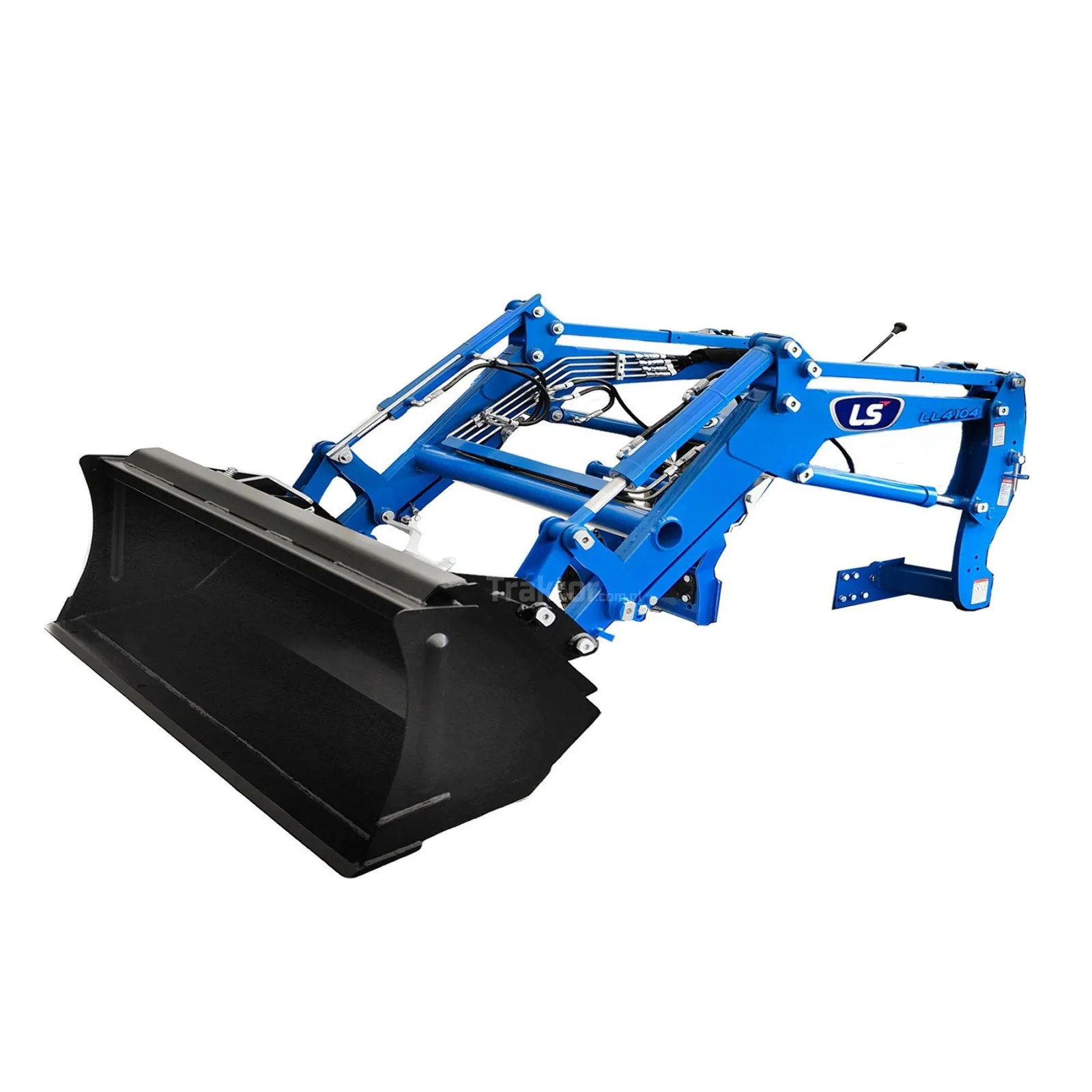

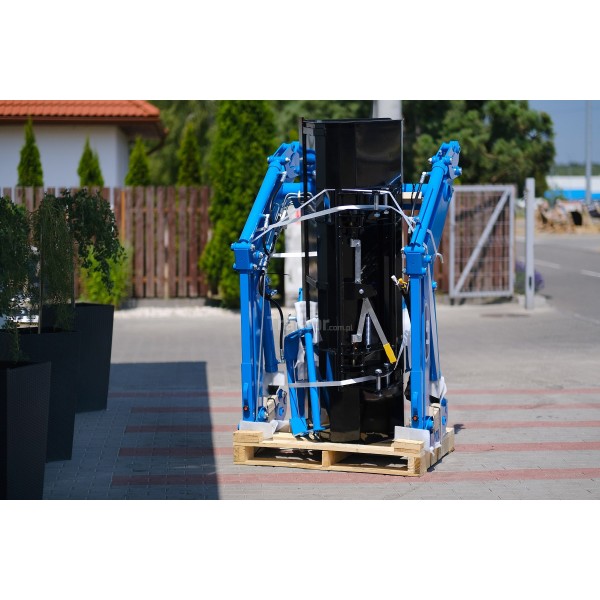

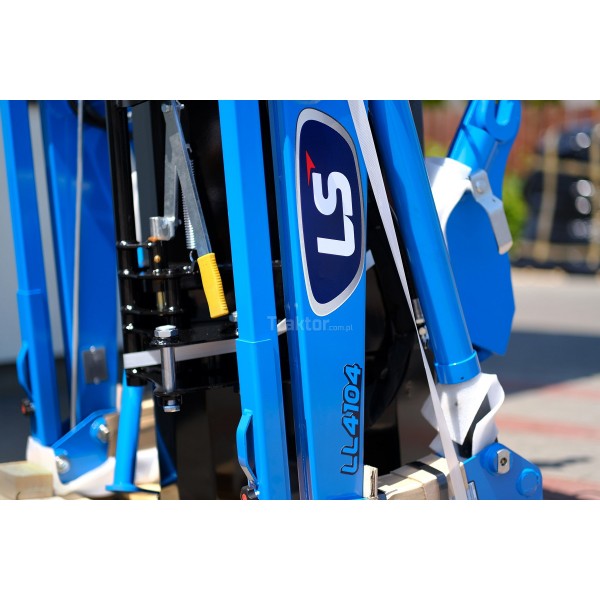

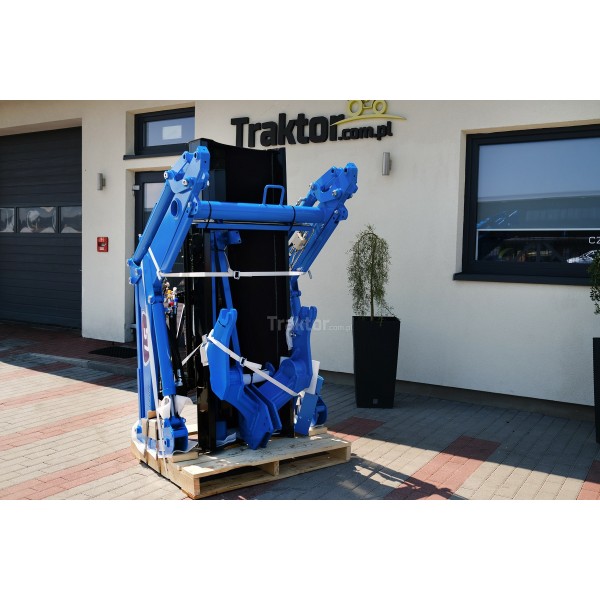

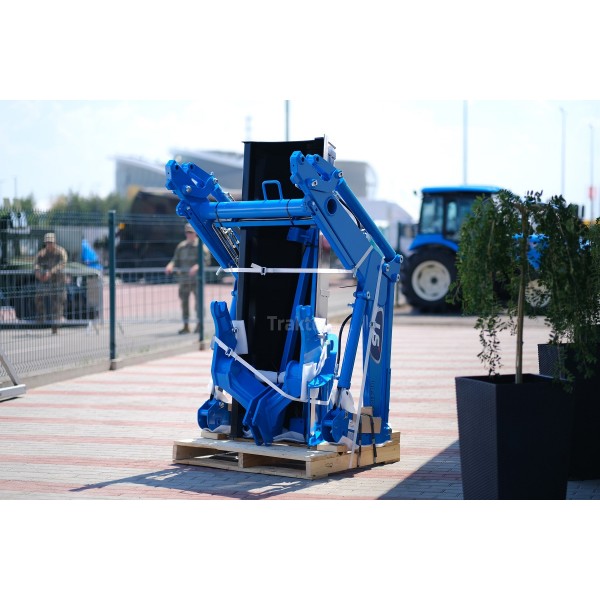

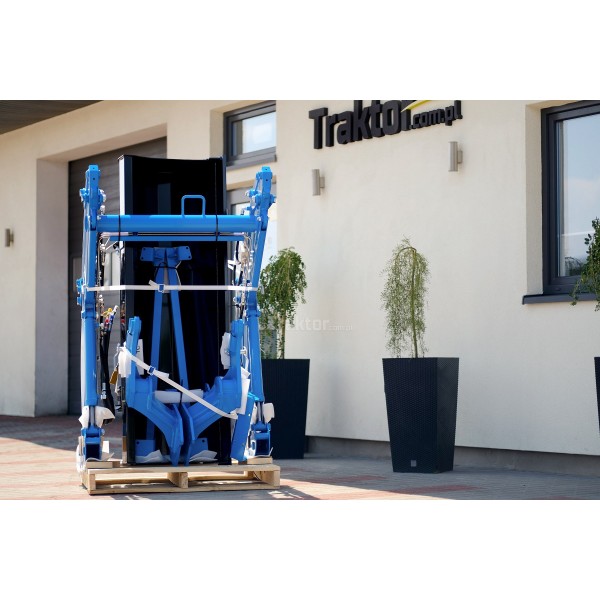

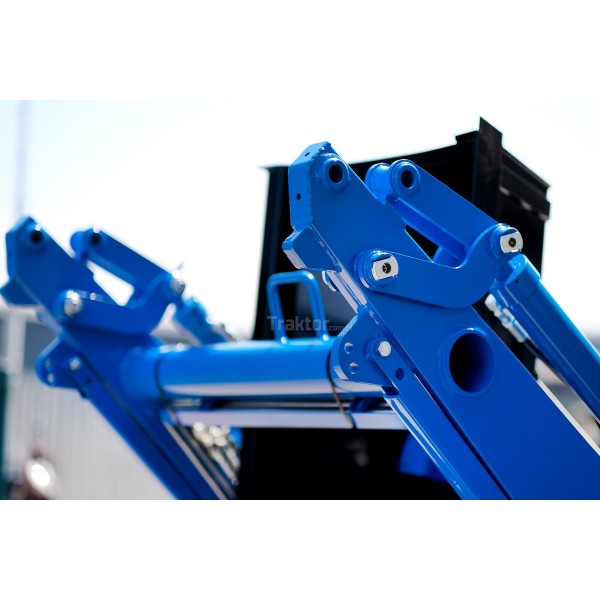

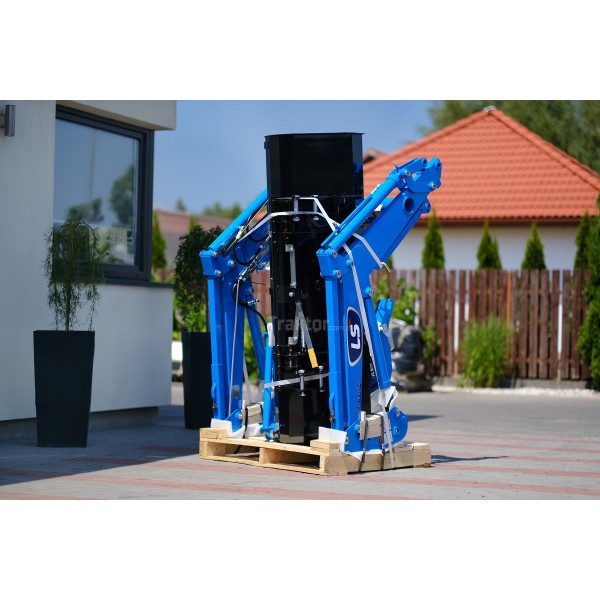

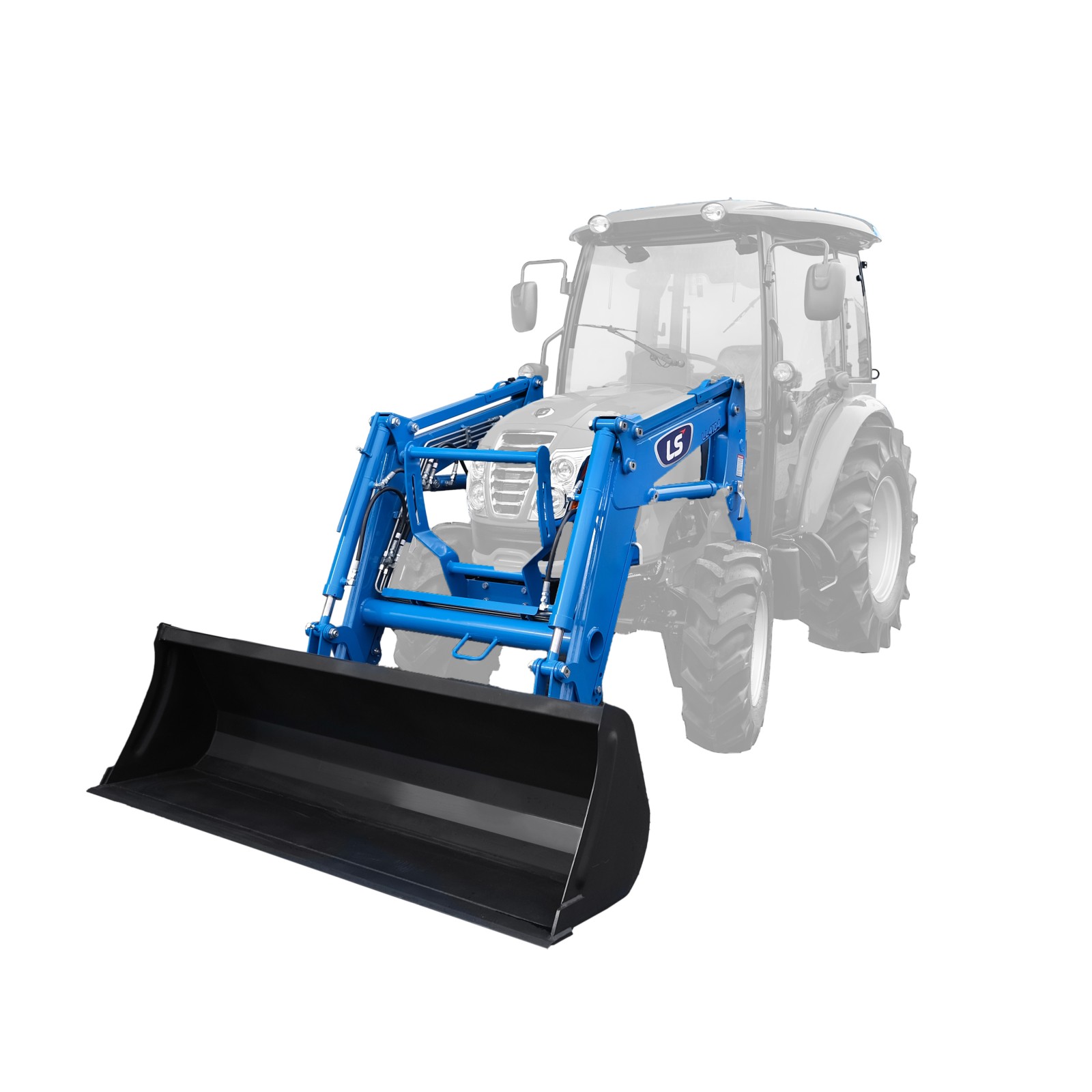

Front loader LS LL4104 for tractors LS MT3.50 and LS MT3.60

Greater lifting capacity - 1233 kg

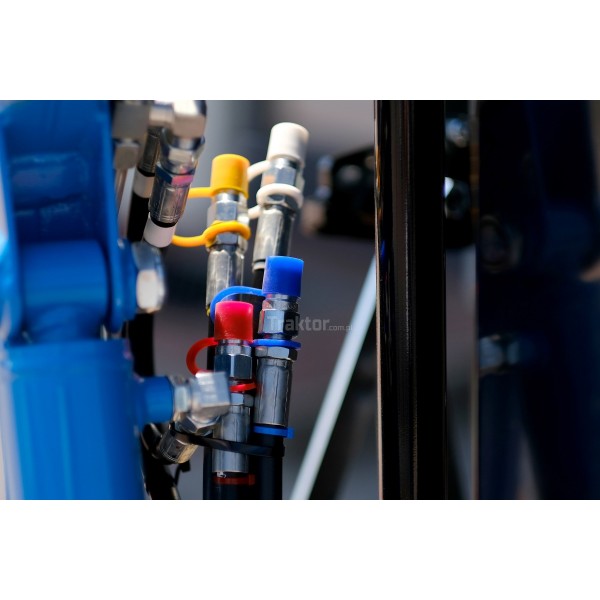

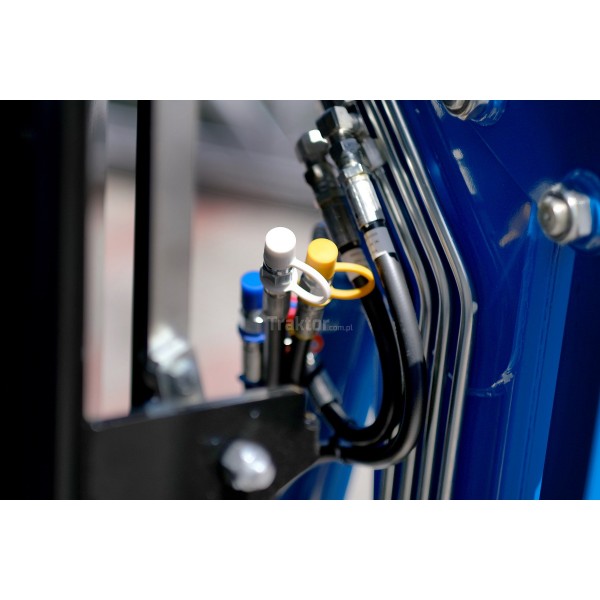

The front loader with the symbol LL4104 is the original, standard front loader dedicated to the LS MT3.50 and LS MT3.60 tractors . Front loader, the so-called TUR, thanks to its very durable structure and well-thought-out structure, is able to bear much more weight than other tractors of similar size and power. One of the many advantages of this loader is its quick assembly and disassembly, which is allowed by min. quick hydraulic couplings, euro frame and special storage supports. Quick assembly and disassembly also applies to the bucket itself, the loader is removed by removing two pins, and the operation itself does not require the use of tools.

Safety and comfort of work

The LS front loader has a safety valve which prevents the load from lifting higher in the event of overload. Automatic bucket adjustment is another convenience and improvement of the quality of work, the automation is designed to adjust the position of the bucket during the movement of the loader arm. Tractors equipped with a hydraulic distributor with a floating section have bucket protection functions at their disposal, the function automatically folds the bucket when too large an obstacle is encountered. As a standard, the loader is equipped with a cover to protect the grill damage.

The main features of the LL4104 loader

• Payload: 1233 kg,
• Mounting type: EURO,
• Bucket width: 1828 mm,
• Maximum lifting height: 2355 mm, 2065 mm (bucket in horizontal position), 1354 mm (bucket fully lowered),
• Bucket capacity: 0.37 m3,
• Lifting time to maximum height without load: 4.4 s,
• Time to descend from maximum height: 4.4 s,
• Bucket tipping time: 2.6 s,
• Time of maximum unscrewing the bucket to the horizontal position: 3.9 s.
