Ergonomic design
LS Tractor MT3 series tractors are, above all, a perfect fit to your needs. You choose how your tractor will be equipped so that it meets all your expectations. The design of LS Tractor tractors has been designed for versatile use. These machines will prove useful in the field, garden, orchard, plantation, transport and municipal work. Thanks to the tractor configuration options and the availability of accessories dedicated to LS tractors , this machine will be an ideal work partner.
Freedom of configuration
When choosing a tractor from the MT3 series, you can choose it in several variants:
- safety bar: front / rear,
- ergonomic, comfortable cabin,
- tires: agricultural / industrial / grass tires
- gearbox: manual / hydrostatic.
By choosing the MT3.50 model in the configuration with a comfortable cabin, the tractor becomes an all-season machine. A lockable, soundproof cabin, equipped with air conditioning, heating, audio system and lighting inside and outside the cabin allows for comfortable work even in difficult conditions.
Power = Possibilities
The MT3.50 model is a Premium class tractor . Under the hood of this machine there is a powerful 3-cylinder L3CRV-T9A diesel engine with a power of 47 HP. It guarantees very good operating parameters and high efficiency. Additionally, 8 hydraulic outputs allow you to connect a wide range of accessories to the tractor. The MT3.50 model is equipped with a 3-point linkage Cat I with a lifting capacity of 1250 kg and a rear PTO shaft allowing for versatile use of the tractor. Moreover, this tractor has three PTO shaft speeds.

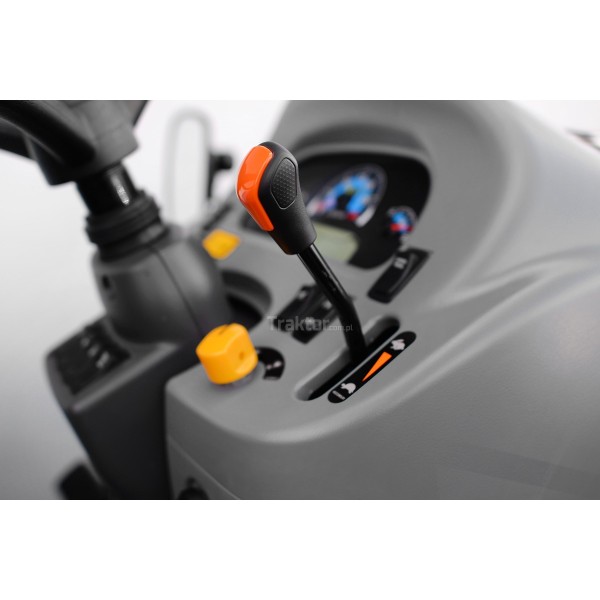

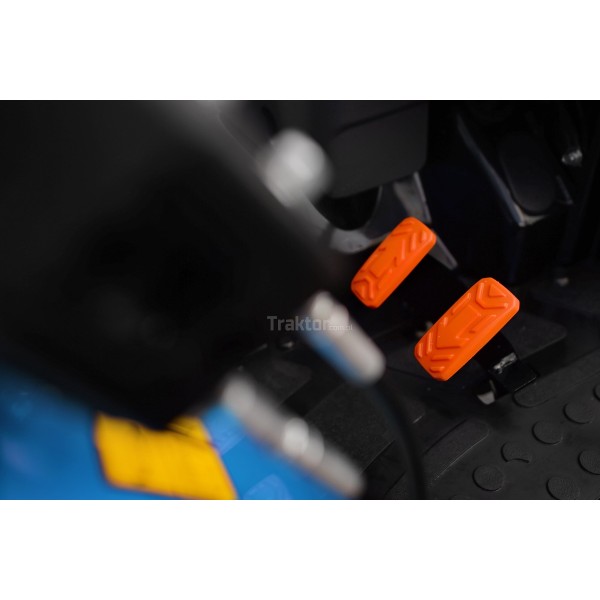

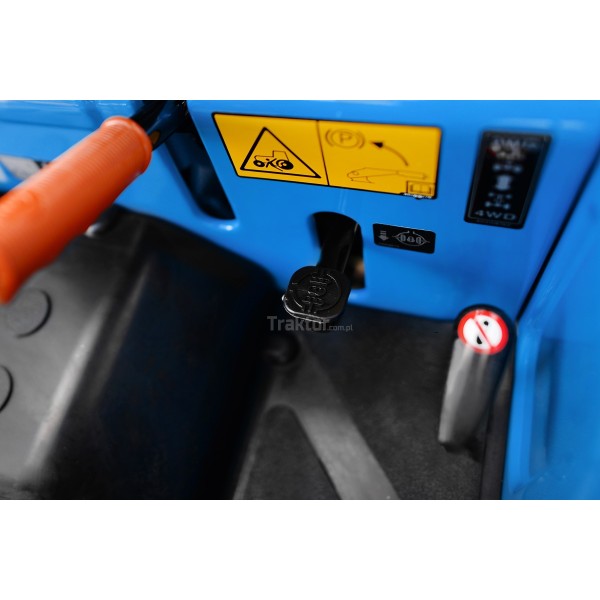

The hydrostatic gearbox operated by two pedals, which improves convenience and comfort of work, allows you to quickly change the direction of travel by simply pressing the appropriate pedal.
4-wheel drive and power steering make the MT3.50 model the perfect machine, created according to your preferences.

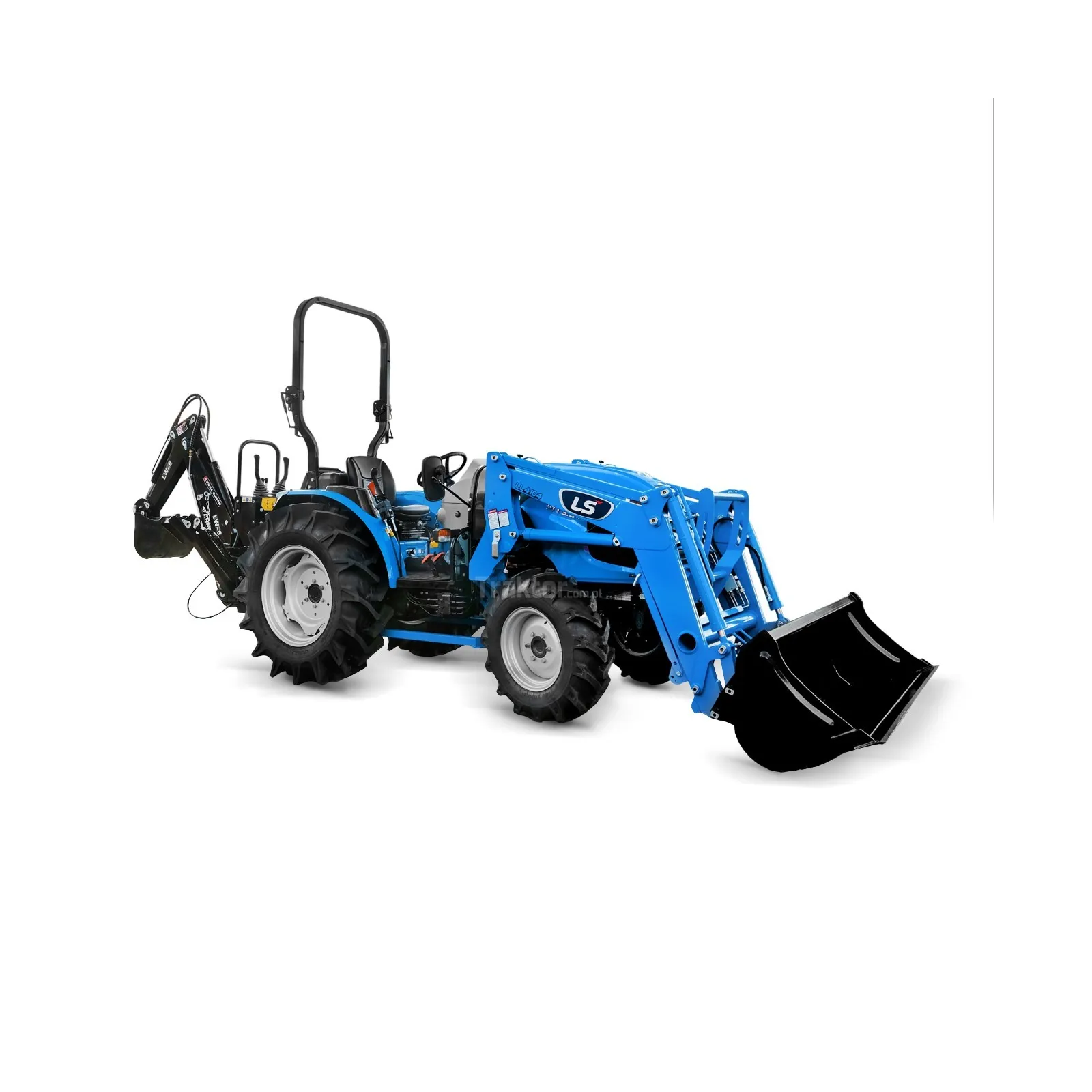

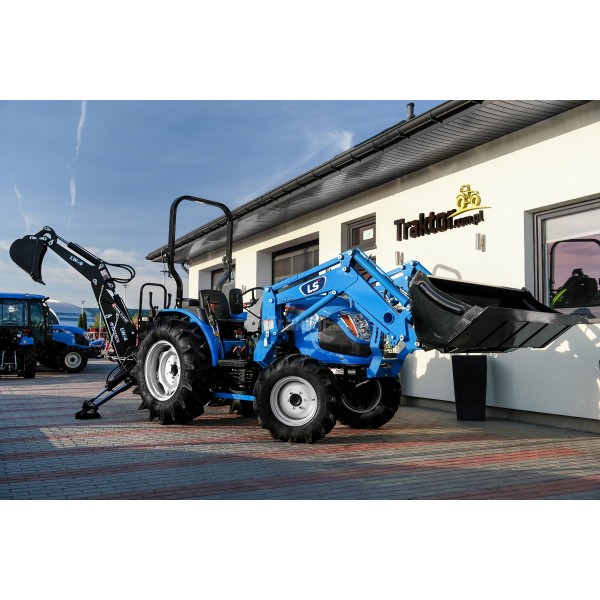

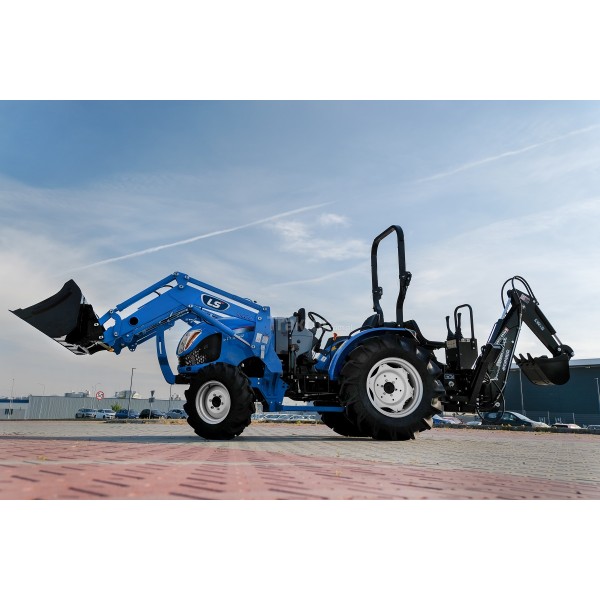

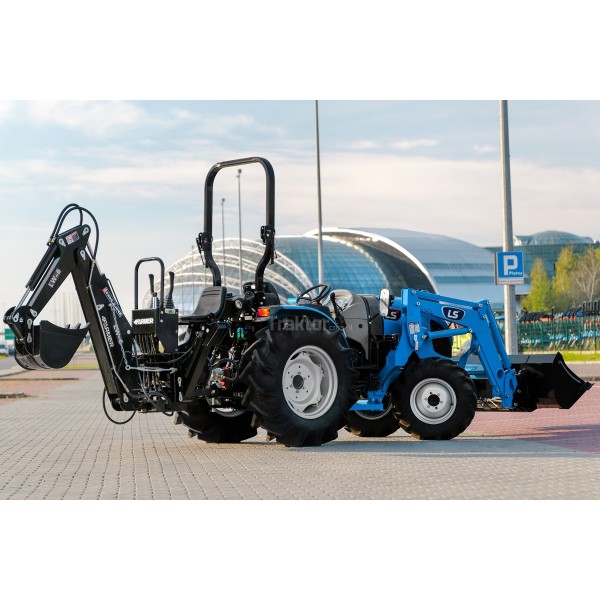

LS Tractor MT3.50 is a model with exceptional versatility that allows you to work with a variety of equipment.
To make our tractor even more universal and versatile, it can be equipped with additional accessories.
Greater lifting capacity - 1233 kg

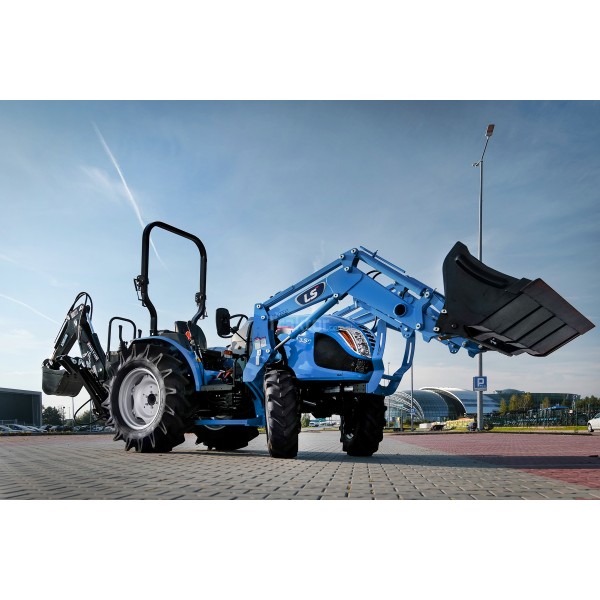

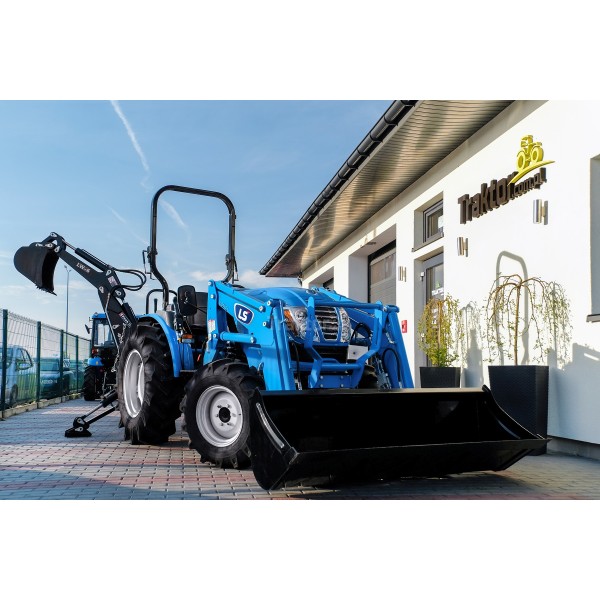

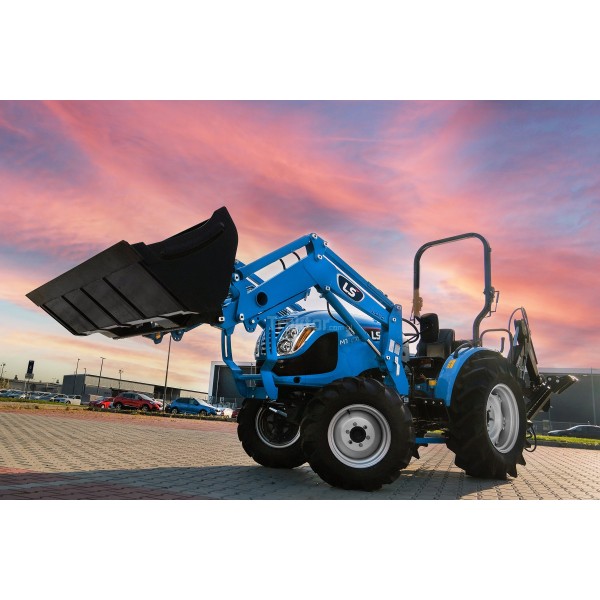

The front loader with the symbol LL4104 is an original, standard front loader dedicated to LS MT3.50 and LS MT3.60 tractors. The so-called front loader TUR, thanks to its very durable construction and well-thought-out construction, is able to carry much greater weight than other tractors of similar size and power. One of the many advantages of this loader is its quick assembly and disassembly, which is possible thanks to, among others: quick hydraulic connectors, euro frame and special storage supports. Quick assembly and disassembly also applies to the bucket itself, the loader can be removed by pulling out two pins, and the operation itself does not require the use of tools.
Safety and comfort of work
The LS front loader is equipped with a safety valve which prevents the load from being lifted higher if the loader is overloaded. Automatic bucket adjustment is another convenience and improves the quality of work, the automation is intended to regulate the position of the bucket while the loader arm is moving. Tractors equipped with a hydraulic distributor with a floating section have a bucket protection function; the function automatically folds the bucket when it encounters too large an obstacle. The loader is standardly equipped with a cover to protect the grill from damage.
The most important features of the LL4104 loader
- Load capacity: 1233 kg,
- Mounting type: EURO,
- Bucket width: 1828 mm,
- Maximum lifting height: 2355 mm, 2065 mm (bucket in horizontal position), 1354 mm (bucket fully lowered),
- Bucket capacity: 0.37 m3,
- Lifting time to maximum height without load: 4.4 s,
- Descent time from maximum height: 4.4 s,
- Maximum bucket tipping time: 2.6 s,
- Time for maximum unscrewing of the bucket to the horizontal position: 3.9 s.

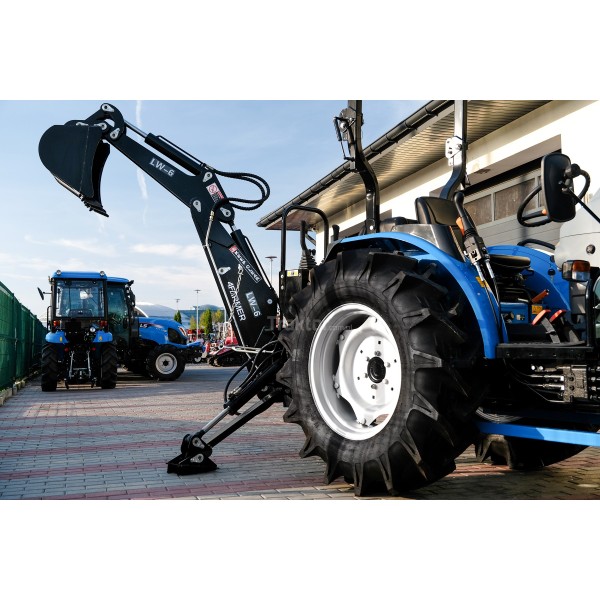

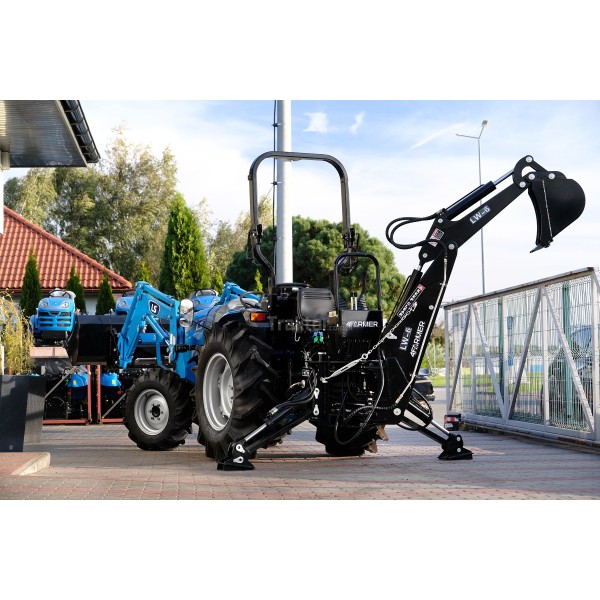

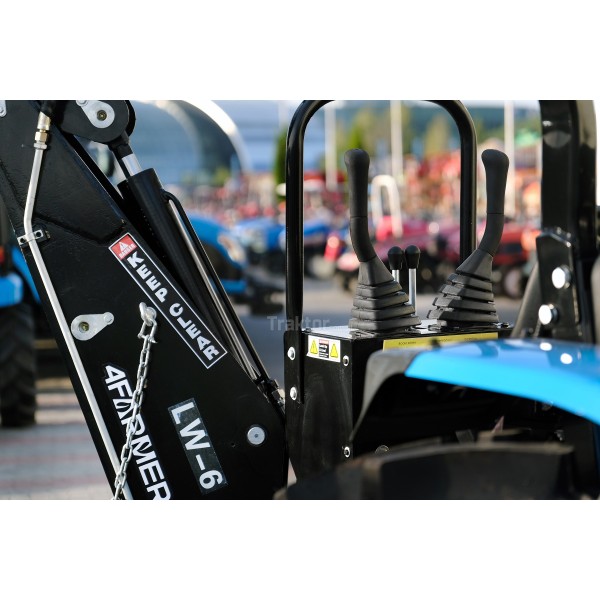

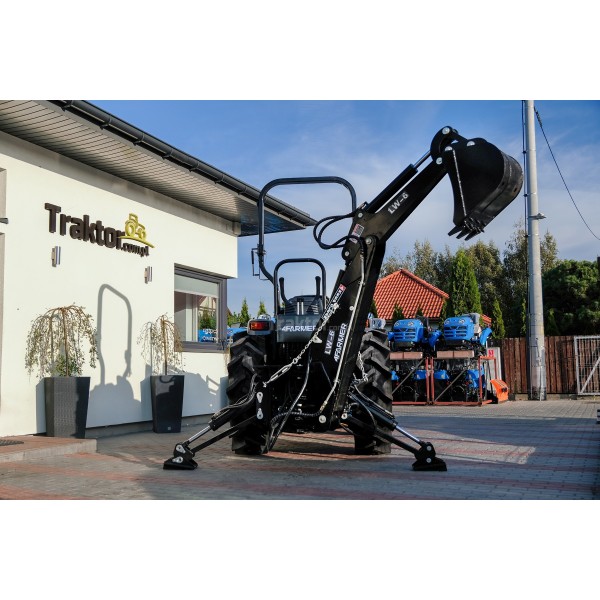

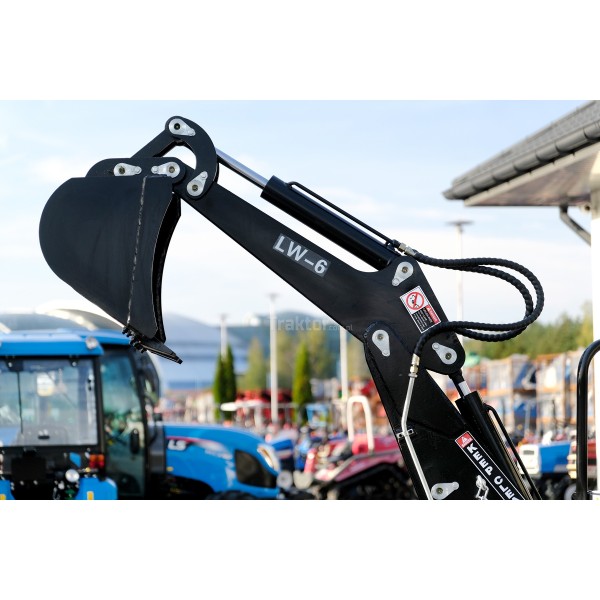

The LW 4FARMER excavator is intended for small earthworks in households and agriculture and is intended for tractors with a minimum power of 20 HP (+/- 5 HP) and a digging depth of 200 cm. The tractor excavator consists of its own hydraulic pump, frame, lifting arm, hydraulic cylinders, stabilizing supports and bucket, and a control cockpit with an operator's seat. The excavator's hydraulic system is driven by its own hydraulic pump connected to the tractor's PTO/PTO shaft and has its own oil tank, thanks to which the excavator has an independent oil system, which means that the tractor's hydraulic oil does not mix with the hydraulic oil. excavators.
LS Tractor tractors are modern, high operator comfort and the highest quality of workmanship.
35 years of experience in the production of agricultural tractors was enough for LS Tractor to win first place for several years in a row in a survey examining customer satisfaction with LS products organized in the USA and Canada. Perfect hydraulics, economical and efficient engine, built with particular attention to detail and precise assembly are some of the most important features that characterize all LS Tractor products. MT3 series tractors are intended for more advanced users, but the simplicity and intuitiveness of LS MT3 tractors allows for trouble-free operation for less advanced users.
