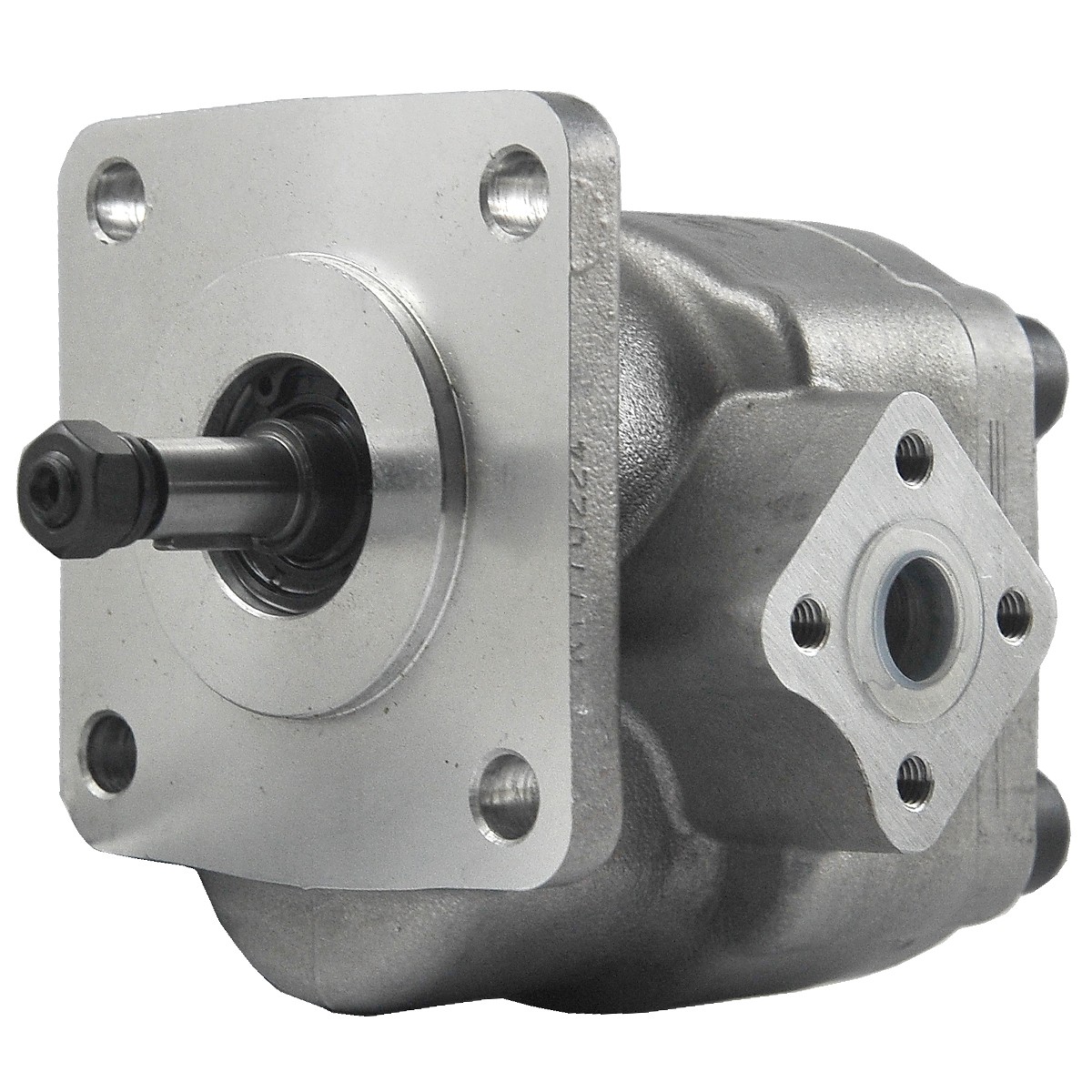

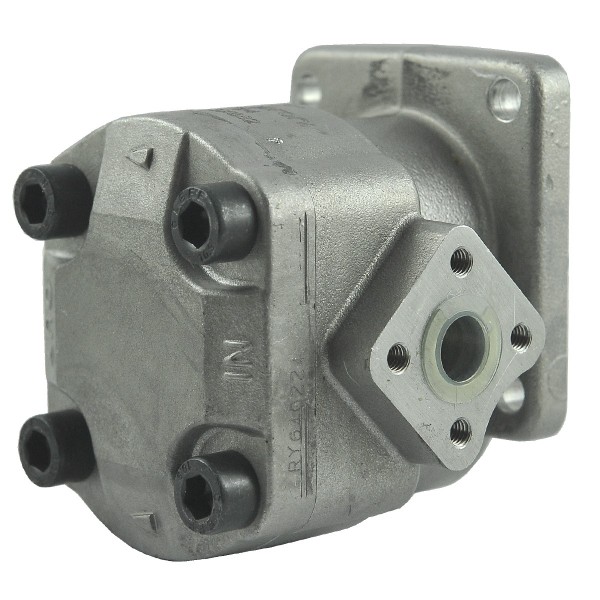

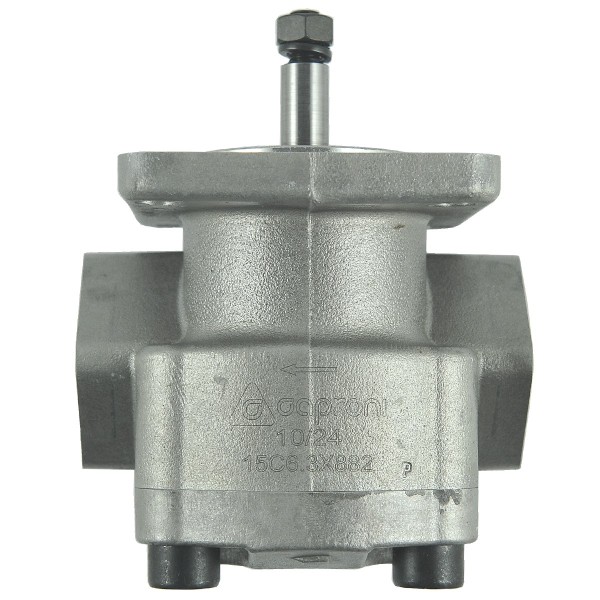

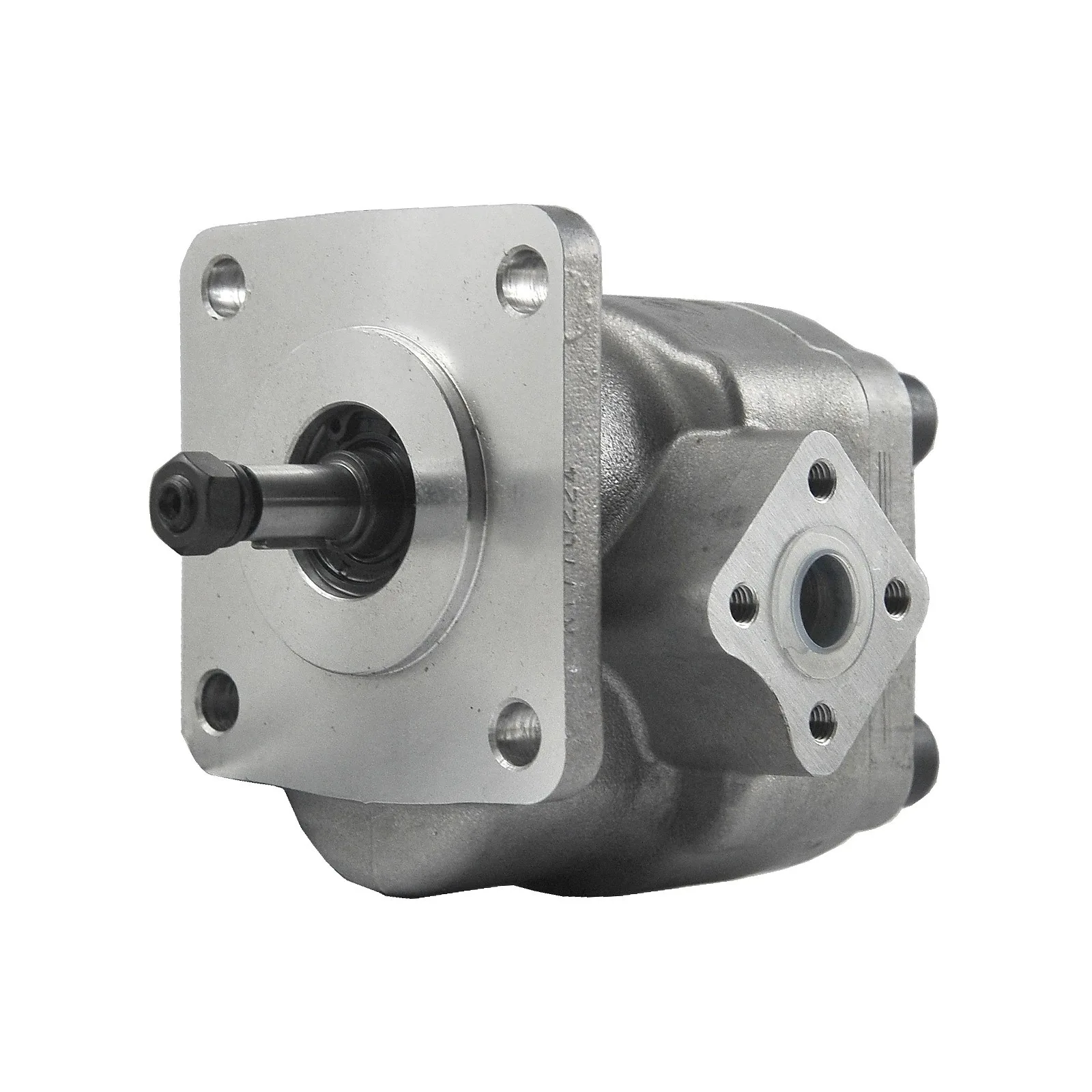

Hydraulic pump with dimensions 100 x 90 x 100 mm for Yanmar tractors of the Yanmar F13, Yanmar F14, Yanmar F15, Yanmar F16, Yanmar YM140, Yanmar YM147, Yanmar YM1401, Yanmar YM1510, Yanmar YM1601, Yanmar YM1610 series and others.
A hydraulic gear pump is responsible for the operation of the rear linkage, additional hydraulically operated implements, and in modern tractors, the hydraulic pump is responsible for power steering. Using a hydraulic pump , we can control additional functions of an agricultural trailer, flail mower, tiller, or TUR front loader. The hydraulic pump operates using the tractor's hydraulic system and is powered by the tractor's drive system (e.g., crankshaft). Hydraulic oil pumped to the pump is directed to the high-pressure control valve, where excess flow returns to the gearbox and then to the main control valve. Some hydraulic pumps may have additional sections that supply the steering system with increased pressure oil.
Technical data :
- length: 100 mm,

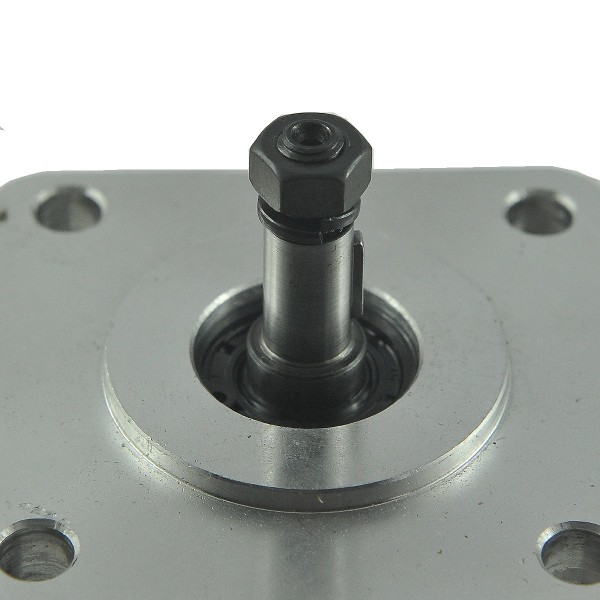

- shaft length: 32 mm,
- width: 90 mm,
- height: 100 mm,
- shaft diameter: 10.50 mm,
- thread: M8 x 1.25,
- flow: 6.3 l/min,
- diameter of mounting screw holes: 8.50 mm,
- mounting screw hole spacing: 63 mm (measured from each other), 90 mm (measured diagonally),
- diameter of hydraulic holes: 15 / 15 mm,
- mounting screw hole spacing: 36 mm (measured diagonally), 25 mm (measured from each other),
- pump rotation movement: RIGHT,
- original part numbers: 194440-41110,
- reference numbers: GP1-C-5C,
- part numbers: 15C6.3X882.
Tractor models :
- Yanmar F13,
- Yanmar F14,
- Yanmar F15,
- Yanmar F16,
- Yanmar YM140,
- Yanmar YM147,
- Yanmar YM1401,
- Yanmar YM1510,
- Yanmar YM1601,
- Yanmar YM1610.
The first signs of a hydraulic pump failure include the lift lowering too quickly or problems with trailer control. The most common cause is a control valve or pump seal failure, and in both cases, the pumps can be successfully rebuilt.
Magazine : K18:F15
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
