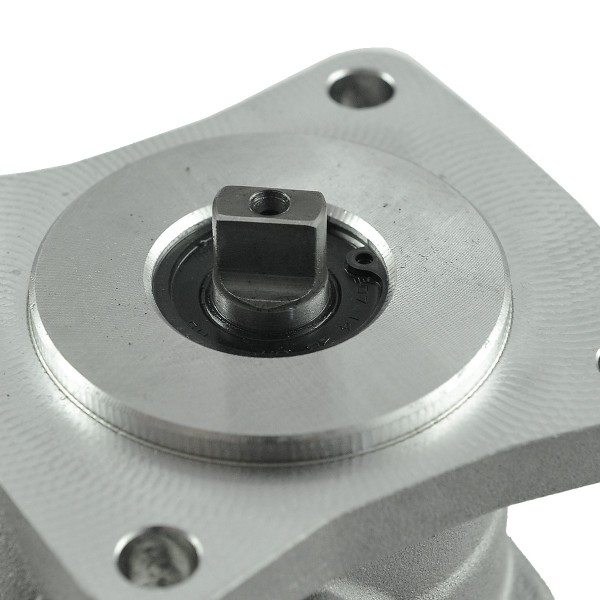

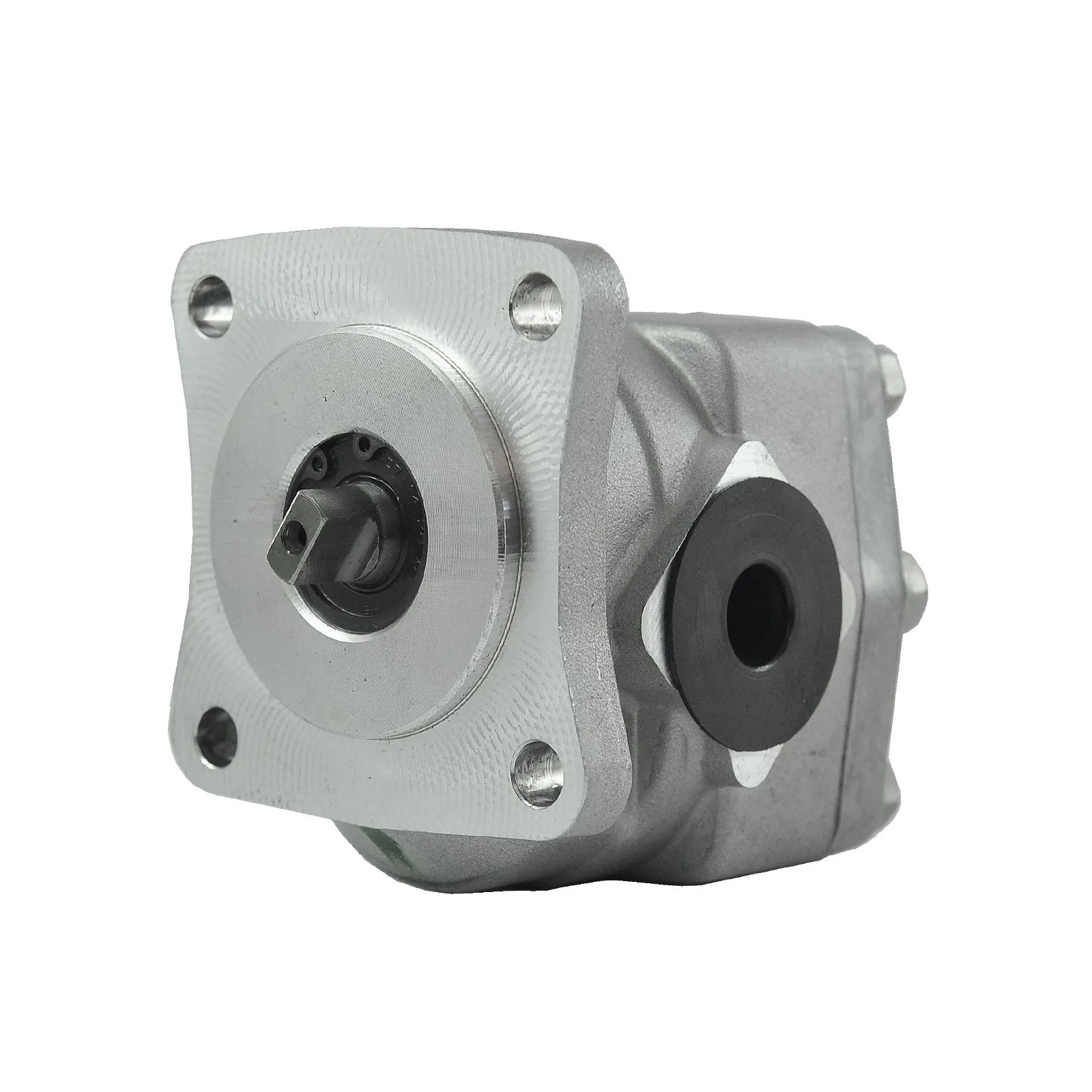

Hydraulic pump (shaft seal %C5% 9Bci-do-kubota/33353-pump-seal-14-x-28-x-670-mm-kubota-b1200b1400b1402b5000b5001b5100b6000b6001b6100b7000b7001-31381-76190.html">31381-76190 ) with dimensions 112 x 90 x 112mm for Kubota tractors of the Kubota B1-10, Kubota B1-14, Kubota B1-15, Kubota B1-16, Kubota B1-17, Kubota B1200, Kubota B1400, Kubota B1402, Kubota B1500 series, Kubota B1502, Kubota B1550, Kubota B1600, Kubota B1702, Kubota B1750, Kubota B5000, Kubota B5001, Kubota B5100, Kubota B6000, Kubota B6001, Kubota B6100, Kubota B7000, Kubota B7001, Kubota B7100, Kubota B7200, Kubota XB1 with Kubota D750, Kubota D850, Kubota D950, Kubota Z500 and other engines.
A hydraulic gear pump is responsible for the operation of the rear linkage, additional hydraulically operated implements, and in modern tractors, the hydraulic pump is responsible for power steering. Using a hydraulic pump , we can control additional functions of an agricultural trailer, flail mower, tiller, or TUR front loader. The hydraulic pump operates using the tractor's hydraulic system and is powered by the tractor's drive system (e.g., crankshaft). Hydraulic oil pumped to the pump is directed to the high-pressure control valve, where excess flow returns to the gearbox and then to the main control valve. Some hydraulic pumps may have additional sections that supply the steering system with increased pressure oil.
Technical data :
- dimensions: 112 x 90 x 112 mm,
- roller dimensions: 6 x 12.30 mm,
- diameter of mounting screw holes: 8.80 mm,
- mounting screw hole spacing: 63 mm (measured from each other), 90 mm (measured diagonally),

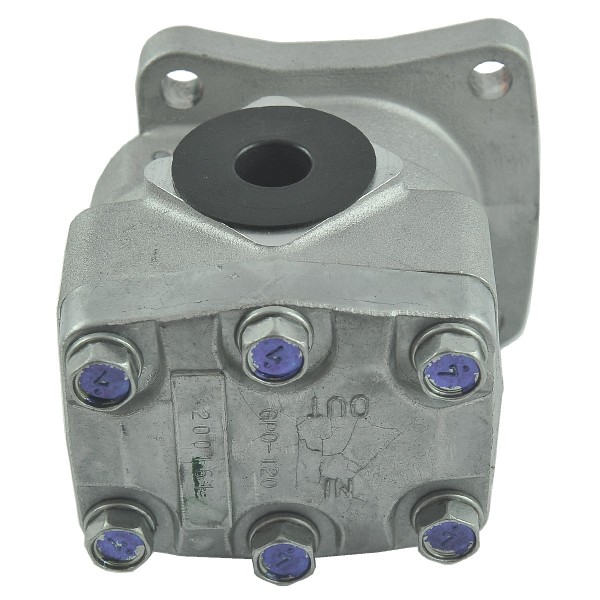

- diameter of hydraulic holes: M16 (OUT), M19 (IN,
- pump rotation: clockwise,
- weight: 1.65 kg,
- reference numbers: 67111-76100 ,

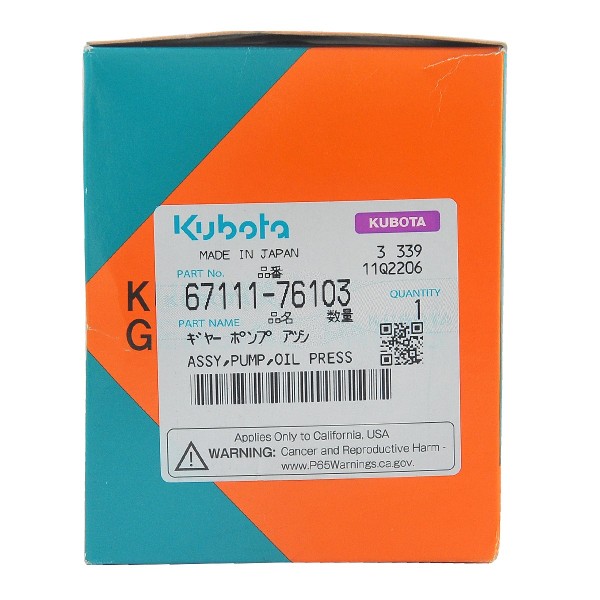

- part numbers: 67111-76103.
Tractor models :
- Kubota B1-10,
- Kubota B1-14,
- Kubota B1-15,
- Kubota B1-16,
- Kubota B1-17,
- Kubota B1200,
- Kubota B1400,
- Kubota B1402,
- Kubota B1500,
- Kubota B1502,
- Kubota B1550,
- Kubota B1600,
- Kubota B1702,
- Kubota B1750,
- Kubota B5000,
- Kubota B5001,
- Kubota B5100,
- Kubota B6000,
- Kubota B6001,
- Kubota B6100,
- Kubota B7000,
- Kubota B7001,
- Kubota B7100,
- Kubota B7200,
- Kubota XB-1.
Engine models :
- Kubota D750,
- Kubota D850,
- Kubota D950,
- Kubota Z500.
The first signs of hydraulic pump failure include the lift lowering too quickly or problems with trailer control. The most common cause is a control valve or pump seal failure, and in both cases, the pumps can be successfully rebuilt.
Magazine : K18:A07
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
