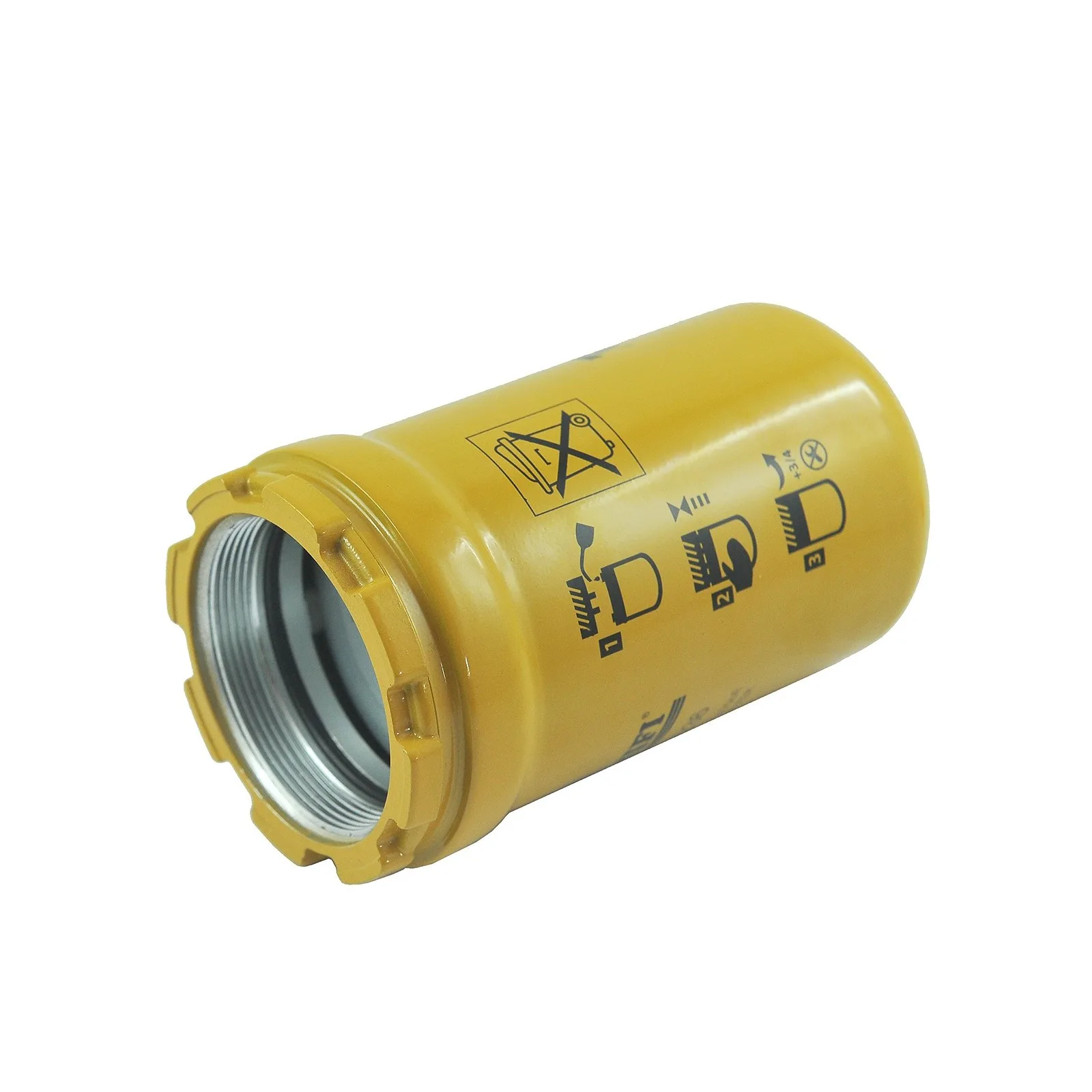

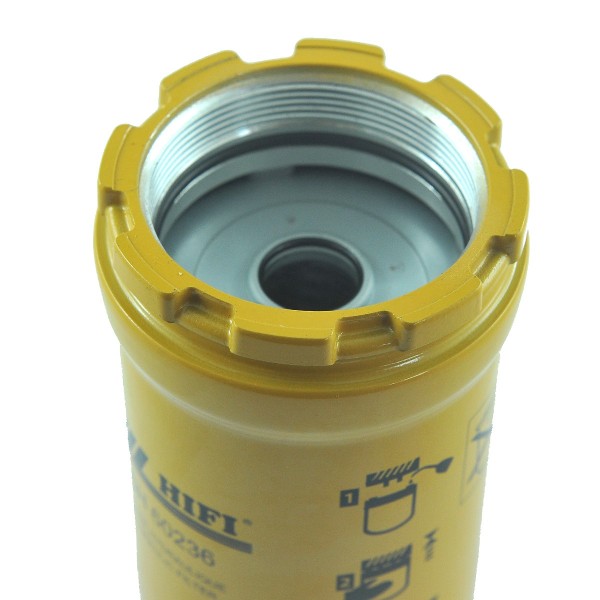

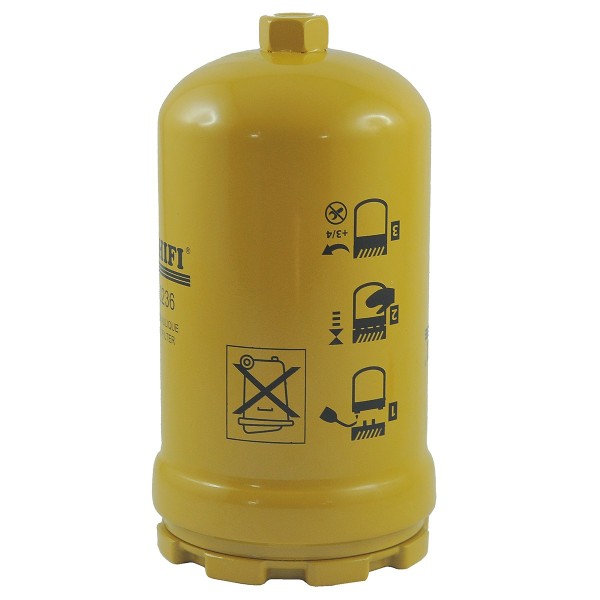

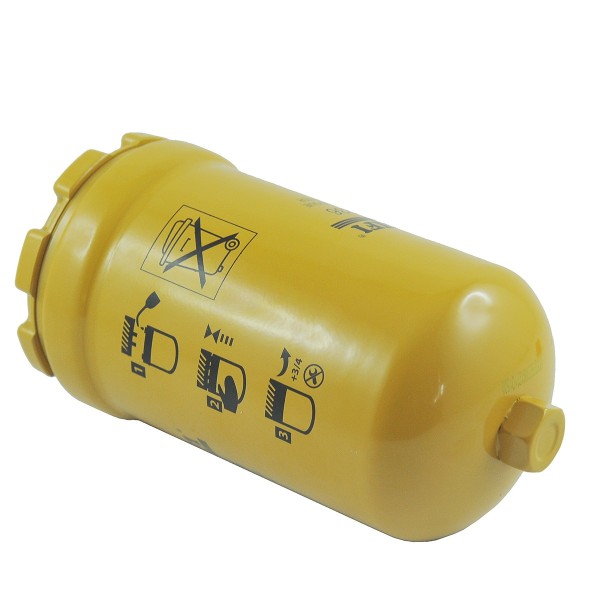

Hydraulic filter, 165 mm high, 87 mm in diameter with M68 x 2.00 thread for Hitachi machines, Hitachi ZX 670-5 series, Iseki tractors , Iseki TG5395, Iseki TG6400, Iseki TG6490, Iseki TG6670, Iseki TG6670AHL, Iseki TG6675AHL series and others.
The main task of the hydraulic filter is to clean the hydraulic oil, stop all impurities that enter the hydraulic system , or are created during the use of the tractor, e.g. solid particles (minerals), which are created during the operation of the machine. The hydraulic filter is replaced every time we change the hydraulic oil or when the vehicle is used frequently, in the case of mini tractors, this is approximately every 100 operating hours in the case of used tractors. The principles of replacing the hydraulic filter in new tractors are described in detail in the machine's operating instructions and usually this is after the first 50 operating hours (at least 3 cycles). The hydraulic filter is most often a metal filter with a thread and a seal , which is mounted near the tractor's box exactly in the flow path of the hydraulic system oil, most often from the bottom of the box or under the floor of our tractor.
Dimensions :
- height: 165 mm.
- diameter: 87 mm.
- thread: M68 x 2.00,
- weight: 0.960 kg.
- original part numbers: 3874-354-2110-0,
- comparison numbers: 4629717, 4630525,
- part numbers: SH60236.
Tractor models :
Iseki:
- Iseki TG5395,
- Iseki TG6400,
- Iseki TG6490,
- Iseki TG6670,
- Iseki TG6670AHL,
- Iseki TG6675AHL.
Machine models:
Hitachi :
A hydraulic filter is usually a metal filter with a thread and a gasket , which is mounted near the tractor's gearbox, exactly in the oil flow path of the hydraulic system , most often from the bottom of the gearbox or under the floor of our tractor.
Regular replacement of the hydraulic filter is a guarantee of failure-free operation of the machine and the certainty that there are no foreign bodies in the hydraulic system that can damage our tractor or negatively affect the operation of the machine by reducing its operating parameters.
Warehouse :
M01: F54
