Product description

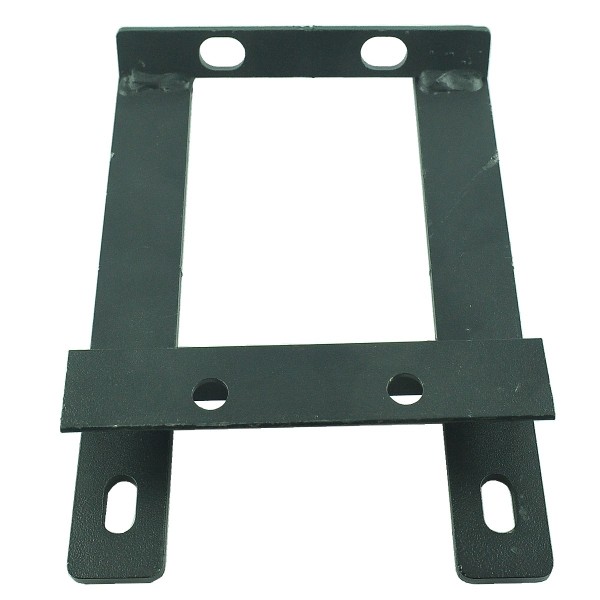

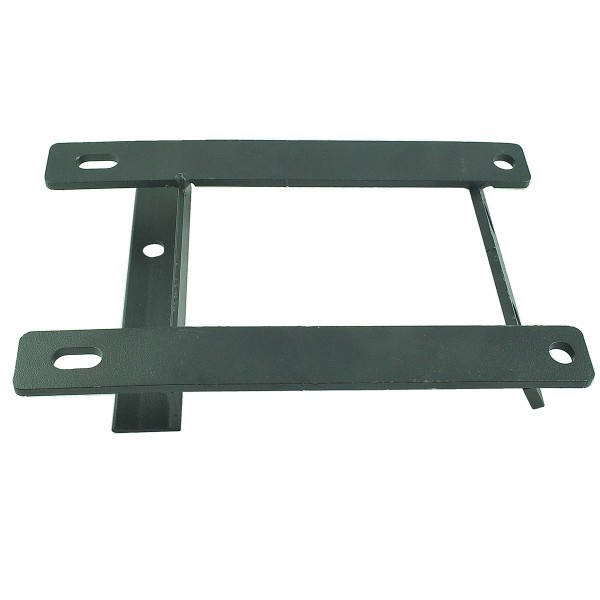

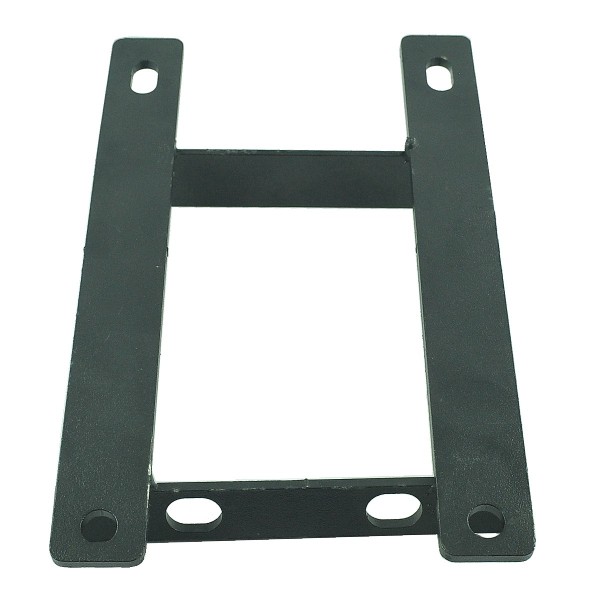

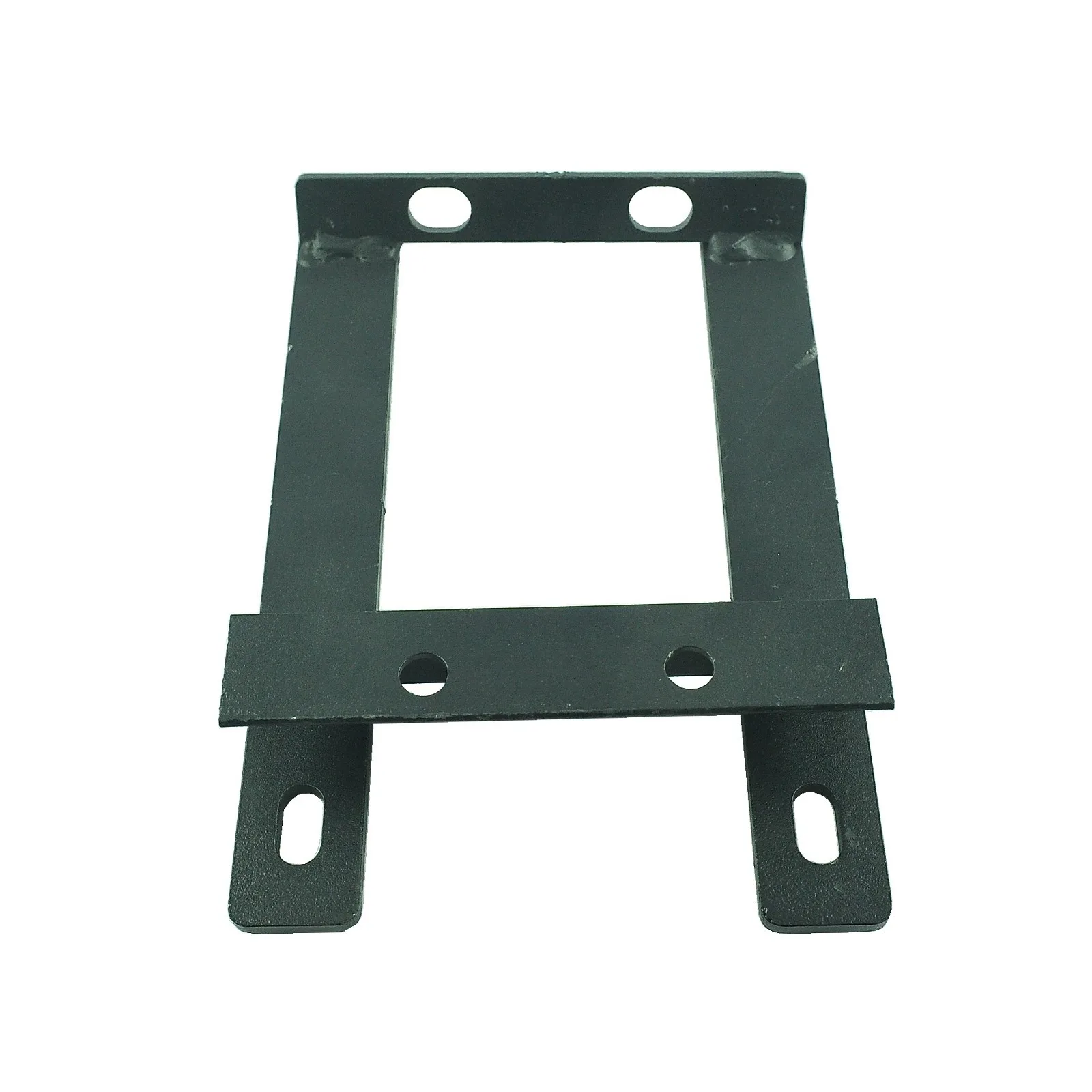

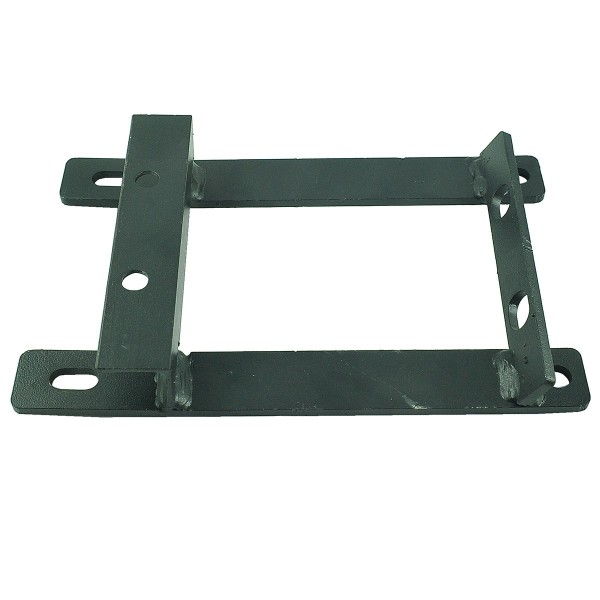

3-point linkage bracket, 240 mm long, 150 mm wide mounting for Iseki tractors, Iseki TX series, Kubota tractors, Kubota B1600 series, Kubota B1702 and others.
The TUZ suspension bracket is a high-quality suspension system element designed for agricultural machinery. Thanks to its solid construction and precise workmanship, the bracket ensures stability and reliability of work. This product is an ideal solution for farmers who need reliable and durable parts for their equipment.
Dimensions :
- length: 240mm,
- width: 150mm,
- thickness: 5mm,
- spacing of mounting screw holes: 120 x 205 mm,
- comparison numbers: %C5% 82ad-suspensions-tuz-kat-i-kubota-iseki-tx-5904506300105.html">262003 ,
- part numbers: 26003-3.
Tractor models :
Iseki :
- Iseki TX.
Kubota :
- Kubota B1600,
- Kubota B1702.
Warehouse :
K18:H51
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specifications
Podobne produkty
Reviews of Linkage..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
