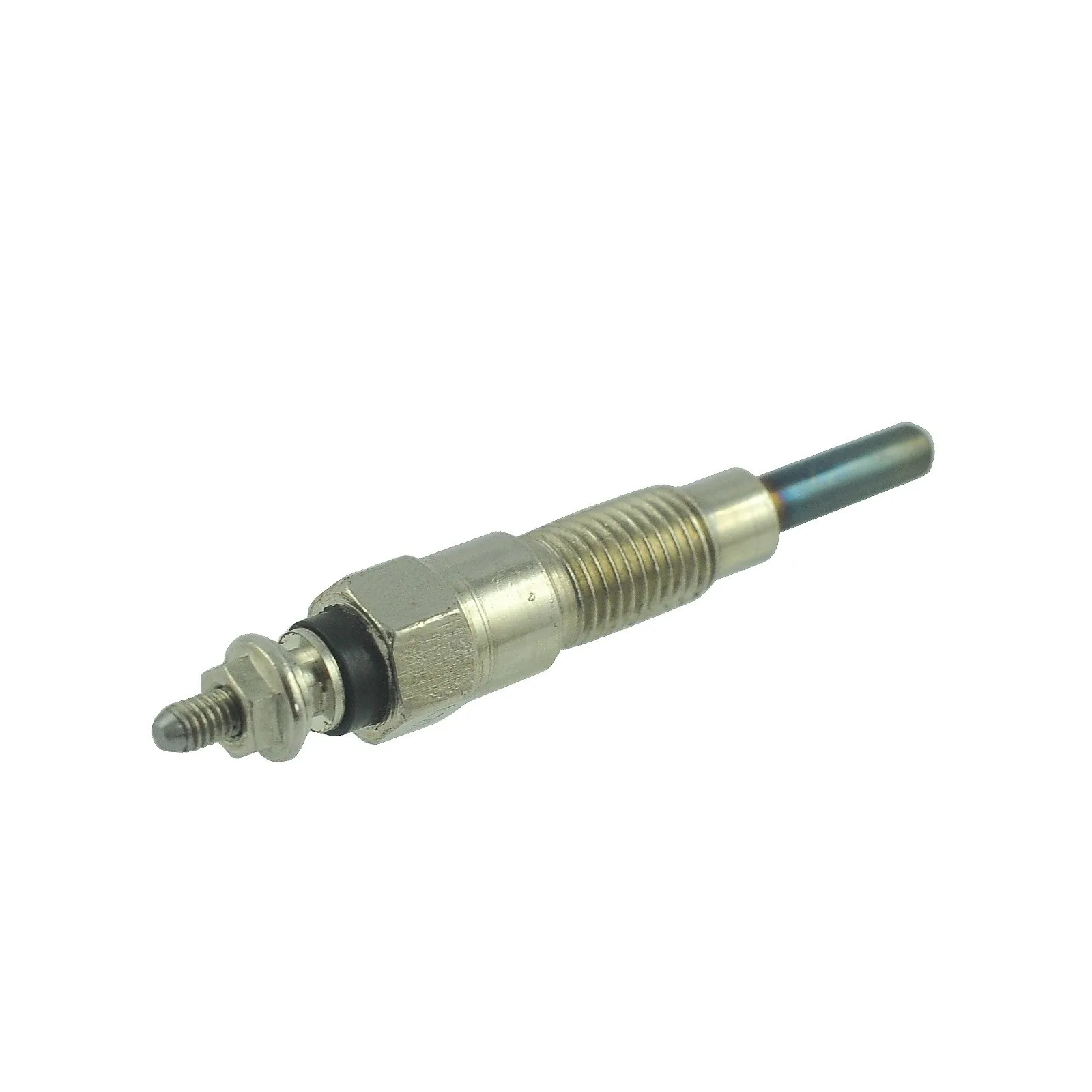

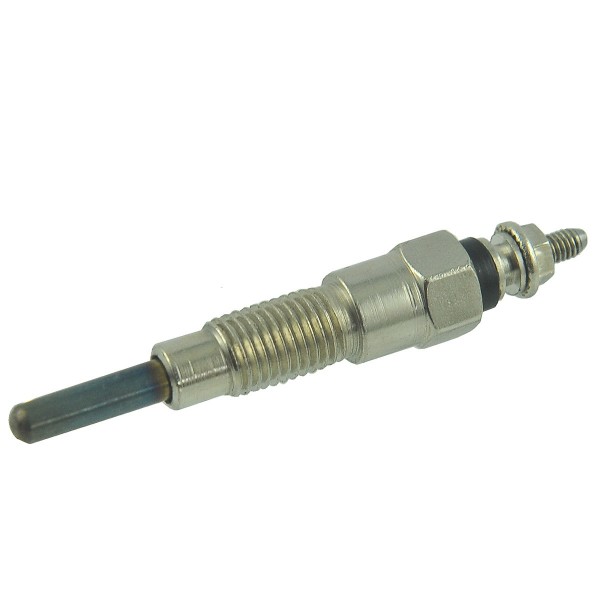

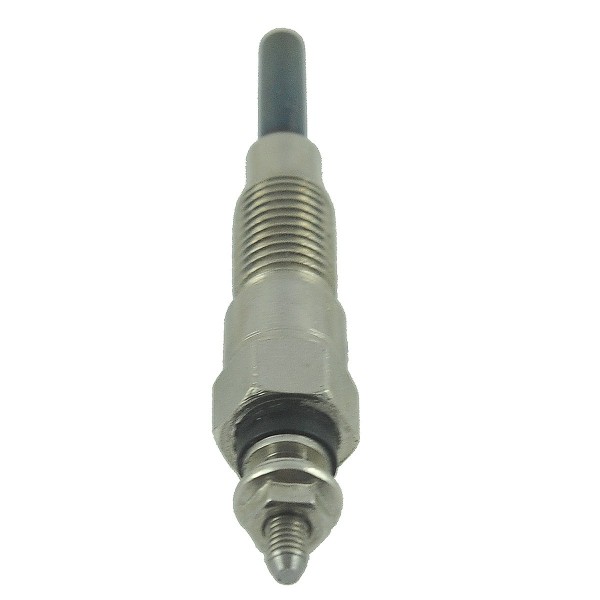

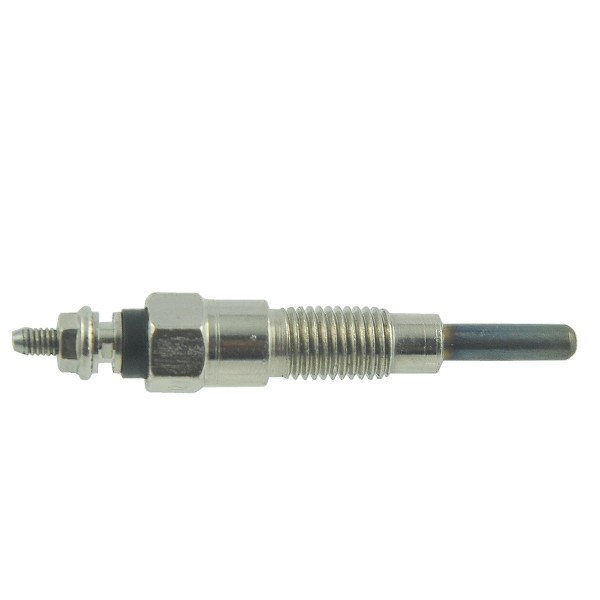

Glow plug / 10.5V / 75mm / Kubota D1100 / D1101 / D1102 / D1301 / D1302 / D1402 / D1403 / V1502 / V1702 / V1902

Glow plug with a total length of 75 mm and a filament length of 18.50 mm with a M10 x 1.25 thread for Kubota tractors of the Kubota B7000, Kubota B1902, Kubota GL19, Kubota GL21, Kubota GL200, Kubota GL201, Kubota L1-18, Kubota L1-185, Kubota L1-195, Kubota L1-215, Kubota L175, Kubota L185, Kubota L225, Kubota L245, Kubota L275, Kubota L285, Kubota L295, Kubota L305, Kubota L345, Kubota L1500, Kubota L1501, Kubota L1801, Kubota L1802, Kubota L2000, Kubota L2002, Kubota L2202, Kubota L2350, Kubota L2402, Kubota L2601, Kubota L2602, Kubota L3202 with engines Kubota D1100, Kubota D1101, Kubota D1102, Kubota D1301, Kubota D1302, Kubota D1402, Kubota D1403, Kubota V1502, Kubota V1702, Kubota V1902, Kubota Z650, Kubota Z750, Kubota Z751 and others.

The glow plug is mounted in the engine block in such a way that the heating tip is located in the intake manifold chamber. The rapid increase in the temperature of the glow plug tip is caused by the current that flows through the spark plugs when the ignition key is turned to the glow plug heating position. The rapid increase in the temperature of the spark plug tip heats the air, and the heated air sucked further into the engine facilitates ignition and starting the engine.

Dimensions ;

• total length: 75 mm,
• filament length: 18.50 mm.
• thread: M10 x 1.25
• thread length: 15 mm,
• key size: 12,
• reference numbers: S.70509 , 15521-65512, 15221-65513 ,
• part numbers: 15221-65510.

Engine models :

• Kubota D1100,
• Kubota D1101,
• Kubota D1102,
• Kubota D1301,
• Kubota D1302,
• Kubota D1402,
• Kubota D1403,
• Kubota V1502,
• Kubota V1702,
• Kubota V1902,
• Kubota Z650,
• Kubota Z750,
• Kubota Z751.

Tractor models :

• Kubota B7000,
• Kubota B1902,
• Kubota GL19,
• Kubota GL21,
• Kubota GL200,
• Kubota GL201,
• Kubota L1-18,
• Kubota L1-185,
• Kubota L1-195,
• Kubota L1-215,
• Kubota L175,
• Kubota L185,
• Kubota L225,
• Kubota L245,
• Kubota L275,
• Kubota L285,
• Kubota L295,
• Kubota L305,
• Kubota L345,
• Kubota L1500,
• Kubota L1501,
• Kubota L1801,
• Kubota L1802,
• Kubota L2000,
• Kubota L2002,
• Kubota L2202,
• Kubota L2350,
• Kubota L2402,
• Kubota L2601,
• Kubota L2602,
• Kubota L3202.

A faulty glow plug is a common cause that prevents the engine from starting and the machine from grounding. The first signs of faulty glow plugs are increased smoke coming from the exhaust system when starting the engine, excessive vibration shortly after starting the engine or excessively loud engine operation.

Magazine : M01:C63

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
