Product description

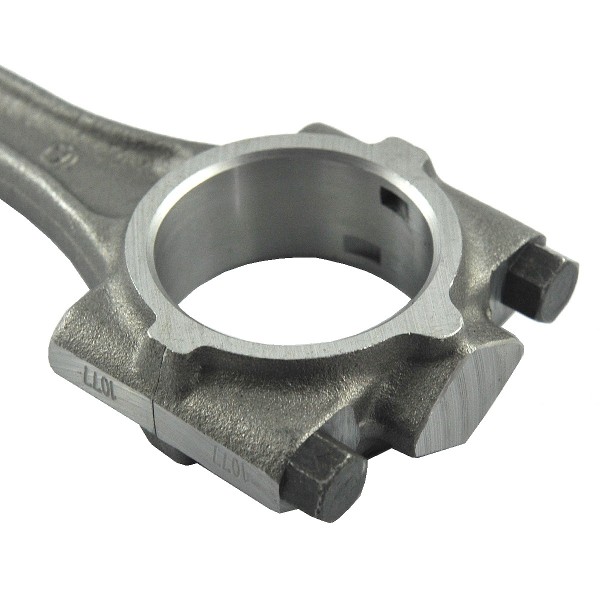

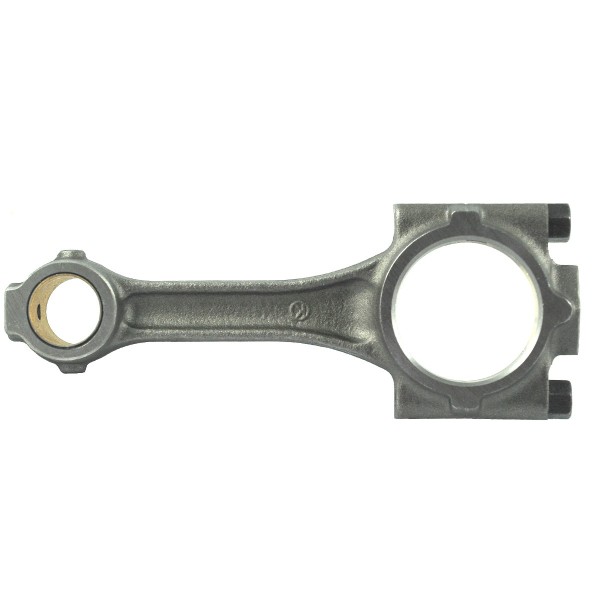

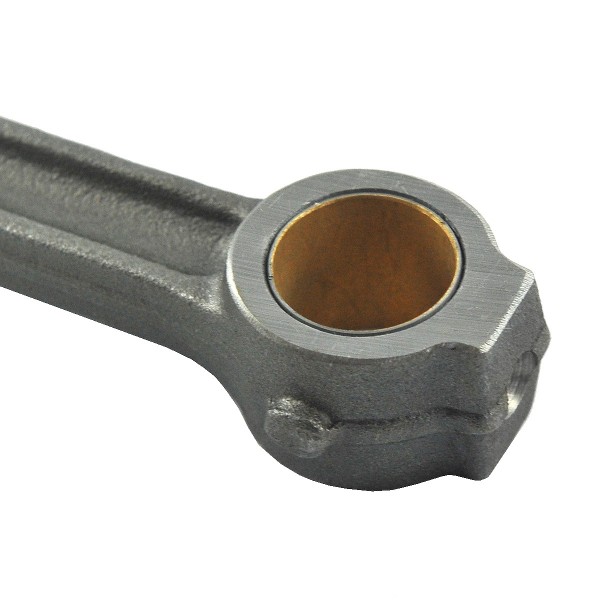

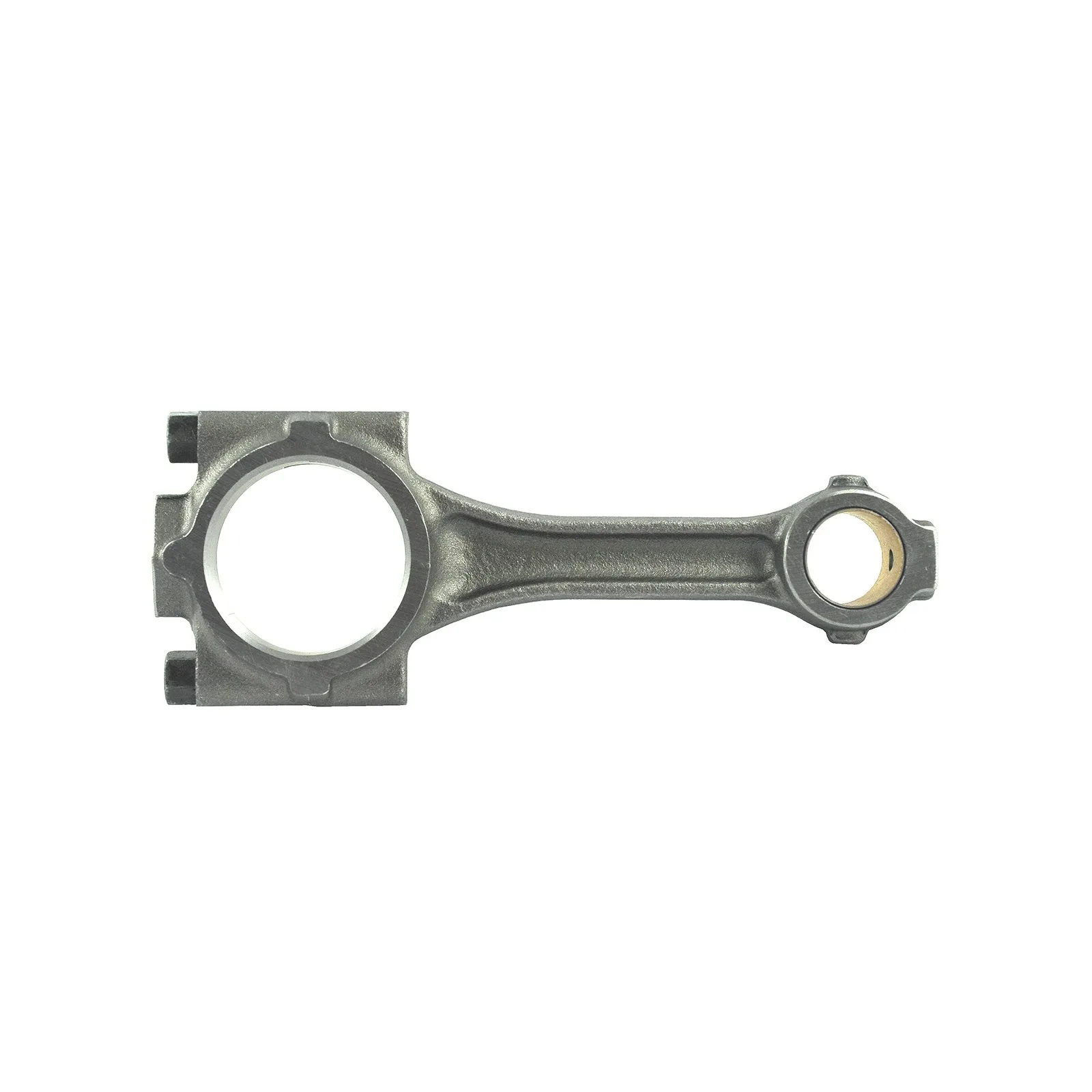

Connecting rod with a total length of 193 mm for Kubota tractors with Kubota D1101, Kubota D1102, Kubota D1301, Kubota Z751, Kubota Z851 engines , Kubota L2201 series and others.
A connecting rod is a moving part of the engine responsible for the movement of the pistons. A connecting rod connects the moving elements of the engine, i.e. the crankshaft and the pistons. A connecting rod consists of three parts: the head (the place of connection with the piston), the foot (mounting on the crankshaft), and the shaft.
Dimensions :
- length: 193 mm,
- width: 42 / 72 mm,
- height: 25.50 mm,
- hole diameter: 22.90 / 46.90 mm,
- original part numbers: 15471-22012,
- comparison numbers: 6-01-140-02,
- part numbers: L2201-K.
Tractor models :
Kubota :
- Kubota L2201.
Engine models :
Kubota :
- Kubota D1101,
- Kubota D1102,
- Kubota D1301,
- Kubota Z751,
- Kubota Z851.
Magazine : K18:F31:S04
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specifications
Podobne produkty
Reviews of Connecting..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
