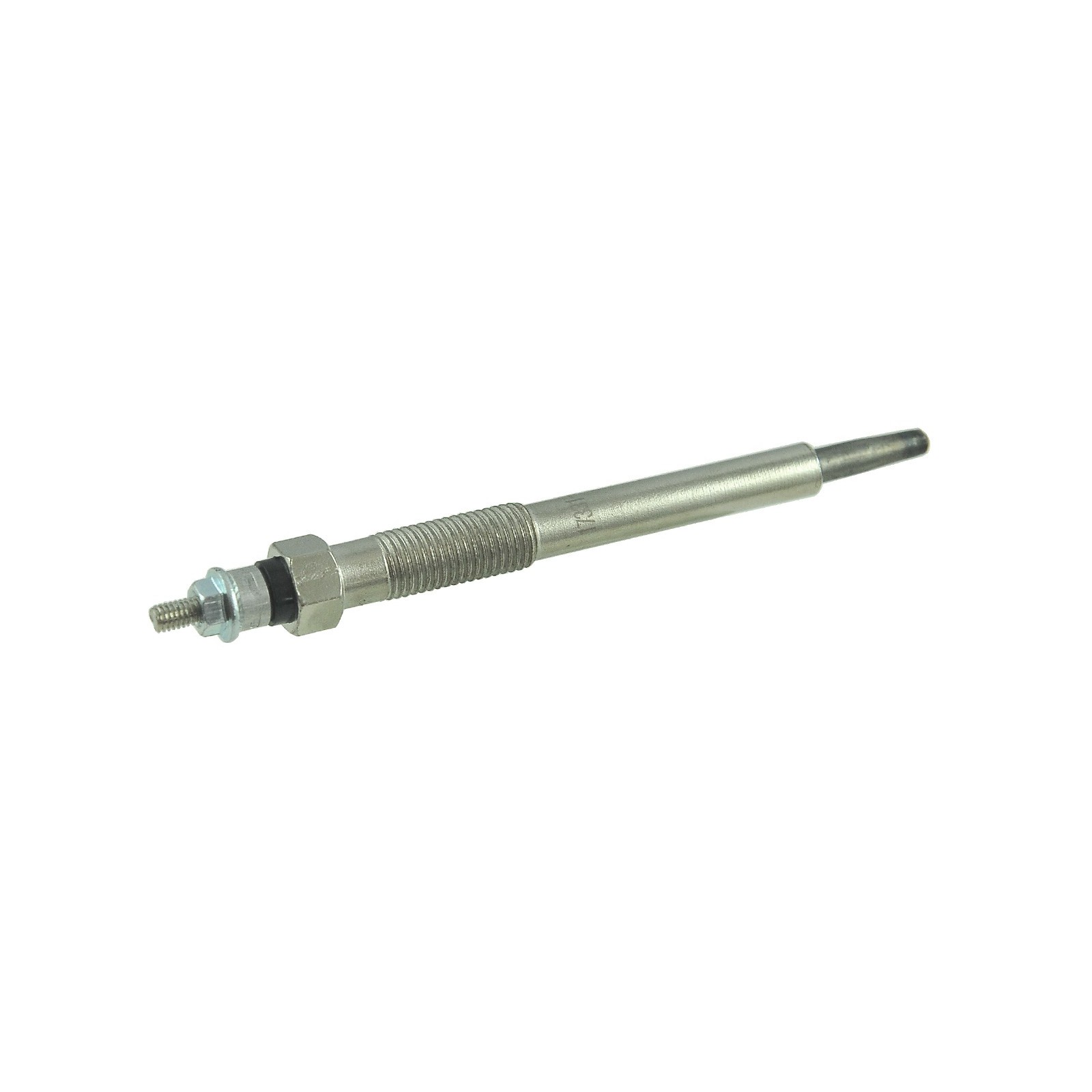

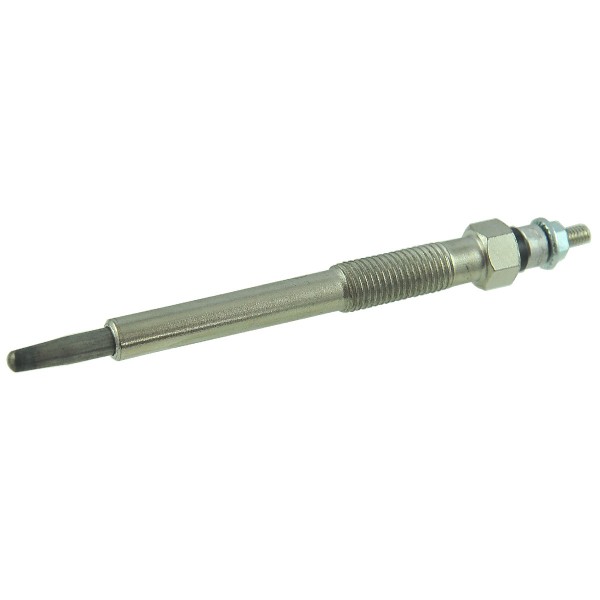

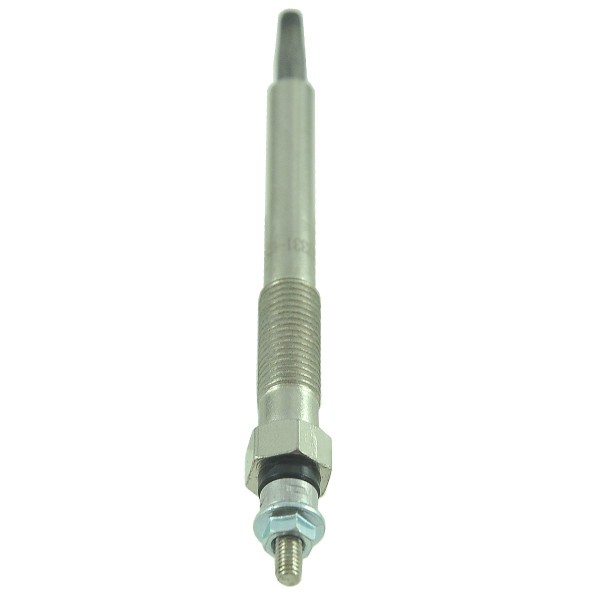

Glow plug / 10.5V / M10 / 121mm / Kubota V1702 / V1902 / V2003 / V2203 / V2403

Glow plug with a total length of 121 mm and a filament length of 19.50 mm with M10 x 1.25 thread for Kubota tractors of the Kubota L2250, Kubota L2550, Kubota L2650, Kubota L2850, Kubota L2950, Kubota L3250, Kubota L3350, Kubota L3450, Kubota L3650, Kubota L3750, Kubota L4150, Kubota L4350, Kubota L4850, Kubota L5450, Kubota M4030, Kubota M5030 series with Kubota V1702, Kubota V1902, Kubota V2003, Kubota V2203, Kubota V2403 and other engines.

The glow plug is mounted in the engine block in such a way that the heating tip is located in the intake manifold chamber. The rapid increase in the temperature of the glow plug tip is caused by the current that flows through the spark plugs when the ignition key is turned to the glow plug heating position. The rapid increase in the temperature of the spark plug tip heats the air, and the heated air sucked further into the engine facilitates ignition and starting the engine.

Dimensions ;

• total length: 121 mm,
• filament length: 19.50 mm.
• thread 1: M10 x 1.25,
• thread 2: M4 x 0.75,
• thread length: 10 / 23 mm,
• key size: 12,
• comparison numbers: 5-26-107-16 ,
• part numbers: 17331-65510.

Engine models :

Kubota :

• Kubota V1702,
• Kubota V1902,
• Kubota V2003,
• Kubota V2203,
• Kubota V2403.

Tractor models :

Kubota :

• Kubota L2250,
• Kubota L2550,
• Kubota L2650,
• Kubota L2850,
• Kubota L2950,
• Kubota L3250,
• Kubota L3350,
• Kubota L3450,
• Kubota L3650,
• Kubota L3750,
• Kubota L4150,
• Kubota L4350,
• Kubota L4850,
• Kubota L5450,
• Kubota M4030,
• Kubota M5030.

A faulty glow plug is a common cause that prevents the engine from starting and the machine from grounding. The first signs of faulty glow plugs are increased smoke coming from the exhaust system when starting the engine, excessive vibration shortly after starting the engine or excessively loud engine operation.

Magazine : M01:C64

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
