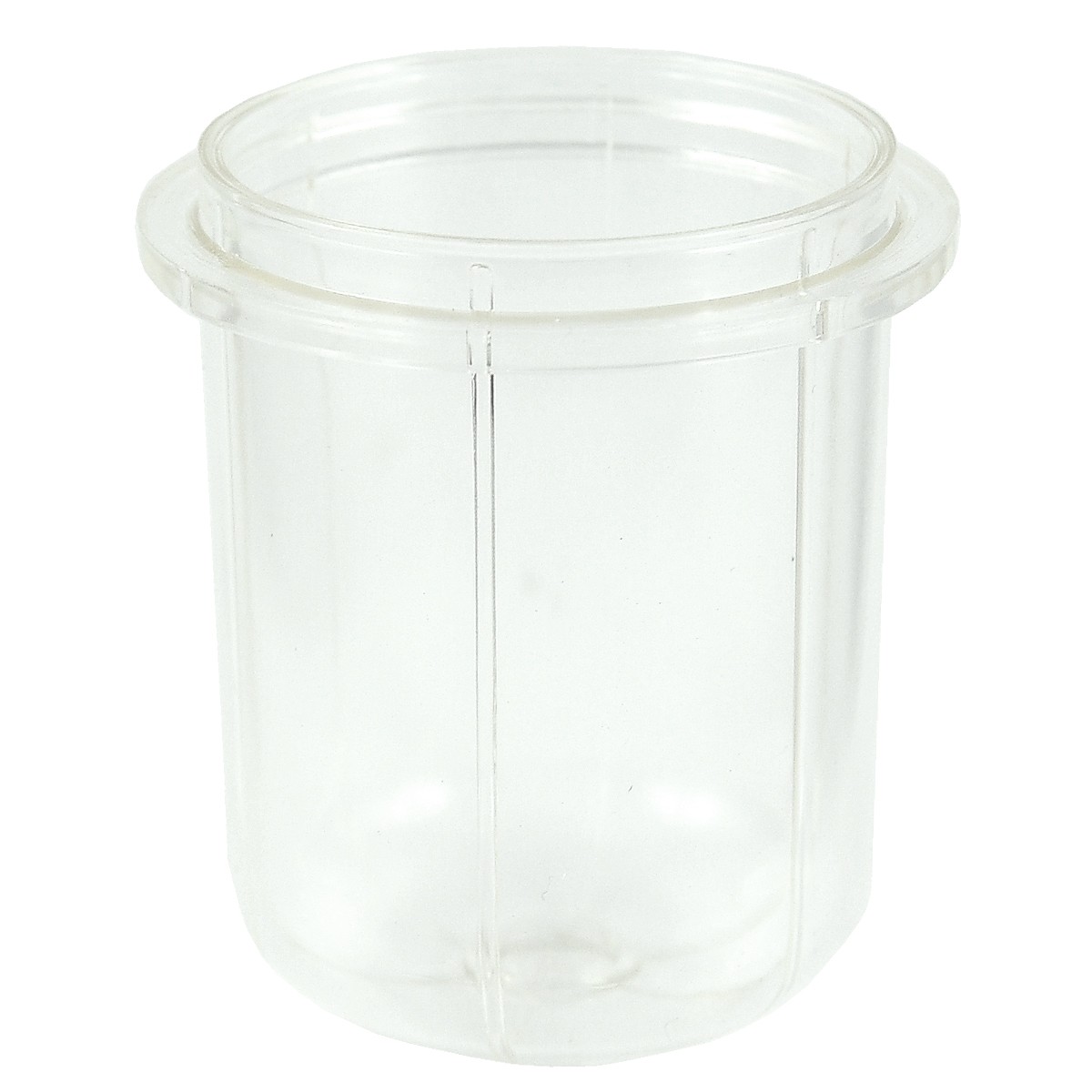

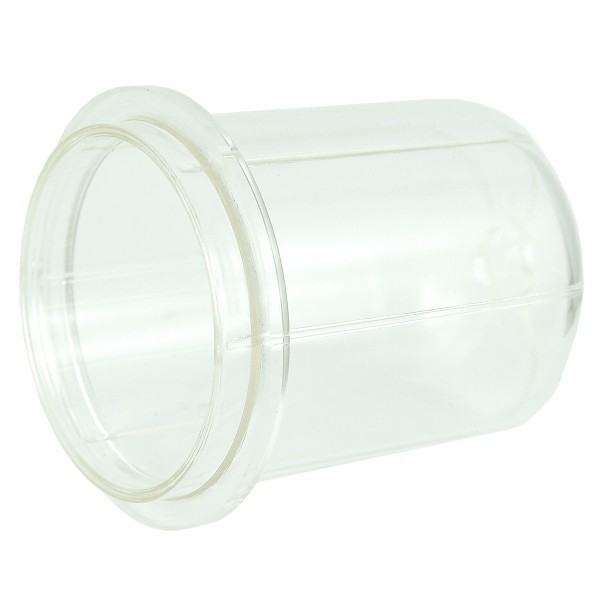

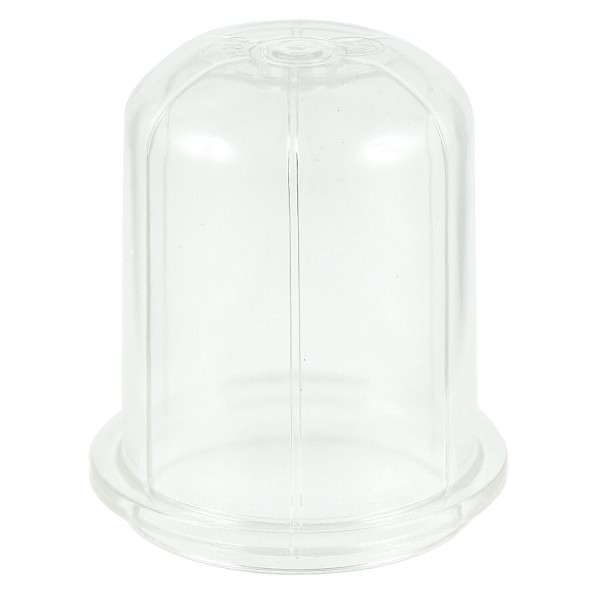

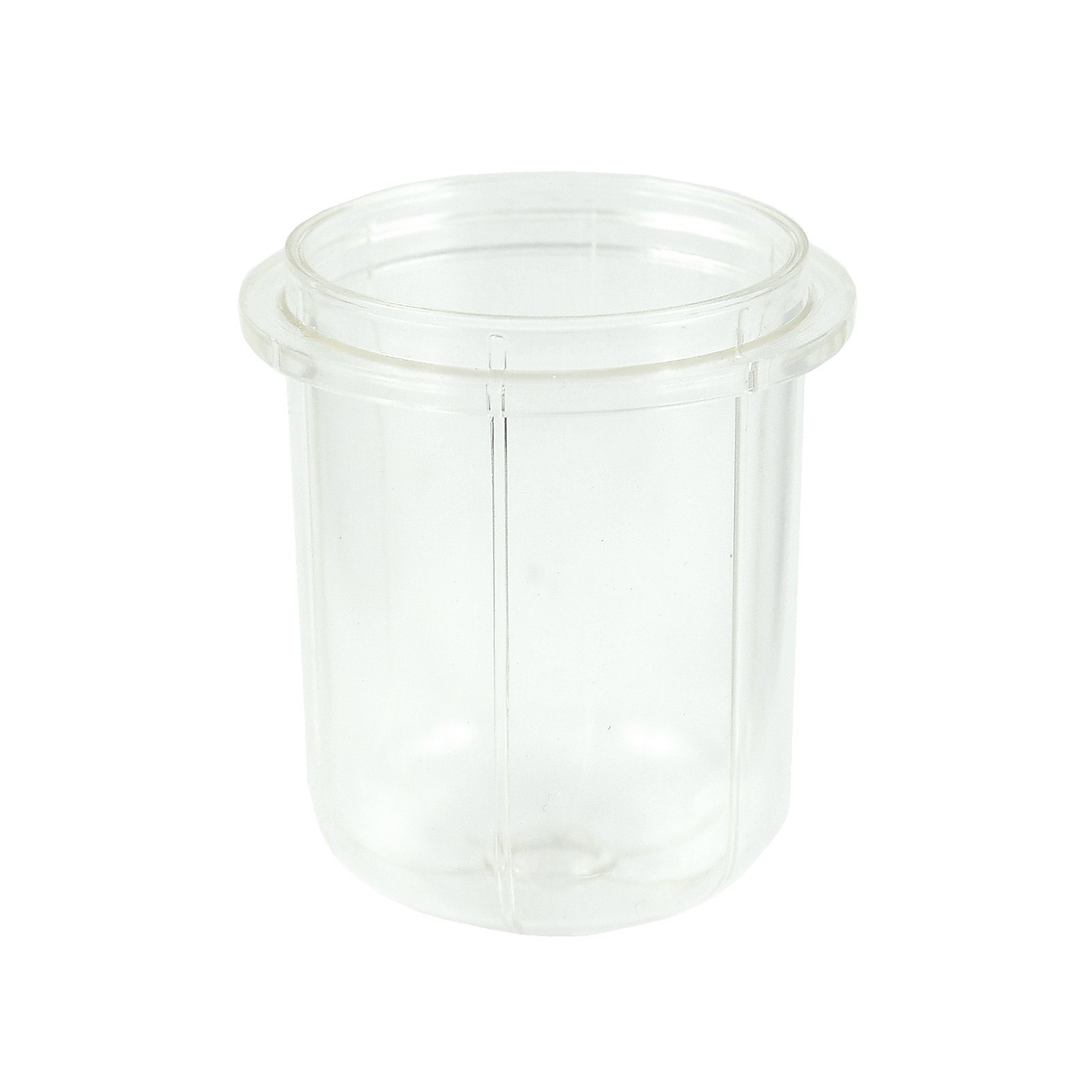

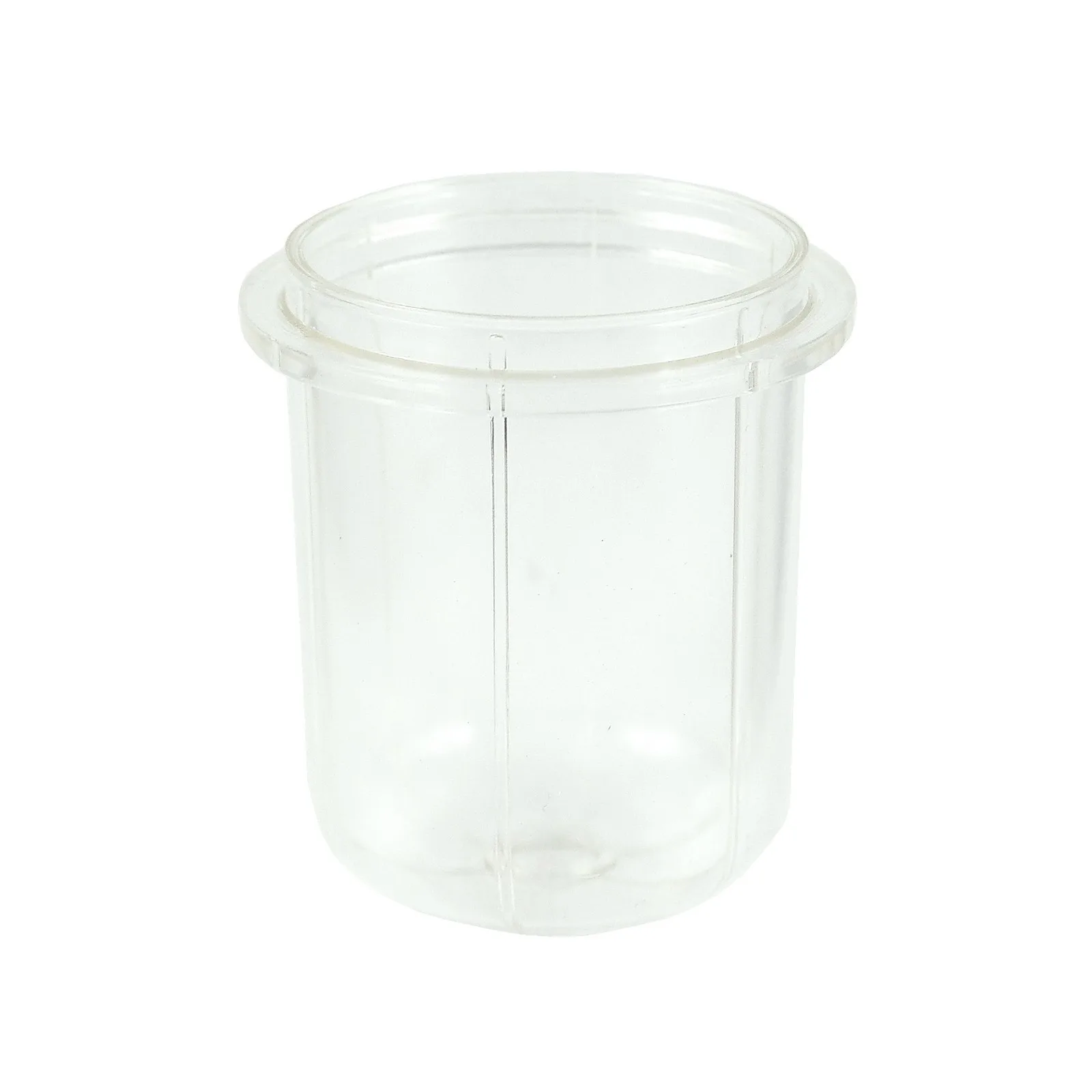

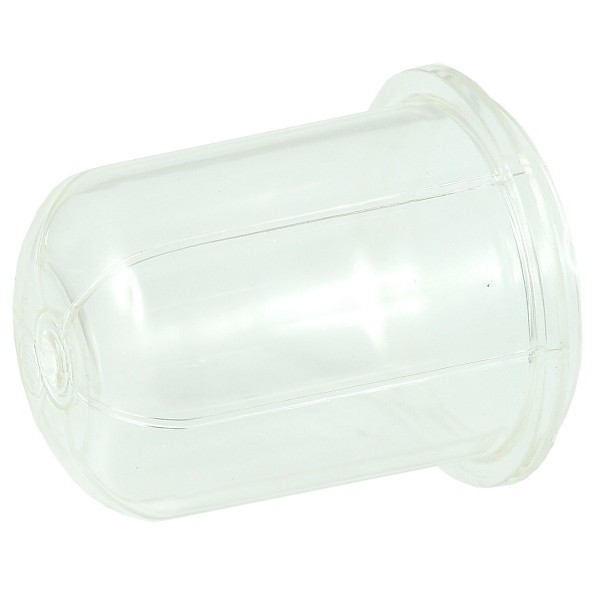

Filter housing / Ø 63.30 x 85 mm / Kubota GL21 / L1500 / L2900 / L3240 / L3408 / L3600 / L4200 / L5040 / M4700 / M5400

Sediment bowl, filter housing (o-ring %C3% B8-6350-x-300-mm-kubota-gl21-l1500-l2900-l3240-l3408-l3600-l4200-l5040-m4700-m5400-5-27-101-92.html">5-27-101-92 , RC101-70320, 04811-50650, complete filter 6-01-105-01 , filter 5-01-124-03 , 1513-102-3290-0 , 1A001-43160, 1A001-43160, 15521-43160) with mounting diameter 63.30 mm and a total height of 85 mm for Kubota tractors of the following series : Kubota GL19, Kubota GL23, Kubota GL21, Kubota GL25, Kubota GL26, Kubota GL27, Kubota GL29 Kubota L1500, Kubota L2900, Kubota L3240, Kubota L3408, Kubota L3600, Kubota L4200, Kubota L5040, Kubota M4700, Kubota M5400 and others

The fuel filter housing is an element that protects the fuel filter from mechanical damage and ensures its stable attachment in the fuel system. It is usually a metal or plastic housing that is mounted on the perimeter of the fuel filter and protects it from contamination and external damage. The fuel filter housing can also be equipped with a vent valve or air vent that allows air to be removed from the fuel system. This is an important element that ensures the proper operation of the tractor's fuel system and protects the engine from damage caused by fuel contamination.

Dimensions :

• outer diameter: 63.30 mm,
• inner diameter: 58 mm,
• collar diameter: 75 mm,
• height: 85 mm,
• original part numbers: 15521-43100, 15521-43130,
• comparison numbers: ,
• part numbers: 5-01-204-03.

Tractor models :

Kubota :

• Kubota GL19,
• Kubota GL23,
• Kubota GL21,
• Kubota GL25,
• Kubota GL26,
• Kubota GL27,
• Kubota GL29,
• Kubota L1500,
• Kubota L2900,
• Kubota L3240,
• Kubota L3408,
• Kubota L3600,
• Kubota L4200,
• Kubota L5040,
• Kubota M4700,
• Kubota M5400.

Warehouse:
K18:A21

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
