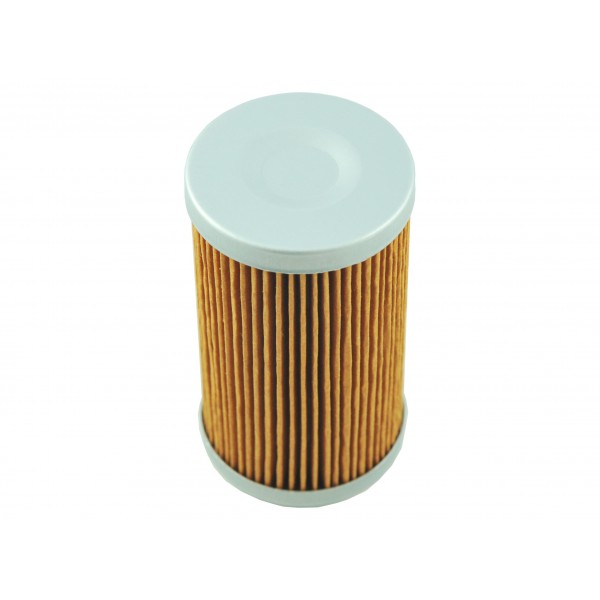

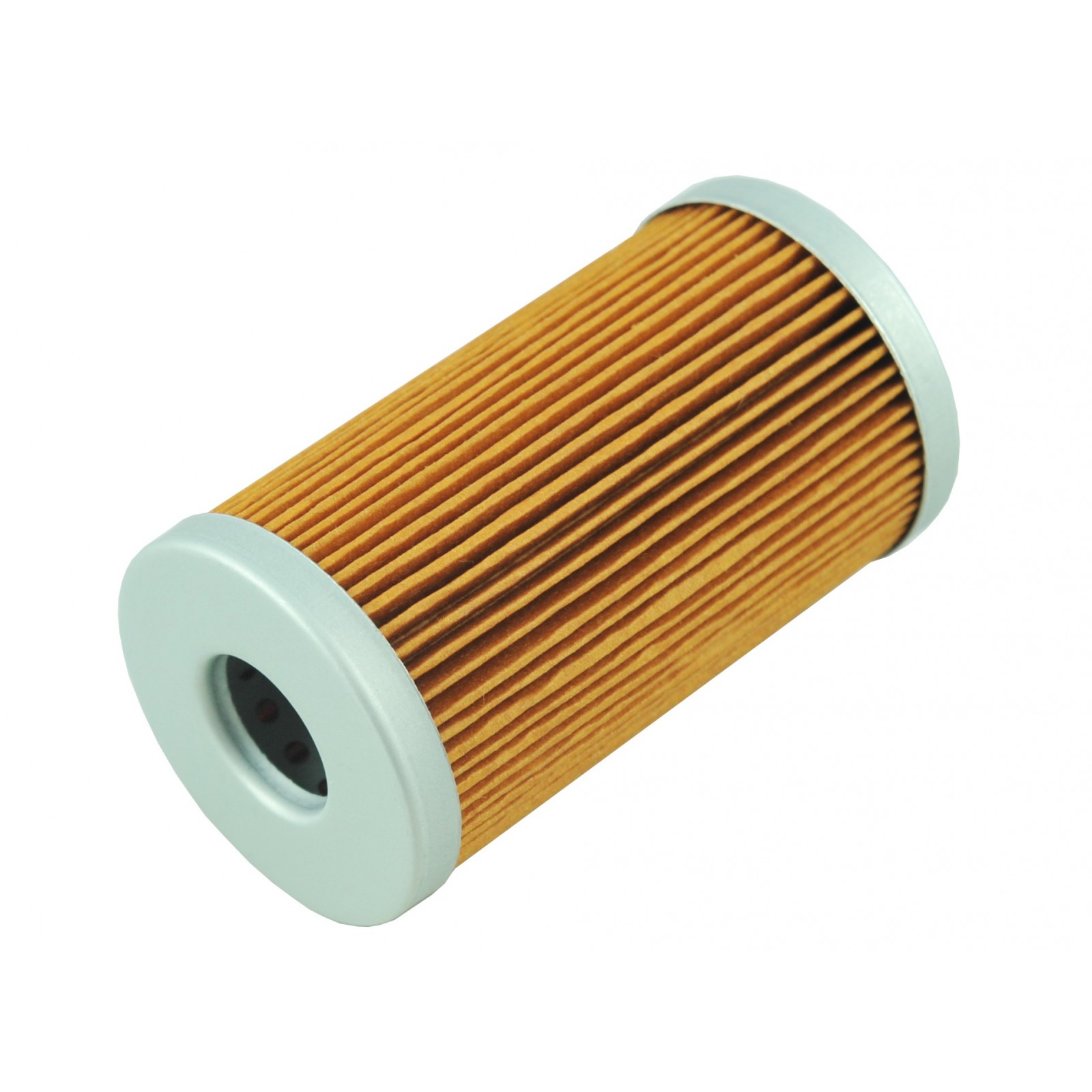

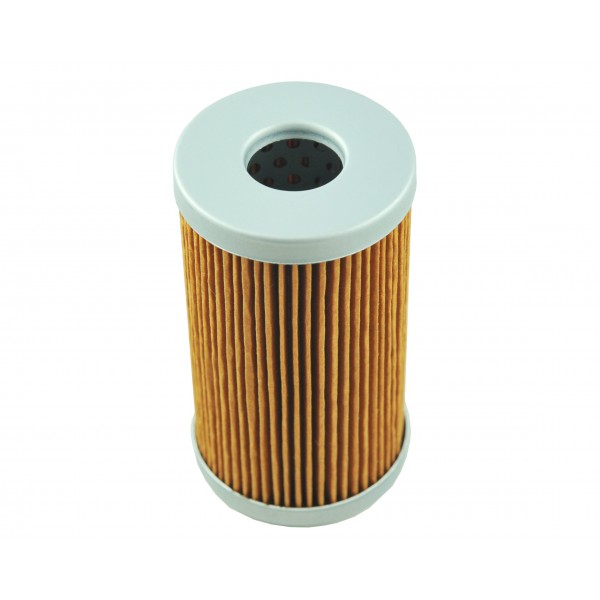

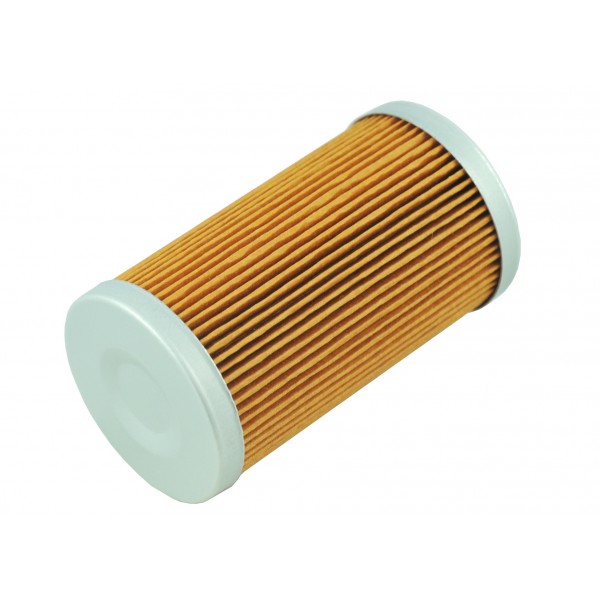

Iseki fuel filter 50 x 90 mm Iseki Geas / TA / TK / TA247 / TA530 / TD4410 / TL4201 / TL4370

Fuel filter , paper element without a seal (O-ring) inside, dimensions 50 x 90 mm for Japanese mini tractors and Japanese tractors of the Iseki brand , Geas, TA, TK, TL, TD series and Yanmar AF and FX series, Kubota L, GL series and others.

The fuel filter is one of the most important elements of the fuel system, which directly affects the correct operation of the tractor. The main task of the filter is to clean the fuel from mechanical impurities and micro organic impurities. Fuel filters are divided into two main groups due to their application, and so for an engine with petrol fuel we will use a different type of filter than for an engine powered by diesel fuel. Regardless of the type of fuel, the filtering material is various types of paper based on polyester or cellulose fibers with the addition of synthetic fibers.

Dimensions :

• height: 90 mm,
• diameter: 50 mm,
• hole diameter: 20 mm,
• reference numbers: 1513-102-32900, SK3694, SK 3694.

Tractor models :

Kubota :

• Kubota GL21,
• Kubota GL25,
• Kubota L-205.

Iseki :

• Iseki Geas 21,
• Iseki Geas 23,
• Iseki Geas 25s
• Iseki Geas 27,
• Iseki Geas NTA40,
• iseki TA247,
• Iseki TA250,
• Iseki TA530,
• Iseki TD4410,
• Iseki TG33,
• Iseki TL4201,
• Iseki TL4370,
• Iseki TK29.

Yanmar :

• Yanmar AF22,
• Yanmar AF24,
• Yanmar AF26,
• Yanmar AF30,
• Yanmar AF33,
• Yanmar FX20D,
• Yanmar FX26D,
• Yanmar FX285.

Shubaura :

• Shibaura SD1643.

A dirty fuel filter restricts the free flow of fuel to the engine and can cause problems when starting the engine or cause the engine to misfire. Sometimes a clogged fuel filter causes a loss of rated engine power or affects higher fuel consumption.

Reference number: SK 3694

Warehouse :
M01: F45
