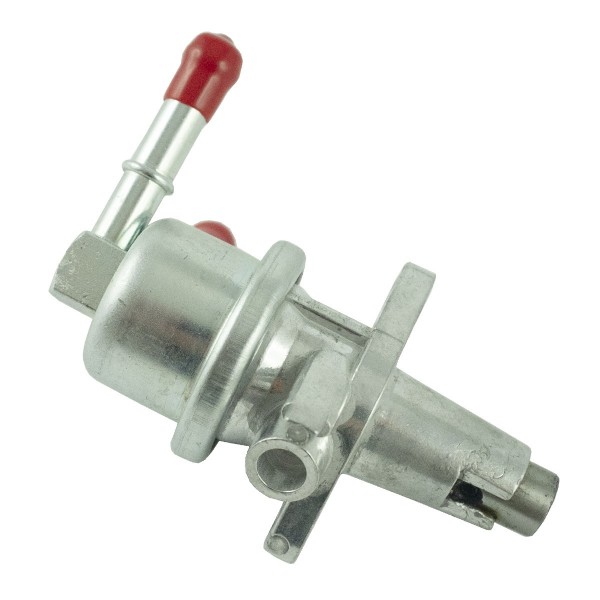

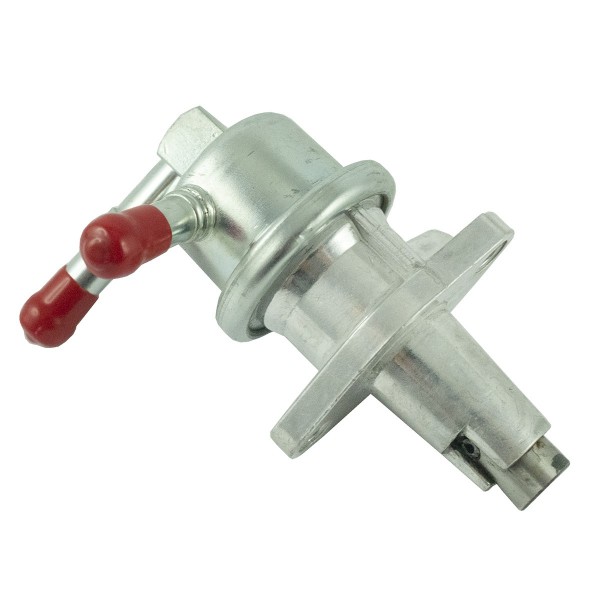

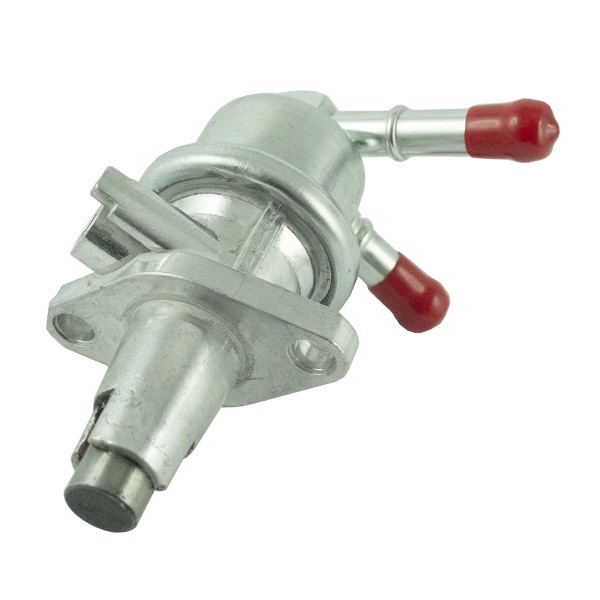

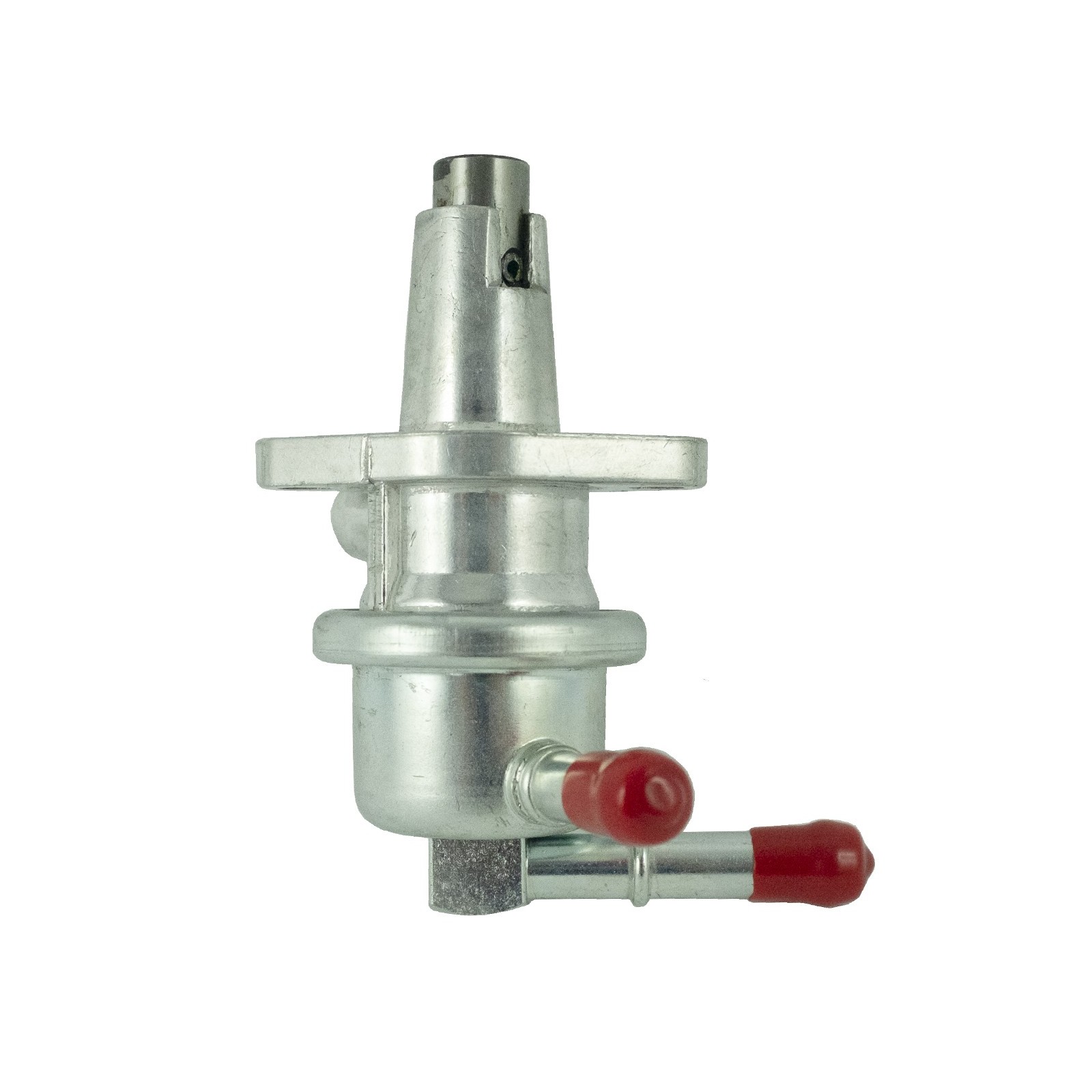

Fuel pump / 92.50 mm / Kubota L3408 / 6-15-110-01 / 17121-52030

Universal in-tank, submersible fuel pump for Japanese Kubota L series tractors and other mini tractor brands. A fuel pump is a device whose task is to deliver fuel from the fuel tank to the fuel system , maintain adequate fuel pressure, and deliver the appropriate amount of fuel for proper engine operation. The most common fuel pump used in tractors is the in-tank, submersible pump , mounted inside the fuel tank and operating fully submerged.

Dimensions :

• Total height: 92.50 mm,
• Spacing of mounting screw holes: 44 mm,
• Diameter of mounting screw holes: 6.50 mm,
• Internal diameter of the connections: 6.30 / 6.30 mm,
• Outer diameter of the connectors: 8 / 8 mm,
• Two seals included,
• Comparison numbers: 17121-52030.

Tractor models :

• Kubota L3408.

The most common submersible fuel pump failure is running the tractor with too little fuel. The in-tank pump is cooled and lubricated by fuel during operation, so running with too little fuel can damage it. The first signs of a faulty fuel pump include a loss of engine power, rough engine operation, or difficulty starting the engine .

Magazine: K18:F22

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
