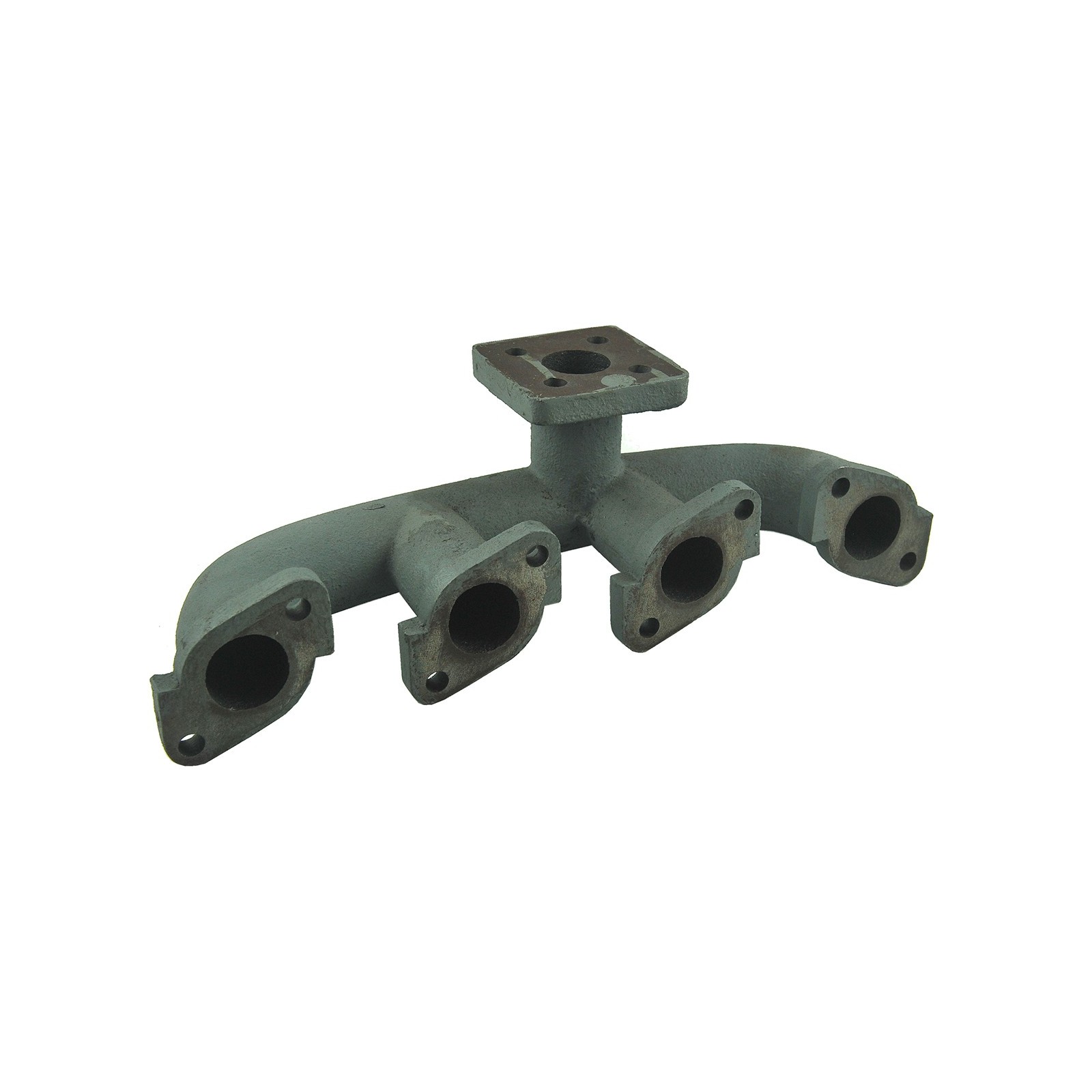

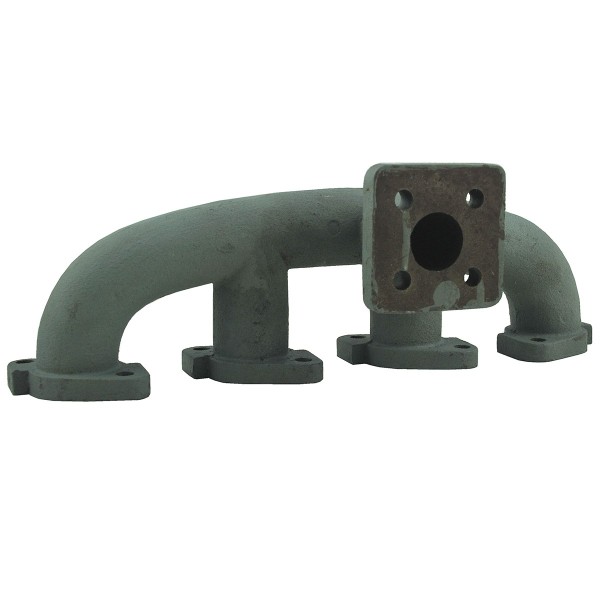

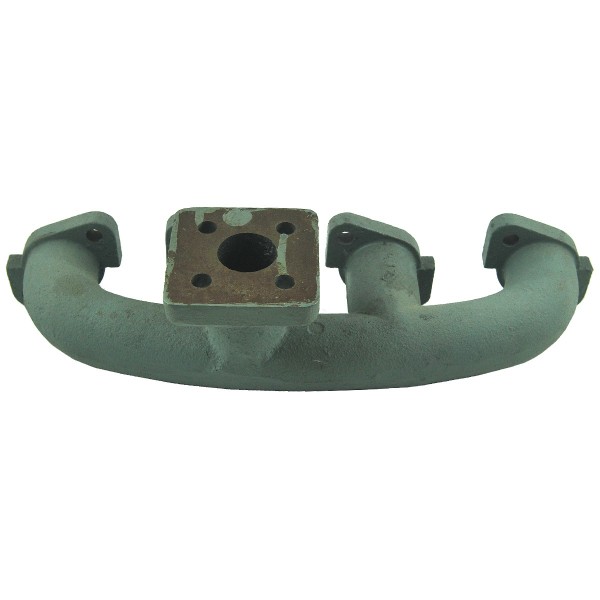

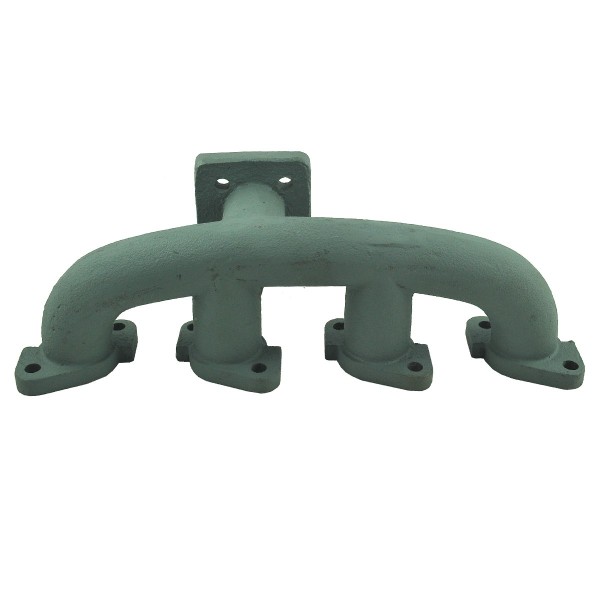

Exhaust manifold / Kubota V1702/V1902 / Kubota L2602/L2802 / 15465-12312

Exhaust manifold with a total length of 345 mm and a height of 120 mm for Kubota tractors of the Kubota L2602, Kubota L2802 and other series, with Kubota V1702, Kubota V1902 and other engines.

The exhaust manifold is the element responsible for removing exhaust gases from the engine cylinders to the exhaust pipe. The exhaust manifold has as many pipes as there are cylinders in the engine and is mounted directly on the engine block (gasket required). The exhaust manifold is made of high-quality metal alloy resistant to extremely high temperatures.

Dimensions :

• total length: 345 mm,
• height: 120 mm,
• diameter of drainage holes: 5 x 30 mm,
• spacing of holes for mounting screws: 4 x 62 mm (measured diagonally) / 40 mm (measured from each other) 57 mm (measured diagonally),
• original part numbers: 15465-12312,
• comparison numbers: -,
• part numbers: -.

Tractor models :

Kubota :

• Kubota L2602,
• Kubota L2802.

Engine models :

Kubota :

• Kubota V1702,
• Kubota V1902.

The first signs of damage to the exhaust manifold are a reduction in engine power and an increase in noise while the engine is running. Deformations or cracks in the exhaust manifold are the result of high temperatures, which cause leaks in the exhaust system.
