Exhaust manifold / Kubota B5000 / Kubota Z500 / 15221-221248

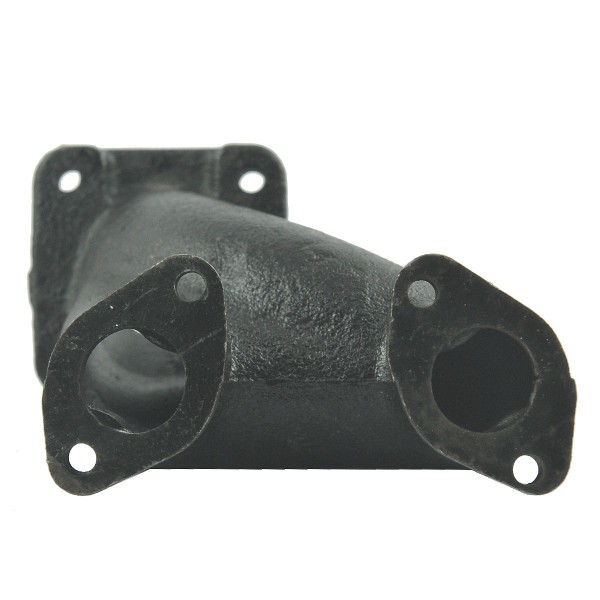

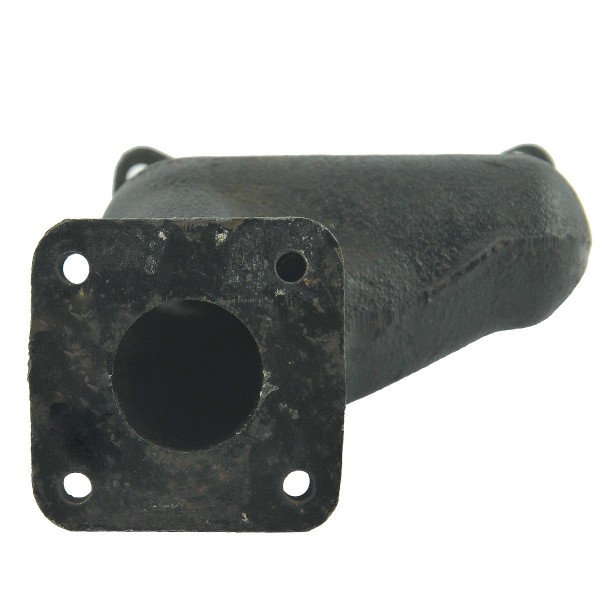

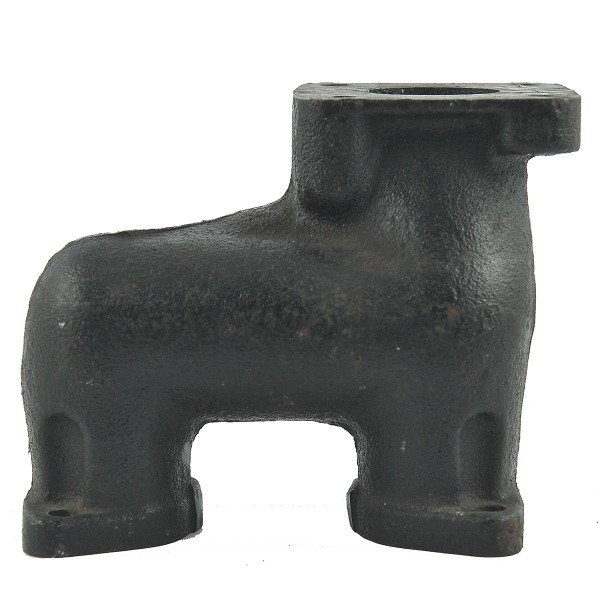

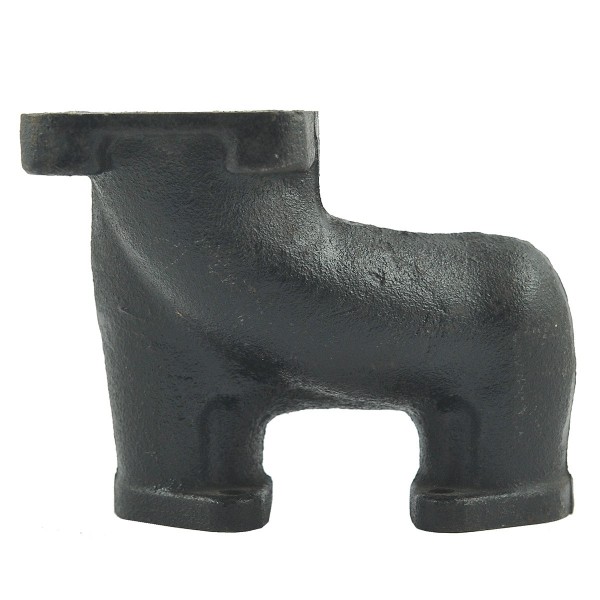

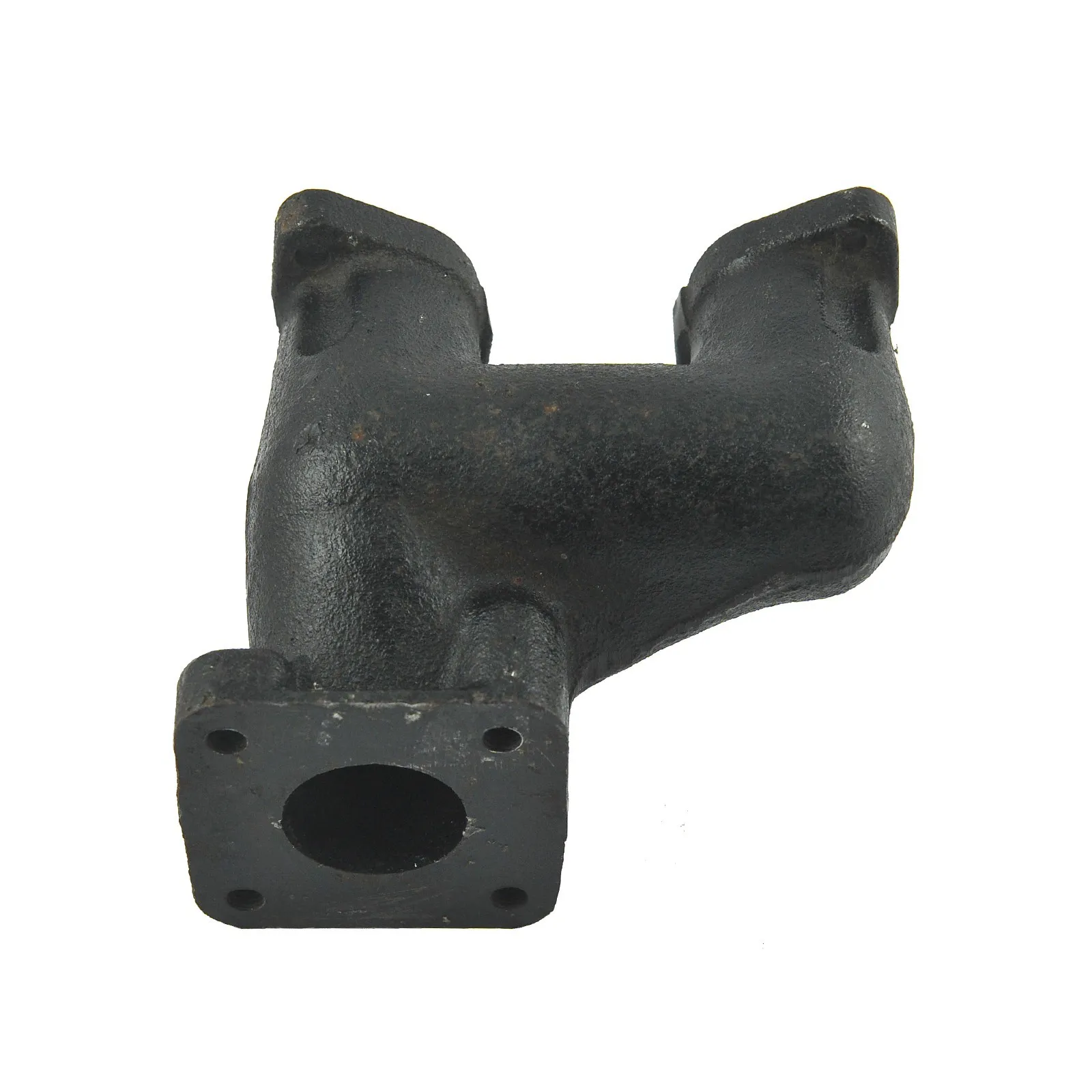

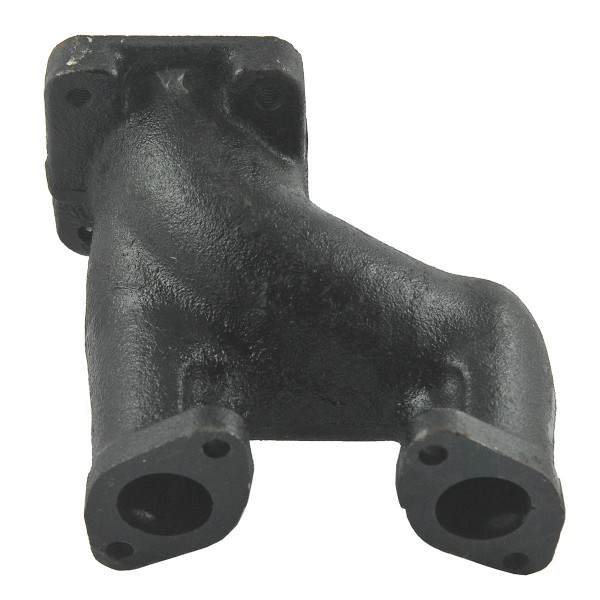

Exhaust manifold with a total length of 125 mm and a height of 110 mm for Kubota tractors of the Kubota B5000 series with Kubota Z500 engines and others.

The exhaust manifold is the element responsible for discharging exhaust gases from the engine cylinders to the exhaust pipe. The exhaust manifold has as many pipes as there are cylinders in the engine and is mounted directly on the engine block (gasket required). The exhaust manifold is made of a high-quality metal alloy resistant to extremely high temperatures.

Dimensions :

• total length: 125 mm,
• height: 110mm,
• diameter of drain holes: 2 x 25 / 1 x 35 mm,
• spacing of drain holes: 83 (measured from the center to the center of the holes).
• diameter of holes for mounting screws: 6 mm,

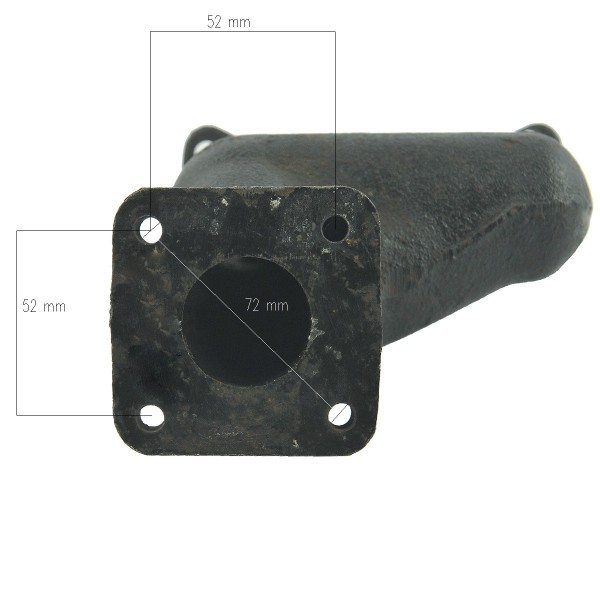

• spacing of holes for mounting screws A (output 1 hole): 72 mm (measured diagonally), 52 mm (measured from each other),

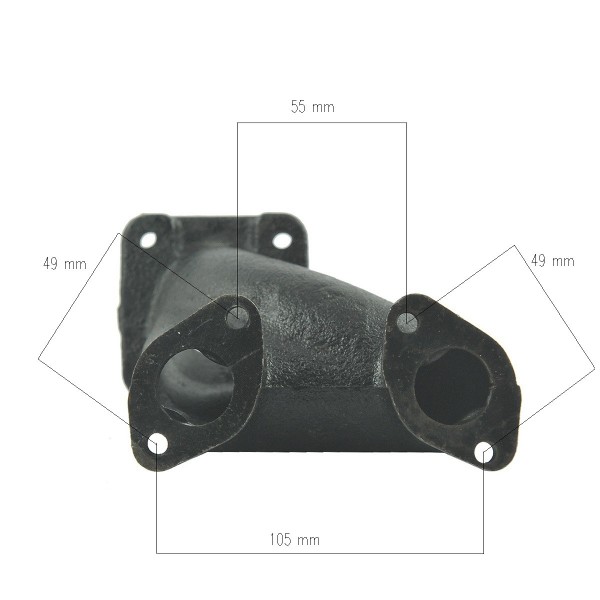

• spacing of holes for mounting screws B (2 holes output): 2 x 49 mm (measured diagonally), 55/105 mm (measured horizontally from each other),
• original part numbers: 15221-221248,
• part numbers: 31005.

Tractor models :

Kubota :

• Kubota B5000.

Engine Models :

Kubota :

• Kubota Z500.

Warehouse :
M01:B94:S03
