Excavator for tractor LW-8 4FARMER

Excavator for LW 4FARMER tractor

The LW 4FARMER excavator is a series of mini excavators for tractors and mini tractors attached to the tractor's three-point linkage . The universal single-bucket excavator for a tractor is used for all types of earthworks such as digging, meliorating fields or cleaning ditches, but can also perform a reloading function or serve as a crane. The LW 4Farmer excavator is designed for small earthworks in households, farms and is designed for tractors with power from 15 to 180 HP (+/- 5 HP) with a digging depth of 1650 to 3655 mm . The LW 4FARMER excavator is available in several sizes, which allows it to be successfully used in municipal services and construction. Available sizes:

• LW-5 4FARMER mounted tractor excavator / minimum power 15 HP / digging depth 1650 mm / weight 360 kg,
• LW-6 4FARMER mounted tractor excavator / minimum power 20 HP / digging depth 2000 mm / weight 550 kg,
• LW-7 4FARMER mounted tractor excavator / minimum power 30 HP / digging depth 2400 mm / weight 560 kg,
• LW-8 4FARMER mounted tractor excavator / minimum power 50 HP / digging depth 2800 mm / weight 630 kg.

4FAMER LW tractor excavator

The tractor excavator consists of its own hydraulic pump, frame, lifting arm, hydraulic cylinders, stabilizing legs and bucket and a control cockpit with an operator's seat. The excavator's hydraulic system is powered by its own hydraulic pump connected to the tractor 's PTO shaft and has its own oil tank , thanks to which the excavator has an independent oil system , which means that the tractor's hydraulic oil does not mix with the excavator's hydraulic oil.

Excavator designed to work with a tractor, the most important features and dimensions of the LW-5 4FARMER excavator

The LW excavator is an excavator suspended by means of pins to a tractor with a three-point linkage ( TUZ ) of the first category ( Cat I ). The excavator has its own hydraulic pump mounted on the tractor's power take-off shaft with the designation CBN-F320 . The dedicated bucket width for the LW8 4FARMER model is 400 mm with a capacity of 0.05 m3.

Technical data :

• model: LW-8 4FARMER ,
• weight: 630 kg,
• maximum cutting depth: 2800 mm,
• maximum digging height: 3460 mm,
• maximum digging radius: 3600 mm,
• maximum discharge height: 2380 mm,
• Stabilizer spacing: 2200 mm,
• clearance: 500 mm,
• bucket rotation angle: 160 °,

• bucket capacity: 0.06 m3,
• bucket width: 450 mm, 18 inches,
• transport width: 2000 mm,
• Hydraulic pump: CBN-F320 .

When choosing an excavator, you should pay attention to the excavator's digging properties and the weight, size and wheelbase of the pulling axle. For the LW 4FARMER excavator, we can use buckets of different sizes and types interchangeably. The excavator does not require a hydraulic connection to the tractor's hydraulic system.

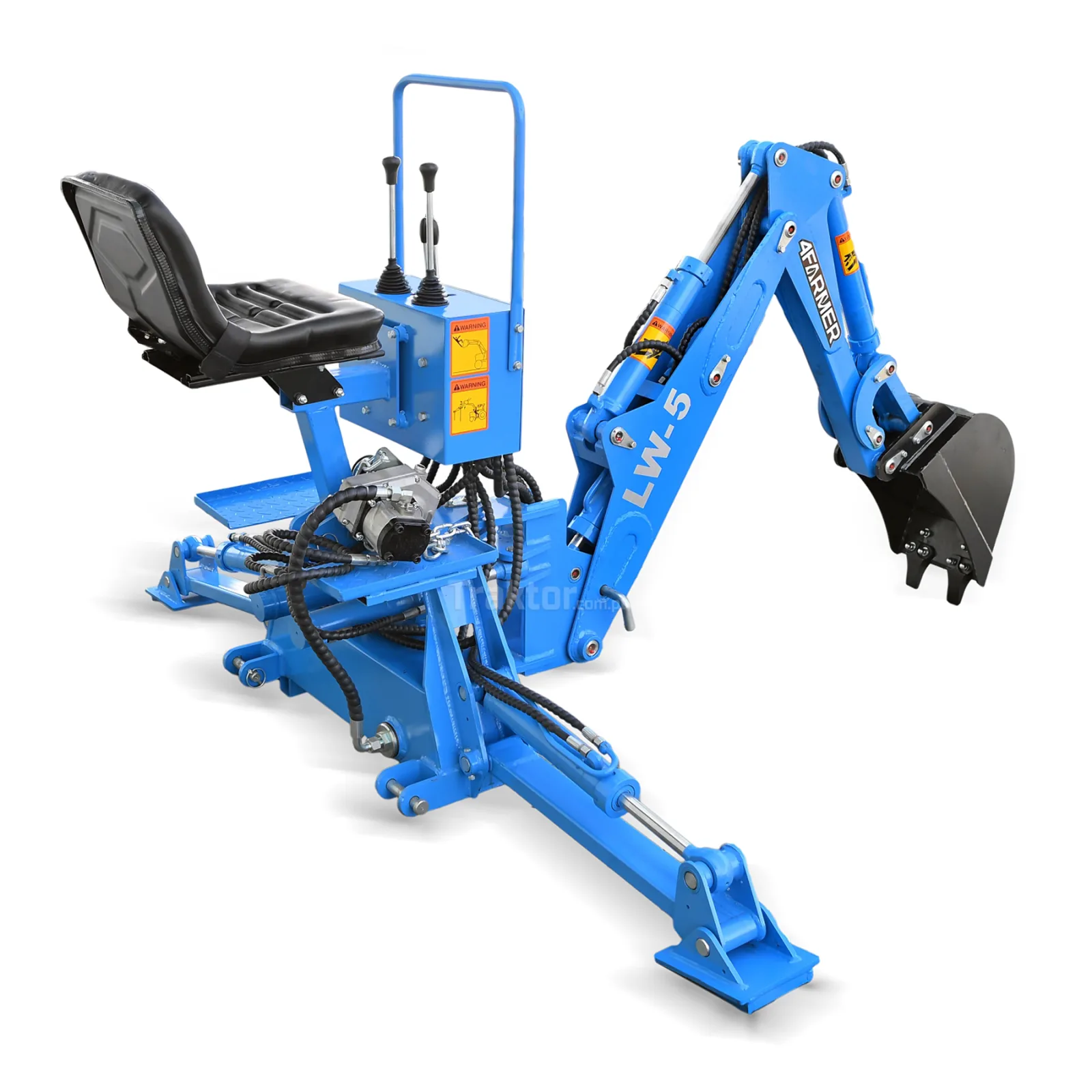

*Illustrative photo
