Engine valves / EX / IN / Iseki TX1300 / TX1500 / Mitsubishi KE70 / KE75

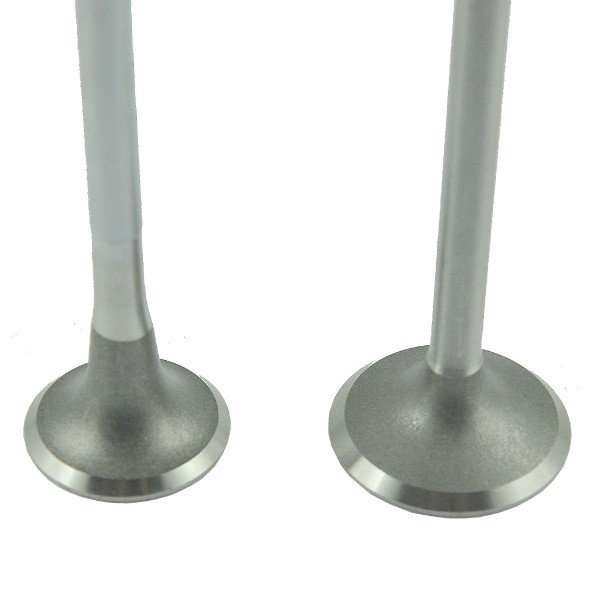

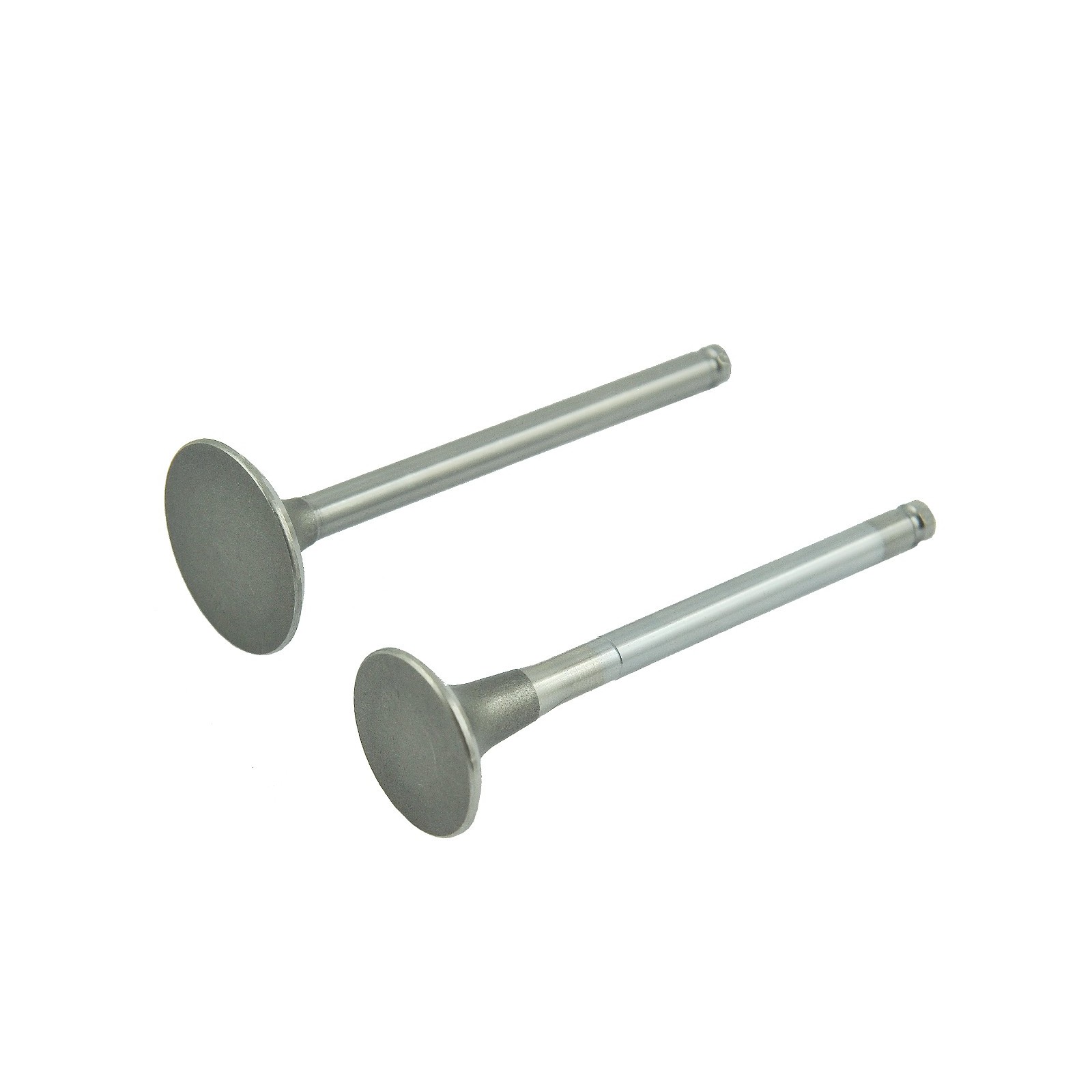

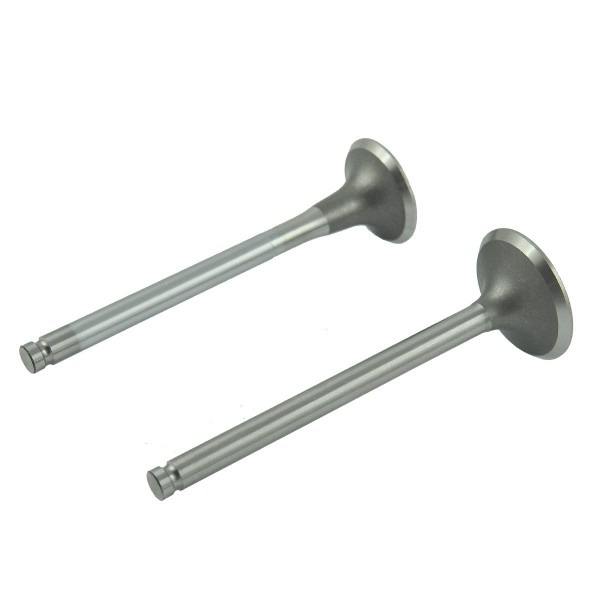

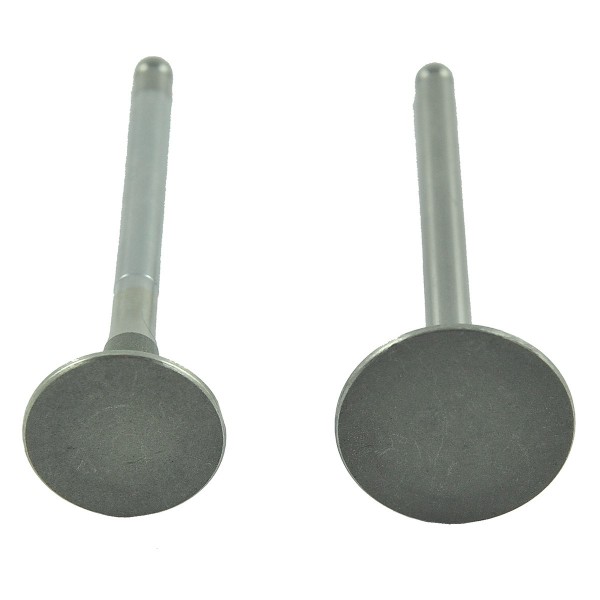

Valve set 2 pcs . (1 pc. inlet, 1 pc. outlet, valve guide 9-22-103-01 ) Mitsubishi KE70, Mitsubishi KE75 engine with a length of 116 mm and a poppet diameter of 38 mm (IN) / 32 mm (EX) for Iseki tractors of the Iseki TX1300 series, Iseki TX1500 series, Mitsubishi brand Mitsubishi D1300 series, Mitsubishi D1500, Satoh brand Satoh ST1300 series, Satoh ST1510 and others.

Engine valves are components located in the cylinder head (overhead valve engine) or engine block (lower valve engine). Their main function is to properly control the flow of air, the fuel-air mixture, and exhaust gases. There are two types of valves:

• intake valves are responsible for opening the chamber to draw in the appropriate amount of fuel mixture,
• exhaust valves, responsible for removing gases generated during engine operation from the chamber.

The valves consist of a rod with a disc at the end and are fully cast. Engine valves are made of special steel resistant to the extremely high temperatures generated during fuel combustion, known as heat-resistant steel.

Dimensions :

• height: 116 mm,
• shaft diameter: 7.85 mm,
• mushroom diameter: 38 mm (IN), 32 mm (EX).
• original part numbers: -,
• part number: 9-24-103-02.

Engine models:

Mitsubishi:

• Mitsubishi KE70,
• Mitsubishi KE75.

Tractor models :

Iseki :

• Iseki TX1300,
• Iseki TX1500.

Mitsubishi :

• Mitsubishi D1300,
• Mitsubishi D1500.

Satoh :

• Satoh ST1300,
• Satoh ST1510.

Engine valves are components that wear out under harsh operating conditions and high temperatures. The most common valve damage is valve stem wear and carbon buildup. Valve deposits are a result of using low-quality oil, and valve head wear causes leaks and loss of engine power.

Magazine: K18: A12:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
